YACS::HMI::ItemEditionBase Class Reference

#include <ItemEdition.hxx>

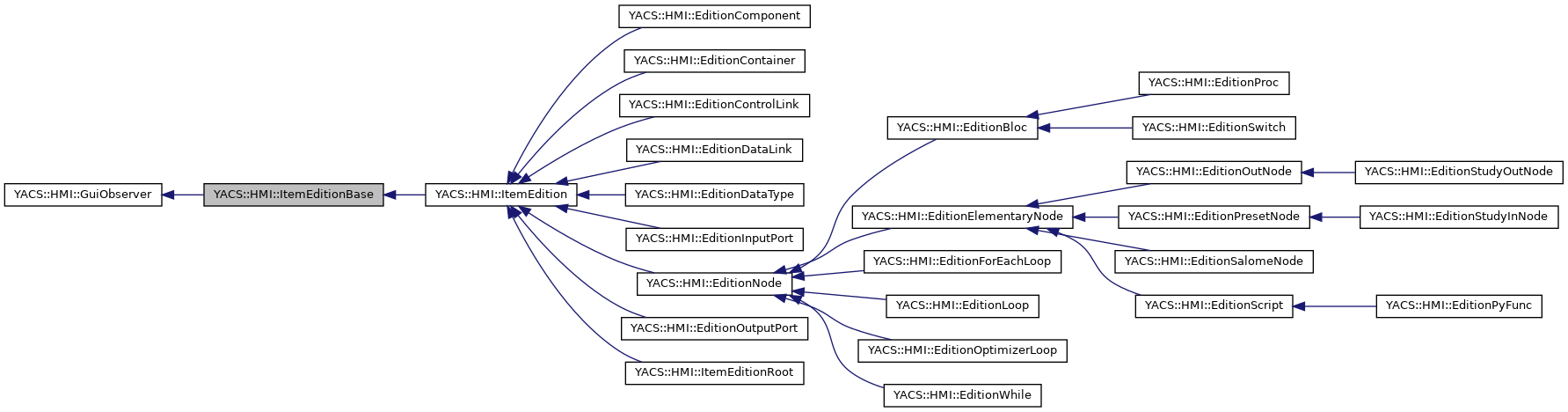

Inheritance diagram for YACS::HMI::ItemEditionBase:

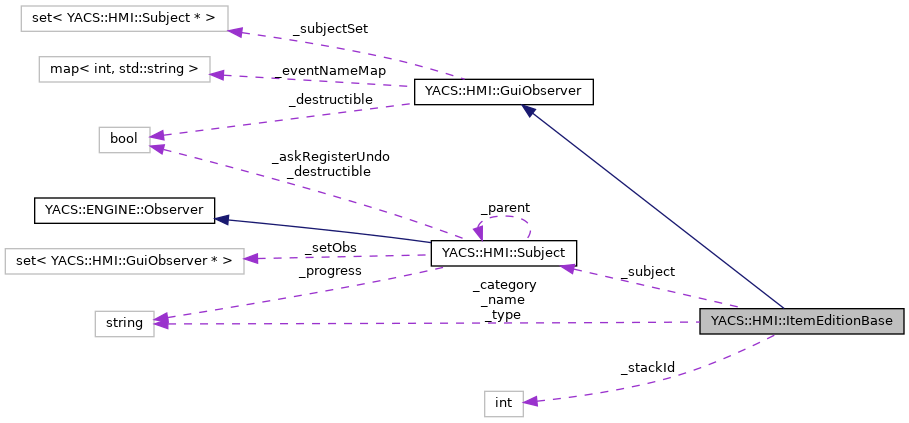

Collaboration diagram for YACS::HMI::ItemEditionBase:

Public Member Functions
	ItemEditionBase (Subject *subject)
virtual	~ItemEditionBase ()
virtual void	select (bool isSelected)
virtual void	synchronize ()
virtual void	update (GuiEvent event, int type, Subject *son)
virtual Subject *	getSubject ()
Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()
virtual	~GuiObserver ()
virtual void	select (bool isSelected)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual void	incrementSubjects (Subject *subject)
virtual void	decrementSubjects (Subject *subject)
int	getNbSubjects ()
bool	isDestructible ()

Protected Attributes
Subject *	_subject
int	_stackId
std::string	_name
std::string	_type
std::string	_category
Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet
bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)
static void	setEventMap ()
Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 36 of file ItemEdition.hxx.

Constructor & Destructor Documentation

ItemEditionBase()

ItemEditionBase::ItemEditionBase

(

Subject *

subject

)

get name and strings for type of item and category

Definition at line 68 of file ItemEdition.cxx.

  : GuiObserver(), _subject(subject)
{
  _subject->attach(this);
  _stackId = -1;
  _name = _subject->getName();
  _type = "Unknown";
  _category = "Unknown";
  ProcInvoc* invoc = QtGuiContext::getQtCurrent()->getInvoc();
  if (SubjectNode * sub = dynamic_cast<SubjectNode*>(_subject))
    {
      _category = "Node";
      _type = invoc->getTypeName(invoc->getTypeOfNode(sub->getNode()));
    }
  else if (SubjectDataPort * sub = dynamic_cast<SubjectDataPort*>(_subject))
    {
      _category = "Port";
      _type = invoc->getTypeName(invoc->getTypeOfPort(sub->getPort()));
    }
  else if (SubjectLink * sub = dynamic_cast<SubjectLink*>(_subject))
    {
      _category = "Link";
      _type = "Link";
    }
  else if (SubjectControlLink * sub = dynamic_cast<SubjectControlLink*>(_subject))
    {
      _category = "ControlLink";
      _type = "Control Link";
    }
  else if (SubjectDataType * sub = dynamic_cast<SubjectDataType*>(_subject))
    {
      _category = "Data";
      switch (sub->getTypeCode()->kind())
        {
        case YACS::ENGINE::Double:   _type = "Double"; break;
        case YACS::ENGINE::Int:      _type = "Int"; break;
        case YACS::ENGINE::String:   _type = "String"; break;
        case YACS::ENGINE::Bool:     _type = "Bool"; break;
        case YACS::ENGINE::Objref:   _type = "Objref"; break;
        case YACS::ENGINE::Sequence: _type = "Sequence"; break;
        case YACS::ENGINE::Array:    _type = "Array"; break;
        case YACS::ENGINE::Struct:   _type = "Struct"; break;
        default: _type = "None or Unknown";
        }
    }
  else if (SubjectComponent * sub = dynamic_cast<SubjectComponent*>(_subject))
    {
      _category = "Component";
      _type = "Salome Component";
    }
  else if (SubjectContainerBase * sub = dynamic_cast<SubjectContainerBase*>(_subject))
    {
      _category = "Container";
      _type = sub->getLabelForHuman();
    }
}

References _category, _name, _stackId, _subject, _type, YACS::ENGINE::Array, YACS::HMI::Subject::attach(), YACS::ENGINE::Bool, YACS::ENGINE::Double, YACS::HMI::GuiContext::getInvoc(), YACS::HMI::Subject::getName(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::ProcInvoc::getTypeName(), YACS::HMI::ProcInvoc::getTypeOfNode(), YACS::HMI::ProcInvoc::getTypeOfPort(), YACS::ENGINE::Int, YACS::ENGINE::Objref, YACS::ENGINE::Sequence, YACS::ENGINE::String, and YACS::ENGINE::Struct.

~ItemEditionBase()

ItemEditionBase::~ItemEditionBase ( )

virtual

Definition at line 125 of file ItemEdition.cxx.

{
}

Member Function Documentation

getSubject()

Subject * ItemEditionBase::getSubject ( )

virtual

Definition at line 142 of file ItemEdition.cxx.

{
  return _subject;
}

References _subject.

select()

void ItemEditionBase::select ( bool  isSelected )

virtual

Reimplemented from YACS::HMI::GuiObserver.

Reimplemented in YACS::HMI::EditionInputPort, YACS::HMI::EditionOutputPort, and YACS::HMI::ItemEdition.

Definition at line 129 of file ItemEdition.cxx.

{
  DEBTRACE("ItemEditionBase::select " << isSelected);
}

References DEBTRACE.

synchronize()

void ItemEditionBase::synchronize ( )

virtual

Reimplemented in YACS::HMI::EditionElementaryNode, YACS::HMI::EditionForEachLoop, YACS::HMI::EditionLoop, YACS::HMI::EditionOptimizerLoop, YACS::HMI::EditionProc, YACS::HMI::EditionSalomeNode, YACS::HMI::EditionScript, YACS::HMI::EditionSwitch, YACS::HMI::EditionWhile, and YACS::HMI::ItemEdition.

Definition at line 134 of file ItemEdition.cxx.

{
}

update()

void ItemEditionBase::update ( GuiEvent  event, int  type, Subject *  son  )

virtual

Reimplemented from YACS::HMI::GuiObserver.

Reimplemented in YACS::HMI::EditionBloc, YACS::HMI::EditionComponent, YACS::HMI::EditionContainer, YACS::HMI::EditionDataLink, YACS::HMI::EditionForEachLoop, YACS::HMI::EditionLoop, YACS::HMI::EditionNode, YACS::HMI::EditionOptimizerLoop, YACS::HMI::EditionProc, YACS::HMI::EditionSalomeNode, YACS::HMI::EditionSwitch, YACS::HMI::EditionWhile, and YACS::HMI::ItemEdition.

Definition at line 138 of file ItemEdition.cxx.

{
}

Referenced by gui.graph.MyCanvas::customEvent().

Member Data Documentation

_category

std::string YACS::HMI::ItemEditionBase::_category

protected

Definition at line 50 of file ItemEdition.hxx.

Referenced by ItemEditionBase().

_name

std::string YACS::HMI::ItemEditionBase::_name

protected

Definition at line 48 of file ItemEdition.hxx.

Referenced by YACS::HMI::ItemEdition::ItemEdition(), ItemEditionBase(), YACS::HMI::ItemEdition::onApply(), YACS::HMI::ItemEdition::onCancel(), YACS::HMI::ItemEdition::onModifyName(), YACS::HMI::ItemEdition::setName(), YACS::HMI::ItemEdition::update(), and YACS::HMI::ItemEdition::~ItemEdition().

_stackId

int YACS::HMI::ItemEditionBase::_stackId

protected

Definition at line 47 of file ItemEdition.hxx.

Referenced by YACS::HMI::ItemEdition::ItemEdition(), and ItemEditionBase().

_subject

Subject* YACS::HMI::ItemEditionBase::_subject

protected

Definition at line 46 of file ItemEdition.hxx.

Referenced by YACS::HMI::EditionComponent::changeContainer(), YACS::HMI::EditionSalomeNode::changeContainer(), YACS::HMI::EditionSalomeNode::changeInstance(), YACS::HMI::EditionBloc::EditionBloc(), YACS::HMI::EditionComponent::EditionComponent(), YACS::HMI::EditionDataLink::EditionDataLink(), YACS::HMI::EditionElementaryNode::EditionElementaryNode(), YACS::HMI::EditionInputPort::EditionInputPort(), YACS::HMI::EditionNode::EditionNode(), YACS::HMI::EditionOutputPort::EditionOutputPort(), YACS::HMI::EditionPyFunc::EditionPyFunc(), YACS::HMI::EditionSalomeNode::EditionSalomeNode(), YACS::HMI::EditionScript::EditionScript(), YACS::HMI::EditionComponent::fillContainerPanel(), YACS::HMI::EditionContainer::getContainer(), getSubject(), YACS::HMI::ItemEdition::ItemEdition(), ItemEditionBase(), YACS::HMI::ItemEdition::onApply(), YACS::HMI::EditionWhile::onConditionEdited(), YACS::HMI::EditionSwitch::onModifySelect(), YACS::HMI::EditionForEachLoop::onNbBranchesEdited(), YACS::HMI::EditionOptimizerLoop::onNbBranchesEdited(), YACS::HMI::EditionLoop::onNbStepsEdited(), YACS::HMI::EditionInputPort::select(), YACS::HMI::EditionOutputPort::select(), YACS::HMI::ItemEdition::setEdited(), YACS::HMI::EditionElementaryNode::synchronize(), YACS::HMI::EditionForEachLoop::synchronize(), YACS::HMI::EditionLoop::synchronize(), YACS::HMI::EditionOptimizerLoop::synchronize(), YACS::HMI::EditionSwitch::synchronize(), YACS::HMI::EditionWhile::synchronize(), YACS::HMI::EditionForEachLoop::update(), YACS::HMI::EditionLoop::update(), YACS::HMI::EditionOptimizerLoop::update(), YACS::HMI::EditionSwitch::update(), YACS::HMI::EditionWhile::update(), YACS::HMI::ItemEdition::update(), and YACS::HMI::ItemEdition::~ItemEdition().

_type

std::string YACS::HMI::ItemEditionBase::_type

protected

Definition at line 49 of file ItemEdition.hxx.

Referenced by YACS::HMI::ItemEdition::ItemEdition(), and ItemEditionBase().

---

The documentation for this class was generated from the following files:

• src/genericgui/ItemEdition.hxx
• src/genericgui/ItemEdition.cxx
