#include <EditionComponent.hxx>

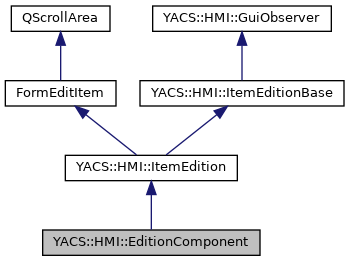

Inheritance diagram for YACS::HMI::EditionComponent:

[legend]

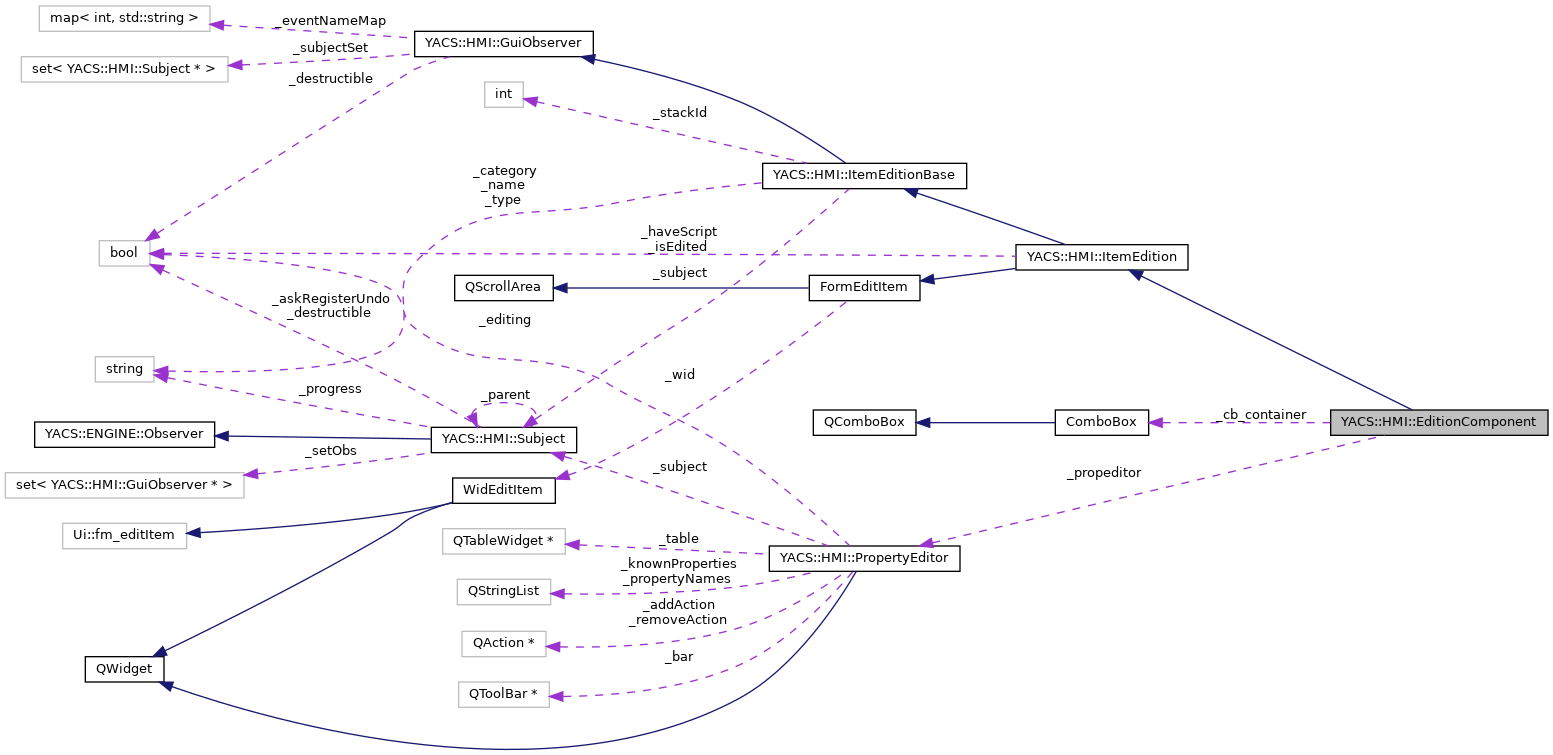

Collaboration diagram for YACS::HMI::EditionComponent:

[legend]

Public Slots
virtual void	fillContainerPanel ()

virtual void	changeContainer (int index)

Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionComponent (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionComponent ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	synchronize ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual void	select (bool isSelected)

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
PropertyEditor *	_propeditor

ComboBox *	_cb_container

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 32 of file EditionComponent.hxx.

Constructor & Destructor Documentation

◆ EditionComponent()

EditionComponent::EditionComponent	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 36 of file EditionComponent.cxx.

  : ItemEdition(subject, parent, name)
{

  QHBoxLayout* hboxLayout = new QHBoxLayout();
  hboxLayout->setSizeConstraint(QLayout::SetDefaultConstraint);
  QLabel* la_container = new QLabel("Container:");
  hboxLayout->addWidget(la_container);
  _cb_container = new ComboBox();
  hboxLayout->addWidget(_cb_container);
  _wid->gridLayout1->addLayout(hboxLayout, 3, 0, 1, 1);
  _propeditor=new PropertyEditor(_subject);
  _wid->gridLayout1->addWidget(_propeditor);

  connect(_cb_container, SIGNAL(mousePressed()),
          this, SLOT(fillContainerPanel()));
  connect(_cb_container, SIGNAL(activated(int)),
          this, SLOT(changeContainer(int)));

  fillContainerPanel();
}

References _cb_container, _propeditor, YACS::HMI::ItemEditionBase::_subject, FormEditItem::_wid, changeContainer(), and fillContainerPanel().

◆ ~EditionComponent()

EditionComponent::~EditionComponent ( )

virtual

Definition at line 60 of file EditionComponent.cxx.

61{

62}

Member Function Documentation

◆ changeContainer

void EditionComponent::changeContainer ( int index )

virtualslot

Definition at line 92 of file EditionComponent.cxx.

{
  string contName = _cb_container->itemText(index).toStdString();
  DEBTRACE(contName);
  SubjectComponent *scompo=dynamic_cast<SubjectComponent*>(_subject);
  ComponentInstance *compoInst = scompo->getComponent();

  Proc* proc = GuiContext::getCurrent()->getProc();

  if (proc->containerMap.count(contName)==0)
    {
      DEBTRACE("-------------> not found : " << contName);
      return;
    }
  Container *newContainer =proc->containerMap[contName];
  SubjectContainerBase *scnt = GuiContext::getCurrent()->_mapOfSubjectContainer[newContainer];
  scompo->associateToContainer(scnt);
  scompo->select(true);
}

References _cb_container, YACS::HMI::GuiContext::_mapOfSubjectContainer, YACS::HMI::ItemEditionBase::_subject, YACS::HMI::SubjectComponent::associateToContainer(), YACS::ENGINE::Proc::containerMap, DEBTRACE, YACS::HMI::SubjectComponent::getComponent(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), and YACS::HMI::Subject::select().

Referenced by EditionComponent().

◆ fillContainerPanel

void EditionComponent::fillContainerPanel ( )

virtualslot

Definition at line 74 of file EditionComponent.cxx.

{
  Proc* proc = GuiContext::getCurrent()->getProc();
  _cb_container->clear();
  std::map<string,Container*>::const_iterator it = proc->containerMap.begin();
  for(; it != proc->containerMap.end(); ++it)
    _cb_container->addItem( QString((*it).first.c_str()));

  SubjectComponent *scompo=dynamic_cast<SubjectComponent*>(_subject);
  ComponentInstance *compoInst = scompo->getComponent();
  Container * cont = compoInst->getContainer();
  if (cont)
    {
      int index = _cb_container->findText(cont->getName().c_str());
      _cb_container->setCurrentIndex(index);
    }
}

References _cb_container, YACS::HMI::ItemEditionBase::_subject, YACS::ENGINE::Proc::containerMap, YACS::HMI::SubjectComponent::getComponent(), YACS::ENGINE::ComponentInstance::getContainer(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::Container::getName(), and YACS::HMI::GuiContext::getProc().

Referenced by EditionComponent(), and update().

◆ update()

void EditionComponent::update	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::ItemEdition.

Definition at line 64 of file EditionComponent.cxx.

{
  DEBTRACE("EditionComponent::update " <<eventName(event) << " " << type);
  if(event == SETVALUE)
    _propeditor->update();

  if(event == ADDREF || event == ASSOCIATE)
    fillContainerPanel();
}
