#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::ProcInvoc:

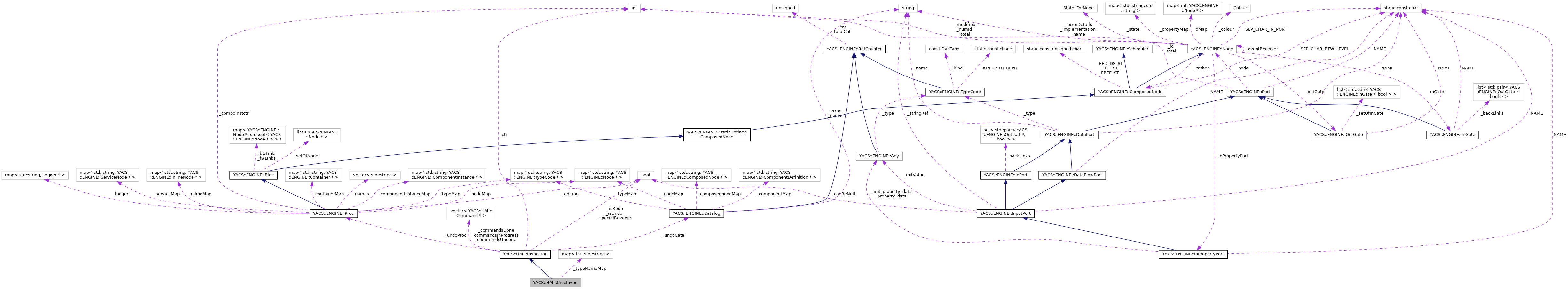

Collaboration diagram for YACS::HMI::ProcInvoc:

[legend]

Public Member Functions
	ProcInvoc ()

Public Member Functions inherited from YACS::HMI::Invocator
	Invocator ()

void	add (Command *command)

bool	undo ()

bool	redo ()

std::list< std::string >	getDone ()

std::list< std::string >	getUndone ()

YACS::ENGINE::Proc *	getUndoProc ()

YACS::ENGINE::Catalog *	getUndoCata ()

bool	isSpecialReverse ()

Static Public Member Functions
static TypeOfElem	getTypeOfNode (YACS::ENGINE::Node *node)

static TypeOfElem	getTypeOfPort (YACS::ENGINE::DataPort *port)

static std::string	getTypeName (TypeOfElem type)

Static Protected Attributes
static std::map< int, std::string >	_typeNameMap

Additional Inherited Members
Static Public Attributes inherited from YACS::HMI::Invocator
static int	_ctr = 0

Protected Attributes inherited from YACS::HMI::Invocator
std::vector< Command * >	_commandsDone

std::vector< Command * >	_commandsUndone

std::vector< Command * >	_commandsInProgress

YACS::ENGINE::Proc *	_undoProc

YACS::ENGINE::Catalog *	_undoCata

bool	_isRedo

bool	_isUndo

bool	_specialReverse

Detailed Description

Definition at line 96 of file commandsProc.hxx.

Constructor & Destructor Documentation

◆ ProcInvoc()

ProcInvoc::ProcInvoc ( )

Definition at line 99 of file commandsProc.cxx.

  : Invocator()
{
  _typeNameMap.clear();
  _typeNameMap[SALOMEPROC]           = "SALOMEPROC";
  _typeNameMap[BLOC]                 = "BLOC";
  _typeNameMap[FOREACHLOOP]          = "FOREACHLOOP";
  _typeNameMap[OPTIMIZERLOOP]        = "OPTIMIZERLOOP";
  _typeNameMap[FORLOOP]              = "FORLOOP";
  _typeNameMap[WHILELOOP]            = "WHILELOOP";
  _typeNameMap[SWITCH]               = "SWITCH";
  _typeNameMap[PYTHONNODE]           = "PYTHONNODE";
  _typeNameMap[PYFUNCNODE]           = "PYFUNCNODE";
  _typeNameMap[CORBANODE]            = "CORBANODE";
  _typeNameMap[SALOMENODE]           = "SALOMENODE";
  _typeNameMap[CPPNODE]              = "CPPNODE";
  _typeNameMap[SALOMEPYTHONNODE]     = "SALOMEPYTHONNODE";
  _typeNameMap[XMLNODE]              = "XMLNODE";
  _typeNameMap[SPLITTERNODE]         = "SPLITTERNODE";
  _typeNameMap[DFTODSFORLOOPNODE]    = "DFTODSFORLOOPNODE";
  _typeNameMap[DSTODFFORLOOPNODE]    = "DSTODFFORLOOPNODE";
  _typeNameMap[PRESETNODE]           = "PRESETNODE";
  _typeNameMap[OUTNODE]              = "OUTNODE";
  _typeNameMap[STUDYINNODE]          = "STUDYINNODE";
  _typeNameMap[STUDYOUTNODE]         = "STUDYOUTNODE";
  _typeNameMap[INPUTPORT]            = "INPUTPORT";
  _typeNameMap[OUTPUTPORT]           = "OUTPUTPORT";
  _typeNameMap[INPUTDATASTREAMPORT]  = "INPUTDATASTREAMPORT";
  _typeNameMap[OUTPUTDATASTREAMPORT] = "OUTPUTDATASTREAMPORT";
  _typeNameMap[DATALINK]             = "DATALINK";
  _typeNameMap[CONTROLLINK]          = "CONTROLLINK";
  _typeNameMap[CONTAINER]            = "CONTAINER";
  _typeNameMap[COMPONENT]            = "COMPONENT";
  _typeNameMap[REFERENCE]            = "REFERENCE";
  _typeNameMap[DATATYPE]             = "DATATYPE";
}

References _typeNameMap, YACS::HMI::BLOC, YACS::HMI::COMPONENT, YACS::HMI::CONTAINER, YACS::HMI::CONTROLLINK, YACS::HMI::CORBANODE, YACS::HMI::CPPNODE, YACS::HMI::DATALINK, YACS::HMI::DATATYPE, YACS::HMI::DFTODSFORLOOPNODE, YACS::HMI::DSTODFFORLOOPNODE, YACS::HMI::FOREACHLOOP, YACS::HMI::FORLOOP, YACS::HMI::INPUTDATASTREAMPORT, YACS::HMI::INPUTPORT, YACS::HMI::OPTIMIZERLOOP, YACS::HMI::OUTNODE, YACS::HMI::OUTPUTDATASTREAMPORT, YACS::HMI::OUTPUTPORT, YACS::HMI::PRESETNODE, YACS::HMI::PYFUNCNODE, YACS::HMI::PYTHONNODE, YACS::HMI::REFERENCE, YACS::HMI::SALOMENODE, YACS::HMI::SALOMEPROC, YACS::HMI::SALOMEPYTHONNODE, YACS::HMI::SPLITTERNODE, YACS::HMI::STUDYINNODE, YACS::HMI::STUDYOUTNODE, YACS::HMI::SWITCH, YACS::HMI::WHILELOOP, and YACS::HMI::XMLNODE.

Member Function Documentation

◆ getTypeName()

std::string ProcInvoc::getTypeName ( TypeOfElem type )

static

Definition at line 170 of file commandsProc.cxx.

{
  if (_typeNameMap.count(type))
    return _typeNameMap[type];
  else
    return "UNKNOWN";
}

References _typeNameMap.

Referenced by YACS::HMI::CommandDestroy::dump(), and YACS::HMI::ItemEditionBase::ItemEditionBase().

◆ getTypeOfNode()

TypeOfElem ProcInvoc::getTypeOfNode ( YACS::ENGINE::Node * node )

static

Definition at line 136 of file commandsProc.cxx.

{
  TypeOfElem nodeType = UNKNOWN;
  if      (dynamic_cast<YACS::ENGINE::Bloc*>(node))             nodeType = BLOC;
  else if (dynamic_cast<YACS::ENGINE::PythonNode*>(node))       nodeType = PYTHONNODE;
  else if (dynamic_cast<YACS::ENGINE::PyFuncNode*>(node))       nodeType = PYFUNCNODE;
  else if (dynamic_cast<YACS::ENGINE::CORBANode*>(node))        nodeType = CORBANODE;
  else if (dynamic_cast<YACS::ENGINE::CppNode*>(node))          nodeType = CPPNODE;
  else if (dynamic_cast<YACS::ENGINE::SalomeNode*>(node))       nodeType = SALOMENODE;
  else if (dynamic_cast<YACS::ENGINE::SalomePythonNode*>(node)) nodeType = SALOMEPYTHONNODE;
  else if (dynamic_cast<YACS::ENGINE::XmlNode*>(node))          nodeType = XMLNODE;
  else if (dynamic_cast<YACS::ENGINE::SplitterNode*>(node))     nodeType = SPLITTERNODE;
  else if (dynamic_cast<YACS::ENGINE::ForLoop*>(node))          nodeType = FORLOOP;
  else if (dynamic_cast<YACS::ENGINE::WhileLoop*>(node))        nodeType = WHILELOOP;
  else if (dynamic_cast<YACS::ENGINE::Switch*>(node))           nodeType = SWITCH;
  else if (dynamic_cast<YACS::ENGINE::ForEachLoopGen*>(node))      nodeType = FOREACHLOOP;
  else if (dynamic_cast<YACS::ENGINE::OptimizerLoop*>(node))    nodeType = OPTIMIZERLOOP;
  else if (dynamic_cast<YACS::ENGINE::PresetNode*>(node))       nodeType = PRESETNODE;
  else if (dynamic_cast<YACS::ENGINE::OutNode*>(node))          nodeType = OUTNODE;
  else if (dynamic_cast<YACS::ENGINE::StudyInNode*>(node))      nodeType = STUDYINNODE;
  else if (dynamic_cast<YACS::ENGINE::StudyOutNode*>(node))     nodeType = STUDYOUTNODE;
  return nodeType;
}

References YACS::HMI::BLOC, YACS::HMI::CORBANODE, YACS::HMI::CPPNODE, YACS::HMI::FOREACHLOOP, YACS::HMI::FORLOOP, YACS::HMI::OPTIMIZERLOOP, YACS::HMI::OUTNODE, YACS::HMI::PRESETNODE, YACS::HMI::PYFUNCNODE, YACS::HMI::PYTHONNODE, YACS::HMI::SALOMENODE, YACS::HMI::SALOMEPYTHONNODE, YACS::HMI::SPLITTERNODE, YACS::HMI::STUDYINNODE, YACS::HMI::STUDYOUTNODE, YACS::HMI::SWITCH, YACS::HMI::UNKNOWN, YACS::HMI::WHILELOOP, and YACS::HMI::XMLNODE.

Referenced by YACS::HMI::SubjectComposedNode::addSubjectNode(), YACS::HMI::GenericGui::createContext(), YACS::HMI::ItemEditionBase::ItemEditionBase(), YACS::HMI::CommandAddNodeFromCatalog::localExecute(), YACS::HMI::CommandReparentNode::localExecute(), YACS::HMI::CommandPutInComposedNode::localExecute(), YACS::HMI::CommandReparentNode::localReverse(), YACS::HMI::CommandPutInComposedNode::localReverse(), YACS::HMI::SubjectNode::notifyObserver(), YACS::HMI::SchemaInPortItem::SchemaInPortItem(), and YACS::HMI::SchemaInPortItem::update().

◆ getTypeOfPort()

TypeOfElem ProcInvoc::getTypeOfPort ( YACS::ENGINE::DataPort * port )

static

Definition at line 160 of file commandsProc.cxx.

{
  TypeOfElem portType = UNKNOWN;
  if      (dynamic_cast<YACS::ENGINE::InputPort*>(port))            portType = INPUTPORT;
  else if (dynamic_cast<YACS::ENGINE::OutputPort*>(port))           portType = OUTPUTPORT;
  else if (dynamic_cast<YACS::ENGINE::InputDataStreamPort*>(port))  portType = INPUTDATASTREAMPORT;
  else if (dynamic_cast<YACS::ENGINE::OutputDataStreamPort*>(port)) portType = OUTPUTDATASTREAMPORT;
  return portType;
}
