#include <EditionSalomeNode.hxx>

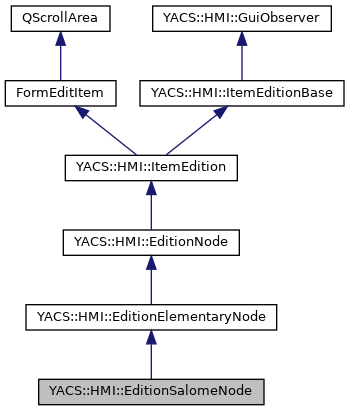

Inheritance diagram for YACS::HMI::EditionSalomeNode:

[legend]

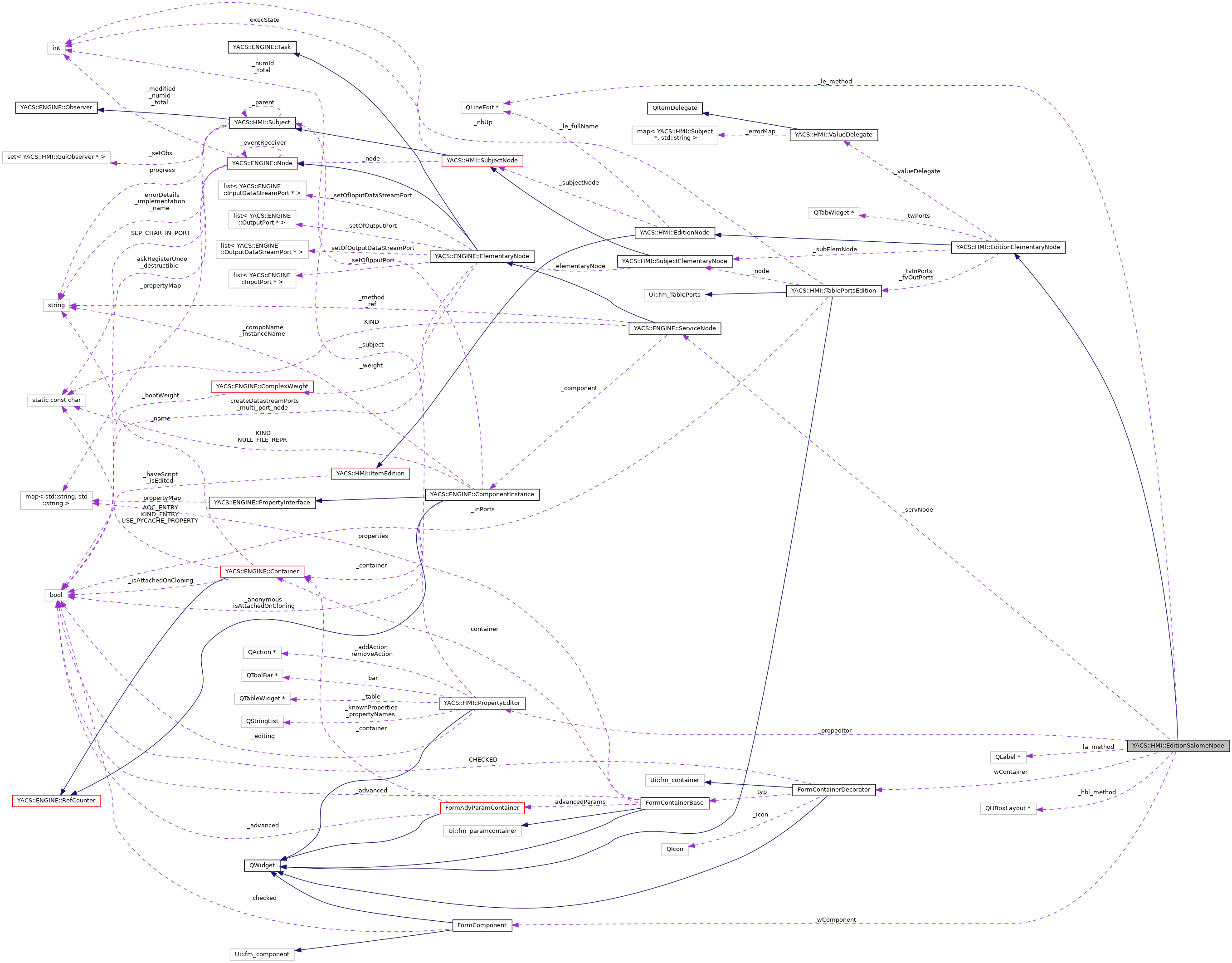

Collaboration diagram for YACS::HMI::EditionSalomeNode:

[legend]

Public Slots
virtual void	fillComponentPanel ()

virtual void	fillContainerPanel ()

virtual void	changeInstance (int index)

virtual void	changeContainer (int index)

virtual void	changeHost (int index)

virtual void	onApply ()

virtual void	onCancel ()

Public Slots inherited from YACS::HMI::EditionElementaryNode
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onPortIndexChanged (int index)

virtual void	onCommitData (QWidget *editor)

Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionSalomeNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionSalomeNode ()

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	synchronize ()

Public Member Functions inherited from YACS::HMI::EditionElementaryNode
	EditionElementaryNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionElementaryNode ()

virtual void	synchronize ()

virtual void	setEditablePorts (bool isEditable)

Public Member Functions inherited from YACS::HMI::EditionNode
	EditionNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionNode ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	synchronize ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual void	select (bool isSelected)

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
PropertyEditor *	_propeditor

FormComponent *	_wComponent

FormContainerDecorator *	_wContainer

QHBoxLayout *	_hbl_method

QLabel *	_la_method

QLineEdit *	_le_method

YACS::ENGINE::ServiceNode *	_servNode

Protected Attributes inherited from YACS::HMI::EditionElementaryNode
SubjectElementaryNode *	_subElemNode

QTabWidget *	_twPorts

TablePortsEdition *	_tvInPorts

TablePortsEdition *	_tvOutPorts

ValueDelegate *	_valueDelegate

Protected Attributes inherited from YACS::HMI::EditionNode
QLineEdit *	_le_fullName

SubjectNode *	_subjectNode

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Protected Member Functions inherited from YACS::HMI::EditionElementaryNode
virtual bool	hasInputPorts ()

virtual bool	hasOutputPorts ()

virtual void	createTablePorts (QLayout *layout)

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 47 of file EditionSalomeNode.hxx.

Constructor & Destructor Documentation

◆ EditionSalomeNode()

EditionSalomeNode::EditionSalomeNode	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 43 of file EditionSalomeNode.cxx.

  : EditionElementaryNode(subject, parent, name)
{
  //   SubjectServiceNode *ssn = dynamic_cast<SubjectServiceNode*>(_subject);
  //   YASSERT(ssn);
  _servNode = dynamic_cast<YACS::ENGINE::ServiceNode*>(_subElemNode->getNode());
  YASSERT(_servNode);
  // --- create property editor panel
  _propeditor=new PropertyEditor(_subject);
  _wid->gridLayout1->addWidget(_propeditor);

  // --- create container and component panels

  _wContainer = new FormContainerDecorator(_servNode->getContainer(),this);
  _wid->gridLayout1->addWidget(_wContainer);

  connect(_wContainer, SIGNAL(resourceMousePressed()), this, SLOT(fillContainerPanel()));
  connect(_wContainer, SIGNAL(resourceActivated(int)), this, SLOT(changeHost(int)));
  connect(_wContainer, SIGNAL(containerToggled(bool)), this, SLOT(fillContainerPanel()));
  // --- to update display of current selection

  _wComponent = new FormComponent(this);
  _wid->gridLayout1->addWidget(_wComponent);

  connect(_wComponent->cb_instance, SIGNAL(mousePressed()),
          this, SLOT(fillComponentPanel()));
  connect(_wComponent->cb_instance, SIGNAL(activated(int)),
          this, SLOT(changeInstance(int)));

  connect(_wComponent->cb_container, SIGNAL(mousePressed()),
          this, SLOT(fillContainerPanel()));
  connect(_wComponent->cb_container, SIGNAL(activated(int)),
          this, SLOT(changeContainer(int)));

  connect(_wComponent->tb_component, SIGNAL(toggled(bool)),
          this, SLOT(fillComponentPanel())); // --- to update display of current selection
  connect(_wComponent->tb_component, SIGNAL(toggled(bool)),
          this, SLOT(fillContainerPanel())); // --- to update display of current selection

  // --- method

  _hbl_method = new QHBoxLayout();
  _la_method = new QLabel(this);
  _hbl_method->addWidget(_la_method);
  _le_method = new QLineEdit(this);
  _hbl_method->addWidget(_le_method);
  _wid->gridLayout1->addLayout(_hbl_method, _wid->gridLayout1->rowCount(), 0, 1, 1);
  _la_method->setText("Method:");

  _le_method->setText((_servNode->getMethod()).c_str());
  _le_method->setReadOnly(true);

  // --- fill component panel

  fillComponentPanel();

  createTablePorts(_wid->gridLayout1);
}

References _hbl_method, _la_method, _le_method, _propeditor, _servNode, YACS::HMI::EditionElementaryNode::_subElemNode, YACS::HMI::ItemEditionBase::_subject, _wComponent, _wContainer, FormEditItem::_wid, changeContainer(), changeHost(), changeInstance(), YACS::HMI::EditionElementaryNode::createTablePorts(), fillComponentPanel(), fillContainerPanel(), YACS::ENGINE::ServiceNode::getContainer(), YACS::ENGINE::ServiceNode::getMethod(), YACS::HMI::SubjectNode::getNode(), and YASSERT.

◆ ~EditionSalomeNode()

EditionSalomeNode::~EditionSalomeNode ( )

virtual

Definition at line 104 of file EditionSalomeNode.cxx.

105{

106}

Member Function Documentation

◆ changeContainer

void EditionSalomeNode::changeContainer ( int index )

virtualslot

Definition at line 218 of file EditionSalomeNode.cxx.

{
  string contName = _wComponent->cb_container->itemText(index).toStdString();
  DEBTRACE(contName);
  ComponentInstance *compoInst = _servNode->getComponent();
  Container *oldContainer = compoInst->getContainer();

  Container *newContainer = 0;
  Proc* proc = GuiContext::getCurrent()->getProc();
  if (proc->containerMap.count(contName))
    newContainer = proc->containerMap[contName];
  if (!newContainer)
    {
      DEBTRACE("-------------> not found : " << contName);
      return;
    }
  YASSERT(GuiContext::getCurrent()->_mapOfSubjectContainer.count(newContainer));
  SubjectContainerBase *scnt(GuiContext::getCurrent()->_mapOfSubjectContainer[newContainer]);

  SubjectServiceNode *ssn(dynamic_cast<SubjectServiceNode*>(_subject));
  SubjectComponent *sco(dynamic_cast<SubjectComponent*>(ssn->getSubjectReference()->getReference()));
  YASSERT(sco);
  sco->associateToContainer(scnt);
}

References _servNode, YACS::HMI::ItemEditionBase::_subject, _wComponent, YACS::HMI::SubjectComponent::associateToContainer(), YACS::ENGINE::Proc::containerMap, DEBTRACE, YACS::ENGINE::ServiceNode::getComponent(), YACS::ENGINE::ComponentInstance::getContainer(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), YACS::HMI::SubjectReference::getReference(), YACS::HMI::SubjectServiceNode::getSubjectReference(), and YASSERT.

Referenced by EditionSalomeNode().

◆ changeHost

void EditionSalomeNode::changeHost ( int index )

virtualslot

Definition at line 243 of file EditionSalomeNode.cxx.

{
  string hostName = _wContainer->getHostName(index);
  DEBTRACE(hostName);
}

References _wContainer, DEBTRACE, and FormContainerDecorator::getHostName().

Referenced by EditionSalomeNode().

◆ changeInstance

void EditionSalomeNode::changeInstance ( int index )

virtualslot

Definition at line 199 of file EditionSalomeNode.cxx.

{
  string instName = _wComponent->cb_instance->itemText(index).toStdString();
  Proc* proc = GuiContext::getCurrent()->getProc();
  ComponentInstance *newCompoInst = 0;
  ComponentInstance *oldCompoInst = _servNode->getComponent();
  if (proc->componentInstanceMap.count(instName))
    newCompoInst = proc->componentInstanceMap[instName];
  else DEBTRACE("-------------> not found : " << instName);

  if (newCompoInst && (newCompoInst != oldCompoInst))
    {
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectComponent.count(newCompoInst));
      SubjectServiceNode *ssn = dynamic_cast<SubjectServiceNode*>(_subject);
      if(!ssn->associateToComponent(GuiContext::getCurrent()->_mapOfSubjectComponent[newCompoInst]))
        Message mess;
    }
}

References YACS::HMI::GuiContext::_mapOfSubjectComponent, _servNode, YACS::HMI::ItemEditionBase::_subject, _wComponent, YACS::HMI::SubjectServiceNode::associateToComponent(), YACS::ENGINE::Proc::componentInstanceMap, DEBTRACE, YACS::ENGINE::ServiceNode::getComponent(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), and YASSERT.

Referenced by EditionSalomeNode().

◆ fillComponentPanel

void EditionSalomeNode::fillComponentPanel ( )

virtualslot

must be updated when associate service to component instance, or when the list of available component instances changes.

Definition at line 150 of file EditionSalomeNode.cxx.

{
  ComponentInstance *compoInst = _servNode->getComponent();
  if (compoInst)
    {
      _wComponent->le_name ->setText(compoInst->getCompoName().c_str());
      Proc* proc = GuiContext::getCurrent()->getProc();

      _wComponent->cb_instance->clear();
      map<string,ComponentInstance*>::const_iterator it = proc->componentInstanceMap.begin();
      for(; it != proc->componentInstanceMap.end(); ++it)
        {
          ComponentInstance *inst=(*it).second;
          QString compoName = inst->getCompoName().c_str();
          if (! QString::compare(compoInst->getCompoName().c_str(), compoName)) // if same component name
            //instanceMap[inst->getInstanceName()] = inst;
            _wComponent->cb_instance->addItem( QString(inst->getInstanceName().c_str()));
        }

      int index = _wComponent->cb_instance->findText(compoInst->getInstanceName().c_str());
      //DEBTRACE("~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ " << index);
      _wComponent->cb_instance->setCurrentIndex(index);
    }
}

References _servNode, _wComponent, YACS::ENGINE::Proc::componentInstanceMap, YACS::ENGINE::ComponentInstance::getCompoName(), YACS::ENGINE::ServiceNode::getComponent(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::ComponentInstance::getInstanceName(), and YACS::HMI::GuiContext::getProc().

Referenced by EditionSalomeNode(), synchronize(), and update().

◆ fillContainerPanel

void EditionSalomeNode::fillContainerPanel ( )

virtualslot

Definition at line 175 of file EditionSalomeNode.cxx.

{
  DEBTRACE("EditionSalomeNode::fillContainerPanel");
  ComponentInstance *compoInst = _servNode->getComponent();
  if (compoInst)
    {
      Proc* proc = GuiContext::getCurrent()->getProc();

      _wComponent->cb_container->clear();
      map<string,Container*>::const_iterator it = proc->containerMap.begin();
      for(; it != proc->containerMap.end(); ++it)
        _wComponent->cb_container->addItem( QString((*it).first.c_str()));

      Container * cont = compoInst->getContainer();
      if (cont)
        {
          int index = _wComponent->cb_container->findText(cont->getName().c_str());
          _wComponent->cb_container->setCurrentIndex(index);
          _wContainer->FillPanel(cont);
        }
    }
}

References _servNode, _wComponent, _wContainer, YACS::ENGINE::Proc::containerMap, DEBTRACE, FormContainerDecorator::FillPanel(), YACS::ENGINE::ServiceNode::getComponent(), YACS::ENGINE::ComponentInstance::getContainer(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::Container::getName(), and YACS::HMI::GuiContext::getProc().

Referenced by EditionSalomeNode(), synchronize(), and update().

◆ onApply

void EditionSalomeNode::onApply ( )

virtualslot

Definition at line 249 of file EditionSalomeNode.cxx.

{
  DEBTRACE("EditionSalomeNode::onApply");
  bool edited = true;
  if (_wContainer->onApply())
    edited = false;
  _isEdited = _isEdited || edited;
  EditionElementaryNode::onApply();
}

References YACS::HMI::ItemEdition::_isEdited, _wContainer, DEBTRACE, YACS::HMI::EditionElementaryNode::onApply(), and FormContainerDecorator::onApply().

◆ onCancel

void EditionSalomeNode::onCancel ( )

virtualslot

Definition at line 259 of file EditionSalomeNode.cxx.

{
  DEBTRACE("EditionSalomeNode::onCancel");
  ComponentInstance *compoInst = _servNode->getComponent();
  if (compoInst)
    {
      _wContainer->FillPanel(compoInst->getContainer());
    }
  EditionElementaryNode::onApply();
}

References _servNode, _wContainer, DEBTRACE, FormContainerDecorator::FillPanel(), YACS::ENGINE::ServiceNode::getComponent(), YACS::ENGINE::ComponentInstance::getContainer(), and YACS::HMI::EditionElementaryNode::onApply().

◆ synchronize()

void EditionSalomeNode::synchronize ( )

virtual

used in derived nodes for synchronisation with schema model.

Reimplemented from YACS::HMI::EditionElementaryNode.

Definition at line 138 of file EditionSalomeNode.cxx.

{
  EditionElementaryNode::synchronize();
  _wContainer->synchronizeCheckContainer();
  _wComponent->tb_component->setChecked(FormComponent::_checked);
  fillComponentPanel();
  fillContainerPanel();
}

References FormComponent::_checked, _wComponent, _wContainer, fillComponentPanel(), fillContainerPanel(), YACS::HMI::EditionElementaryNode::synchronize(), and FormContainerDecorator::synchronizeCheckContainer().

◆ update()

void EditionSalomeNode::update	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::EditionNode.

Definition at line 108 of file EditionSalomeNode.cxx.

{
  DEBTRACE("EditionSalomeNode::update ");
  EditionElementaryNode::update(event, type, son);
  SubjectReference* subref= 0;
  switch (event)
    {
    case ADDREF:
      DEBTRACE("ADDREF");
      subref = dynamic_cast<SubjectReference*>(son);
      YASSERT(subref);
      DEBTRACE(subref->getName() << " " << subref->getReference()->getName());
      fillComponentPanel();
      fillContainerPanel();
      break;

    case ASSOCIATE:
      DEBTRACE("ASSOCIATE");
      fillContainerPanel();
      break;

    case SETVALUE:
      _propeditor->update();
      break;

    default:
      ;
    }
}
