#include <EditionNode.hxx>

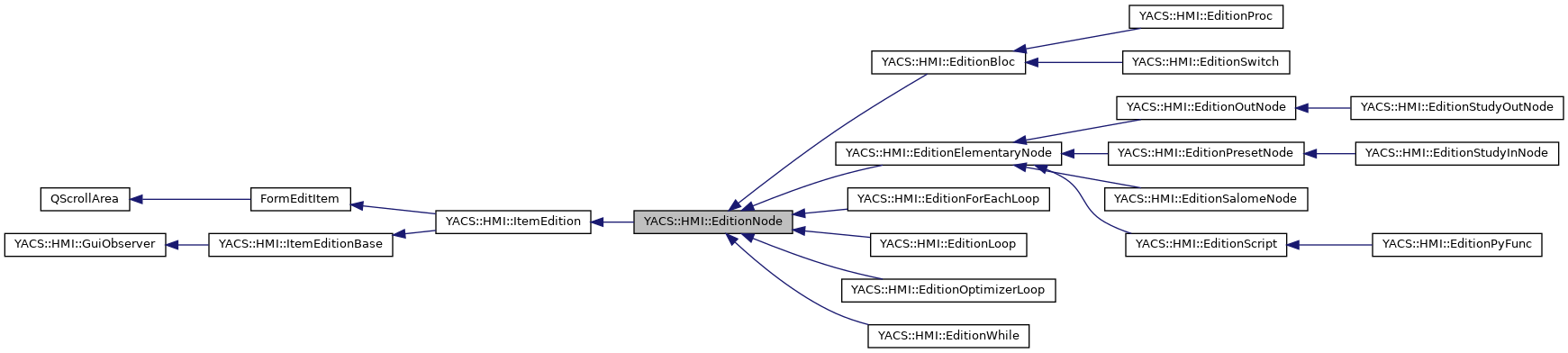

Inheritance diagram for YACS::HMI::EditionNode:

[legend]

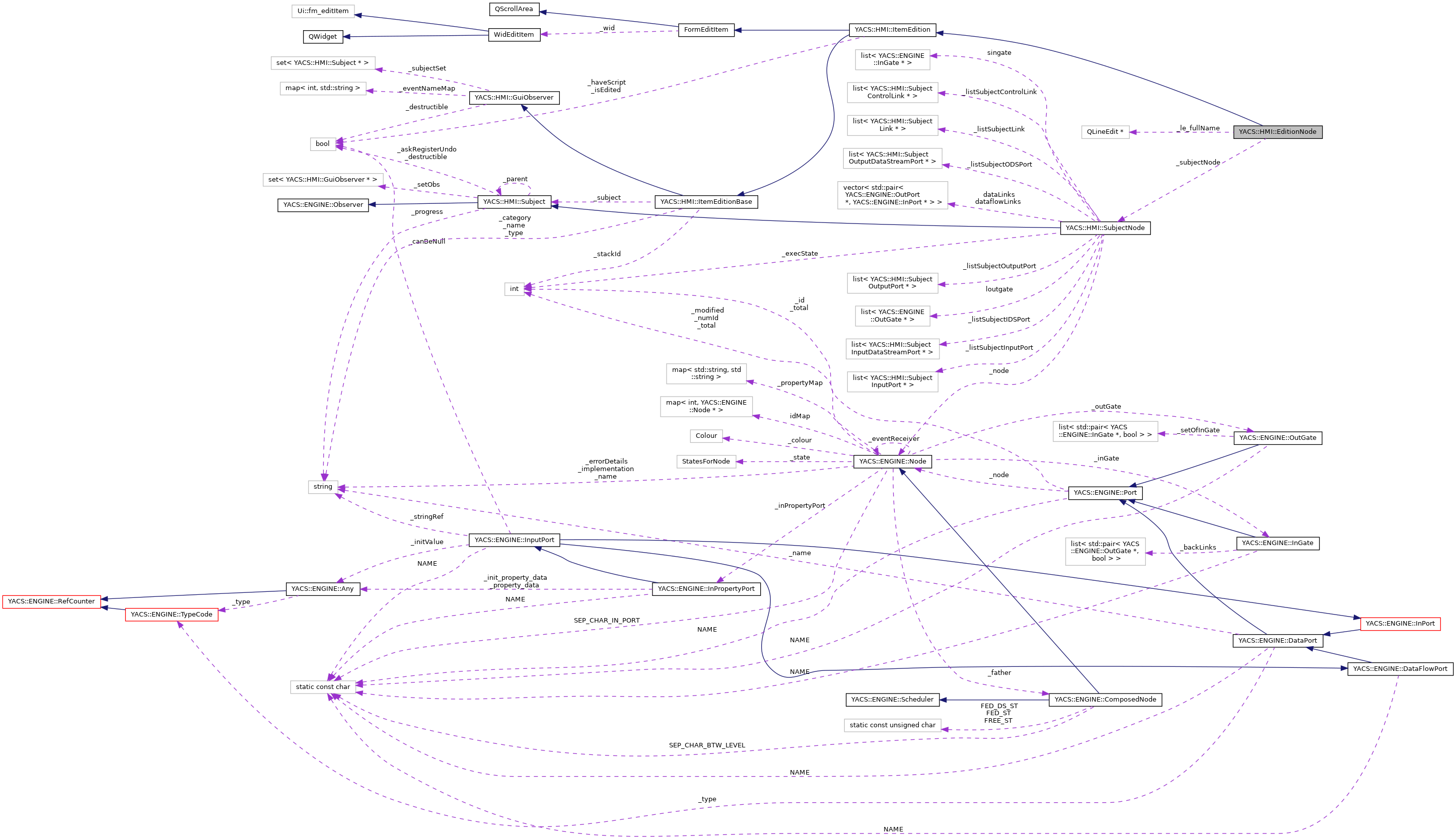

Collaboration diagram for YACS::HMI::EditionNode:

[legend]

Public Member Functions
	EditionNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionNode ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	synchronize ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
QLineEdit *	_le_fullName

SubjectNode *	_subjectNode

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 33 of file EditionNode.hxx.

Constructor & Destructor Documentation

◆ EditionNode()

EditionNode::EditionNode	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 35 of file EditionNode.cxx.

   : ItemEdition(subject, parent, name)
 {
   DEBTRACE("EditionNode::EditionNode");
   if (QtGuiContext::getQtCurrent()->isEdition())
     _wid->le_name->setReadOnly(false);

   _subjectNode = dynamic_cast<SubjectNode*>(_subject);
   YASSERT(_subjectNode);

   _le_fullName = 0;
   if (!dynamic_cast<SubjectProc*>(_subject))
     {
       _le_fullName = new QLineEdit(this);
       _le_fullName->setToolTip("Full name of the node in schema");
       _le_fullName->setReadOnly(true);
       _wid->gridLayout1->addWidget(_le_fullName);

       YACS::ENGINE::Proc* proc = QtGuiContext::getQtCurrent()->getProc();
       _le_fullName->setText((proc->getChildName(_subjectNode->getNode())).c_str());
     }
 }

References _le_fullName, YACS::HMI::ItemEditionBase::_subject, _subjectNode, FormEditItem::_wid, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::GuiContext::getProc(), YACS::HMI::QtGuiContext::getQtCurrent(), and YASSERT.

◆ ~EditionNode()

EditionNode::~EditionNode ( )

virtual

Definition at line 60 of file EditionNode.cxx.

61 {

62 }

Member Function Documentation

◆ update()

void EditionNode::update	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::ItemEdition.

Reimplemented in YACS::HMI::EditionWhile, YACS::HMI::EditionSwitch, YACS::HMI::EditionSalomeNode, YACS::HMI::EditionProc, YACS::HMI::EditionOptimizerLoop, YACS::HMI::EditionLoop, YACS::HMI::EditionForEachLoop, and YACS::HMI::EditionBloc.

Definition at line 64 of file EditionNode.cxx.

 {
   DEBTRACE("EditionNode::update ");
   ItemEdition::update(event, type, son);
   YACS::ENGINE::Proc* proc = QtGuiContext::getQtCurrent()->getProc();
   switch (event)
     {
     case RENAME:
       if (_le_fullName)
         _le_fullName->setText((proc->getChildName(_subjectNode->getNode())).c_str());
       break;
     default:
       ;
     }
 }

References _le_fullName, _subjectNode, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::GuiContext::getProc(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::RENAME, and YACS::HMI::ItemEdition::update().

Referenced by gui.graph.MyCanvas::customEvent(), YACS::HMI::EditionForEachLoop::update(), YACS::HMI::EditionLoop::update(), YACS::HMI::EditionOptimizerLoop::update(), YACS::HMI::EditionSalomeNode::update(), YACS::HMI::EditionScript::update(), and YACS::HMI::EditionWhile::update().

Member Data Documentation

◆ _le_fullName

QLineEdit* YACS::HMI::EditionNode::_le_fullName

protected

Definition at line 47 of file EditionNode.hxx.

Referenced by EditionNode(), and update().

◆ _subjectNode

SubjectNode* YACS::HMI::EditionNode::_subjectNode

protected

Definition at line 48 of file EditionNode.hxx.

Referenced by YACS::HMI::EditionForEachLoop::EditionForEachLoop(), EditionNode(), YACS::HMI::EditionForEachLoop::onModifyCollection(), YACS::HMI::EditionOptimizerLoop::onModifyEntry(), YACS::HMI::EditionOptimizerLoop::onModifyInitFile(), YACS::HMI::EditionOptimizerLoop::onModifyLib(), YACS::HMI::EditionForEachLoop::update(), update(), and YACS::HMI::EditionOptimizerLoop::update().

The documentation for this class was generated from the following files:

src/genericgui/EditionNode.hxx
src/genericgui/EditionNode.cxx
