#include <EditionSwitch.hxx>

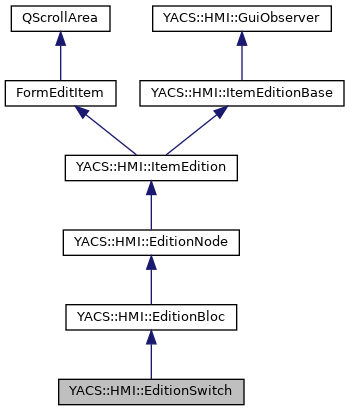

Inheritance diagram for YACS::HMI::EditionSwitch:

[legend]

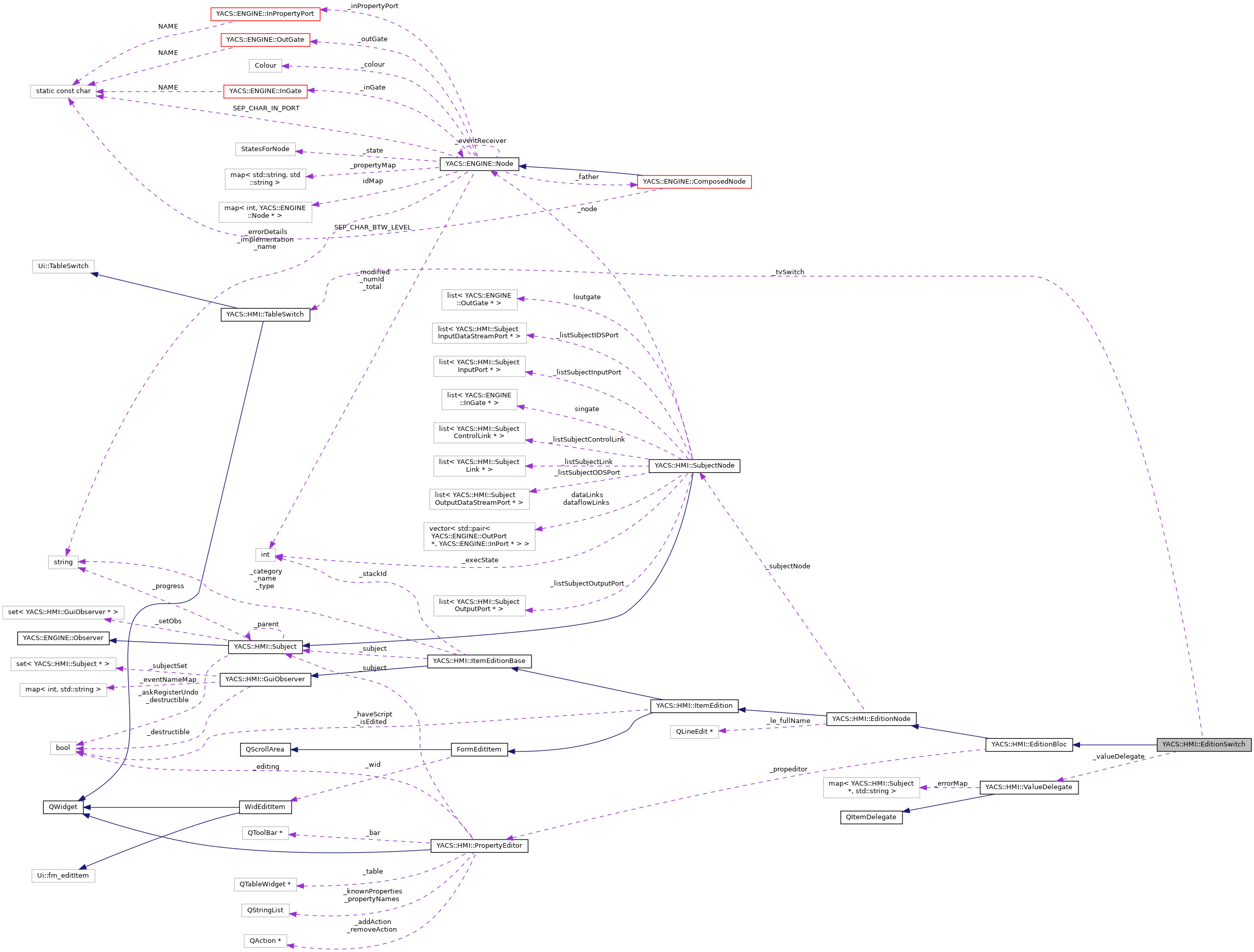

Collaboration diagram for YACS::HMI::EditionSwitch:

[legend]

Public Slots
virtual void	onModifySelect (const QString &text)

virtual void	onCommitData (QWidget *editor)

Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionSwitch (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionSwitch ()

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::EditionBloc
	EditionBloc (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionBloc ()

Public Member Functions inherited from YACS::HMI::EditionNode
	EditionNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionNode ()

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
TableSwitch *	_tvSwitch

ValueDelegate *	_valueDelegate

Protected Attributes inherited from YACS::HMI::EditionBloc
PropertyEditor *	_propeditor

Protected Attributes inherited from YACS::HMI::EditionNode
QLineEdit *	_le_fullName

SubjectNode *	_subjectNode

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 34 of file EditionSwitch.hxx.

Constructor & Destructor Documentation

◆ EditionSwitch()

EditionSwitch::EditionSwitch	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 38 of file EditionSwitch.cxx.

   : EditionBloc(subject, parent, name)
 {
   _tvSwitch = new TableSwitch(this);
   _wid->gridLayout1->addWidget(_tvSwitch);
   SchemaModel *model = QtGuiContext::getQtCurrent()->getSchemaModel();
   _tvSwitch->tv_nodes->setModel(model);
   _tvSwitch->sb_select->setMinimum(INT_MIN);
   _tvSwitch->sb_select->setMaximum(INT_MAX);
   connect(_tvSwitch->sb_select, SIGNAL(valueChanged(const QString &)),
           this, SLOT(onModifySelect(const QString &)));

   _valueDelegate = new ValueDelegate(parent);
   _tvSwitch->tv_nodes->setItemDelegateForColumn(YValue, _valueDelegate);
   _tvSwitch->setEditableCase(true);
   if (!QtGuiContext::getQtCurrent()->isEdition())
     _tvSwitch->setEnabled (false);

   connect(_valueDelegate, SIGNAL(commitData(QWidget*)),
           this, SLOT(onCommitData(QWidget*)));
 }

References _tvSwitch, _valueDelegate, FormEditItem::_wid, YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::getSchemaModel(), onCommitData(), onModifySelect(), YACS::HMI::TableSwitch::setEditableCase(), and YACS::HMI::YValue.

◆ ~EditionSwitch()

EditionSwitch::~EditionSwitch ( )

virtual

Definition at line 62 of file EditionSwitch.cxx.

63 {

64 }

Member Function Documentation

◆ onCommitData

void EditionSwitch::onCommitData ( QWidget * editor )

virtualslot

Definition at line 122 of file EditionSwitch.cxx.

 {
   DEBTRACE("EditionSwitch::onCommitData " << editor);
   GenericEditor* gedit = dynamic_cast<GenericEditor*>(editor);
   YASSERT(gedit);
   QString val = gedit->GetStrValue();
   DEBTRACE(val.toStdString());
   Subject *sub = gedit->getSubject();
   YASSERT(sub);
   SubjectNode *snode = dynamic_cast<SubjectNode*>(sub);
   YASSERT(snode);
   sub = snode->getParent();
   SubjectSwitch *sswitch = dynamic_cast<SubjectSwitch*>(sub);
   YASSERT(sswitch);
   bool isOk = sswitch->setCase(val.toStdString(), snode);
   if (_valueDelegate)
     _valueDelegate->setResultEditing(editor, isOk);

 }

References _valueDelegate, DEBTRACE, YACS::HMI::Subject::getParent(), YACS::HMI::GenericEditor::GetStrValue(), YACS::HMI::GenericEditor::getSubject(), YACS::HMI::SubjectSwitch::setCase(), YACS::HMI::ValueDelegate::setResultEditing(), and YASSERT.

Referenced by EditionSwitch().

◆ onModifySelect

void EditionSwitch::onModifySelect ( const QString & text )

virtualslot

Definition at line 91 of file EditionSwitch.cxx.

 {
   DEBTRACE("EditionSwitch::onModifySelect " << text.toStdString());
   SubjectSwitch *sswitch = dynamic_cast<SubjectSwitch*>(_subject);
   YASSERT(sswitch);
   sswitch->setSelect(text.toStdString());
 }

References YACS::HMI::ItemEditionBase::_subject, DEBTRACE, YACS::HMI::SubjectSwitch::setSelect(), and YASSERT.

Referenced by EditionSwitch().

◆ synchronize()

void EditionSwitch::synchronize ( )

virtual

used in derived nodes for synchronisation with schema model.

Reimplemented from YACS::HMI::ItemEdition.

Definition at line 66 of file EditionSwitch.cxx.

 {
   DEBTRACE("EditionSwitch::synchronize");
   SchemaModel *model = QtGuiContext::getQtCurrent()->getSchemaModel();
   SchemaItem* schemaItem = QtGuiContext::getQtCurrent()->_mapOfSchemaItem[_subject];
   if (schemaItem)
     {
       QModelIndex parentIndex = schemaItem->modelIndex();
       _tvSwitch->tv_nodes->setRootIndex(parentIndex);
       int numRows = model->rowCount(parentIndex);
       for (int row = 0; row < numRows; ++row)
         {
           QModelIndex index = model->index(row, 0, parentIndex);
           SchemaItem *childItem = static_cast<SchemaItem*>(index.internalPointer());
           bool hidden = true;
           if (Subject *sub = childItem->getSubject())
             if (dynamic_cast<SubjectNode*>(sub))
               hidden = false;
           _tvSwitch->tv_nodes->setRowHidden(row, hidden);
         }
     }
   _tvSwitch->adjustColumns();
   _subject->update(SETSELECT, 0, _subject);
 }

References YACS::HMI::QtGuiContext::_mapOfSchemaItem, YACS::HMI::ItemEditionBase::_subject, _tvSwitch, YACS::HMI::TableSwitch::adjustColumns(), DEBTRACE, YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::getSchemaModel(), YACS::HMI::SchemaItem::getSubject(), YACS::HMI::SchemaModel::index(), YACS::HMI::SchemaItem::modelIndex(), YACS::HMI::SchemaModel::rowCount(), YACS::HMI::SETSELECT, and YACS::HMI::Subject::update().

◆ update()

void EditionSwitch::update	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::EditionBloc.

Definition at line 99 of file EditionSwitch.cxx.

 {
   DEBTRACE("EditionSwitch::update " <<eventName(event) << " " << type);
   switch (event)
     {

     case SETSELECT:
       {
         SubjectComposedNode *scn = dynamic_cast<SubjectComposedNode*>(_subject);
         string val = scn->getValue();
         istringstream ss(val);
         DEBTRACE(val);
         int i = 0;
         ss >> i;
         DEBTRACE(i);
         _tvSwitch->sb_select->setValue(i);
       }
       break;
     default:
       EditionBloc::update(event, type, son);
     }
 }
