YACS::HMI::EditionOptimizerLoop Class Reference

#include <EditionOptimizerLoop.hxx>

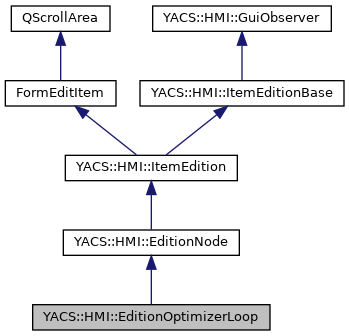

Inheritance diagram for YACS::HMI::EditionOptimizerLoop:

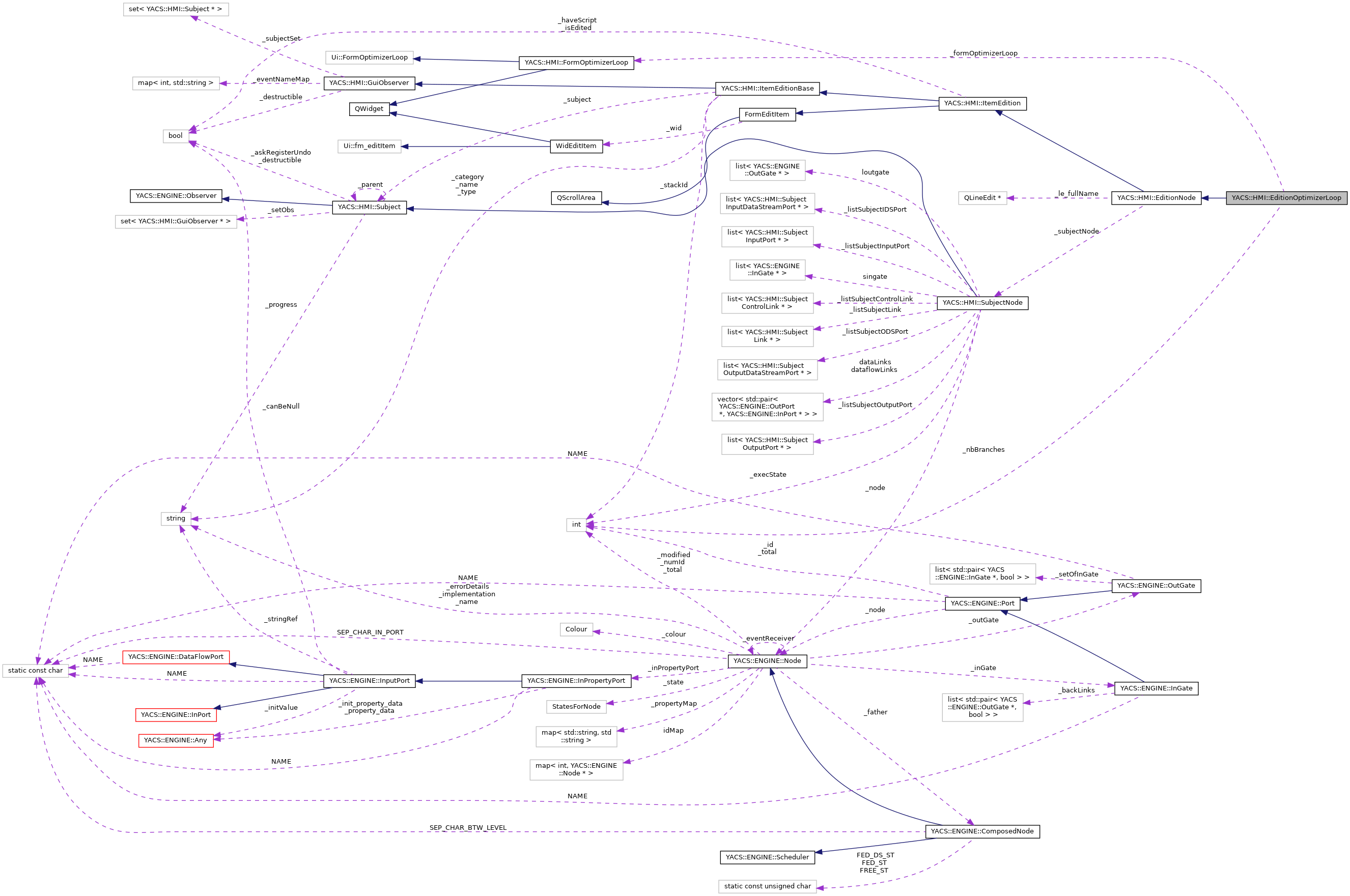

Collaboration diagram for YACS::HMI::EditionOptimizerLoop:

Public Slots
virtual void	onModifyInitFile ()
virtual void	onModifyEntry ()
virtual void	onModifyLib ()
virtual void	onNbBranchesEdited ()
Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()
virtual void	onCancel ()
virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionOptimizerLoop (Subject *subject, QWidget *parent=0, const char *name=0)
virtual	~EditionOptimizerLoop ()
virtual void	synchronize ()
virtual void	update (GuiEvent event, int type, Subject *son)
Public Member Functions inherited from YACS::HMI::EditionNode
	EditionNode (Subject *subject, QWidget *parent=0, const char *name=0)
virtual	~EditionNode ()
virtual void	update (GuiEvent event, int type, Subject *son)
Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject *subject, QWidget *parent=0, const char *name=0)
virtual	~ItemEdition ()
virtual void	synchronize ()
virtual void	select (bool isSelected)
virtual void	setName (std::string name)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual void	setEdited (bool isEdited)
Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)
virtual	~FormEditItem ()
Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)
virtual	~ItemEditionBase ()
virtual void	select (bool isSelected)
virtual void	synchronize ()
virtual void	update (GuiEvent event, int type, Subject *son)
virtual Subject *	getSubject ()
Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()
virtual	~GuiObserver ()
virtual void	select (bool isSelected)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual void	incrementSubjects (Subject *subject)
virtual void	decrementSubjects (Subject *subject)
int	getNbSubjects ()
bool	isDestructible ()

Protected Attributes
FormOptimizerLoop *	_formOptimizerLoop
int	_nbBranches
Protected Attributes inherited from YACS::HMI::EditionNode
QLineEdit *	_le_fullName
SubjectNode *	_subjectNode
Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited
bool	_haveScript
Protected Attributes inherited from FormEditItem
WidEditItem *	_wid
Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject
int	_stackId
std::string	_name
std::string	_type
std::string	_category
Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet
bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)
Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)
static void	setEventMap ()
Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 31 of file EditionOptimizerLoop.hxx.

Constructor & Destructor Documentation

EditionOptimizerLoop()

EditionOptimizerLoop::EditionOptimizerLoop	(	Subject *	subject,
		QWidget *	parent = 0,
		const char *	name = 0
	)

Definition at line 39 of file EditionOptimizerLoop.cxx.

  : EditionNode(subject, parent, name)
{
  _formOptimizerLoop = new FormOptimizerLoop(this);
  _nbBranches = 1;
  _wid->gridLayout1->addWidget(_formOptimizerLoop);
  _formOptimizerLoop->sb_nbranch->setMinimum(1);
  _formOptimizerLoop->sb_nbranch->setMaximum(INT_MAX);

  connect(_formOptimizerLoop->sb_nbranch, SIGNAL(editingFinished()),
          this, SLOT(onNbBranchesEdited()));
  connect(_formOptimizerLoop->lineEdit_initValue, SIGNAL(editingFinished()),
          this, SLOT(onModifyInitFile()));
  connect(_formOptimizerLoop->lineEdit_entry, SIGNAL(editingFinished()),
          this, SLOT(onModifyEntry()));
  connect(_formOptimizerLoop->lineEdit_lib, SIGNAL(editingFinished()),
          this, SLOT(onModifyLib()));
}

References _formOptimizerLoop, _nbBranches, FormEditItem::_wid, onModifyEntry(), onModifyInitFile(), onModifyLib(), and onNbBranchesEdited().

~EditionOptimizerLoop()

EditionOptimizerLoop::~EditionOptimizerLoop ( )

virtual

Definition at line 60 of file EditionOptimizerLoop.cxx.

{
}

Member Function Documentation

onModifyEntry

void EditionOptimizerLoop::onModifyEntry ( )

virtualslot

Definition at line 75 of file EditionOptimizerLoop.cxx.

{
  DEBTRACE("EditionOptimizerLoop::onModifyEntry");
  OptimizerLoop *oloop = dynamic_cast<OptimizerLoop*>(_subjectNode->getNode());
  if (oloop->getSymbol() == _formOptimizerLoop->lineEdit_entry->text().toStdString()) return;

  bool isOk = false;
  SubjectOptimizerLoop *ol = dynamic_cast<SubjectOptimizerLoop*>(_subjectNode);
  isOk=ol->setAlgorithm(_formOptimizerLoop->lineEdit_lib->text().toStdString(),
                        _formOptimizerLoop->lineEdit_entry->text().toStdString());
  if(!isOk)
    Message mess;
  DEBTRACE(isOk);
}

References _formOptimizerLoop, YACS::HMI::EditionNode::_subjectNode, DEBTRACE, YACS::HMI::SubjectNode::getNode(), YACS::ENGINE::OptimizerLoop::getSymbol(), and YACS::HMI::SubjectOptimizerLoop::setAlgorithm().

Referenced by EditionOptimizerLoop().

onModifyInitFile

void EditionOptimizerLoop::onModifyInitFile ( )

virtualslot

Definition at line 64 of file EditionOptimizerLoop.cxx.

{
  bool isOk = false;
  Node* node=_subjectNode->getNode();
  OptimizerLoop *ol = dynamic_cast<OptimizerLoop*>(node);
  InputPort * dp = ol->edGetAlgoInitPort();
  SubjectDataPort* sdp = QtGuiContext::getQtCurrent()->_mapOfSubjectDataPort[dp];
  isOk=sdp->setValue(_formOptimizerLoop->lineEdit_initValue->text().toStdString());
  DEBTRACE(isOk);
}

References _formOptimizerLoop, YACS::HMI::GuiContext::_mapOfSubjectDataPort, YACS::HMI::EditionNode::_subjectNode, DEBTRACE, YACS::ENGINE::OptimizerLoop::edGetAlgoInitPort(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::QtGuiContext::getQtCurrent(), and YACS::HMI::SubjectDataPort::setValue().

Referenced by EditionOptimizerLoop().

onModifyLib

void EditionOptimizerLoop::onModifyLib ( )

virtualslot

Definition at line 90 of file EditionOptimizerLoop.cxx.

{
  DEBTRACE("EditionOptimizerLoop::onModifyLib");
  OptimizerLoop *oloop = dynamic_cast<OptimizerLoop*>(_subjectNode->getNode());
  if(oloop->getAlgLib() == _formOptimizerLoop->lineEdit_lib->text().toStdString()) return;

  bool isOk = false;
  SubjectOptimizerLoop *ol = dynamic_cast<SubjectOptimizerLoop*>(_subjectNode);
  isOk=ol->setAlgorithm(_formOptimizerLoop->lineEdit_lib->text().toStdString(),
                        _formOptimizerLoop->lineEdit_entry->text().toStdString());
  if (!isOk && !_formOptimizerLoop->lineEdit_lib->text().isEmpty() &&
      !_formOptimizerLoop->lineEdit_entry->text().isEmpty())
    Message mess;
  DEBTRACE(isOk);
}

References _formOptimizerLoop, YACS::HMI::EditionNode::_subjectNode, DEBTRACE, YACS::ENGINE::OptimizerLoop::getAlgLib(), YACS::HMI::SubjectNode::getNode(), and YACS::HMI::SubjectOptimizerLoop::setAlgorithm().

Referenced by EditionOptimizerLoop().

onNbBranchesEdited

void EditionOptimizerLoop::onNbBranchesEdited ( )

virtualslot

Definition at line 106 of file EditionOptimizerLoop.cxx.

{
  int newval = _formOptimizerLoop->sb_nbranch->value();
  DEBTRACE("EditionOptimizerLoop::onNbBranchesEdited " << _nbBranches << " --> " << newval);
  if (newval != _nbBranches)
    {
      SubjectOptimizerLoop *sol = dynamic_cast<SubjectOptimizerLoop*>(_subject);
      YASSERT(sol);
      QString text = _formOptimizerLoop->sb_nbranch->cleanText();
      sol->setNbBranches(text.toStdString());
    }
}

References _formOptimizerLoop, _nbBranches, YACS::HMI::ItemEditionBase::_subject, DEBTRACE, YACS::HMI::SubjectDynParaLoop::setNbBranches(), and YASSERT.

Referenced by EditionOptimizerLoop().

synchronize()

void EditionOptimizerLoop::synchronize ( )

virtual

used in derived nodes for synchronisation with schema model.

Reimplemented from YACS::HMI::ItemEdition.

Definition at line 119 of file EditionOptimizerLoop.cxx.

{
  _subject->update(SETVALUE, 0, _subject);
}

References YACS::HMI::ItemEditionBase::_subject, YACS::HMI::SETVALUE, and YACS::HMI::Subject::update().

update()

void EditionOptimizerLoop::update ( GuiEvent  event, int  type, Subject *  son  )

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::EditionNode.

Definition at line 124 of file EditionOptimizerLoop.cxx.

{
  DEBTRACE("EditionOptimizerLoop::update " << eventName(event) << " " << type);
  EditionNode::update(event, type, son);
  switch (event)
    {
    case SETVALUE:
      // Nb branches
      SubjectComposedNode * scn = dynamic_cast<SubjectComposedNode*>(_subject);
      string val = scn->getValue();
      istringstream ss(val);
      DEBTRACE( val);
      int i = 0;
      ss >> i;
      DEBTRACE(i);
      _formOptimizerLoop->sb_nbranch->setValue(i);
      _nbBranches = i;

      OptimizerLoop * ol = dynamic_cast<OptimizerLoop *>(_subjectNode->getNode());

      // Algo init value
      InputPort * dp = ol->edGetAlgoInitPort();
      _formOptimizerLoop->lineEdit_initValue->setText(dp->getAsString().c_str());

      // Algo library and entry
      _formOptimizerLoop->lineEdit_entry->setText(QString::fromStdString(ol->getSymbol()));
      _formOptimizerLoop->lineEdit_lib->setText(QString::fromStdString(ol->getAlgLib()));

      // Type names
      _formOptimizerLoop->label_evalSampleType->setText(ol->edGetSamplePort()->edGetType()->name());
      _formOptimizerLoop->label_evalResultType->setText(ol->edGetPortForOutPool()->edGetType()->name());
      _formOptimizerLoop->label_algoInitType->setText(ol->edGetAlgoInitPort()->edGetType()->name());
      _formOptimizerLoop->label_algoResultType->setText(ol->edGetAlgoResultPort()->edGetType()->name());
      break;
    }
}

References _formOptimizerLoop, _nbBranches, YACS::HMI::ItemEditionBase::_subject, YACS::HMI::EditionNode::_subjectNode, DEBTRACE, YACS::ENGINE::OptimizerLoop::edGetAlgoInitPort(), YACS::ENGINE::OptimizerLoop::edGetAlgoResultPort(), YACS::ENGINE::OptimizerLoop::edGetPortForOutPool(), YACS::ENGINE::DynParaLoop::edGetSamplePort(), YACS::ENGINE::DataPort::edGetType(), YACS::HMI::GuiObserver::eventName(), YACS::ENGINE::OptimizerLoop::getAlgLib(), YACS::ENGINE::DataPort::getAsString(), YACS::HMI::SubjectNode::getNode(), YACS::ENGINE::OptimizerLoop::getSymbol(), YACS::HMI::SubjectComposedNode::getValue(), yacsorb.CORBAEngineTest::i, YACS::ENGINE::TypeCode::name(), YACS::HMI::SETVALUE, and YACS::HMI::EditionNode::update().

Referenced by gui.graph.MyCanvas::customEvent().

Member Data Documentation

_formOptimizerLoop

FormOptimizerLoop* YACS::HMI::EditionOptimizerLoop::_formOptimizerLoop

protected

Definition at line 50 of file EditionOptimizerLoop.hxx.

Referenced by EditionOptimizerLoop(), onModifyEntry(), onModifyInitFile(), onModifyLib(), onNbBranchesEdited(), and update().

_nbBranches

int YACS::HMI::EditionOptimizerLoop::_nbBranches

protected

Definition at line 51 of file EditionOptimizerLoop.hxx.

Referenced by EditionOptimizerLoop(), onNbBranchesEdited(), and update().

---

The documentation for this class was generated from the following files:

• src/genericgui/EditionOptimizerLoop.hxx
• src/genericgui/EditionOptimizerLoop.cxx
