YACS::HMI::SubjectOptimizerLoop Class Reference

#include <guiObservers.hxx>

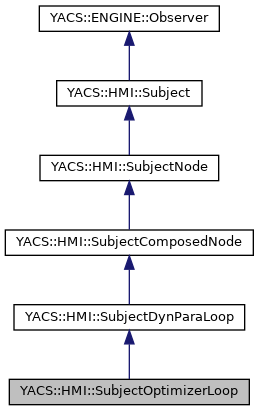

Inheritance diagram for YACS::HMI::SubjectOptimizerLoop:

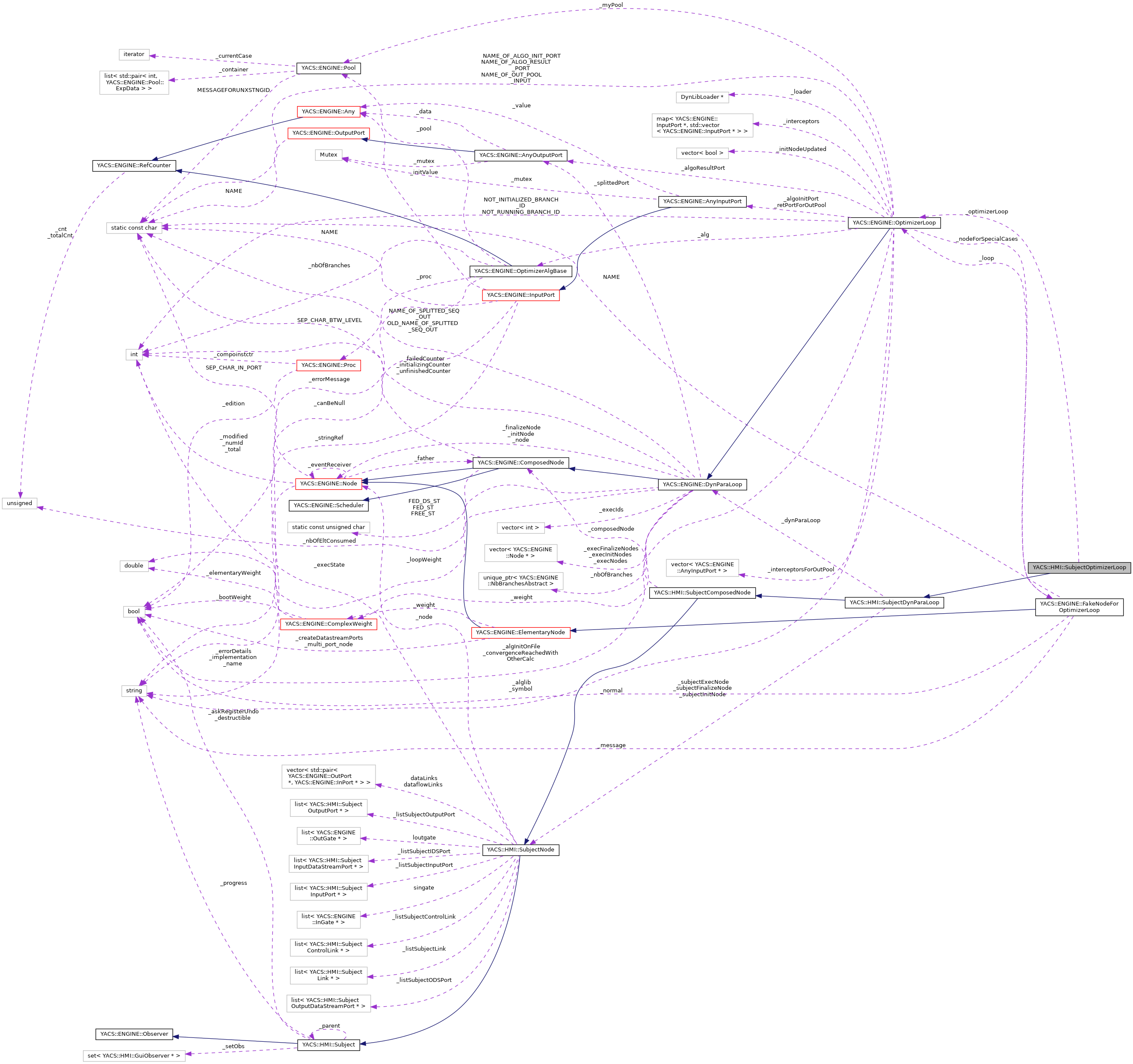

Collaboration diagram for YACS::HMI::SubjectOptimizerLoop:

Public Member Functions
	SubjectOptimizerLoop (YACS::ENGINE::OptimizerLoop *optimizerLoop, Subject *parent)
virtual	~SubjectOptimizerLoop ()
virtual void	clean (Command *command=0)
void	localclean (Command *command=0)
virtual TypeOfElem	getType ()
virtual bool	setAlgorithm (const std::string &alglib, const std::string &symbol)
Public Member Functions inherited from YACS::HMI::SubjectDynParaLoop
	SubjectDynParaLoop (YACS::ENGINE::DynParaLoop *dynParaLoop, Subject *parent)
virtual	~SubjectDynParaLoop ()
virtual SubjectNode *	addNode (YACS::ENGINE::Catalog *catalog, std::string compo, std::string type, std::string name, bool newCompoInst)
virtual void	recursiveUpdate (GuiEvent event, int type, Subject *son)
virtual void	completeChildrenSubjectList (SubjectNode *son)
virtual void	removeNode (SubjectNode *child)
virtual SubjectNode *	getChild (YACS::ENGINE::Node *node=NULL) const
virtual bool	setNbBranches (std::string nbBranches)
virtual bool	hasValue ()
virtual std::string	getValue ()
virtual void	houseKeepingAfterCutPaste (bool isCut, SubjectNode *son)
void	localclean (Command *command=NULL)
Public Member Functions inherited from YACS::HMI::SubjectComposedNode
	SubjectComposedNode (YACS::ENGINE::ComposedNode *composedNode, Subject *parent)
virtual	~SubjectComposedNode ()
virtual void	loadChildren ()
virtual void	loadLinks ()
SubjectNode *	addSubjectNode (YACS::ENGINE::Node *node, std::string name="", YACS::ENGINE::Catalog *catalog=0, std::string compo="", std::string type="")
SubjectLink *	addSubjectLink (SubjectNode *sno, SubjectDataPort *spo, SubjectNode *sni, SubjectDataPort *spi)
SubjectControlLink *	addSubjectControlLink (SubjectNode *sno, SubjectNode *sni)
virtual void	removeLink (SubjectLink *link)
virtual void	removeControlLink (SubjectControlLink *link)
virtual void	removeExternalControlLinks ()
void	localclean (Command *command=0)
Public Member Functions inherited from YACS::HMI::SubjectNode
	SubjectNode (YACS::ENGINE::Node *node, Subject *parent)
virtual	~SubjectNode ()
virtual bool	setProperties (std::map< std::string, std::string > properties)
virtual std::map< std::string, std::string >	getProperties ()
virtual bool	reparent (Subject *parent)
virtual bool	copy (Subject *parent)
virtual std::string	getName ()
virtual bool	setName (std::string name)
virtual YACS::ENGINE::Node *	getNode ()
void	registerUndoDestroy ()
SubjectControlLink *	addSubjectControlLink (SubjectControlLink *sub)
void	removeSubjectControlLink (SubjectControlLink *sub)
std::list< SubjectLink * >	getSubjectLinks () const
std::list< SubjectControlLink * >	getSubjectControlLinks () const
std::list< SubjectInputPort * >	getSubjectInputPorts () const
std::list< SubjectOutputPort * >	getSubjectOutputPorts () const
std::list< SubjectInputDataStreamPort * >	getSubjectInputDataStreamPorts () const
std::list< SubjectOutputDataStreamPort * >	getSubjectOutputDataStreamPorts () const
void	localclean (Command *command=0)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual void	removeExternalLinks ()
virtual void	saveLinks ()
virtual void	restoreLinks ()
virtual bool	putInComposedNode (std::string name, std::string type, bool toSaveRestoreLinks=true)
virtual int	isValid ()
void	setExecState (int execState)
Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)
virtual	~Subject ()
virtual void	attach (GuiObserver *obs)
virtual void	detach (GuiObserver *obs)
virtual void	select (bool isSelected)
virtual std::vector< std::string >	knownProperties ()
virtual Subject *	getParent ()
virtual void	setParent (Subject *son)
virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...
virtual void	addSubjectReference (Subject *ref)
void	localclean (Command *command=0)
void	registerUndoDestroy ()
void	askRegisterUndoDestroy ()
bool	isDestructible ()
virtual void	setProgress (std::string newProgress)
virtual std::string	getProgress ()
Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver2 (Node *object, const std::string &event, void *something)
virtual void	notifyObserverFromClone (Node *originalInstance, const std::string &event, Node *clonedInstanceGeneratingEvent)
virtual	~Observer ()

Protected Attributes
YACS::ENGINE::OptimizerLoop *	_optimizerLoop
Protected Attributes inherited from YACS::HMI::SubjectDynParaLoop
YACS::ENGINE::DynParaLoop *	_dynParaLoop
SubjectNode *	_subjectExecNode
SubjectNode *	_subjectInitNode
SubjectNode *	_subjectFinalizeNode
Protected Attributes inherited from YACS::HMI::SubjectComposedNode
YACS::ENGINE::ComposedNode *	_composedNode
Protected Attributes inherited from YACS::HMI::SubjectNode
YACS::ENGINE::Node *	_node
std::list< SubjectInputPort * >	_listSubjectInputPort
std::list< SubjectOutputPort * >	_listSubjectOutputPort
std::list< SubjectInputDataStreamPort * >	_listSubjectIDSPort
std::list< SubjectOutputDataStreamPort * >	_listSubjectODSPort
std::list< SubjectLink * >	_listSubjectLink
std::list< SubjectControlLink * >	_listSubjectControlLink
int	_execState
std::list< YACS::ENGINE::OutGate * >	loutgate
std::list< YACS::ENGINE::InGate * >	singate
std::vector< std::pair< YACS::ENGINE::OutPort *, YACS::ENGINE::InPort * > >	dataLinks
std::vector< std::pair< YACS::ENGINE::OutPort *, YACS::ENGINE::InPort * > >	dataflowLinks
Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs
Subject *	_parent
bool	_destructible
bool	_askRegisterUndo
std::string	_progress

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::SubjectComposedNode
static SubjectComposedNode *	getLowestCommonAncestor (SubjectNode *snode1, SubjectNode *snode2)
	Retrieves the lowest common ancestor of 2 nodes. More...
Static Public Member Functions inherited from YACS::HMI::SubjectNode
static bool	tryCreateLink (SubjectNode *subOutNode, SubjectNode *subInNode)
Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject *sub, Command *command=0, bool post=false)
Protected Member Functions inherited from YACS::HMI::SubjectComposedNode
virtual SubjectNode *	createNode (YACS::ENGINE::Catalog *catalog, std::string compo, std::string type, std::string name, bool newCompoInst, int swCase=0)
Protected Member Functions inherited from YACS::HMI::SubjectNode
virtual SubjectInputPort *	addSubjectInputPort (YACS::ENGINE::InputPort *port, std::string name="")
virtual SubjectOutputPort *	addSubjectOutputPort (YACS::ENGINE::OutputPort *port, std::string name="")
virtual SubjectInputDataStreamPort *	addSubjectIDSPort (YACS::ENGINE::InputDataStreamPort *port, std::string name="")
virtual SubjectOutputDataStreamPort *	addSubjectODSPort (YACS::ENGINE::OutputDataStreamPort *port, std::string name="")
virtual void	notifyObserver (YACS::ENGINE::Node *object, const std::string &event)

Detailed Description

Definition at line 658 of file guiObservers.hxx.

Constructor & Destructor Documentation

SubjectOptimizerLoop()

SubjectOptimizerLoop::SubjectOptimizerLoop	(	YACS::ENGINE::OptimizerLoop *	optimizerLoop,
		Subject *	parent
	)

Definition at line 3467 of file guiObservers.cxx.

  : SubjectDynParaLoop(optimizerLoop, parent), _optimizerLoop(optimizerLoop)
{
}

~SubjectOptimizerLoop()

SubjectOptimizerLoop::~SubjectOptimizerLoop ( )

virtual

Definition at line 3473 of file guiObservers.cxx.

{
  DEBTRACE("SubjectOptimizerLoop::~SubjectOptimizerLoop " << getName());
}

References DEBTRACE, and YACS::HMI::SubjectNode::getName().

Member Function Documentation

clean()

void SubjectOptimizerLoop::clean ( Command *  command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::SubjectDynParaLoop.

Definition at line 3478 of file guiObservers.cxx.

{
  if (_askRegisterUndo)
    {
      _askRegisterUndo = false;
      registerUndoDestroy();
    }
  localclean(command);
  SubjectDynParaLoop::clean(command);
}

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::SubjectDynParaLoop::clean(), localclean(), and YACS::HMI::SubjectNode::registerUndoDestroy().

getType()

virtual TypeOfElem YACS::HMI::SubjectOptimizerLoop::getType ( )

inlinevirtual

Reimplemented from YACS::HMI::Subject.

Definition at line 665 of file guiObservers.hxx.

{return OPTIMIZERLOOP;}

References YACS::HMI::OPTIMIZERLOOP.

localclean()

void SubjectOptimizerLoop::localclean

(

Command *

command = 0

)

Definition at line 3489 of file guiObservers.cxx.

{
  DEBTRACE("SubjectOptimizerLoop::localClean ");
}

References DEBTRACE.

Referenced by clean().

setAlgorithm()

bool SubjectOptimizerLoop::setAlgorithm ( const std::string &  alglib, const std::string &  symbol  )

virtual

Definition at line 3494 of file guiObservers.cxx.

{
  DEBTRACE("SubjectOptimizerLoop::setAlgorithm " << alglib << " " << symbol);
  Proc *proc = GuiContext::getCurrent()->getProc();
  CommandSetAlgo *command = new CommandSetAlgo(proc->getChildName(getNode()), alglib, symbol);
  if (command->execute())
    {
      GuiContext::getCurrent()->getInvoc()->add(command);
      return true;
    }
  else delete command;
  return false;
}

References YACS::HMI::Invocator::add(), DEBTRACE, YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::HMI::SubjectNode::getNode(), and YACS::HMI::GuiContext::getProc().

Referenced by YACS::HMI::EditionOptimizerLoop::onModifyEntry(), and YACS::HMI::EditionOptimizerLoop::onModifyLib().

Member Data Documentation

_optimizerLoop

YACS::ENGINE::OptimizerLoop* YACS::HMI::SubjectOptimizerLoop::_optimizerLoop

protected

Definition at line 668 of file guiObservers.hxx.

---

The documentation for this class was generated from the following files:

• src/hmi/guiObservers.hxx
• src/hmi/guiObservers.cxx
