#include <EditionForEachLoop.hxx>

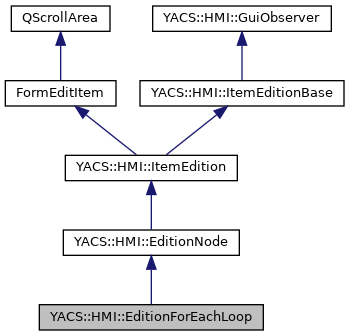

Inheritance diagram for YACS::HMI::EditionForEachLoop:

[legend]

Collaboration diagram for YACS::HMI::EditionForEachLoop:

[legend]

Public Slots
virtual void	onModifyCollection ()

virtual void	onNbBranchesEdited ()

Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionForEachLoop (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionForEachLoop ()

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::EditionNode
	EditionNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionNode ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	synchronize ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual void	select (bool isSelected)

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
FormEachLoop *	_formEachLoop

int	_nbBranches

Protected Attributes inherited from YACS::HMI::EditionNode
QLineEdit *	_le_fullName

SubjectNode *	_subjectNode

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 31 of file EditionForEachLoop.hxx.

Constructor & Destructor Documentation

◆ EditionForEachLoop()

EditionForEachLoop::EditionForEachLoop	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 39 of file EditionForEachLoop.cxx.

  : EditionNode(subject, parent, name)
{
  _formEachLoop = new FormEachLoop(this);
  _nbBranches = 1;
  _wid->gridLayout1->addWidget(_formEachLoop);
  _formEachLoop->sb_nbranch->setMinimum(1);
  _formEachLoop->sb_nbranch->setMaximum(INT_MAX);
  if (!QtGuiContext::getQtCurrent()->isEdition())
    _formEachLoop->setEnabled (false);
  Node* node=_subjectNode->getNode();
  ForEachLoopGen *fe = dynamic_cast<ForEachLoopGen*>(node);
  if(fe)
    _formEachLoop->lineEdit->setText(fe->edGetSamplePort()->edGetType()->name());
  connect(_formEachLoop->sb_nbranch, SIGNAL(editingFinished()),
          this, SLOT(onNbBranchesEdited()));

  connect(_formEachLoop->lineEdit_2, SIGNAL(editingFinished()),this,SLOT(onModifyCollection()));

}

References _formEachLoop, _nbBranches, YACS::HMI::EditionNode::_subjectNode, FormEditItem::_wid, YACS::ENGINE::DynParaLoop::edGetSamplePort(), YACS::ENGINE::DataPort::edGetType(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::ENGINE::TypeCode::name(), onModifyCollection(), and onNbBranchesEdited().

◆ ~EditionForEachLoop()

EditionForEachLoop::~EditionForEachLoop ( )

virtual

Definition at line 62 of file EditionForEachLoop.cxx.

63{

64}

Member Function Documentation

◆ onModifyCollection

void EditionForEachLoop::onModifyCollection ( )

virtualslot

Definition at line 66 of file EditionForEachLoop.cxx.

{
  bool isOk = false;
  Node* node=_subjectNode->getNode();
  ForEachLoopGen *fe = dynamic_cast<ForEachLoopGen*>(node);
  InputPort* dp=fe->edGetSeqOfSamplesPort();
  SubjectDataPort* sdp = QtGuiContext::getQtCurrent()->_mapOfSubjectDataPort[dp];
  isOk=sdp->setValue(_formEachLoop->lineEdit_2->text().toStdString());
  DEBTRACE(isOk);
}

References _formEachLoop, YACS::HMI::GuiContext::_mapOfSubjectDataPort, YACS::HMI::EditionNode::_subjectNode, DEBTRACE, YACS::ENGINE::ForEachLoopGen::edGetSeqOfSamplesPort(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::QtGuiContext::getQtCurrent(), and YACS::HMI::SubjectDataPort::setValue().

Referenced by EditionForEachLoop().

◆ onNbBranchesEdited

void EditionForEachLoop::onNbBranchesEdited ( )

virtualslot

Definition at line 77 of file EditionForEachLoop.cxx.

{
  int newval = _formEachLoop->sb_nbranch->value();
  DEBTRACE("EditionForEachLoop::onNbBranchesEdited " << _nbBranches << " --> " << newval);
  if (newval != _nbBranches)
    {
      SubjectForEachLoop *sfe = dynamic_cast<SubjectForEachLoop*>(_subject);
      YASSERT(sfe);
      QString text = _formEachLoop->sb_nbranch->cleanText();
      sfe->setNbBranches(text.toStdString());
    }
}

References _formEachLoop, _nbBranches, YACS::HMI::ItemEditionBase::_subject, DEBTRACE, YACS::HMI::SubjectDynParaLoop::setNbBranches(), and YASSERT.

Referenced by EditionForEachLoop().

◆ synchronize()

void EditionForEachLoop::synchronize ( )

virtual

used in derived nodes for synchronisation with schema model.

Reimplemented from YACS::HMI::ItemEdition.

Definition at line 90 of file EditionForEachLoop.cxx.

{
  _subject->update(SETVALUE, 0, _subject);
}

References YACS::HMI::ItemEditionBase::_subject, YACS::HMI::SETVALUE, and YACS::HMI::Subject::update().

◆ update()

void EditionForEachLoop::update	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::EditionNode.

Definition at line 95 of file EditionForEachLoop.cxx.

{
  DEBTRACE("EditionForEachLoop::update " << eventName(event) << " " << type);
  EditionNode::update(event, type, son);
  switch (event)
    {
    case SETVALUE:
      SubjectComposedNode * scn = dynamic_cast<SubjectComposedNode*>(_subject);
      string val = scn->getValue();
      istringstream ss(val);
      DEBTRACE( val);
      int i = 0;
      ss >> i;
      DEBTRACE(i);
      _formEachLoop->sb_nbranch->setValue(i);
      _nbBranches = i;

      //smplscollection
      InputPort* dp=_subjectNode->getNode()->getInputPort("SmplsCollection");
      _formEachLoop->lineEdit_2->setText(dp->getAsString().c_str());
      break;
    }
}
