#include <EditionLoop.hxx>

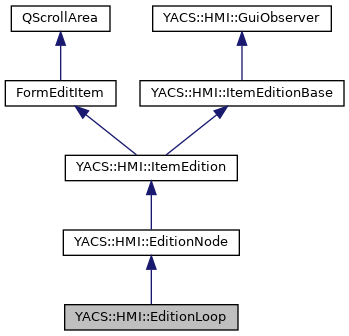

Inheritance diagram for YACS::HMI::EditionLoop:

[legend]

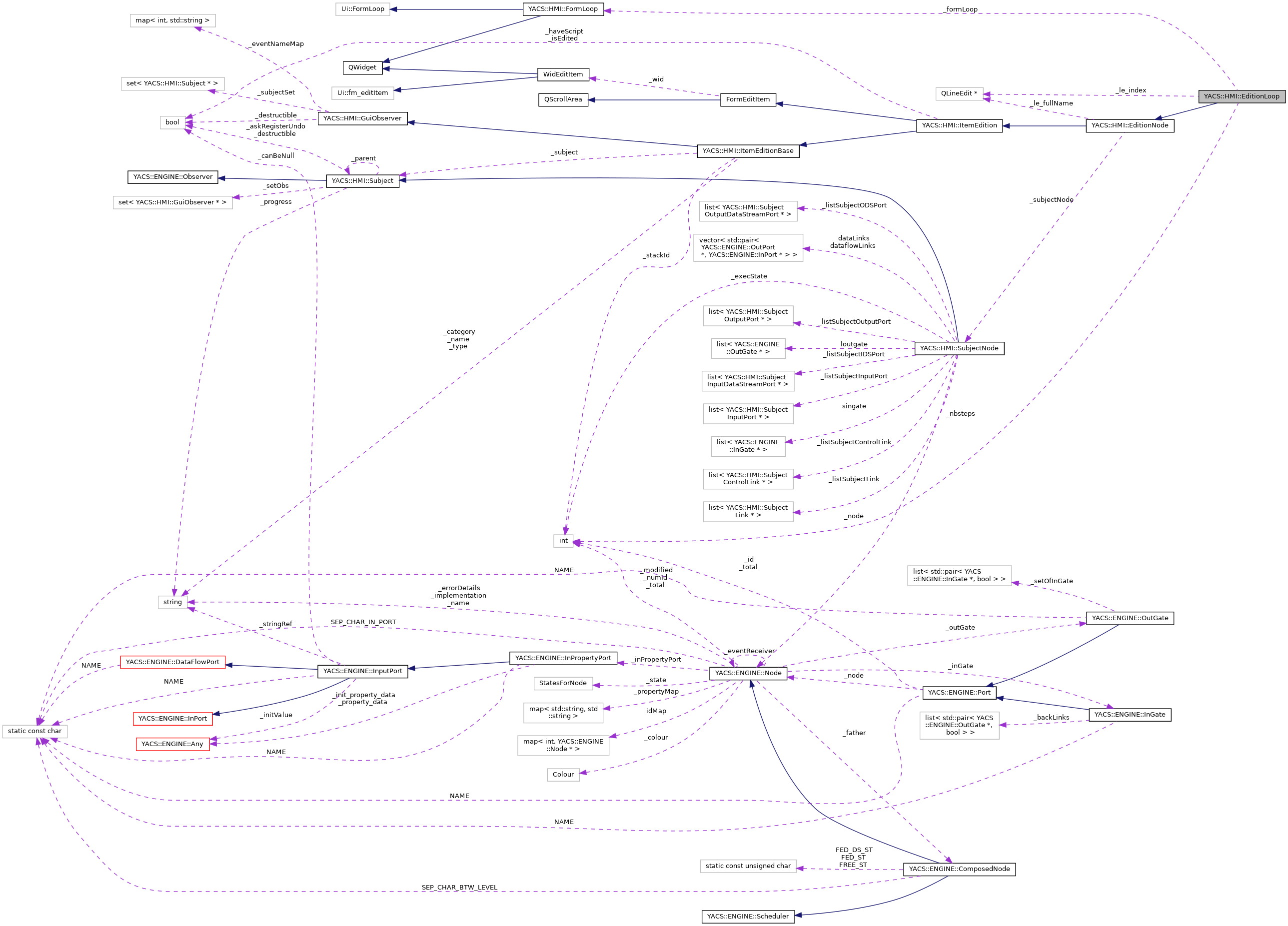

Collaboration diagram for YACS::HMI::EditionLoop:

[legend]

Public Slots
virtual void	onNbStepsEdited ()

Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionLoop (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionLoop ()

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::EditionNode
	EditionNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionNode ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	synchronize ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual void	select (bool isSelected)

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
FormLoop *	_formLoop

QLineEdit *	_le_index

int	_nbsteps

Protected Attributes inherited from YACS::HMI::EditionNode
QLineEdit *	_le_fullName

SubjectNode *	_subjectNode

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 31 of file EditionLoop.hxx.

Constructor & Destructor Documentation

◆ EditionLoop()

EditionLoop::EditionLoop	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 37 of file EditionLoop.cxx.

  : EditionNode(subject, parent, name)
{
  _formLoop = new FormLoop(this);
  _nbsteps = 0;
  _wid->gridLayout1->addWidget(_formLoop);

  QHBoxLayout* _hbl_index = new QHBoxLayout();
  QLabel* _la_index = new QLabel(this);
  _hbl_index->addWidget(_la_index);
  _la_index->setText("index:");
  _le_index = new QLineEdit(this);
  _le_index->setText(QString::number(0));
  _le_index->setReadOnly(true);
  _hbl_index->addWidget(_le_index);
  _formLoop->gridLayout->addLayout(_hbl_index, 1, 0);

  _formLoop->sb_nsteps->setMinimum(0);
  _formLoop->sb_nsteps->setMaximum(INT_MAX);
  if (!QtGuiContext::getQtCurrent()->isEdition())
    _formLoop->setEnabled (false);

  connect(_formLoop->sb_nsteps, SIGNAL(editingFinished()),
          this, SLOT(onNbStepsEdited()));
}

References _formLoop, _le_index, _nbsteps, FormEditItem::_wid, YACS::HMI::QtGuiContext::getQtCurrent(), and onNbStepsEdited().

◆ ~EditionLoop()

EditionLoop::~EditionLoop ( )

virtual

Definition at line 65 of file EditionLoop.cxx.

66{

67}

Member Function Documentation

◆ onNbStepsEdited

void EditionLoop::onNbStepsEdited ( )

virtualslot

Definition at line 69 of file EditionLoop.cxx.

{
  int newval = _formLoop->sb_nsteps->value();
  DEBTRACE("EditionLoop::onNbStepsEdited " << _nbsteps << " --> " << newval);
  if (newval != _nbsteps)
    {
      SubjectForLoop *sfl = dynamic_cast<SubjectForLoop*>(_subject);
      YASSERT(sfl);
      QString text = _formLoop->sb_nsteps->cleanText();
      sfl->setNbSteps(text.toStdString());
    }
}

References _formLoop, _nbsteps, YACS::HMI::ItemEditionBase::_subject, DEBTRACE, YACS::HMI::SubjectForLoop::setNbSteps(), and YASSERT.

Referenced by EditionLoop().

◆ synchronize()

void EditionLoop::synchronize ( )

virtual

used in derived nodes for synchronisation with schema model.

Reimplemented from YACS::HMI::ItemEdition.

Definition at line 82 of file EditionLoop.cxx.

{
  _subject->update(SETVALUE, 0, _subject);
}

References YACS::HMI::ItemEditionBase::_subject, YACS::HMI::SETVALUE, and YACS::HMI::Subject::update().

◆ update()

void EditionLoop::update	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

when loading a schema, creation of all edition widgets is time and memory consuming, so, widget edition creation is differed until user select an item in tree or 2D vue.

Reimplemented from YACS::HMI::EditionNode.

Definition at line 87 of file EditionLoop.cxx.

{
  DEBTRACE("EditionLoop::update " <<eventName(event) << " " << type);
  EditionNode::update(event, type, son);
  switch (event)
    {
    case SETVALUE:
      {
        SubjectComposedNode * scn = dynamic_cast<SubjectComposedNode*>(_subject);
        string val = scn->getValue();
        istringstream ss(val);
        DEBTRACE(val);
        int i = 0;
        ss >> i;
        DEBTRACE(i);
        _formLoop->sb_nsteps->setValue(i);
        _nbsteps = i;

        YACS::ENGINE::OutputPort* odp=scn->getNode()->getOutputPort("index");
        SubjectDataPort* sodp = QtGuiContext::getQtCurrent()->_mapOfSubjectDataPort[odp];
        _le_index->setText(QString::fromStdString(sodp->getExecValue()));
        break;
      }
    case UPDATEPROGRESS:
      {
        SubjectComposedNode * scn = dynamic_cast<SubjectComposedNode*>(_subject);
        YACS::ENGINE::OutputPort* odp=scn->getNode()->getOutputPort("index");
        SubjectDataPort* sodp = QtGuiContext::getQtCurrent()->_mapOfSubjectDataPort[odp];
        _le_index->setText(QString::fromStdString(sodp->getExecValue()));
        break;
      }
    }
}

References _formLoop, _le_index, YACS::HMI::GuiContext::_mapOfSubjectDataPort, _nbsteps, YACS::HMI::ItemEditionBase::_subject, DEBTRACE, YACS::HMI::GuiObserver::eventName(), YACS::HMI::SubjectDataPort::getExecValue(), YACS::HMI::SubjectNode::getNode(), YACS::ENGINE::Node::getOutputPort(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::SubjectComposedNode::getValue(), yacsorb.CORBAEngineTest::i, YACS::HMI::SETVALUE, YACS::HMI::EditionNode::update(), and YACS::HMI::UPDATEPROGRESS.

Referenced by gui.graph.MyCanvas::customEvent().

Member Data Documentation

◆ _formLoop

FormLoop* YACS::HMI::EditionLoop::_formLoop

protected

Definition at line 47 of file EditionLoop.hxx.

Referenced by EditionLoop(), onNbStepsEdited(), and update().

◆ _le_index

QLineEdit* YACS::HMI::EditionLoop::_le_index

protected

Definition at line 48 of file EditionLoop.hxx.

Referenced by EditionLoop(), and update().

◆ _nbsteps

int YACS::HMI::EditionLoop::_nbsteps

protected

Definition at line 49 of file EditionLoop.hxx.

Referenced by EditionLoop(), onNbStepsEdited(), and update().

The documentation for this class was generated from the following files:

src/genericgui/EditionLoop.hxx
src/genericgui/EditionLoop.cxx
