#include <TablePortsEdition.hxx>

Inheritance diagram for YACS::HMI::TablePortsEdition:

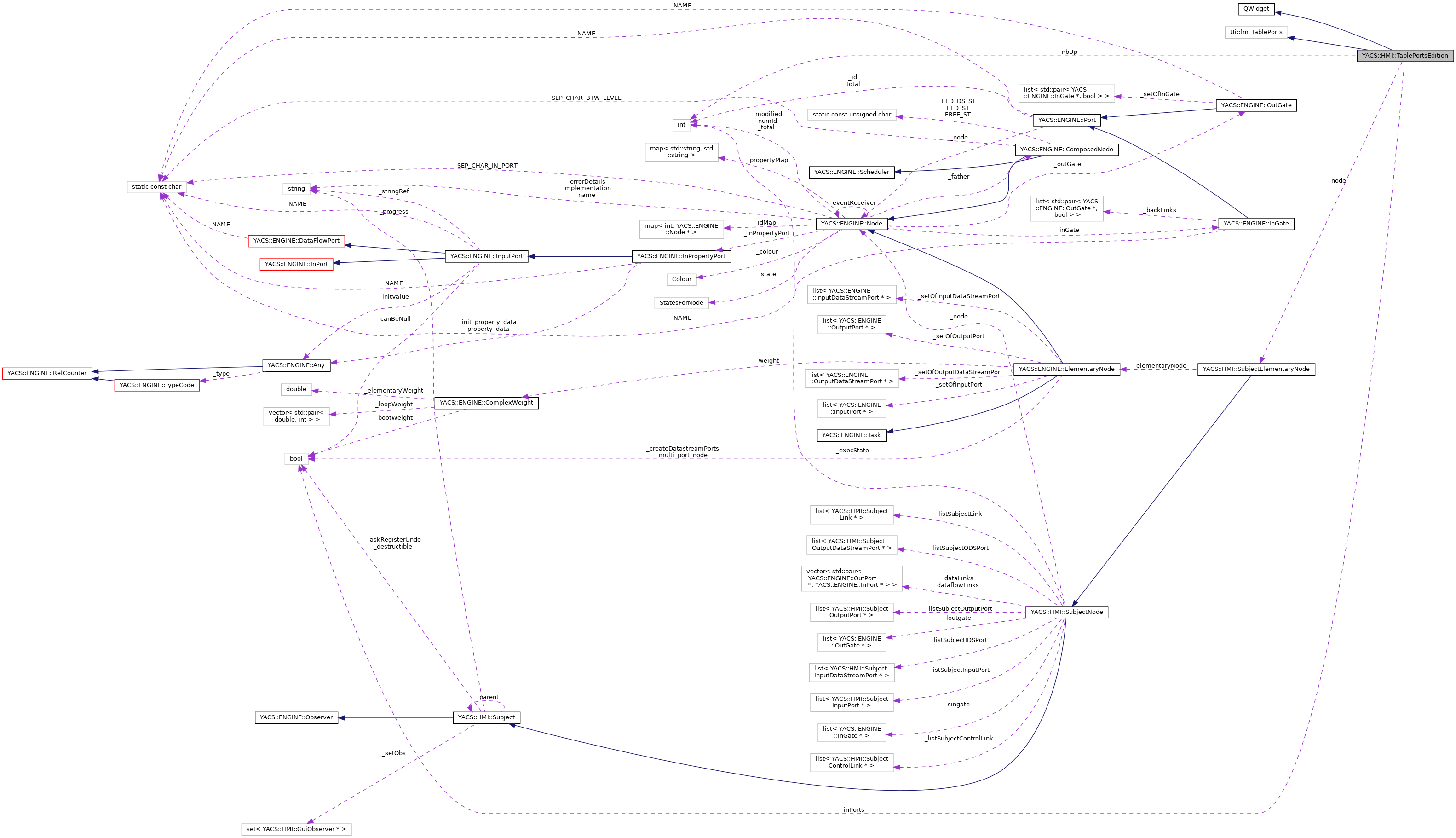

Collaboration diagram for YACS::HMI::TablePortsEdition:

[legend]

Public Slots
void	on_pb_up_clicked ()

void	on_pb_down_clicked ()

void	on_pb_insert_clicked ()

void	on_pb_remove_clicked ()

void	oncb_insert_activated (const QString &text)

void	oncb_insert_popupHide ()

void	oncb_insert_popupShow ()

Public Member Functions
	TablePortsEdition (bool inPorts, QWidget *parent=0)

virtual	~TablePortsEdition ()

void	setNode (SubjectElementaryNode *node)

virtual void	setEditablePorts (bool isEditable)

virtual void	adjustColumns ()

Protected Member Functions
void	upOrDown (int isUp)

Protected Attributes
bool	_inPorts

SubjectElementaryNode *	_node

int	_nbUp

Detailed Description

Definition at line 56 of file TablePortsEdition.hxx.

Constructor & Destructor Documentation

◆ TablePortsEdition()

TablePortsEdition::TablePortsEdition	(	bool	inPorts,
		QWidget *	parent = `0`
	)

Definition at line 86 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::TablePortsEdition");
   setupUi(this);
   _inPorts = inPorts;
   _node = 0;
   _nbUp = 0;
   if (tv_ports->horizontalHeader())
       tv_ports->horizontalHeader()->setStretchLastSection(true);

   delete cb_insert;
   cb_insert = new YComboBox(layoutWidget);
   gridLayout1->addWidget(cb_insert, 0, 4, 1, 1);
   cb_insert->setToolTip("port creation: select a port type");

   connect(cb_insert, SIGNAL(popupHide()),
           this, SLOT(oncb_insert_popupHide()));
   connect(cb_insert, SIGNAL(popupShow()),
           this, SLOT(oncb_insert_popupShow()));

   connect(cb_insert, SIGNAL(activated(const QString&)),
           this, SLOT(oncb_insert_activated(const QString&)));
 }

References _inPorts, _nbUp, _node, DEBTRACE, oncb_insert_activated(), oncb_insert_popupHide(), and oncb_insert_popupShow().

◆ ~TablePortsEdition()

TablePortsEdition::~TablePortsEdition ( )

virtual

Definition at line 110 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::~TablePortsEdition");
 }

References DEBTRACE.

Member Function Documentation

◆ adjustColumns()

void TablePortsEdition::adjustColumns ( )

virtual

Definition at line 286 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::adjustColumns");
   if (!tv_ports->isColumnHidden(YLabel))
     tv_ports->resizeColumnToContents(YLabel);
   if (!tv_ports->isColumnHidden(YType))
     tv_ports->resizeColumnToContents(YType);
 }

References DEBTRACE, YACS::HMI::YLabel, and YACS::HMI::YType.

Referenced by YACS::HMI::EditionElementaryNode::synchronize().

◆ on_pb_down_clicked

void TablePortsEdition::on_pb_down_clicked ( )

slot

Definition at line 127 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::on_pb_down_clicked");
   upOrDown(0); // --- 0 means go down one step
   _nbUp = 0;
 }

References _nbUp, DEBTRACE, and upOrDown().

◆ on_pb_insert_clicked

void TablePortsEdition::on_pb_insert_clicked ( )

slot

Definition at line 176 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::on_pb_insert_clicked");
   SchemaModel *model = QtGuiContext::getQtCurrent()->getSchemaModel();
   SubjectDataPort *spBefore = 0;
   _nbUp = 0;

   QModelIndexList items = tv_ports->selectionModel()->selection().indexes();
   QModelIndex index;
   if (!items.isEmpty()) index = items.first();
   SchemaItem *item = static_cast<SchemaItem*>(index.internalPointer());
   if (!item)
     return;

   Subject *sub = item->getSubject();
   DEBTRACE(sub->getName());
   spBefore = dynamic_cast<SubjectDataPort*>(sub);
   DataPort *port = spBefore->getPort();

   bool isInput = false;
   if (dynamic_cast<SubjectInputPort*>(spBefore))
     isInput = true;

   sub = item->parent()->getSubject();
   SubjectElementaryNode* sen = dynamic_cast<SubjectElementaryNode*>(sub);
   YASSERT(sen);
   ElementaryNode* father = dynamic_cast<ElementaryNode*>(sen->getNode());

   if (isInput)
     {
       int rang = 0;
       list<InputPort*> plist = father->getSetOfInputPort();
       list<InputPort*>::iterator pos = plist.begin();
       for (; (*pos) != port; pos++)
         rang++;
       _nbUp = plist.size() -rang;
     }
   else
     {
       int rang = 0;
       list<OutputPort*> plist = father->getSetOfOutputPort();
       list<OutputPort*>::iterator pos = plist.begin();
       for (; (*pos) != port; pos++)
         rang++;
       _nbUp = plist.size() -rang;
     }

   DEBTRACE(_nbUp);
   cb_insert->showPopup();
 }

References _nbUp, DEBTRACE, YACS::HMI::Subject::getName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::SubjectDataPort::getPort(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::getSchemaModel(), YACS::ENGINE::ElementaryNode::getSetOfInputPort(), YACS::ENGINE::ElementaryNode::getSetOfOutputPort(), YACS::HMI::SchemaItem::getSubject(), YACS::HMI::SchemaItem::parent(), and YASSERT.

◆ on_pb_remove_clicked

void TablePortsEdition::on_pb_remove_clicked ( )

slot

Definition at line 264 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::on_pb_remove_clicked");
   SchemaModel *model = QtGuiContext::getQtCurrent()->getSchemaModel();
   SubjectDataPort *spToRemove = 0;
   QModelIndexList items = tv_ports->selectionModel()->selection().indexes();
   QModelIndex index;
   if (!items.isEmpty()) index = items.first();
   SchemaItem *item = static_cast<SchemaItem*>(index.internalPointer());
   if (item)
     {
       Subject *sub = item->getSubject();
       DEBTRACE(sub->getName());
       spToRemove = dynamic_cast<SubjectDataPort*>(sub);
     }
   if (spToRemove)
     {
       QtGuiContext::getQtCurrent()->getGMain()->_guiEditor->DeleteSubject(spToRemove->getParent(),
                                                                           spToRemove);
     }
 }

References YACS::HMI::GenericGui::_guiEditor, DEBTRACE, YACS::HMI::GuiEditor::DeleteSubject(), YACS::HMI::QtGuiContext::getGMain(), YACS::HMI::Subject::getName(), YACS::HMI::Subject::getParent(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::getSchemaModel(), and YACS::HMI::SchemaItem::getSubject().

◆ on_pb_up_clicked

void TablePortsEdition::on_pb_up_clicked ( )

slot

Definition at line 120 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::on_pb_up_clicked");
   upOrDown(1);// --- n>0 means go up n steps
   _nbUp = 0;
 }

References _nbUp, DEBTRACE, and upOrDown().

◆ oncb_insert_activated

void TablePortsEdition::oncb_insert_activated ( const QString & text )

slot

Definition at line 227 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::oncb_insert_activated " << text.toStdString());
   SubjectDataPort *spBefore = 0;
   QModelIndexList items = tv_ports->selectionModel()->selection().indexes();
   QModelIndex index;
   if (!items.isEmpty()) index = items.first();
   SchemaItem *item = static_cast<SchemaItem*>(index.internalPointer());
   if (item)
     {
       Subject *sub = item->getSubject();
       DEBTRACE(sub->getName());
       spBefore = dynamic_cast<SubjectDataPort*>(sub);
     }
   string portType = text.toStdString();
   QStringList defaultTypes;
   defaultTypes << "Int" << "Double" << "String" << "Bool";
   if (defaultTypes.contains(text))
     portType = text.toLower().toStdString();
   YACS::ENGINE::Catalog *catalog =
     QtGuiContext::getQtCurrent()->getGMain()->getCatalogWidget()->getCatalogFromType(portType);
   if (!catalog) catalog = QtGuiContext::getQtCurrent()->getCurrentCatalog();
   YASSERT(catalog);
   GuiEditor *editor = QtGuiContext::getQtCurrent()->getGMain()->_guiEditor;
   SubjectDataPort * sdp = 0;
   if (_inPorts)
     sdp = editor->CreateInputPort(_node, "", catalog, portType, spBefore);
   else
     sdp = editor->CreateOutputPort(_node, "", catalog, portType, spBefore);
   if (_nbUp)
     {
       DEBTRACE("move up created port " << _nbUp);
       _node->OrderDataPorts(sdp, _nbUp);
       _nbUp = 0;
     }
 }

References YACS::HMI::GenericGui::_guiEditor, _inPorts, _nbUp, _node, YACS::HMI::GuiEditor::CreateInputPort(), YACS::HMI::GuiEditor::CreateOutputPort(), DEBTRACE, YACS::HMI::CatalogWidget::getCatalogFromType(), YACS::HMI::GenericGui::getCatalogWidget(), YACS::HMI::GuiContext::getCurrentCatalog(), YACS::HMI::QtGuiContext::getGMain(), YACS::HMI::Subject::getName(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::SchemaItem::getSubject(), YACS::HMI::SubjectElementaryNode::OrderDataPorts(), and YASSERT.

Referenced by TablePortsEdition().

◆ oncb_insert_popupHide

void TablePortsEdition::oncb_insert_popupHide ( )

slot

Definition at line 338 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::oncb_insert_popupHide");
   if (cb_insert->currentIndex() < 0)
     _nbUp = 0; // --- no selection, no port creation, no move
   DEBTRACE(_nbUp);
 }

References _nbUp, and DEBTRACE.

Referenced by TablePortsEdition().

◆ oncb_insert_popupShow

void TablePortsEdition::oncb_insert_popupShow ( )

slot

Definition at line 346 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::oncb_insert_popupShow");
 }

References DEBTRACE.

Referenced by TablePortsEdition().

◆ setEditablePorts()

void TablePortsEdition::setEditablePorts ( bool isEditable )

virtual

Definition at line 296 of file TablePortsEdition.cxx.

 {
   DEBTRACE("TablePortsEdition::setEditablePorts " << isEditable);
   if (QtGuiContext::getQtCurrent()->isEdition())
     {
       tv_ports->setColumnHidden(YType,  false);
       tv_ports->setColumnHidden(YValue, false);
     }
   else
     {
       isEditable = false; // --- no edition in execution !
       tv_ports->setColumnHidden(YType,  true);
       tv_ports->setColumnHidden(YState, false);
     }

   if (tv_ports->verticalHeader())
     tv_ports->verticalHeader()->setVisible(false);


   pb_up->setEnabled(isEditable);
   pb_down->setEnabled(isEditable);
   pb_insert->setEnabled(isEditable);
   pb_remove->setEnabled(isEditable);
   cb_insert->setEnabled(isEditable);
   if (isEditable)
     {
       pb_up->show();
       pb_down->show();
       pb_insert->show();
       pb_remove->show();
       cb_insert->show();
     }
   else
     {
       pb_up->hide();
       pb_down->hide();
       pb_insert->hide();
       pb_remove->hide();
       cb_insert->hide();
     }
 }

References DEBTRACE, YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::YState, YACS::HMI::YType, and YACS::HMI::YValue.

Referenced by YACS::HMI::EditionElementaryNode::setEditablePorts().

◆ setNode()

void TablePortsEdition::setNode ( SubjectElementaryNode * node )

Definition at line 115 of file TablePortsEdition.cxx.

 {
   _node = node;
 }

References _node.

Referenced by YACS::HMI::EditionElementaryNode::synchronize().

◆ upOrDown()

void TablePortsEdition::upOrDown ( int isUp )

protected

move up or down the port in the list of ports. when isUp = 0, go down one step, when isUp = n>0, go up n steps.

Definition at line 138 of file TablePortsEdition.cxx.

 {
   SchemaModel *model = QtGuiContext::getQtCurrent()->getSchemaModel();
   SubjectDataPort *spToMove = 0;

   QModelIndexList items = tv_ports->selectionModel()->selection().indexes();
   QModelIndex index;
   if (!items.isEmpty()) index = items.first();
   SchemaItem *item = static_cast<SchemaItem*>(index.internalPointer());

   if (item)
     {
       Subject *sub = item->getSubject();
       DEBTRACE(sub->getName());
       spToMove = dynamic_cast<SubjectDataPort*>(sub);
     }

   if (spToMove)
     {
       Subject *sub = item->parent()->getSubject();
       SubjectElementaryNode* sen = dynamic_cast<SubjectElementaryNode*>(sub);
       YASSERT(sen);
       sen->OrderDataPorts(spToMove,isUp);
       if (Scene::_autoComputeLinks)
         {
           YACS::HMI::SubjectProc* subproc = QtGuiContext::getQtCurrent()->getSubjectProc();
           SceneItem *item = QtGuiContext::getQtCurrent()->_mapOfSceneItem[subproc];
           SceneComposedNodeItem *proc = dynamic_cast<SceneComposedNodeItem*>(item);
           proc->rebuildLinks();
         }

       QItemSelectionModel *selectionModel = tv_ports->selectionModel();
       QModelIndex topLeft=item->modelIndex(0);
       QItemSelection selection(topLeft, topLeft);
       selectionModel->select(selection, QItemSelectionModel::Select);
     }
 }

References YACS::HMI::Scene::_autoComputeLinks, YACS::HMI::QtGuiContext::_mapOfSceneItem, DEBTRACE, YACS::HMI::Subject::getName(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::getSchemaModel(), YACS::HMI::SchemaItem::getSubject(), YACS::HMI::GuiContext::getSubjectProc(), YACS::HMI::SchemaItem::modelIndex(), YACS::HMI::SubjectElementaryNode::OrderDataPorts(), YACS::HMI::SchemaItem::parent(), YACS::HMI::SceneComposedNodeItem::rebuildLinks(), and YASSERT.

Referenced by on_pb_down_clicked(), and on_pb_up_clicked().

Member Data Documentation

◆ _inPorts

bool YACS::HMI::TablePortsEdition::_inPorts

protected

Definition at line 78 of file TablePortsEdition.hxx.

Referenced by oncb_insert_activated(), and TablePortsEdition().

◆ _nbUp

int YACS::HMI::TablePortsEdition::_nbUp

protected

Definition at line 80 of file TablePortsEdition.hxx.

Referenced by on_pb_down_clicked(), on_pb_insert_clicked(), on_pb_up_clicked(), oncb_insert_activated(), oncb_insert_popupHide(), and TablePortsEdition().

◆ _node

SubjectElementaryNode* YACS::HMI::TablePortsEdition::_node

protected

Definition at line 79 of file TablePortsEdition.hxx.

Referenced by oncb_insert_activated(), setNode(), and TablePortsEdition().

The documentation for this class was generated from the following files:

src/genericgui/TablePortsEdition.hxx
src/genericgui/TablePortsEdition.cxx

Public Slots

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TablePortsEdition()

◆ ~TablePortsEdition()

Member Function Documentation

◆ adjustColumns()

◆ on_pb_down_clicked

◆ on_pb_insert_clicked

◆ on_pb_remove_clicked

◆ on_pb_up_clicked

◆ oncb_insert_activated

◆ oncb_insert_popupHide

◆ oncb_insert_popupShow

◆ setEditablePorts()

◆ setNode()

◆ upOrDown()

Member Data Documentation

◆ _inPorts

◆ _nbUp

◆ _node
