YACS::structtypeParser Struct Reference

Class for struct parser. More...

#include <typeParsers.hxx>

Inheritance diagram for YACS::structtypeParser:

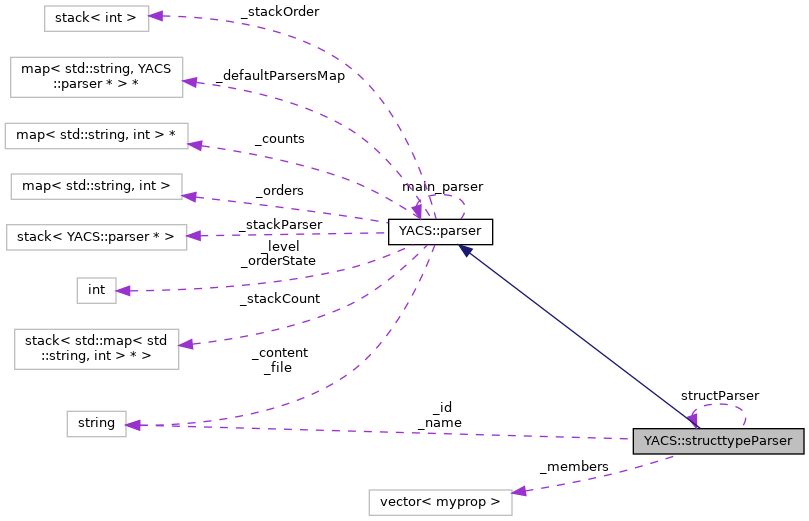

Collaboration diagram for YACS::structtypeParser:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	buildAttr (const XML_Char **attr)
virtual void	pre ()
virtual void	name (const std::string &name)
virtual void	id (const std::string &name)
virtual void	member (const myprop &prop)
virtual YACS::ENGINE::TypeCode *	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const XML_Char *el, parser *child)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	pre ()
virtual void	required (const std::string &name, const XML_Char **attr)
virtual void	buildAttr (const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
std::string	_name
std::string	_id
std::vector< myprop >	_members
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static structtypeParser	structParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Class for struct parser.

Class used to parse a struct (type) definition (class TypeCodeStruct in implementation)

XML schema is

  <xsd:complexType name="StructType">
    <xsd:sequence>
      <xsd:element name="member" type="MemberType" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required"/>
    <xsd:attribute name="id" type="xsd:string" />
  </xsd:complexType>

Definition at line 154 of file typeParsers.hxx.

Member Function Documentation

buildAttr()

void YACS::structtypeParser::buildAttr ( const XML_Char **  attr )

virtual

Reimplemented from YACS::parser.

Definition at line 244 of file typeParsers.cxx.

    {
      if (!attr)
        return;
      required("name",attr);
      for (int i = 0; attr[i]; i += 2)
        {
          if(std::string(attr[i]) == "name")name(attr[i+1]);
          if(std::string(attr[i]) == "id")id(attr[i+1]);
        }
    }

References yacsorb.CORBAEngineTest::i, id(), name(), and YACS::parser::required().

id()

void YACS::structtypeParser::id ( const std::string &  name )

virtual

Definition at line 265 of file typeParsers.cxx.

    {
      DEBTRACE( "structtype_id: " << name );
      _id=name;
    }

References _id, DEBTRACE, and name().

Referenced by buildAttr().

member()

void YACS::structtypeParser::member ( const myprop &  prop )

virtual

Definition at line 270 of file typeParsers.cxx.

    {
      DEBTRACE( "structtype_member: " << prop._name << prop._value );
      if(currentProc->typeMap.count(prop._value)==0)
      {
        //Check if the typecode is defined in the runtime
        YACS::ENGINE::TypeCode* t=theRuntime->getTypeCode(prop._value);
        if(t==0)
        {
          std::string msg="Unknown type " + prop._value + " for member " + prop._name + " in struct " + _name;
          throw Exception(msg);
        }
        else
        {
          currentProc->typeMap[prop._value]=t;
          t->incrRef();
        }
      }

      _members.push_back(prop);
    }

References _members, myprop::_name, _name, myprop::_value, currentProc, DEBTRACE, YACS::ENGINE::Runtime::getTypeCode(), gui.Appli::t, theRuntime, and YACS::ENGINE::Proc::typeMap.

Referenced by onEnd().

name()

void YACS::structtypeParser::name ( const std::string &  name )

virtual

Definition at line 260 of file typeParsers.cxx.

    {
      DEBTRACE( "structtype_name: " << name );
      _name=name;
    }

References _name, DEBTRACE, and name().

Referenced by buildAttr(), id(), and name().

onEnd()

void YACS::structtypeParser::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 238 of file typeParsers.cxx.

    {
      DEBTRACE( "structtypeParser::onEnd: " << el )
      std::string element(el);
      if(element == "member")member(((membertypeParser*)child)->post());
    }

References DEBTRACE, member(), and post().

onStart()

void YACS::structtypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 227 of file typeParsers.cxx.

    {
      DEBTRACE( "structtypeParser::onStart: " << el )
      std::string element(el);
      parser* pp=&parser::main_parser;
      if(element == "member")pp=&membertypeParser::memberParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), DEBTRACE, YACS::parser::init(), YACS::parser::main_parser, YACS::membertypeParser::memberParser, YACS::parser::pre(), and YACS::parser::SetUserDataAndPush().

post()

ENGINE::TypeCode * YACS::structtypeParser::post ( )

virtual

Definition at line 291 of file typeParsers.cxx.

    {
      DEBTRACE( "structtype_post" );
      ENGINE::TypeCodeStruct *t;
      if(currentProc->typeMap.count(_name)!=0)
        {
          //reuse a forward declaration
          ENGINE::TypeCode* tt=currentProc->typeMap[_name];
          if(tt->kind()==YACS::ENGINE::Struct)
            {
              t=(ENGINE::TypeCodeStruct*)tt;
            }
          else
            {
              std::string msg="Forward declaration must be a struct type but " + std::string(tt->name()) + " is not one" ;
              throw Exception(msg);
            }
        }
      else
        {
          t = (ENGINE::TypeCodeStruct*)currentProc->createStructTc(_id,_name);
        }
      std::vector<myprop>::const_iterator iter;
      for(iter=_members.begin();iter!=_members.end();iter++)
        {
          DEBTRACE("member: " << iter->_name << " " <<iter->_value);
          t->addMember(iter->_name,currentProc->typeMap[iter->_value]);
        }
      return t;
    }

References _id, _members, _name, YACS::ENGINE::Proc::createStructTc(), currentProc, DEBTRACE, YACS::ENGINE::TypeCode::kind(), YACS::ENGINE::TypeCode::name(), YACS::ENGINE::Struct, gui.Appli::t, and YACS::ENGINE::Proc::typeMap.

Referenced by onEnd().

pre()

void YACS::structtypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 255 of file typeParsers.cxx.

    {
      _id="";
      _members.clear();
    }

References _id, and _members.

Member Data Documentation

_id

std::string YACS::structtypeParser::_id

Definition at line 167 of file typeParsers.hxx.

Referenced by id(), post(), and pre().

_members

std::vector<myprop> YACS::structtypeParser::_members

Definition at line 168 of file typeParsers.hxx.

Referenced by member(), post(), and pre().

_name

std::string YACS::structtypeParser::_name

Definition at line 166 of file typeParsers.hxx.

Referenced by member(), name(), and post().

structParser

structtypeParser YACS::structtypeParser::structParser

static

Definition at line 156 of file typeParsers.hxx.

Referenced by YACS::proctypeParser< T >::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/typeParsers.hxx
• src/yacsloader/typeParsers.cxx
