#include <switchParsers.hxx>

Inheritance diagram for YACS::switchtypeParser:

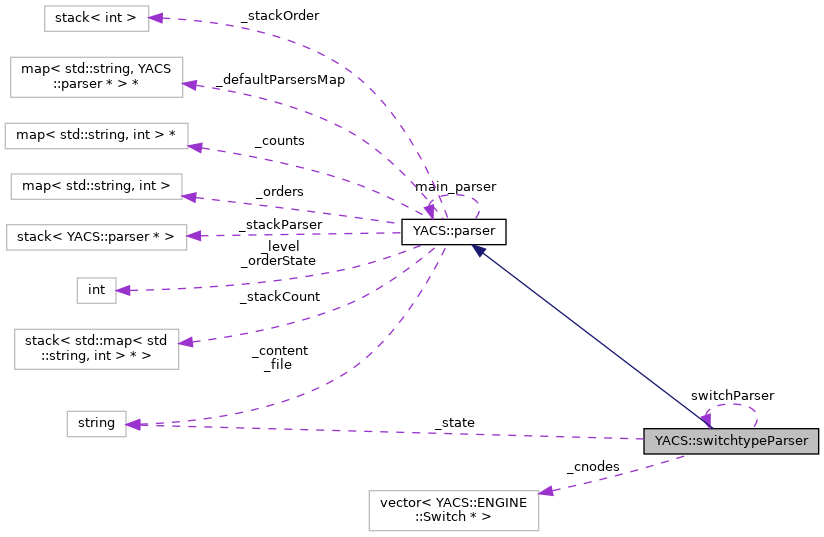

Collaboration diagram for YACS::switchtypeParser:

[legend]

Public Member Functions
void	onStart (const XML_Char el, const XML_Char *attr)

void	onEnd (const char el, parser child)

virtual void	buildAttr (const XML_Char **attr)

virtual void	pre ()

virtual void	case_ (const std::pair< int, ENGINE::Node * > &p)

virtual void	default_ (const std::pair< int, ENGINE::Node * > &p)

virtual void	name (const std::string &name)

virtual void	state (const std::string &state)

virtual void	select (const int &s)

virtual ENGINE::Switch *	post ()

Public Member Functions inherited from YACS::parser
	parser ()

virtual	~parser ()

virtual void	SetUserDataAndPush (parser *pp)

virtual void	charData (const XML_Char *s, int len)

virtual void	endParser ()

virtual void	init ()

virtual void	incrCount (const XML_Char *elem)

virtual void	checkOrder (std::string &el)

virtual void	maxcount (std::string name, int max, std::string &el)

virtual void	mincount (std::string name, int min)

virtual void	maxchoice (std::string *names, int max, std::string &el)

virtual void	minchoice (std::string *names, int min)

virtual void	required (const std::string &name, const XML_Char **attr)

std::stack< parser * > &	getStack ()

template<class T >
T	post ()

void	logError (const std::string &reason)

Public Attributes
std::vector< ENGINE::Switch * >	_cnodes

std::string	_state

Public Attributes inherited from YACS::parser
std::string	_file

std::string	_content

std::map< std::string, int > *	_counts

std::map< std::string, int >	_orders

int	_orderState

int	_level

std::stack< std::map< std::string, int > * >	_stackCount

std::stack< int >	_stackOrder

std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static switchtypeParser	switchParser

Static Public Attributes inherited from YACS::parser
static parser	main_parser

static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)

static void XMLCALL	end_document (void *data)

static void XMLCALL	start_element (void data, const xmlChar name, const xmlChar **p)

static void XMLCALL	end_element (void data, const xmlChar name)

static void XMLCALL	characters (void data, const xmlChar ch, int len)

static void XMLCALL	comment (void data, const xmlChar value)

static void XMLCALL	cdata_block (void data, const xmlChar value, int len)

static void XMLCALL	warning (void data, const char fmt,...)

static void XMLCALL	error (void data, const char fmt,...)

static void XMLCALL	fatal_error (void data, const char fmt,...)

static void	XML_SetUserData (_xmlParserCtxt ctxt, parser par)

Detailed Description

Definition at line 86 of file switchParsers.hxx.

Member Function Documentation

◆ buildAttr()

void YACS::switchtypeParser::buildAttr ( const XML_Char ** attr )

virtual

Reimplemented from YACS::parser.

Definition at line 261 of file switchParsers.hxx.

     {
       if (!attr)
         return;
       this->required("name",attr);
       for (int i = 0; attr[i]; i += 2)
         {
           if(std::string(attr[i]) == "name")name(attr[i+1]);
           if(std::string(attr[i]) == "state")state(attr[i+1]);
           if(std::string(attr[i]) == "select")select(atoi(attr[i+1]));
         }
     }

References yacsorb.CORBAEngineTest::i, name(), YACS::parser::required(), select(), and state().

◆ case_()

void YACS::switchtypeParser::case_ ( const std::pair< int, ENGINE::Node * > & p )

virtual

Definition at line 274 of file switchParsers.hxx.

     {
       ENGINE::Switch* s=_cnodes.back();
       s->edSetNode(p.first,p.second);
     }

References _cnodes, YACS::ENGINE::Switch::edSetNode(), and p.

Referenced by onEnd().

◆ default_()

void YACS::switchtypeParser::default_ ( const std::pair< int, ENGINE::Node * > & p )

virtual

Definition at line 279 of file switchParsers.hxx.

     {
       ENGINE::Switch* s=_cnodes.back();
       s->edSetDefaultNode(p.second);
     }

References _cnodes, YACS::ENGINE::Switch::edSetDefaultNode(), and p.

Referenced by onEnd().

◆ name()

void YACS::switchtypeParser::name ( const std::string & name )

virtual

Definition at line 284 of file switchParsers.hxx.

     {
       ENGINE::Switch* s;
       std::string fullname=currentProc->names.back()+name;
       DEBTRACE( "switch_fullname: " << fullname )
       s=theRuntime->createSwitch(name);
       _cnodes.push_back(s);
       currentProc->names.push_back(fullname+'.');
     }

References _cnodes, YACS::ENGINE::Runtime::createSwitch(), currentProc, DEBTRACE, YACS::ENGINE::Proc::names, and theRuntime.

Referenced by buildAttr().

◆ onEnd()

void YACS::switchtypeParser::onEnd	(	const char *	el,
		parser *	child
	)

virtual

Reimplemented from YACS::parser.

Definition at line 335 of file switchParsers.hxx.

 {
   DEBTRACE( "switchtypeParser::onEnd: " << el )
   std::string element(el);
   if(element == "case")case_(((casetypeParser*)child)->post());
   else if(element == "default")default_(((defaultcasetypeParser*)child)->post());
 }

References case_(), DEBTRACE, default_(), and post().

◆ onStart()

void YACS::switchtypeParser::onStart	(	const XML_Char *	el,
		const XML_Char **	attr
	)

virtual

Reimplemented from YACS::parser.

Definition at line 321 of file switchParsers.hxx.

 {
   DEBTRACE( "switchtypeParser::onStart: " << el )
   std::string element(el);
   this->maxcount("default",1,element);
   parser* pp=&parser::main_parser;
   if(element == "case")pp=&casetypeParser::caseParser;
   else if(element == "default")pp=&defaultcasetypeParser::defaultcaseParser;
   SetUserDataAndPush(pp);
   pp->init();
   pp->pre();
   pp->buildAttr(attr);
 }

References YACS::parser::buildAttr(), YACS::casetypeParser::caseParser, DEBTRACE, YACS::defaultcasetypeParser::defaultcaseParser, YACS::parser::init(), YACS::parser::main_parser, YACS::parser::maxcount(), YACS::parser::pre(), and YACS::parser::SetUserDataAndPush().

◆ post()

ENGINE::Switch * YACS::switchtypeParser::post ( )

virtual

Definition at line 311 of file switchParsers.hxx.

     {
       DEBTRACE( "switch_post: " )
       ENGINE::Switch* sw=_cnodes.back();
       //pop back current level name and node
       _cnodes.pop_back();
       currentProc->names.pop_back();
       return sw;
     }

References _cnodes, currentProc, DEBTRACE, and YACS::ENGINE::Proc::names.

Referenced by onEnd().

◆ pre()

void YACS::switchtypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 273 of file switchParsers.hxx.

273 {_state="";}

YACS::switchtypeParser::_state

std::string _state

Definition: switchParsers.hxx:101

References _state.

◆ select()

void YACS::switchtypeParser::select ( const int & s )

virtual

Definition at line 304 of file switchParsers.hxx.

     {
       //select is an attribute
       ENGINE::Switch* sw=_cnodes.back();
       ENGINE::InputPort *p=sw->edGetConditionPort();
       p->edInit(s);
     }

References _cnodes, YACS::ENGINE::Switch::edGetConditionPort(), and p.

Referenced by buildAttr().

◆ state()

void YACS::switchtypeParser::state ( const std::string & state )

virtual

Definition at line 293 of file switchParsers.hxx.

     {
       //state is an attribute (no order). It can be defined before name
       //To be improved
       ENGINE::Switch* s=_cnodes.back();
       if(_state == "disabled")
         {
           DEBTRACE( "Switch disabled: " << s->getName())
           s->exDisabledState();
         }
     }

References _cnodes, _state, DEBTRACE, YACS::ENGINE::Node::exDisabledState(), and YACS::ENGINE::ComposedNode::getName().

Referenced by buildAttr().

Member Data Documentation

◆ _cnodes

std::vector<ENGINE::Switch *> YACS::switchtypeParser::_cnodes

Definition at line 100 of file switchParsers.hxx.

Referenced by case_(), default_(), name(), post(), select(), and state().

◆ _state

std::string YACS::switchtypeParser::_state

Definition at line 101 of file switchParsers.hxx.

Referenced by pre(), and state().

◆ switchParser

switchtypeParser YACS::switchtypeParser::switchParser

static

Definition at line 88 of file switchParsers.hxx.

Referenced by YACS::bloctypeParser< T >::onStart(), YACS::looptypeParser< T >::onStart(), YACS::proctypeParser< T >::onStart(), and YACS::casetypeParser::onStart().

The documentation for this struct was generated from the following files:

src/yacsloader/switchParsers.hxx
src/yacsloader/rootParser.cxx
