Operation to split a face into triangles by creating a new node on the face and connecting it to the face nodes. More...

#include <SMESHGUI_AddNodeOnFaceDlg.h>

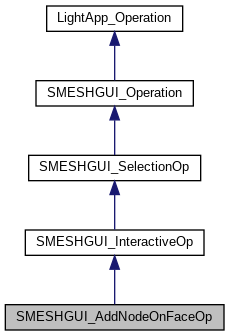

Inheritance diagram for SMESHGUI_AddNodeOnFaceOp:

[legend]

Public Types
typedef QList< int >	IdList

Public Member Functions
	SMESHGUI_AddNodeOnFaceOp ()
	Constructor. More...

virtual	~SMESHGUI_AddNodeOnFaceOp ()
	Destructor. More...

virtual LightApp_Dialog *	dlg () const
	Gets dialog of this operation. More...

virtual void	deactivateCurrentViewOperation ()
	Deactivate current operation in active VTK viewer. More...

Static Public Member Functions
static void	extractIds (const QStringList &, IdList &, const QChar)

Protected Types
enum	EntityType { Object , MeshNode , MeshElement }

Protected Slots
virtual bool	onApply ()
	perform it's intention action: split a face More...

virtual void	onActivateObject (int)
	Installs filter corresponding to certain object selection widget. More...

virtual void	onDeactivateObject (int)
	Removes filter corresponding to certain object selection widget. More...

virtual void	onSelectionChanged (int)
	Empty default implementation. More...

virtual void	onTextChanged (int, const QStringList &)
	Default implementation allowing user to edit selected ids "by hands". More...

virtual void	onOk ()

virtual void	onCancel ()

void	onHelp ()

Protected Member Functions
virtual void	startOperation () override
	This enumeration is used in typeById method to distinguish objects, mesh nodes and mesh elements, because node end element ids may overlap. More...

virtual void	stopOperation () override
	Stops operation. More...

virtual void	activateSelection () override
	Activate selection. More...

bool	isValid (QString &)
	Check selected face id validity. More...

virtual void	processStyleEvents (unsigned long event, void *calldata) override
	Process interactor style events () Virtual method. More...

virtual void	processInteractorEvents (unsigned long event, void *calldata) override
	Process Generic Render Window Interactor events. More...

virtual void	addObserver ()

virtual void	removeObserver ()

void	extractIds (const QStringList &, IdList &) const
	Find in QStringList correct node or element ids representation and append integer(id) to IdList. More...

virtual void	commitOperation ()

virtual void	abortOperation ()

virtual void	selectionDone ()

virtual void	initDialog ()
	sets the dialog widgets to state just after operation start More...

virtual SUIT_SelectionFilter *	createFilter (const int) const
	Creates filter being used when certain object selection widget is active If no filter must be used, then function must return 0 if id is negative, then function must return filter for common using independently of active widget. More...

void	removeCustomFilters ()
	Remove only filters set by this operation (they are in map myFilters ) More...

Selection_Mode	selectionMode () const
	Return what selection mode is set in VTK viewer. More...

void	setSelectionMode (const Selection_Mode)
	Set selection mode in VTK viewer. More...

void	highlight (const Handle(SALOME_InteractiveObject)&, const bool, const bool=true)
	Highlight object in VTK viewer. More...

void	addOrRemoveIndex (const Handle(SALOME_InteractiveObject)&, const SVTK_TVtkIDsMap &, const bool isModeShift)
	Select some nodes or elements in VTK. More...

SVTK_ViewWindow *	viewWindow () const

SVTK_Selector *	selector () const

virtual void	selected (QStringList &, SMESHGUI_Dialog::TypesList &, QStringList &) const
	Get names, types and ids of selected objects. More...

virtual int	typeById (const QString &, const EntityType) const
	Find type by id. More...

virtual QChar	idChar () const
	Char using to divide <entry> and <id> in string id representation. By default, '#'. More...

void	selectedIds (const int, IdList &) const
	Try to find in certain object selection widget selected node or element ids and return it. More...

SMESH::SMESH_Mesh_var	mesh () const
	Return selected mesh if selection mode isn't ActorSelection and only one object is selected. More...

SMESH_Actor *	actor () const
	Return actor according to selected mesh if selection mode isn't ActorSelection. More...

virtual bool	isReadyToStart () const

virtual void	setIsApplyAndClose (const bool theFlag)

virtual bool	isApplyAndClose () const

virtual void	setDialogActive (const bool)
	Set according dialog active or inactive. More...

SMESHGUI *	getSMESHGUI () const

virtual bool	isValid (SUIT_Operation *) const
	Verifies whether given operator is valid for this one. More...

Static Protected Member Functions
static void	ProcessStyleEvents (vtkObject object, unsigned long event, void clientdata, void *calldata)
	Process interactor style events Static method. More...

static void	ProcessInteractorEvents (vtkObject object, unsigned long event, void clientdata, void *calldata)
	Process Generic Render Window Interactor events. More...

Protected Attributes
vtkInteractorStyle *	myInteractorStyle

SVTK_RenderWindowInteractor *	myRWInteractor

double	myInteractorStypePriority

double	myInteractorPriority

vtkSmartPointer< vtkCallbackCommand >	myStyleEventCallbackCommand

vtkSmartPointer< vtkCallbackCommand >	myInteractorEventCallbackCommand

QString	myHelpFileName

bool	myIsApplyAndClose

Private Types
typedef QMap< int, SUIT_SelectionFilter * >	Filters

Private Slots
void	onSelectionDone ()
	SLOT called when selection changed. More...

void	redisplayPreview ()
	update preview More...

void	onSelTypeChange ()
	SLOT. More...

void	onTextChange (const QString &)
	SLOT called when the face id is manually changed. More...

void	onOpenView ()
	SLOT called when the viewer opened. More...

void	onCloseView ()
	SLOT called when the viewer closed. More...

void	pointLocationChanged (bool)
	SLOT called when 'Node on face' checkbox is changed. More...

void	onDestCoordChanged ()
	SLOT called when destination coordinates are changed. More...

Private Attributes
SMESHGUI_AddNodeOnFaceDlg *	myDlg

SUIT_SelectionFilter *	myFilter

SMESHGUI *	mySMESHGUI

SMESHGUI_MeshEditPreview *	mySimulation

SMESH_Actor *	myMeshActor

bool	myNoPreview

bool	myUpdateDestination

bool	myDestCoordChanged

vtkCellPicker *	myFacePicker

Filters	myFilters

Selection_Mode	myDefSelectionMode

Selection_Mode	myOldSelectionMode

Detailed Description

Operation to split a face into triangles by creating a new node on the face and connecting it to the face nodes.

Member Typedef Documentation

◆ Filters

typedef QMap<int, SUIT_SelectionFilter*> SMESHGUI_SelectionOp::Filters

privateinherited

◆ IdList

typedef QList<int> SMESHGUI_SelectionOp::IdList

inherited

Member Enumeration Documentation

◆ EntityType

enum SMESHGUI_SelectionOp::EntityType

protectedinherited

Enumerator
Object
MeshNode
MeshElement

Constructor & Destructor Documentation

◆ SMESHGUI_AddNodeOnFaceOp()

SMESHGUI_AddNodeOnFaceOp::SMESHGUI_AddNodeOnFaceOp ( )

Constructor.

References SMESHGUI_AddNodeOnFaceDlg::myDestinationX, SMESHGUI_AddNodeOnFaceDlg::myDestinationY, SMESHGUI_AddNodeOnFaceDlg::myDestinationZ, myDlg, myFacePicker, SMESHGUI_Operation::myHelpFileName, SMESHGUI_AddNodeOnFaceDlg::myId, myNoPreview, SMESHGUI_AddNodeOnFaceDlg::myPointOnFace, SMESHGUI_AddNodeOnFaceDlg::myPreviewChkBox, mySimulation, mySMESHGUI, myUpdateDestination, onDestCoordChanged(), onSelTypeChange(), onTextChange(), pointLocationChanged(), and redisplayPreview().

◆ ~SMESHGUI_AddNodeOnFaceOp()

SMESHGUI_AddNodeOnFaceOp::~SMESHGUI_AddNodeOnFaceOp ( )

virtual

Destructor.

References myDlg, myFacePicker, and mySimulation.

Member Function Documentation

◆ abortOperation()

void SMESHGUI_SelectionOp::abortOperation ( )

protectedvirtualinherited

References SMESHGUI_SelectionOp::myOldSelectionMode, SMESHGUI_SelectionOp::removeCustomFilters(), and SMESHGUI_SelectionOp::setSelectionMode().

◆ activateSelection()

void SMESHGUI_AddNodeOnFaceOp::activateSelection ( )

overrideprotectedvirtual

Activate selection.

References onSelTypeChange(), and SMESH::SetPointRepresentation().

◆ actor()

SMESH_Actor * SMESHGUI_SelectionOp::actor ( ) const

protectedinherited

Return actor according to selected mesh if selection mode isn't ActorSelection.

References SMESH::FindActorByObject(), and SMESHGUI_SelectionOp::mesh().

Referenced by SMESHGUI_Make2DFrom3DOp::compute2DMesh(), SMESHGUI_MakeFull2DFrom3DOp::compute2DMesh(), SMESHGUI_ShapeByMeshOp::onElemIdChanged(), and SMESHGUI_SelectionOp::onTextChanged().

◆ addObserver()

void SMESHGUI_InteractiveOp::addObserver ( )

protectedvirtualinherited

References SMESHGUI_InteractiveOp::myInteractorEventCallbackCommand, SMESHGUI_InteractiveOp::myInteractorPriority, SMESHGUI_InteractiveOp::myInteractorStyle, SMESHGUI_InteractiveOp::myInteractorStypePriority, SMESHGUI_InteractiveOp::myRWInteractor, and SMESHGUI_InteractiveOp::myStyleEventCallbackCommand.

Referenced by SMESHGUI_MakeNodeAtPointOp::constructorChanged(), startOperation(), SMESHGUI_AddNodeOnSegmentOp::startOperation(), and SMESHGUI_MakeNodeAtPointOp::startOperation().

◆ addOrRemoveIndex()

void SMESHGUI_SelectionOp::addOrRemoveIndex	(	const Handle(SALOME_InteractiveObject)&	obj,
		const SVTK_TVtkIDsMap &	indices,
		const bool	isModeShift
	)

protectedinherited

Select some nodes or elements in VTK.

References SMESHGUI_SelectionOp::selector().

Referenced by SMESHGUI_FindElemByPointOp::onElemSelected(), and SMESHGUI_ReorientFacesOp::onTextChange().

◆ commitOperation()

void SMESHGUI_SelectionOp::commitOperation ( )

protectedvirtualinherited

Reimplemented in SMESHGUI_MeshOp, and SMESHGUI_ShapeByMeshOp.

References SMESHGUI_SelectionOp::myOldSelectionMode, SMESHGUI_SelectionOp::removeCustomFilters(), and SMESHGUI_SelectionOp::setSelectionMode().

Referenced by SMESHGUI_MeshOp::commitOperation(), and SMESHGUI_ShapeByMeshOp::commitOperation().

◆ createFilter()

SUIT_SelectionFilter * SMESHGUI_SelectionOp::createFilter ( const int ) const

protectedvirtualinherited

Creates filter being used when certain object selection widget is active If no filter must be used, then function must return 0 if id is negative, then function must return filter for common using independently of active widget.

Reimplemented in SMESHGUI_Add0DElemsOnAllNodesOp, SMESHGUI_ConvToQuadOp, SMESHGUI_CreateDualMeshOp, SMESHGUI_GroupOnShapeOp, SMESHGUI_Make2DFrom3DOp, SMESHGUI_MakeFull2DFrom3DOp, SMESHGUI_MeshOp, SMESHGUI_ReorientFacesOp, and SMESHGUI_SplitBiQuadOp.

Referenced by SMESHGUI_SelectionOp::onActivateObject().

◆ deactivateCurrentViewOperation()

void SMESHGUI_InteractiveOp::deactivateCurrentViewOperation ( )

virtualinherited

Deactivate current operation in active VTK viewer.

References SMESHGUI_Operation::getSMESHGUI(), and SMESH::GetViewWindow().

◆ dlg()

LightApp_Dialog * SMESHGUI_AddNodeOnFaceOp::dlg ( ) const

virtual

Gets dialog of this operation.

Return values

LightApp_Dialog* - pointer to dialog of this operation

References myDlg.

Referenced by onApply().

◆ extractIds() [1/2]

void SMESHGUI_SelectionOp::extractIds	(	const QStringList &	ids,
		IdList &	list
	)		const

protectedinherited

Find in QStringList correct node or element ids representation and append integer(id) to IdList.

References SMESHGUI_SelectionOp::extractIds(), and SMESHGUI_SelectionOp::idChar().

◆ extractIds() [2/2]

void SMESHGUI_SelectionOp::extractIds	(	const QStringList &	ids,
		IdList &	list,
		const QChar	idchar
	)

staticinherited

Referenced by SMESHGUI_SelectionOp::extractIds(), SMESHGUI_SelectionOp::onTextChanged(), and SMESHGUI_SelectionOp::selectedIds().

◆ getSMESHGUI()

SMESHGUI * SMESHGUI_Operation::getSMESHGUI ( ) const

protectedinherited

Referenced by SMESHGUI_BaseComputeOp::computeMesh(), SMESHGUI_InteractiveOp::deactivateCurrentViewOperation(), SMESHGUI_BaseComputeOp::evaluateMesh(), SMESHGUI_Operation::isReadyToStart(), SMESHGUI_MeshOp::onGeomSelectionByMesh(), SMESHGUI_BaseComputeOp::onGroupOfBadMesh(), SMESHGUI_Operation::onHelp(), SMESHGUI_PrecomputeOp::onPreview(), SMESHGUI_BaseComputeOp::onPublishShape(), SMESHGUI_Add0DElemsOnAllNodesOp::onSetFilter(), SMESHGUI_BaseComputeOp::onShowBadMesh(), SMESHGUI_ShowErrorsOp::startOperation(), SMESHGUI_FindElemByPointOp::startOperation(), SMESHGUI_RemoveNodeReconnectionOp::startOperation(), startOperation(), SMESHGUI_AddNodeOnSegmentOp::startOperation(), SMESHGUI_InteractiveOp::startOperation(), SMESHGUI_MakeNodeAtPointOp::startOperation(), and SMESHGUI_SelectionOp::viewWindow().

◆ highlight()

void SMESHGUI_SelectionOp::highlight	(	const Handle(SALOME_InteractiveObject)&	obj,
		const bool	highlight,
		const bool	immediately = `true`
	)

protectedinherited

Highlight object in VTK viewer.

References SMESHGUI_SelectionOp::highlight(), and SMESHGUI_SelectionOp::viewWindow().

Referenced by SMESHGUI_SelectionOp::highlight(), SMESHGUI_ReorientFacesOp::onTextChange(), and SMESHGUI_SelectionOp::onTextChanged().

◆ idChar()

QChar SMESHGUI_SelectionOp::idChar ( ) const

protectedvirtualinherited

Char using to divide <entry> and <id> in string id representation. By default, '#'.

Referenced by SMESHGUI_SelectionOp::extractIds(), SMESHGUI_SelectionOp::selected(), and SMESHGUI_SelectionOp::typeById().

◆ initDialog()

void SMESHGUI_SelectionOp::initDialog ( )

protectedvirtualinherited

sets the dialog widgets to state just after operation start

Reimplemented from SMESHGUI_Operation.

◆ isApplyAndClose()

bool SMESHGUI_Operation::isApplyAndClose ( ) const

protectedvirtualinherited

References SMESHGUI_Operation::myIsApplyAndClose.

Referenced by SMESHGUI_GroupOnShapeOp::onApply(), SMESHGUI_Make2DFrom3DOp::onApply(), SMESHGUI_MakeFull2DFrom3DOp::onApply(), and SMESHGUI_MeshOp::onApply().

◆ isReadyToStart()

bool SMESHGUI_Operation::isReadyToStart ( ) const

protectedvirtualinherited

References SMESHGUI_Operation::getSMESHGUI(), and SMESHGUI::isStudyLocked().

◆ isValid() [1/2]

bool SMESHGUI_AddNodeOnFaceOp::isValid ( QString & msg )

protected

Check selected face id validity.

References SMESH_Actor::GetObject(), SMESHGUI_AddNodeOnFaceDlg::myDestinationX, SMESHGUI_AddNodeOnFaceDlg::myDestinationY, SMESHGUI_AddNodeOnFaceDlg::myDestinationZ, myDlg, SMESHGUI_AddNodeOnFaceDlg::myId, myMeshActor, myNoPreview, and SMDSAbs_Face.

Referenced by onApply(), onSelTypeChange(), pointLocationChanged(), processInteractorEvents(), processStyleEvents(), and redisplayPreview().

◆ isValid() [2/2]

bool SMESHGUI_Operation::isValid ( SUIT_Operation * theOtherOp ) const

protectedvirtualinherited

Verifies whether given operator is valid for this one.

Parameters

theOtherOp - other operation

Returns: Returns TRUE if the given operator is valid for this one, FALSE otherwise

Virtual method redefined from base class verifies whether given operator is valid for this one (i.e. can be started "above" this operator). In current implementation method returns false if theOtherOp operation is not intended for deleting objects or mesh elements.

Reimplemented in SMESHGUI_MeshOp, and SMESHGUI_BaseComputeOp.

Referenced by SMESHGUI_MeshOp::isValid().

◆ mesh()

SMESH::SMESH_Mesh_var SMESHGUI_SelectionOp::mesh ( ) const

protectedinherited

Return selected mesh if selection mode isn't ActorSelection and only one object is selected.

References SMESH::GetMeshByIO(), and SMESHGUI_SelectionOp::selectionMode().

Referenced by SMESHGUI_SelectionOp::actor(), SMESHGUI_MeshOp::checkSubMeshConcurrency(), SMESHGUI_ConvToQuadOp::ConnectRadioButtons(), SMESHGUI_MeshOp::isSubshapeOk(), SMESHGUI_AddNodeOnSegmentOp::isValid(), SMESHGUI_Add0DElemsOnAllNodesOp::onApply(), SMESHGUI_ConvToQuadOp::onApply(), SMESHGUI_CreateDualMeshOp::onApply(), SMESHGUI_GroupOnShapeOp::onApply(), SMESHGUI_SplitBiQuadOp::onApply(), SMESHGUI_Add0DElemsOnAllNodesOp::onSetFilter(), SMESHGUI_AddNodeOnSegmentOp::processStyleEvents(), SMESHGUI_Add0DElemsOnAllNodesOp::selectionDone(), SMESHGUI_ConvToQuadOp::selectionDone(), SMESHGUI_CreateDualMeshOp::selectionDone(), SMESHGUI_SelectionOp::typeById(), and SMESHGUI_Add0DElemsOnAllNodesOp::updateButtons().

◆ onActivateObject

void SMESHGUI_SelectionOp::onActivateObject ( int id )

protectedvirtualslotinherited

Installs filter corresponding to certain object selection widget.

References SMESHGUI_SelectionOp::createFilter(), SMESHGUI_SelectionOp::myFilters, and SMESHGUI_SelectionOp::selectionDone().

Referenced by SMESHGUI_MeshOp::checkSubMeshConcurrency(), SMESHGUI_GroupOnShapeOp::init(), SMESHGUI_ReorientFacesOp::onActivateObject(), SMESHGUI_GroupOnShapeOp::onButtonClick(), SMESHGUI_MeshOp::onHypoCreated(), SMESHGUI_MeshOp::onHypoEdited(), and SMESHGUI_SelectionOp::startOperation().

◆ onApply

bool SMESHGUI_AddNodeOnFaceOp::onApply ( )

protectedvirtualslot

perform it's intention action: split a face

References SMESHGUI::desktop(), dlg(), SMESH::GetMeshByIO(), SMESHGUI_SpinBox::GetValue(), SMESHGUI::isStudyLocked(), isValid(), SMESHGUI::Modified(), SMESHGUI_AddNodeOnFaceDlg::myDestinationX, SMESHGUI_AddNodeOnFaceDlg::myDestinationY, SMESHGUI_AddNodeOnFaceDlg::myDestinationZ, myDlg, SMESHGUI_AddNodeOnFaceDlg::myId, myMeshActor, onSelectionDone(), and SMESH::UpdateView().

◆ onCancel

void SMESHGUI_Operation::onCancel ( )

protectedvirtualslotinherited

Referenced by SMESHGUI_PrecomputeOp::onCancel(), SMESHGUI_BaseComputeOp::startOperation(), and SMESHGUI_Operation::startOperation().

◆ onCloseView

void SMESHGUI_AddNodeOnFaceOp::onCloseView ( )

privateslot

SLOT called when the viewer closed.

References mySimulation.

Referenced by startOperation(), and stopOperation().

◆ onDeactivateObject

void SMESHGUI_SelectionOp::onDeactivateObject ( int )

protectedvirtualslotinherited

Removes filter corresponding to certain object selection widget.

References SMESHGUI_SelectionOp::removeCustomFilters().

Referenced by SMESHGUI_SelectionOp::startOperation().

◆ onDestCoordChanged

void SMESHGUI_AddNodeOnFaceOp::onDestCoordChanged ( )

privateslot

SLOT called when destination coordinates are changed.

References myDlg, SMESHGUI_AddNodeOnFaceDlg::myPointOnFace, myUpdateDestination, pointLocationChanged(), and redisplayPreview().

Referenced by SMESHGUI_AddNodeOnFaceOp().

◆ onHelp

void SMESHGUI_Operation::onHelp ( )

protectedslotinherited

References SMESHGUI_Operation::getSMESHGUI(), and SMESHGUI_Operation::myHelpFileName.

Referenced by SMESHGUI_PrecomputeOp::startOperation(), and SMESHGUI_Operation::startOperation().

◆ onOk

void SMESHGUI_Operation::onOk ( )

protectedvirtualslotinherited

References SMESHGUI_Operation::onApply(), and SMESHGUI_Operation::setIsApplyAndClose().

Referenced by SMESHGUI_PrecomputeOp::startOperation(), and SMESHGUI_Operation::startOperation().

◆ onOpenView

void SMESHGUI_AddNodeOnFaceOp::onOpenView ( )

privateslot

SLOT called when the viewer opened.

References SMESH::GetViewWindow(), mySimulation, mySMESHGUI, SMESH::SetPointRepresentation(), and SMESHGUI_MeshEditPreview::SetVisibility().

Referenced by startOperation(), and stopOperation().

◆ onSelectionChanged

void SMESHGUI_SelectionOp::onSelectionChanged ( int )

protectedvirtualslotinherited

Empty default implementation.

In successors it may be used for more advanced selection checking. This slot is connected to signal when the selection changed in some object selection widget

Referenced by SMESHGUI_SelectionOp::startOperation().

◆ onSelectionDone

void SMESHGUI_AddNodeOnFaceOp::onSelectionDone ( )

privateslot

◆ onSelTypeChange

void SMESHGUI_AddNodeOnFaceOp::onSelTypeChange ( )

privateslot

SLOT.

Called upon change of selection type

References isValid(), SMESHGUI_AddNodeOnFaceDlg::myDestBtn, myDlg, SMESHGUI_AddNodeOnFaceDlg::myIdBtn, onSelectionDone(), and SMESHGUI_SelectionOp::setSelectionMode().

Referenced by activateSelection(), and SMESHGUI_AddNodeOnFaceOp().

◆ onTextChange

void SMESHGUI_AddNodeOnFaceOp::onTextChange ( const QString & theText )

privateslot

SLOT called when the face id is manually changed.

References SMESH_Actor::GetObject(), SMESHGUI::GetSMESHGUI(), SMESH::GetViewWindow(), Handle(), myMeshActor, and SMESHGUI_SelectionOp::selector().

Referenced by SMESHGUI_AddNodeOnFaceOp().

◆ onTextChanged

void SMESHGUI_SelectionOp::onTextChanged	(	int	,
		const QStringList &	list
	)

protectedvirtualslotinherited

Default implementation allowing user to edit selected ids "by hands".

In order to run default mechanism, you must set for some object selection widget the "name indication" to "ListOfNames", "read only" state to false and connect the dialog's signal "objectChanged" to this slot Warning: this mechanism can process only integer ids, NOT MESH OR GROUP NAMES!!!

References SMESHGUI_SelectionOp::actor(), SMESHGUI_SelectionOp::extractIds(), SMDS_Mesh::FindElement(), SMDS_Mesh::FindNode(), SMESH_Actor::GetObject(), SMESHGUI_SelectionOp::highlight(), SMESHGUI_SelectionOp::selected(), SMESHGUI_SelectionOp::selectionMode(), and SMESHGUI_SelectionOp::selector().

Referenced by SMESHGUI_Add0DElemsOnAllNodesOp::onTextChanged().

◆ pointLocationChanged

void SMESHGUI_AddNodeOnFaceOp::pointLocationChanged ( bool onFace )

privateslot

SLOT called when 'Node on face' checkbox is changed.

References SMESH_MeshAlgos::GetDistance(), SMESH_Actor::GetObject(), SMESHGUI_SpinBox::GetValue(), isValid(), SMESHGUI_AddNodeOnFaceDlg::myDestinationX, SMESHGUI_AddNodeOnFaceDlg::myDestinationY, SMESHGUI_AddNodeOnFaceDlg::myDestinationZ, myDlg, SMESHGUI_AddNodeOnFaceDlg::myId, myMeshActor, myUpdateDestination, redisplayPreview(), SMESHGUI_SpinBox::SetValue(), SMDSAbs_Face, and TOLERANCE.

Referenced by onDestCoordChanged(), and SMESHGUI_AddNodeOnFaceOp().

◆ processInteractorEvents()

void SMESHGUI_AddNodeOnFaceOp::processInteractorEvents	(	unsigned long	theEvent,
		void *	theCallData
	)

overrideprotectedvirtual

Process Generic Render Window Interactor events.

Virtual method. Should be overridden in inherited classes.

Reimplemented from SMESHGUI_InteractiveOp.

References SMESH::GetViewWindow(), isValid(), SMESHGUI_AddNodeOnFaceDlg::myDestBtn, myDlg, SMESHGUI_InteractiveOp::myRWInteractor, and mySMESHGUI.

◆ ProcessInteractorEvents()

void SMESHGUI_InteractiveOp::ProcessInteractorEvents	(	vtkObject *	object,
		unsigned long	event,
		void *	clientdata,
		void *	calldata
	)

staticprotectedinherited

Process Generic Render Window Interactor events.

Static method. Used by vtkCallbackCommand->SetCallback method.

References SMESHGUI_InteractiveOp::processInteractorEvents().

Referenced by SMESHGUI_InteractiveOp::SMESHGUI_InteractiveOp().

◆ processStyleEvents()

void SMESHGUI_AddNodeOnFaceOp::processStyleEvents	(	unsigned long	theEvent,
		void *	theCallData
	)

overrideprotectedvirtual

Process interactor style events () Virtual method.

Should be overridden in inherited classes.

Reimplemented from SMESHGUI_InteractiveOp.

References SMDS_Mesh::AddNode(), SMDS_Mesh::AddPolygonalFace(), SMESH_MeshAlgos::GetDistance(), SMESH_Actor::GetObject(), isValid(), SMESHGUI_AddNodeOnFaceDlg::myDestinationX, SMESHGUI_AddNodeOnFaceDlg::myDestinationY, SMESHGUI_AddNodeOnFaceDlg::myDestinationZ, myDlg, myFacePicker, SMESHGUI_AddNodeOnFaceDlg::myId, myMeshActor, SMESHGUI_AddNodeOnFaceDlg::myPointOnFace, SMESHGUI_InteractiveOp::myRWInteractor, myUpdateDestination, redisplayPreview(), SMESHGUI_SpinBox::SetValue(), SMDSAbs_Face, and TOLERANCE.

◆ ProcessStyleEvents()

void SMESHGUI_InteractiveOp::ProcessStyleEvents	(	vtkObject *	object,
		unsigned long	event,
		void *	clientdata,
		void *	calldata
	)

staticprotectedinherited

Process interactor style events Static method.

Used by vtkCallbackCommand->SetCallback method.

References SMESHGUI_InteractiveOp::processStyleEvents().

Referenced by SMESHGUI_InteractiveOp::SMESHGUI_InteractiveOp().

◆ redisplayPreview

void SMESHGUI_AddNodeOnFaceOp::redisplayPreview ( )

privateslot

◆ removeCustomFilters()

void SMESHGUI_SelectionOp::removeCustomFilters ( )

protectedinherited

Remove only filters set by this operation (they are in map myFilters )

References SMESHGUI_SelectionOp::myFilters.

Referenced by SMESHGUI_SelectionOp::abortOperation(), SMESHGUI_SelectionOp::commitOperation(), SMESHGUI_MeshOp::createHypothesis(), SMESHGUI_GroupOnShapeOp::init(), SMESHGUI_GroupOnShapeOp::onApply(), SMESHGUI_GroupOnShapeOp::onButtonClick(), SMESHGUI_SelectionOp::onDeactivateObject(), SMESHGUI_MeshOp::onEditHyp(), and SMESHGUI_SelectionOp::~SMESHGUI_SelectionOp().

◆ removeObserver()

void SMESHGUI_InteractiveOp::removeObserver ( )

protectedvirtualinherited

References SMESHGUI_InteractiveOp::myInteractorEventCallbackCommand, SMESHGUI_InteractiveOp::myInteractorStyle, SMESHGUI_InteractiveOp::myRWInteractor, and SMESHGUI_InteractiveOp::myStyleEventCallbackCommand.

Referenced by SMESHGUI_MakeNodeAtPointOp::constructorChanged(), stopOperation(), SMESHGUI_AddNodeOnSegmentOp::stopOperation(), and SMESHGUI_MakeNodeAtPointOp::stopOperation().

◆ selected()

void SMESHGUI_SelectionOp::selected	(	QStringList &	,
		SMESHGUI_Dialog::TypesList &	,
		QStringList &
	)		const

protectedvirtualinherited

Get names, types and ids of selected objects.

References SMESH::_PTR(), SMESHGUI_SelectionOp::idChar(), SMESHGUI_SelectionOp::MeshElement, SMESHGUI_SelectionOp::MeshNode, SMESHGUI_SelectionOp::Object, SMESHGUI_SelectionOp::selectionMode(), and SMESHGUI_SelectionOp::typeById().

Referenced by SMESHGUI_SelectionOp::onTextChanged(), SMESHGUI_GroupOnShapeOp::selectionDone(), SMESHGUI_Make2DFrom3DOp::selectionDone(), SMESHGUI_MakeFull2DFrom3DOp::selectionDone(), and SMESHGUI_SelectionOp::selectionDone().

◆ selectedIds()

void SMESHGUI_SelectionOp::selectedIds	(	const int	id,
		IdList &	list
	)		const

protectedinherited

Try to find in certain object selection widget selected node or element ids and return it.

References SMESHGUI_SelectionOp::extractIds().

◆ selectionDone()

void SMESHGUI_SelectionOp::selectionDone ( )

protectedvirtualinherited

Reimplemented in SMESHGUI_Add0DElemsOnAllNodesOp, SMESHGUI_ConvToQuadOp, SMESHGUI_CreateDualMeshOp, SMESHGUI_GroupOnShapeOp, SMESHGUI_Make2DFrom3DOp, SMESHGUI_MakeFull2DFrom3DOp, SMESHGUI_MeshOp, and SMESHGUI_ReorientFacesOp.

References SMESHGUI_SelectionOp::selected(), and SMESHGUI_SelectionOp::selectionMode().

Referenced by SMESHGUI_SelectionOp::onActivateObject(), SMESHGUI_SplitBiQuadOp::onApply(), SMESHGUI_Add0DElemsOnAllNodesOp::selectionDone(), SMESHGUI_ConvToQuadOp::selectionDone(), SMESHGUI_CreateDualMeshOp::selectionDone(), SMESHGUI_ReorientFacesOp::selectionDone(), and SMESHGUI_SplitBiQuadOp::startOperation().

◆ selectionMode()

Selection_Mode SMESHGUI_SelectionOp::selectionMode ( ) const

protectedinherited

Return what selection mode is set in VTK viewer.

References SMESHGUI_SelectionOp::viewWindow().

Referenced by SMESHGUI_ShapeByMeshOp::activateSelection(), SMESHGUI_SelectionOp::mesh(), SMESHGUI_FindElemByPointOp::onElemSelected(), SMESHGUI_FindElemByPointOp::onElemTypeChange(), SMESHGUI_SelectionOp::onTextChanged(), SMESHGUI_SelectionOp::selected(), SMESHGUI_SelectionOp::selectionDone(), and SMESHGUI_SelectionOp::startOperation().

◆ selector()

SVTK_Selector * SMESHGUI_SelectionOp::selector ( ) const

protectedinherited

References SMESHGUI_SelectionOp::viewWindow().

Referenced by SMESHGUI_SelectionOp::addOrRemoveIndex(), SMESHGUI_Add0DElemsOnAllNodesOp::onApply(), SMESHGUI_AddNodeOnSegmentOp::onApply(), SMESHGUI_ShapeByMeshOp::onElemIdChanged(), onSelectionDone(), SMESHGUI_AddNodeOnSegmentOp::onSelectionDone(), SMESHGUI_MakeNodeAtPointOp::onSelectionDone(), SMESHGUI_RemoveNodeReconnectionOp::onSelectionDone(), SMESHGUI_ShapeByMeshOp::onSelectionDone(), onTextChange(), SMESHGUI_AddNodeOnSegmentOp::onTextChange(), SMESHGUI_MakeNodeAtPointOp::onTextChange(), SMESHGUI_RemoveNodeReconnectionOp::onTextChange(), SMESHGUI_SelectionOp::onTextChanged(), SMESHGUI_Add0DElemsOnAllNodesOp::selectionDone(), and SMESHGUI_ReorientFacesOp::selectionDone().

◆ setDialogActive()

void SMESHGUI_Operation::setDialogActive ( const bool active )

protectedvirtualinherited

Set according dialog active or inactive.

References MESHCUT::d.

◆ setIsApplyAndClose()

void SMESHGUI_Operation::setIsApplyAndClose ( const bool theFlag )

protectedvirtualinherited

References SMESHGUI_Operation::myIsApplyAndClose.

Referenced by SMESHGUI_Operation::onOk().

◆ setSelectionMode()

void SMESHGUI_SelectionOp::setSelectionMode ( const Selection_Mode mode )

protectedinherited

Set selection mode in VTK viewer.

References SMESHGUI_SelectionOp::viewWindow().

Referenced by SMESHGUI_SelectionOp::abortOperation(), SMESHGUI_RemoveNodeReconnectionOp::activateSelection(), SMESHGUI_ShapeByMeshOp::activateSelection(), SMESHGUI_MakeNodeAtPointOp::activateSelection(), SMESHGUI_SelectionOp::commitOperation(), SMESHGUI_ReorientFacesOp::onActivateObject(), SMESHGUI_FindElemByPointOp::onElemSelected(), SMESHGUI_FindElemByPointOp::onElemTypeChange(), onSelTypeChange(), SMESHGUI_AddNodeOnSegmentOp::onSelTypeChange(), SMESHGUI_Add0DElemsOnAllNodesOp::onSelTypeChange(), and SMESHGUI_SelectionOp::startOperation().

◆ startOperation()

void SMESHGUI_AddNodeOnFaceOp::startOperation ( )

overrideprotectedvirtual

This enumeration is used in typeById method to distinguish objects, mesh nodes and mesh elements, because node end element ids may overlap.

Reimplemented from SMESHGUI_InteractiveOp.

References SMESHGUI_InteractiveOp::addObserver(), SMESHGUI_MeshEditPreview::GetActor(), SMESH::GetFloat(), SMESHGUI_Operation::getSMESHGUI(), SMESH::GetViewWindow(), SMESHGUI_AddNodeOnFaceDlg::myDestinationX, SMESHGUI_AddNodeOnFaceDlg::myDestinationY, SMESHGUI_AddNodeOnFaceDlg::myDestinationZ, myDlg, SMESHGUI_AddNodeOnFaceDlg::myId, myMeshActor, myNoPreview, mySimulation, mySMESHGUI, myUpdateDestination, onCloseView(), onOpenView(), onSelectionDone(), SMESHGUI_SpinBox::SetValue(), SMESHGUI_Dialog::show(), SMESHGUI_SelectionOp::startOperation(), and SMESHGUI_InteractiveOp::startOperation().

◆ stopOperation()

void SMESHGUI_AddNodeOnFaceOp::stopOperation ( )

overrideprotectedvirtual

Stops operation.

References myMeshActor, myNoPreview, mySimulation, mySMESHGUI, onCloseView(), onOpenView(), SMESHGUI_InteractiveOp::removeObserver(), and SMESHGUI_MeshEditPreview::SetVisibility().

◆ typeById()

int SMESHGUI_SelectionOp::typeById	(	const QString &	str,
		const EntityType	objtype
	)		const

protectedvirtualinherited

Find type by id.

References SMESH::_PTR(), SMESHGUI_SelectionOp::idChar(), SMESHGUI_SelectionOp::mesh(), SMESHGUI_SelectionOp::MeshElement, SMESHGUI_SelectionOp::Object, SMESHGUI_Dialog::prefix(), and SMESHGUI_Selection::type().

Referenced by SMESHGUI_SelectionOp::selected().

◆ viewWindow()

SVTK_ViewWindow * SMESHGUI_SelectionOp::viewWindow ( ) const

protectedinherited

References SMESHGUI_Operation::getSMESHGUI(), and SMESH::GetViewWindow().

Referenced by SMESHGUI_SelectionOp::highlight(), SMESHGUI_ConvToQuadOp::onApply(), SMESHGUI_ShapeByMeshOp::onElemIdChanged(), SMESHGUI_SelectionOp::selectionMode(), SMESHGUI_SelectionOp::selector(), and SMESHGUI_SelectionOp::setSelectionMode().

Field Documentation

◆ myDefSelectionMode

Selection_Mode SMESHGUI_SelectionOp::myDefSelectionMode

privateinherited

Referenced by SMESHGUI_SelectionOp::startOperation().

◆ myDestCoordChanged

bool SMESHGUI_AddNodeOnFaceOp::myDestCoordChanged

private

◆ myDlg

SMESHGUI_AddNodeOnFaceDlg* SMESHGUI_AddNodeOnFaceOp::myDlg

private

Referenced by dlg(), isValid(), onApply(), onDestCoordChanged(), onSelectionDone(), onSelTypeChange(), pointLocationChanged(), processInteractorEvents(), processStyleEvents(), redisplayPreview(), SMESHGUI_AddNodeOnFaceOp(), startOperation(), and ~SMESHGUI_AddNodeOnFaceOp().

◆ myFacePicker

vtkCellPicker* SMESHGUI_AddNodeOnFaceOp::myFacePicker

private

Referenced by onSelectionDone(), processStyleEvents(), SMESHGUI_AddNodeOnFaceOp(), and ~SMESHGUI_AddNodeOnFaceOp().

◆ myFilter

SUIT_SelectionFilter* SMESHGUI_AddNodeOnFaceOp::myFilter

private

◆ myFilters

Filters SMESHGUI_SelectionOp::myFilters

privateinherited

Referenced by SMESHGUI_SelectionOp::onActivateObject(), and SMESHGUI_SelectionOp::removeCustomFilters().

◆ myHelpFileName

QString SMESHGUI_Operation::myHelpFileName

protectedinherited

Referenced by SMESHGUI_PrecomputeOp::onCompute(), SMESHGUI_Operation::onHelp(), SMESHGUI_Add0DElemsOnAllNodesOp::SMESHGUI_Add0DElemsOnAllNodesOp(), SMESHGUI_AddNodeOnFaceOp(), SMESHGUI_AddNodeOnSegmentOp::SMESHGUI_AddNodeOnSegmentOp(), SMESHGUI_BaseComputeOp::SMESHGUI_BaseComputeOp(), SMESHGUI_ComputeOp::SMESHGUI_ComputeOp(), SMESHGUI_EvaluateOp::SMESHGUI_EvaluateOp(), SMESHGUI_FindElemByPointOp::SMESHGUI_FindElemByPointOp(), SMESHGUI_GroupOnShapeOp::SMESHGUI_GroupOnShapeOp(), SMESHGUI_MakeNodeAtPointOp::SMESHGUI_MakeNodeAtPointOp(), SMESHGUI_MeshOrderOp::SMESHGUI_MeshOrderOp(), SMESHGUI_Operation::SMESHGUI_Operation(), SMESHGUI_RemoveNodeReconnectionOp::SMESHGUI_RemoveNodeReconnectionOp(), SMESHGUI_ReorientFacesOp::SMESHGUI_ReorientFacesOp(), SMESHGUI_PrecomputeOp::startOperation(), SMESHGUI_ConvToQuadOp::startOperation(), SMESHGUI_CreateDualMeshOp::startOperation(), SMESHGUI_Make2DFrom3DOp::startOperation(), SMESHGUI_MakeFull2DFrom3DOp::startOperation(), SMESHGUI_MeshOp::startOperation(), and SMESHGUI_SplitBiQuadOp::startOperation().

◆ myInteractorEventCallbackCommand

vtkSmartPointer<vtkCallbackCommand> SMESHGUI_InteractiveOp::myInteractorEventCallbackCommand

protectedinherited

Referenced by SMESHGUI_InteractiveOp::addObserver(), SMESHGUI_InteractiveOp::removeObserver(), and SMESHGUI_InteractiveOp::SMESHGUI_InteractiveOp().

◆ myInteractorPriority

double SMESHGUI_InteractiveOp::myInteractorPriority

protectedinherited

Referenced by SMESHGUI_InteractiveOp::addObserver().

◆ myInteractorStyle

vtkInteractorStyle* SMESHGUI_InteractiveOp::myInteractorStyle

protectedinherited

Referenced by SMESHGUI_InteractiveOp::addObserver(), SMESHGUI_AddNodeOnSegmentOp::processStyleEvents(), SMESHGUI_InteractiveOp::removeObserver(), and SMESHGUI_InteractiveOp::startOperation().

◆ myInteractorStypePriority

double SMESHGUI_InteractiveOp::myInteractorStypePriority

protectedinherited

Referenced by SMESHGUI_InteractiveOp::addObserver().

◆ myIsApplyAndClose

bool SMESHGUI_Operation::myIsApplyAndClose

protectedinherited

Referenced by SMESHGUI_Operation::isApplyAndClose(), and SMESHGUI_Operation::setIsApplyAndClose().

◆ myMeshActor

SMESH_Actor* SMESHGUI_AddNodeOnFaceOp::myMeshActor

private

Referenced by isValid(), onApply(), onSelectionDone(), onTextChange(), pointLocationChanged(), processStyleEvents(), redisplayPreview(), startOperation(), and stopOperation().

◆ myNoPreview

bool SMESHGUI_AddNodeOnFaceOp::myNoPreview

private

Referenced by isValid(), onSelectionDone(), redisplayPreview(), SMESHGUI_AddNodeOnFaceOp(), startOperation(), and stopOperation().

◆ myOldSelectionMode

Selection_Mode SMESHGUI_SelectionOp::myOldSelectionMode

privateinherited

Referenced by SMESHGUI_SelectionOp::abortOperation(), SMESHGUI_SelectionOp::commitOperation(), and SMESHGUI_SelectionOp::startOperation().

◆ myRWInteractor

SVTK_RenderWindowInteractor* SMESHGUI_InteractiveOp::myRWInteractor

protectedinherited

Referenced by SMESHGUI_InteractiveOp::addObserver(), processInteractorEvents(), SMESHGUI_AddNodeOnSegmentOp::processInteractorEvents(), SMESHGUI_MakeNodeAtPointOp::processInteractorEvents(), processStyleEvents(), SMESHGUI_AddNodeOnSegmentOp::processStyleEvents(), SMESHGUI_InteractiveOp::removeObserver(), and SMESHGUI_InteractiveOp::startOperation().

◆ mySimulation

SMESHGUI_MeshEditPreview* SMESHGUI_AddNodeOnFaceOp::mySimulation

private

Referenced by onCloseView(), onOpenView(), redisplayPreview(), SMESHGUI_AddNodeOnFaceOp(), startOperation(), stopOperation(), and ~SMESHGUI_AddNodeOnFaceOp().

◆ mySMESHGUI

SMESHGUI* SMESHGUI_AddNodeOnFaceOp::mySMESHGUI

private

Referenced by onOpenView(), processInteractorEvents(), redisplayPreview(), SMESHGUI_AddNodeOnFaceOp(), startOperation(), and stopOperation().

◆ myStyleEventCallbackCommand

vtkSmartPointer<vtkCallbackCommand> SMESHGUI_InteractiveOp::myStyleEventCallbackCommand

protectedinherited

Referenced by SMESHGUI_InteractiveOp::addObserver(), SMESHGUI_InteractiveOp::removeObserver(), and SMESHGUI_InteractiveOp::SMESHGUI_InteractiveOp().

◆ myUpdateDestination

bool SMESHGUI_AddNodeOnFaceOp::myUpdateDestination

private

Referenced by onDestCoordChanged(), onSelectionDone(), pointLocationChanged(), processStyleEvents(), SMESHGUI_AddNodeOnFaceOp(), and startOperation().

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Slots

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Types

Private Slots

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Filters

◆ IdList

Member Enumeration Documentation

◆ EntityType

Constructor & Destructor Documentation

◆ SMESHGUI_AddNodeOnFaceOp()

◆ ~SMESHGUI_AddNodeOnFaceOp()

Member Function Documentation

◆ abortOperation()

◆ activateSelection()

◆ actor()

◆ addObserver()

◆ addOrRemoveIndex()

◆ commitOperation()

◆ createFilter()

◆ deactivateCurrentViewOperation()

◆ dlg()

◆ extractIds() [1/2]

◆ extractIds() [2/2]

◆ getSMESHGUI()

◆ highlight()

◆ idChar()

◆ initDialog()

◆ isApplyAndClose()

◆ isReadyToStart()

◆ isValid() [1/2]

◆ isValid() [2/2]

◆ mesh()

◆ onActivateObject

◆ onApply

◆ onCancel

◆ onCloseView

◆ onDeactivateObject

◆ onDestCoordChanged

◆ onHelp

◆ onOk

◆ onOpenView

◆ onSelectionChanged

◆ onSelectionDone

◆ onSelTypeChange

◆ onTextChange

◆ onTextChanged

◆ pointLocationChanged

◆ processInteractorEvents()

◆ ProcessInteractorEvents()

◆ processStyleEvents()

◆ ProcessStyleEvents()

◆ redisplayPreview

◆ removeCustomFilters()

◆ removeObserver()

◆ selected()

◆ selectedIds()

◆ selectionDone()

◆ selectionMode()

◆ selector()

◆ setDialogActive()

◆ setIsApplyAndClose()

◆ setSelectionMode()

◆ startOperation()

◆ stopOperation()

◆ typeById()

◆ viewWindow()

Field Documentation

◆ myDefSelectionMode

◆ myDestCoordChanged

◆ myDlg

◆ myFacePicker
