specialized parser to load SALOME execution saved states. More...

#include <LoadState.hxx>

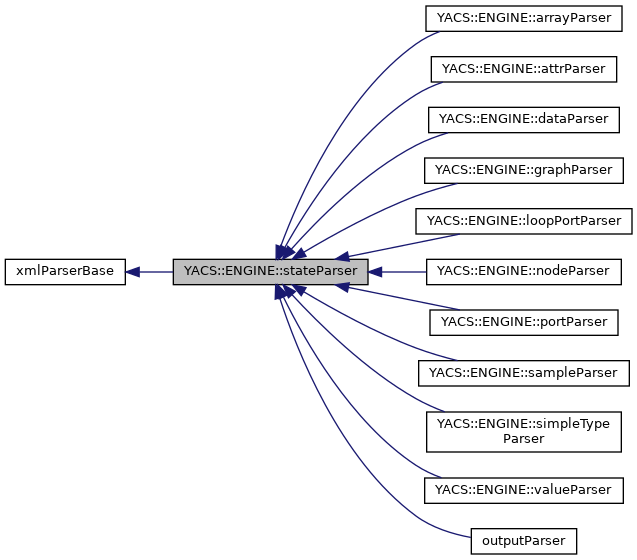

Inheritance diagram for YACS::ENGINE::stateParser:

[legend]

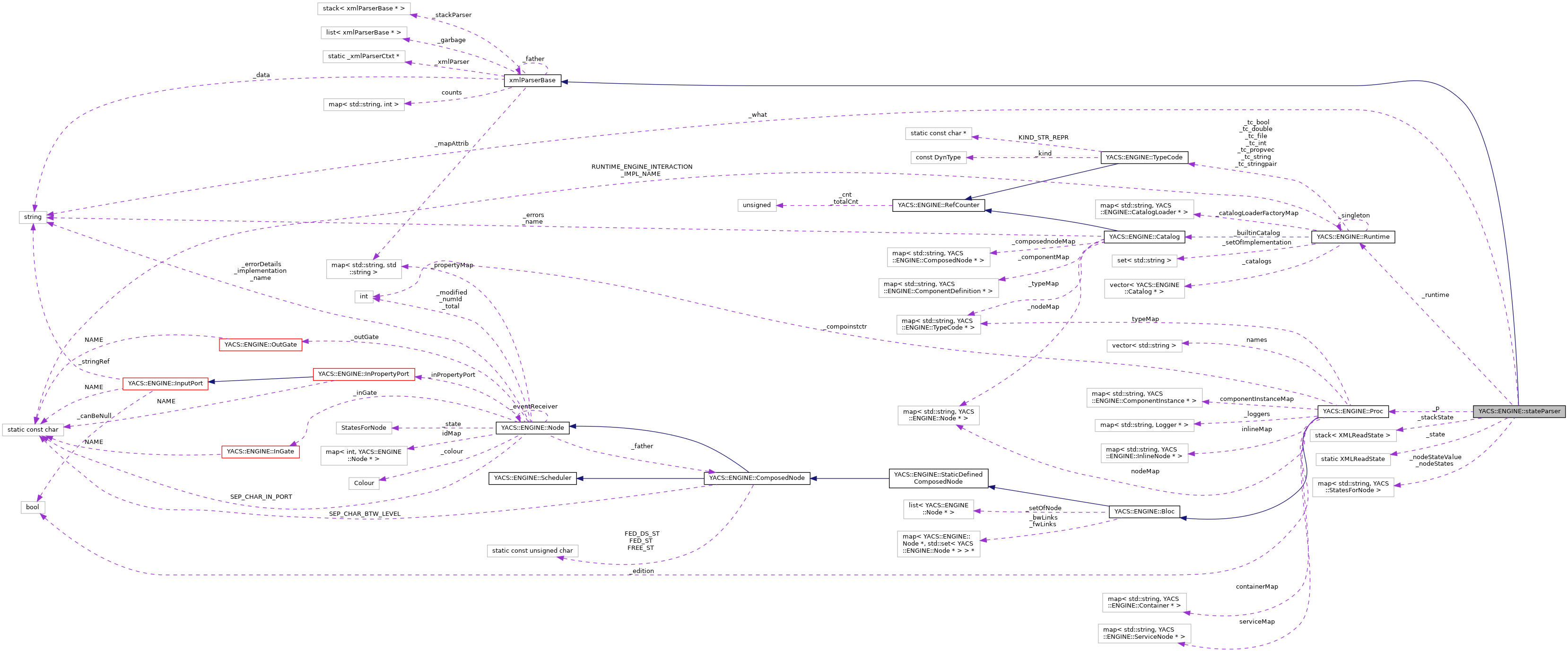

Collaboration diagram for YACS::ENGINE::stateParser:

[legend]

Public Member Functions
virtual void	init (const xmlChar *p, xmlParserBase father=0)

Public Member Functions inherited from xmlParserBase
void	setAttribute (std::string key, std::string value)

std::string	getAttribute (std::string key)

virtual void	addData (std::string value)

virtual void	init (const xmlChar *p, xmlParserBase father=0)

Static Public Member Functions
static void	setProc (Proc *p)

static void	setRuntime (Runtime *runtime)

Static Public Member Functions inherited from xmlParserBase
static void XMLCALL	start_document (void *userData)

static void XMLCALL	end_document (void *userData)

static void XMLCALL	start_element (void userData, const xmlChar name, const xmlChar **p)

static void XMLCALL	end_element (void userData, const xmlChar name)

static void XMLCALL	characters (void userData, const xmlChar ch, int len)

static void XMLCALL	comment (void userData, const xmlChar value)

static void XMLCALL	warning (void userData, const char fmt,...)

static void XMLCALL	error (void userData, const char fmt,...)

static void XMLCALL	fatal_error (void userData, const char fmt,...)

static void XMLCALL	cdata_block (void userData, const xmlChar value, int len)

static void	cleanGarbage ()

static int	getGarbageSize ()

static void	XML_SetUserData (_xmlParserCtxt ctxt, xmlParserBase parser)

Static Public Attributes
static XMLReadState	_state

static std::string	_what

Static Public Attributes inherited from xmlParserBase
static _xmlParserCtxt *	_xmlParser

static std::stack< xmlParserBase * >	_stackParser

Protected Member Functions
virtual void	onStart (const XML_Char elem, const xmlChar *p)

virtual void	onEnd (const XML_Char *name)

virtual void	charData (std::string data)

Protected Member Functions inherited from xmlParserBase
void	getAttributes (const xmlChar **p)

virtual void	onStart (const XML_Char elem, const xmlChar *p)

virtual void	onEnd (const XML_Char *name)

virtual void	charData (std::string data)

virtual void	incrCount (const XML_Char *elem)

virtual void	end ()

virtual void	stopParse (std::string what)

Static Protected Attributes
static std::stack< XMLReadState >	_stackState

static Proc *	_p

static Runtime *	_runtime

static std::map< std::string, YACS::StatesForNode >	_nodeStateValue

static std::map< std::string, YACS::StatesForNode >	_nodeStates

Static Protected Attributes inherited from xmlParserBase
static std::list< xmlParserBase * >	_garbage

Additional Inherited Members
Public Attributes inherited from xmlParserBase
std::map< std::string, int >	counts

Protected Attributes inherited from xmlParserBase
std::map< std::string, std::string >	_mapAttrib

std::string	_data

xmlParserBase *	_father

Detailed Description

specialized parser to load SALOME execution saved states.

this base class must be derived to build specific parsers for each tag defined in the xml file

Definition at line 80 of file LoadState.hxx.

Member Function Documentation

◆ charData()

void stateParser::charData ( std::string data )

protectedvirtual

to be specialized following the kind of xml tag

Reimplemented from xmlParserBase.

Reimplemented in YACS::ENGINE::attrParser, YACS::ENGINE::simpleTypeParser, YACS::ENGINE::loopPortParser, and YACS::ENGINE::sampleParser.

Definition at line 119 of file LoadState.cxx.

{
  //cerr << "data " << data << endl;
}

◆ init()

void stateParser::init	(	const xmlChar **	p,
		xmlParserBase *	father = `0`
	)

virtual

all parsers must know their father parser (father tag), in order to set values or attributes in father.

Reimplemented from xmlParserBase.

Reimplemented in outputParser, YACS::ENGINE::graphParser, YACS::ENGINE::nodeParser, YACS::ENGINE::attrParser, YACS::ENGINE::portParser, YACS::ENGINE::valueParser, YACS::ENGINE::arrayParser, YACS::ENGINE::dataParser, YACS::ENGINE::simpleTypeParser, YACS::ENGINE::loopPortParser, and YACS::ENGINE::sampleParser.

Definition at line 65 of file LoadState.cxx.

{
  DEBTRACE("stateParser::init()");
  _state = XMLNOCONTEXT;
  _father = father;
  _stackState.push(_state);
  _nodeStateValue["READY"] =YACS::READY;
  _nodeStateValue["TOLOAD"] =YACS::TOLOAD;
  _nodeStateValue["LOADED"] =YACS::LOADED;
  _nodeStateValue["TOACTIVATE"] =YACS::TOACTIVATE;
  _nodeStateValue["ACTIVATED"] =YACS::ACTIVATED;
  _nodeStateValue["DESACTIVATED"] =YACS::DESACTIVATED;
  _nodeStateValue["DONE"] =YACS::DONE;
  _nodeStateValue["SUSPENDED"] =YACS::SUSPENDED;
  _nodeStateValue["LOADFAILED"] =YACS::LOADFAILED;
  _nodeStateValue["EXECFAILED"] =YACS::EXECFAILED;
  _nodeStateValue["PAUSE"] =YACS::PAUSE;
  _nodeStateValue["INTERNALERR"] =YACS::INTERNALERR;
  _nodeStateValue["DISABLED"] =YACS::DISABLED;
  _nodeStateValue["FAILED"] =YACS::FAILED;
  _nodeStateValue["ERROR"] =YACS::ERROR;
  _nodeStates.clear();
}

References xmlParserBase::_father, _nodeStates, _nodeStateValue, _stackState, _state, YACS::ACTIVATED, DEBTRACE, YACS::DESACTIVATED, YACS::DISABLED, YACS::DONE, YACS::ERROR, YACS::EXECFAILED, YACS::FAILED, YACS::INTERNALERR, YACS::LOADED, YACS::LOADFAILED, YACS::PAUSE, YACS::READY, YACS::SUSPENDED, YACS::TOACTIVATE, YACS::TOLOAD, and YACS::ENGINE::XMLNOCONTEXT.

◆ onEnd()

void stateParser::onEnd ( const XML_Char * name )

protectedvirtual

Reimplemented in YACS::ENGINE::graphParser, YACS::ENGINE::nodeParser, YACS::ENGINE::attrParser, YACS::ENGINE::portParser, YACS::ENGINE::valueParser, YACS::ENGINE::arrayParser, YACS::ENGINE::dataParser, YACS::ENGINE::simpleTypeParser, YACS::ENGINE::loopPortParser, and YACS::ENGINE::sampleParser.

Definition at line 111 of file LoadState.cxx.

{
  _stackState.pop();
  _state = _stackState.top();
  //cerr << "end " << name << " " << _stackParser.size() << " " << _state << endl;
}

References _stackState, and _state.

Referenced by outputParser::onEnd(), YACS::ENGINE::graphParser::onEnd(), YACS::ENGINE::nodeParser::onEnd(), YACS::ENGINE::attrParser::onEnd(), YACS::ENGINE::portParser::onEnd(), YACS::ENGINE::valueParser::onEnd(), YACS::ENGINE::arrayParser::onEnd(), YACS::ENGINE::dataParser::onEnd(), YACS::ENGINE::simpleTypeParser::onEnd(), YACS::ENGINE::loopPortParser::onEnd(), and YACS::ENGINE::sampleParser::onEnd().

◆ onStart()

void stateParser::onStart	(	const XML_Char *	elem,
		const xmlChar **	p
	)

protectedvirtual

Reimplemented in YACS::ENGINE::graphParser, YACS::ENGINE::nodeParser, YACS::ENGINE::attrParser, YACS::ENGINE::portParser, YACS::ENGINE::valueParser, YACS::ENGINE::arrayParser, YACS::ENGINE::dataParser, YACS::ENGINE::simpleTypeParser, YACS::ENGINE::loopPortParser, and YACS::ENGINE::sampleParser.

Definition at line 90 of file LoadState.cxx.

{
  DEBTRACE("stateParser::onStart");
  string element(elem);
  stateParser *parser = 0;
  if (element == "graphState") parser = new graphParser();
  else
    {
      _what = "expected <graphState>, got <" + element + ">";
      _state = XMLFATALERROR;
      stopParse(_what);
    }
  if (parser)
    {
      _stackParser.push(parser);
      XML_SetUserData(_xmlParser, parser);
      parser->init(p);
    }
}

References xmlParserBase::_stackParser, _state, _what, xmlParserBase::_xmlParser, DEBTRACE, YACS::parser::init(), p, xmlParserBase::stopParse(), xmlParserBase::XML_SetUserData(), and YACS::ENGINE::XMLFATALERROR.

◆ setProc()

void stateParser::setProc ( Proc * p )

static

Definition at line 55 of file LoadState.cxx.

{
  _p= p;
}

References _p, and p.

◆ setRuntime()

void stateParser::setRuntime ( Runtime * runtime )

static

Definition at line 60 of file LoadState.cxx.

{
  _runtime = runtime;
}

References _runtime.

Member Data Documentation

◆ _nodeStates

std::map< std::string, YACS::StatesForNode > stateParser::_nodeStates

staticprotected

Definition at line 102 of file LoadState.hxx.

Referenced by init(), YACS::ENGINE::graphParser::onEnd(), and YACS::ENGINE::nodeParser::onEnd().

◆ _nodeStateValue

std::map< std::string, YACS::StatesForNode > stateParser::_nodeStateValue

staticprotected

Definition at line 101 of file LoadState.hxx.

Referenced by init(), and YACS::ENGINE::nodeParser::onEnd().

◆ _p

Proc * stateParser::_p

staticprotected

Definition at line 99 of file LoadState.hxx.

Referenced by YACS::ENGINE::graphParser::onEnd(), YACS::ENGINE::nodeParser::onEnd(), YACS::ENGINE::portParser::onEnd(), and setProc().

◆ _runtime

Runtime * stateParser::_runtime

staticprotected

Definition at line 100 of file LoadState.hxx.

Referenced by setRuntime().

◆ _stackState

std::stack< XMLReadState > stateParser::_stackState

staticprotected

Definition at line 98 of file LoadState.hxx.

Referenced by init(), YACS::ENGINE::graphParser::init(), YACS::ENGINE::nodeParser::init(), YACS::ENGINE::attrParser::init(), YACS::ENGINE::portParser::init(), YACS::ENGINE::valueParser::init(), YACS::ENGINE::arrayParser::init(), YACS::ENGINE::dataParser::init(), YACS::ENGINE::simpleTypeParser::init(), YACS::ENGINE::loopPortParser::init(), YACS::ENGINE::sampleParser::init(), and onEnd().

◆ _state

XMLReadState stateParser::_state

static

Definition at line 83 of file LoadState.hxx.

Referenced by init(), YACS::ENGINE::graphParser::init(), YACS::ENGINE::nodeParser::init(), YACS::ENGINE::attrParser::init(), YACS::ENGINE::portParser::init(), YACS::ENGINE::valueParser::init(), YACS::ENGINE::arrayParser::init(), YACS::ENGINE::dataParser::init(), YACS::ENGINE::simpleTypeParser::init(), YACS::ENGINE::loopPortParser::init(), YACS::ENGINE::sampleParser::init(), onEnd(), YACS::ENGINE::nodeParser::onEnd(), YACS::ENGINE::sampleParser::onEnd(), onStart(), YACS::ENGINE::graphParser::onStart(), YACS::ENGINE::nodeParser::onStart(), YACS::ENGINE::attrParser::onStart(), YACS::ENGINE::portParser::onStart(), YACS::ENGINE::arrayParser::onStart(), YACS::ENGINE::dataParser::onStart(), YACS::ENGINE::simpleTypeParser::onStart(), YACS::ENGINE::loopPortParser::onStart(), and YACS::ENGINE::sampleParser::onStart().

◆ _what

std::string stateParser::_what

static

Definition at line 84 of file LoadState.hxx.

Referenced by YACS::ENGINE::nodeParser::onEnd(), YACS::ENGINE::sampleParser::onEnd(), onStart(), YACS::ENGINE::graphParser::onStart(), YACS::ENGINE::nodeParser::onStart(), YACS::ENGINE::attrParser::onStart(), YACS::ENGINE::portParser::onStart(), YACS::ENGINE::arrayParser::onStart(), YACS::ENGINE::dataParser::onStart(), YACS::ENGINE::simpleTypeParser::onStart(), YACS::ENGINE::loopPortParser::onStart(), and YACS::ENGINE::sampleParser::onStart().

The documentation for this class was generated from the following files:

src/yacsloader/LoadState.hxx
src/yacsloader/LoadState.cxx
