YACS::HMI::CommandSetForEachBranch Class Reference

#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandSetForEachBranch:

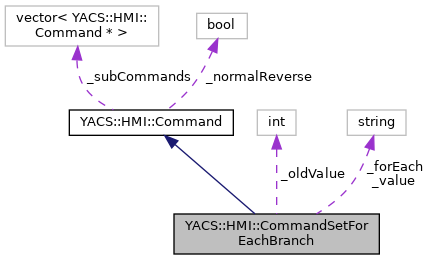

Collaboration diagram for YACS::HMI::CommandSetForEachBranch:

Public Member Functions
	CommandSetForEachBranch (std::string forEach, std::string value)
Public Member Functions inherited from YACS::HMI::Command
	Command ()
virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...
virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...
virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...
virtual std::string	dump ()
std::string	recursiveDump (int level=0)
void	addSubCommand (Command *command)
bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()
virtual bool	localReverse ()
virtual std::string	dump ()
virtual bool	localExecute ()=0
virtual bool	localReverse ()=0

Protected Attributes
std::string	_forEach
std::string	_value
int	_oldValue
Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands
bool	_normalReverse

Detailed Description

Definition at line 470 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandSetForEachBranch()

CommandSetForEachBranch::CommandSetForEachBranch	(	std::string	forEach,
		std::string	value
	)

Definition at line 2712 of file commandsProc.cxx.

  : Command(), _forEach(forEach), _value(value)
{
  DEBTRACE("CommandSetForEachBranch::CommandSetForEachBranch");
  _oldValue = 0;
}

References _oldValue, and DEBTRACE.

Member Function Documentation

dump()

std::string CommandSetForEachBranch::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 2720 of file commandsProc.cxx.

{
  string ret ="CommandSetForEachBranch " + _forEach + " " + _value;
  return ret;
}

References _forEach, and _value.

localExecute()

bool CommandSetForEachBranch::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 2726 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetForEachBranch::localExecute");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node=proc->getChildByName(_forEach);
      InputPort *nbBranches = node->getInputPort("nbBranches");
      _oldValue = atoi(nbBranches->getAsString().c_str());
      int val = atoi(_value.c_str());
      nbBranches->edInit(val);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectDataPort.count(nbBranches));
      SubjectDataPort *spo = GuiContext::getCurrent()->_mapOfSubjectDataPort[static_cast<DataPort*>(nbBranches)];
      spo->update(SETVALUE, 0, spo);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(node));
      SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
      snode->update(SETVALUE, 0, snode);
      return true;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetForEachBranch::localExecute() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References _forEach, YACS::HMI::GuiContext::_mapOfSubjectDataPort, YACS::HMI::GuiContext::_mapOfSubjectNode, _oldValue, _value, DEBTRACE, YACS::ENGINE::InputPort::edInit(), testCppPluginInvokation::ex, YACS::ENGINE::DataPort::getAsString(), YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::Node::getInputPort(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SETVALUE, YACS::HMI::Subject::update(), YACS::HMI::SubjectNode::update(), and YASSERT.

localReverse()

bool CommandSetForEachBranch::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 2753 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetForEachBranch::localReverse");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node=proc->getChildByName(_forEach);
      InputPort *nbBranches = node->getInputPort("nbBranches");
      nbBranches->edInit(_oldValue);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectDataPort.count(nbBranches));
      SubjectDataPort *spo = GuiContext::getCurrent()->_mapOfSubjectDataPort[static_cast<DataPort*>(nbBranches)];
      spo->update(SETVALUE, 0, spo);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(node));
      SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
      snode->update(SETVALUE, 0, snode);
      return true;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetForEachBranch::localReverse() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References _forEach, YACS::HMI::GuiContext::_mapOfSubjectDataPort, YACS::HMI::GuiContext::_mapOfSubjectNode, _oldValue, DEBTRACE, YACS::ENGINE::InputPort::edInit(), testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::Node::getInputPort(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SETVALUE, YACS::HMI::Subject::update(), YACS::HMI::SubjectNode::update(), and YASSERT.

Member Data Documentation

_forEach

std::string YACS::HMI::CommandSetForEachBranch::_forEach

protected

Definition at line 479 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

_oldValue

int YACS::HMI::CommandSetForEachBranch::_oldValue

protected

Definition at line 481 of file commandsProc.hxx.

Referenced by CommandSetForEachBranch(), localExecute(), and localReverse().

_value

std::string YACS::HMI::CommandSetForEachBranch::_value

protected

Definition at line 480 of file commandsProc.hxx.

Referenced by dump(), and localExecute().

---

The documentation for this class was generated from the following files:

• src/hmi/commandsProc.hxx
• src/hmi/commandsProc.cxx
