YACS::ENGINE::OutputPort4DS2DF Class Reference

#include <Loop.hxx>

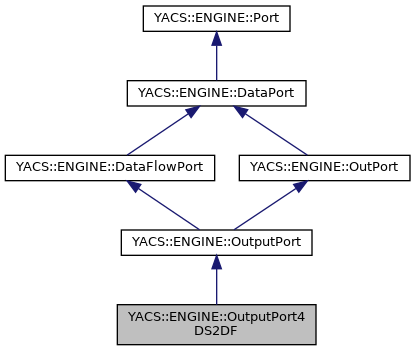

Inheritance diagram for YACS::ENGINE::OutputPort4DS2DF:

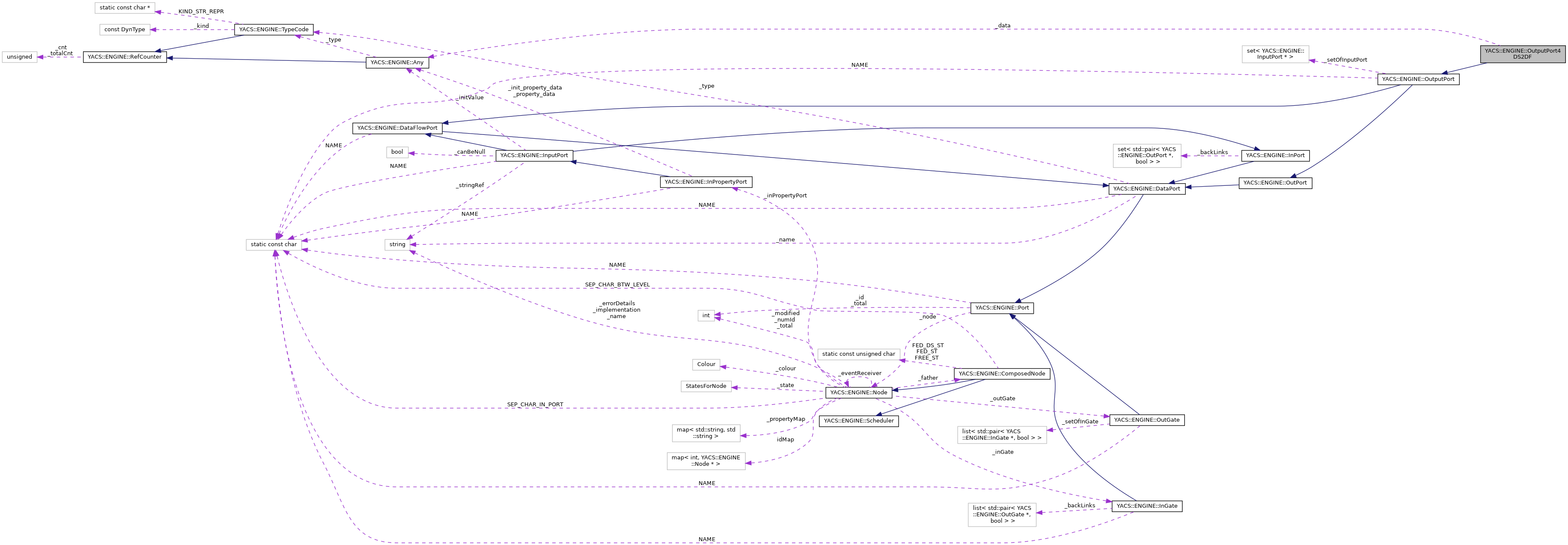

Collaboration diagram for YACS::ENGINE::OutputPort4DS2DF:

Public Member Functions
	OutputPort4DS2DF (DSToDFForLoop *node, TypeCode *type)
void	getAllRepresented (std::set< OutPort * > &represented) const
void	put (const void *data)
OutputPort *	clone (Node *newHelder) const
void	put (Any *data)
	~OutputPort4DS2DF ()
Public Member Functions inherited from YACS::ENGINE::OutputPort
virtual	~OutputPort ()
std::set< InPort * >	edSetInPort () const
bool	isAlreadyLinkedWith (InPort *withp) const
bool	isAlreadyInSet (InputPort *inputPort) const
bool	isConnected () const
std::string	getNameOfTypeOfCurrentInstance () const
int	removeInPort (InPort *inPort, bool forward)
virtual bool	edAddInputPort (InputPort *phyPort)
virtual bool	edAddInPropertyPort (InPropertyPort *phyPort)
virtual int	edRemoveInputPort (InputPort *inputPort, bool forward)
bool	addInPort (InPort *inPort)
void	edRemoveAllLinksLinkedWithMe ()
virtual void	exInit ()
virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...
virtual std::string	dump ()
virtual std::string	typeName ()
Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...
virtual	~DataFlowPort ()
virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...
virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...
Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const
void	edSetType (TypeCode *type)
std::string	getName () const
void	setName (std::string theName)
bool	isDifferentTypeOf (const DataPort *other) const
virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...
Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()
Node *	getNode () const
int	getNumId () const
void	modified ()
Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const
virtual int	edGetNumberOfOutLinks () const
virtual	~OutPort ()
std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)

Protected Attributes
Any *	_data
Protected Attributes inherited from YACS::ENGINE::OutputPort
std::set< InputPort * >	_setOfInputPort
Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type
std::string	_name
Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node
int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)
Static Public Attributes inherited from YACS::ENGINE::OutputPort
static const char	NAME [] ="OutputPort"
Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"
Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"
Protected Member Functions inherited from YACS::ENGINE::OutputPort
	OutputPort (const OutputPort &other, Node *newHelder)
	OutputPort (const std::string &name, Node *node, TypeCode *type)
const std::set< InputPort * > &	getSetOfPhyLinks () const
	Returns physical links linked to this. Contrary to edSetInPort that returns semantic links. More...
Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)
	DataFlowPort (const std::string &name, Node *node, TypeCode *type)
Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()
	DataPort (const DataPort &other, Node *newHelder)
	DataPort (const std::string &name, Node *node, TypeCode *type)
Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)
	Port (const Port &other, Node *newHelder)
Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)
	OutPort (const std::string &name, Node *node, TypeCode *type)
Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0
static const char	NAME [] ="Port"

Detailed Description

Definition at line 79 of file Loop.hxx.

Constructor & Destructor Documentation

OutputPort4DS2DF()

OutputPort4DS2DF::OutputPort4DS2DF	(	DSToDFForLoop *	node,
		TypeCode *	type
	)

Definition at line 156 of file Loop.cxx.

                                                                     :
  OutputPort("", node, type),
  DataPort("", node, type),
  Port(node),_data(0)
{
}

~OutputPort4DS2DF()

OutputPort4DS2DF::~OutputPort4DS2DF

(

)

Definition at line 189 of file Loop.cxx.

{
  if(_data)
    _data->decrRef();
}

References _data, and YACS::ENGINE::RefCounter::decrRef().

Member Function Documentation

clone()

OutputPort * OutputPort4DS2DF::clone ( Node *  newHelder ) const

virtual

Implements YACS::ENGINE::OutputPort.

Definition at line 176 of file Loop.cxx.

{
  throw Exception("OutputPort4DS2DF::clone : Internal error");
}

getAllRepresented()

void OutputPort4DS2DF::getAllRepresented ( std::set< OutPort * > &  represented ) const

virtual

Reimplemented from YACS::ENGINE::OutPort.

Definition at line 163 of file Loop.cxx.

{
  set<OutPort *> setO=_node->getInputDataStreamPort("")->edSetOutPort();
  for(set<OutPort *>::iterator iter=setO.begin();iter!=setO.end();iter++)
    (*iter)->getAllRepresented(represented);
}

References YACS::ENGINE::Port::_node, YACS::ENGINE::InPort::edSetOutPort(), and YACS::ENGINE::Node::getInputDataStreamPort().

put() [1/2]

void OutputPort4DS2DF::put

(

Any *

data

)

Definition at line 181 of file Loop.cxx.

{
  if(_data)
    _data->decrRef();
  _data=data;
  _data->incrRef();
}

References _data, YACS::ENGINE::RefCounter::decrRef(), and YACS::ENGINE::RefCounter::incrRef().

put() [2/2]

void OutputPort4DS2DF::put ( const void *  data )

virtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 170 of file Loop.cxx.

{
  put((Any *)data);
  OutputPort::put(data);
}

References YACS::ENGINE::OutputPort::put().

Member Data Documentation

_data

Any* YACS::ENGINE::OutputPort4DS2DF::_data

protected

Definition at line 89 of file Loop.hxx.

Referenced by put(), and ~OutputPort4DS2DF().

---

The documentation for this class was generated from the following files:

• src/engine/Loop.hxx
• src/engine/Loop.cxx
