#include <PythonPorts.hxx>

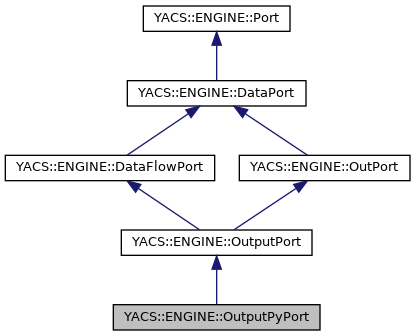

Inheritance diagram for YACS::ENGINE::OutputPyPort:

[legend]

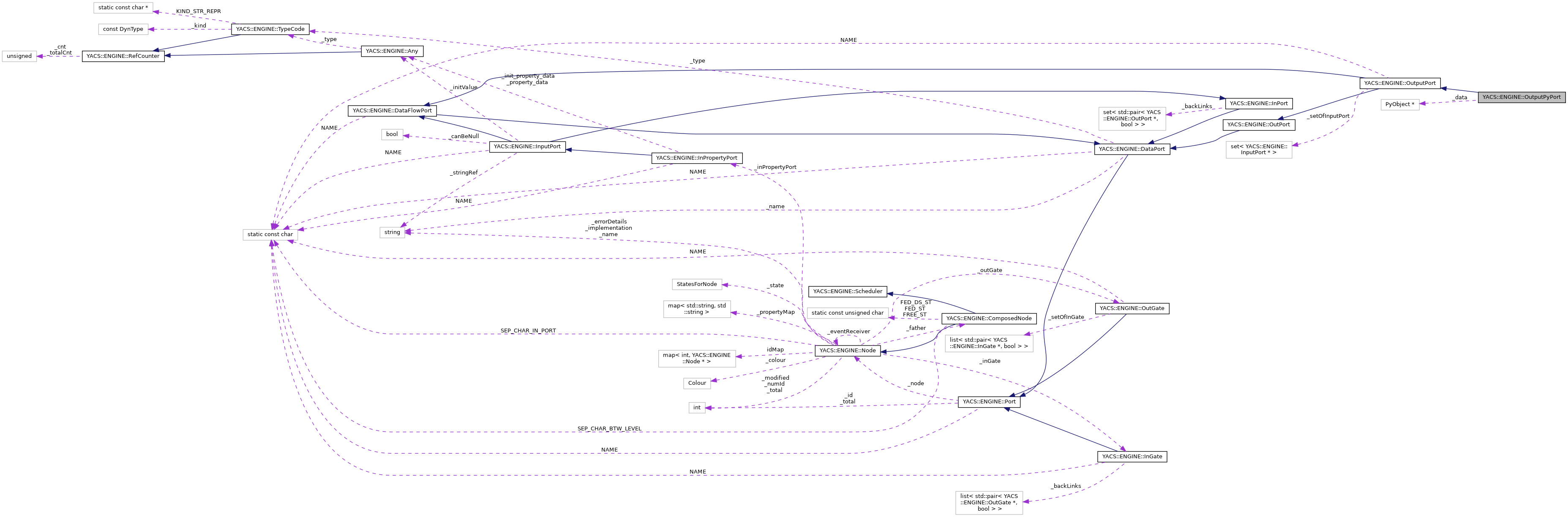

Collaboration diagram for YACS::ENGINE::OutputPyPort:

[legend]

Public Member Functions
	OutputPyPort (const std::string &name, Node node, TypeCode type)

	OutputPyPort (const OutputPyPort &other, Node *newHelder)

	~OutputPyPort ()

virtual void	put (const void *data)

void	putWithoutForward (PyObject *data)

void	put (PyObject *data)

OutputPort *	clone (Node *newHelder) const

virtual PyObject *	get () const

virtual PyObj *	getPyObj () const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

virtual std::string	dump ()

virtual std::string	typeName ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::OutputPort
virtual	~OutputPort ()

std::set< InPort * >	edSetInPort () const

bool	isAlreadyLinkedWith (InPort *withp) const

bool	isAlreadyInSet (InputPort *inputPort) const

bool	isConnected () const

std::string	getNameOfTypeOfCurrentInstance () const

int	removeInPort (InPort *inPort, bool forward)

virtual bool	edAddInputPort (InputPort *phyPort)

virtual bool	edAddInPropertyPort (InPropertyPort *phyPort)

virtual int	edRemoveInputPort (InputPort *inputPort, bool forward)

bool	addInPort (InPort *inPort)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	exInit ()

virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const

virtual int	edGetNumberOfOutLinks () const

virtual void	getAllRepresented (std::set< OutPort * > &represented) const

virtual	~OutPort ()

std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)

Protected Attributes
PyObject *	_data

Protected Attributes inherited from YACS::ENGINE::OutputPort
std::set< InputPort * >	_setOfInputPort

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::OutputPort
static const char	NAME [] ="OutputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::OutputPort
	OutputPort (const OutputPort &other, Node *newHelder)

	OutputPort (const std::string &name, Node node, TypeCode type)

const std::set< InputPort * > &	getSetOfPhyLinks () const
	Returns physical links linked to this. Contrary to edSetInPort that returns semantic links. More...

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)

	OutPort (const std::string &name, Node node, TypeCode type)

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 105 of file PythonPorts.hxx.

Constructor & Destructor Documentation

◆ OutputPyPort() [1/2]

OutputPyPort::OutputPyPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 266 of file PythonPorts.cxx.

   : OutputPort(name, node, type), DataPort(name, node, type), Port(node)
 {
   _data = Py_None;
   Py_INCREF(_data);
 }

References _data.

Referenced by clone().

◆ OutputPyPort() [2/2]

OutputPyPort::OutputPyPort	(	const OutputPyPort &	other,
		Node *	newHelder
	)

Definition at line 282 of file PythonPorts.cxx.

                                                                     :OutputPort(other,newHelder),DataPort(other,newHelder),Port(other,newHelder),
                                                                        _data(Py_None)
 {
   Py_INCREF(_data);
 }

References _data.

◆ ~OutputPyPort()

OutputPyPort::~OutputPyPort ( )

Definition at line 272 of file PythonPorts.cxx.

 {
   PyGILState_STATE gstate = PyGILState_Ensure();
   DEBTRACE( "_data refcnt: " << _data->ob_refcnt );
   // Release or not release : all GenericObj are deleted when the output port is deleted
   releasePyObj(_data);
   Py_XDECREF(_data);
   PyGILState_Release(gstate);
 }

References _data, DEBTRACE, and releasePyObj().

Member Function Documentation

◆ clone()

OutputPort * OutputPyPort::clone ( Node * newHelder ) const

virtual

Implements YACS::ENGINE::OutputPort.

Definition at line 314 of file PythonPorts.cxx.

 {
   return new OutputPyPort(*this,newHelder);
 }

References OutputPyPort().

◆ dump()

std::string OutputPyPort::dump ( )

virtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 340 of file PythonPorts.cxx.

 {
   InterpreterUnlocker l;
   string xmldump = convertPyObjectXml(edGetType(), _data);
   return xmldump;
 }

References _data, YACS::ENGINE::convertPyObjectXml(), YACS::ENGINE::DataPort::edGetType(), and testCppPluginInvokation::l.

◆ get()

PyObject * OutputPyPort::get ( ) const

virtual

Definition at line 319 of file PythonPorts.cxx.

 {
   return _data;
 }

References _data.

◆ getAsString()

std::string OutputPyPort::getAsString ( )

virtual

returns port value as a string that can be used in a GUI for example

Do nothing here. To subclass

Reimplemented from YACS::ENGINE::DataPort.

Definition at line 329 of file PythonPorts.cxx.

 {
   std::string ret;
   //protect _data against modification or delete in another thread
   PyObject* data=_data;
   Py_INCREF(data);
   ret = convertPyObjectToString(data);
   Py_XDECREF(data);
   return ret;
 }

References _data, and YACS::ENGINE::convertPyObjectToString().

◆ getPyObj()

PyObject * OutputPyPort::getPyObj ( ) const

virtual

Definition at line 324 of file PythonPorts.cxx.

 {
   return _data;
 }

References _data.

Referenced by valToStr().

◆ put() [1/2]

void OutputPyPort::put ( const void * data )

virtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 288 of file PythonPorts.cxx.

 {
   put((PyObject *)data);
 }

◆ put() [2/2]

void OutputPyPort::put ( PyObject * data )

Definition at line 307 of file PythonPorts.cxx.

 {
   putWithoutForward(data);
   DEBTRACE( "OutputPyPort::put.ob refcnt: " << data->ob_refcnt );
   OutputPort::put(data);
 }

References DEBTRACE, YACS::ENGINE::OutputPort::put(), and putWithoutForward().

◆ putWithoutForward()

void OutputPyPort::putWithoutForward ( PyObject * data )

Definition at line 293 of file PythonPorts.cxx.

 {
   DEBTRACE( "OutputPyPort::put.ob refcnt: " << data->ob_refcnt );
 #ifdef _DEVDEBUG_
   PyObject_Print(data,stderr,Py_PRINT_RAW);
   cerr << endl;
 #endif
   releasePyObj(_data);
   Py_XDECREF(_data);
   _data = data;
   Py_INCREF(_data);
   //no registerPyObj : we steal the output reference of the node
 }

References _data, DEBTRACE, and releasePyObj().

Referenced by put(), YACS::ENGINE::PythonNode::squeezeMemory(), and YACS::ENGINE::PythonNode::squeezeMemoryRemote().

◆ typeName()

virtual std::string YACS::ENGINE::OutputPyPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 120 of file PythonPorts.hxx.

120 {return "YACS__ENGINE__OutputPyPort";}

◆ valFromStr()

void OutputPyPort::valFromStr ( std::string valstr )

virtual

Allows to set data from a string representation used in user interface.

Implemented in derived classes, depending on runtime, to set the data from its user interface representation. Typical use, a Python string representation that can be used in edition or restitution.

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 355 of file PythonPorts.cxx.

356 {

357 }

◆ valToStr()

std::string OutputPyPort::valToStr ( )

virtual

Gives a string representation of the data, for user interfaces.

Implemented in derived classes, depending on runtime, to provide the data representation for user interfaces. Typical use, a Python string representation that can be used in edition or restitution.

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 347 of file PythonPorts.cxx.

 {
   PyObject *strPyObj = PyObject_Str(getPyObj());
   string val = PyBytes_AsString(strPyObj);
   Py_DECREF(strPyObj);
   return val;
 }

References getPyObj().

Member Data Documentation

◆ _data

PyObject* YACS::ENGINE::OutputPyPort::_data

protected

Definition at line 124 of file PythonPorts.hxx.

Referenced by dump(), get(), getAsString(), getPyObj(), OutputPyPort(), putWithoutForward(), and ~OutputPyPort().

The documentation for this class was generated from the following files:

src/runtime/PythonPorts.hxx
src/runtime/PythonPorts.cxx
