Equal constraint

Equal constraint makes lines, circles or arcs equal.
Lines become equal in length, circles and arcs - equal in radius.

To create an Equal constraint in the active Sketch:

  1. select in the Main Menu Sketch - > Equal item or

  2. click equal.icon Equal button in Sketch toolbar:

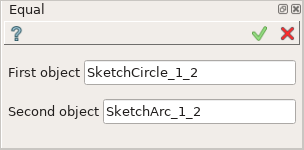

Property panel:

../_images/Equal_panel.png

Input fields:

  • First object is a line, a circle or an arc selected in the view.

  • Second object is a line, a circle or an arc selected in the view.

Note that a line can be equal to a line only, a circle - to a circle or an arc.

After the objects are selected, the object sizes become equal.
The equal objects are marked with = sign.

TUI Command:

Sketch_1.setEqual(Object1, Object2)
Parameters

  • object – First object.

  • object – Second object.

Returns

Result object.

Result

Created Equal constraint appears in the view.

../_images/Equal_res.png

Created equal constraint

See Also a sample TUI Script of Create Equal constraint operation.
