Allows to create the prism based on a given face and bounding planes. More...

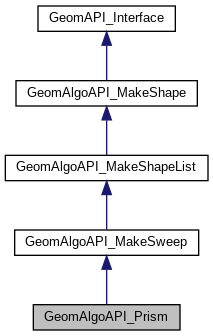

Inheritance diagram for GeomAlgoAPI_Prism:

Public Types
enum	BuilderType { Unknown , OCCT_BRepBuilderAPI_MakeShape , OCCT_BOPAlgo_Builder , OCCT_BRepOffset_MakeOffset }
	Builder type enum. More...

Public Member Functions
GEOMALGOAPI_EXPORT	GeomAlgoAPI_Prism (const GeomShapePtr theBaseShape, const std::shared_ptr< GeomAPI_Dir > theDirection, const GeomShapePtr theToShape, const double theToSize, const GeomShapePtr theFromShape, const double theFromSize)
	Creates extrusion for the given shape along the normal for this shape. More...

GEOMALGOAPI_EXPORT const ListOfShape &	fromShapes () const

GEOMALGOAPI_EXPORT const ListOfShape &	toShapes () const

GEOMALGOAPI_EXPORT void	addFromShape (const std::shared_ptr< GeomAPI_Shape > theShape)
	Adds a shape to list of from shape. More...

GEOMALGOAPI_EXPORT void	setFromShapes (const ListOfShape &theListOfShapes)
	Sets from shapes. More...

GEOMALGOAPI_EXPORT void	addToShape (const std::shared_ptr< GeomAPI_Shape > theShape)
	Adds a face to list of to shape. More...

GEOMALGOAPI_EXPORT void	setToShapes (const ListOfShape &theListOfShapes)
	Sets to shapes. More...

GEOMALGOAPI_EXPORT void	init (const ListOfMakeShape &theMakeShapeList)
	Initializes a class with new list of algorithms. More...

GEOMALGOAPI_EXPORT const ListOfMakeShape &	list () const

GEOMALGOAPI_EXPORT void	appendAlgo (const GeomMakeShapePtr theMakeShape)
	Adds algo to the end of list. More...

virtual GEOMALGOAPI_EXPORT const GeomShapePtr	shape () const

virtual GEOMALGOAPI_EXPORT void	generated (const GeomShapePtr theShape, ListOfShape &theHistory)

virtual GEOMALGOAPI_EXPORT void	modified (const GeomShapePtr theShape, ListOfShape &theHistory)

virtual GEOMALGOAPI_EXPORT bool	isDeleted (const GeomShapePtr theShape)

template<class T >
void	initialize (T *theBuilder, const BuilderType theBuilderType=OCCT_BRepBuilderAPI_MakeShape)
	Initializes internals. More...

virtual GEOMALGOAPI_EXPORT void	build ()
	Execute the algorithm. More...

GEOMALGOAPI_EXPORT bool	isDone () const

GEOMALGOAPI_EXPORT bool	isValid () const

GEOMALGOAPI_EXPORT std::shared_ptr< GeomAPI_DataMapOfShapeShape >	mapOfSubShapes () const

GEOMALGOAPI_EXPORT void	modifiedCached (const GeomShapePtr theOldShape, ListOfShape &theNewShapes)
	Get a list of new shapes, modified from the given old shape. More...

virtual GEOMALGOAPI_EXPORT bool	check ()

virtual GEOMALGOAPI_EXPORT void	prepareNamingFaces ()
	Prepare the naming of faces. More...

GEOMALGOAPI_EXPORT std::map< std::string, GeomShapePtr >	getCreatedFaces ()

GEOMALGOAPI_EXPORT std::string	getError ()

GEOMALGOAPI_EXPORT bool	checkValid (std::string theMessage)
	Check the validity of the produced shape. More...

GEOMALGOAPI_EXPORT bool	isNewShapesCollected (GeomShapePtr theWholeOld, const int theShapeType)
	Optimization of access the new shapes by old shapes for the limited set of needed new shapes. More...

GEOMALGOAPI_EXPORT void	collectNewShapes (GeomShapePtr theWholeOld, const int theShapeType)
	Optimization of access the new shapes by old shapes for the limited set of needed new shapes. More...

GEOMALGOAPI_EXPORT void	cleanNewShapes (GeomShapePtr theWholeOld, const int theShapeType)
	Clean cached data, created by collectNewShapes() method, called with the same arguments. More...

GEOMALGOAPI_EXPORT GeomShapePtr	oldShapesForNew (GeomShapePtr theWholeOld, GeomShapePtr theNewShape, const int theShapeType)
	Optimization of access the new shapes by old shapes for the limited set of needed new shapes. More...

GEOMALGOAPI_EXPORT void	fixOrientation (GeomShapePtr &theShape)
	Replaces theShape with shape from myMap. More...

template<class T >
T *	implPtr ()
	Returns the pointer to the impl. More...

template<class T >
const T *	implPtr () const
	Returns the pointer to the impl. More...

template<class T >
const T &	impl () const
	Returns the reference object of the impl. More...

template<class T >
void	setImpl (T *theImpl)
	Updates the impl (deletes the old one) More...

GEOMAPI_EXPORT bool	empty () const
	Returns true if the impl is empty. More...

Protected Member Functions
GEOMALGOAPI_EXPORT void	setBuilderType (const BuilderType theBuilderType)
	Sets builder type. More...

GEOMALGOAPI_EXPORT void	setDone (const bool theFlag)
	Sets status of builder. More...

GEOMALGOAPI_EXPORT void	setShape (const GeomShapePtr theShape)
	Sets result shape. More...

bool	isValidForHistory (const GeomShapePtr theShape)

Protected Attributes
ListOfMakeShape	myListOfMakeShape
	List of make shape algos. More...

std::shared_ptr< GeomAPI_DataMapOfShapeShape >	myMap
	Data map to keep correct orientation of sub-shapes. More...

std::string	myError
	Error occurred during the execution of an algorithm. More...

std::map< std::string, GeomShapePtr >	myCreatedFaces
	Map of created faces with their name for naming. More...

Detailed Description

Allows to create the prism based on a given face and bounding planes.

Note that only planar faces are allowed as bounding faces and resulting extrusion will be bounded by the infinite planes taken from the faces.

Member Enumeration Documentation

◆ BuilderType

enum GeomAlgoAPI_MakeShape::BuilderType

inherited

Builder type enum.

Constructor & Destructor Documentation

◆ GeomAlgoAPI_Prism()

GeomAlgoAPI_Prism::GeomAlgoAPI_Prism	(	const GeomShapePtr	theBaseShape,
		const std::shared_ptr< GeomAPI_Dir >	theDirection,
		const GeomShapePtr	theToShape,
		const double	theToSize,
		const GeomShapePtr	theFromShape,
		const double	theFromSize
	)

Creates extrusion for the given shape along the normal for this shape.

Parameters

[in]	theBaseShape	planar face or wire to be extruded.
[in]	theDirection	direction of extrusion. Can be empty if theBaseShape is planar wire or face.
[in]	theToShape	top bounding shape. Can be empty. In this case offset will be applied to the basis.
[in]	theToSize	offset for "to" plane.
[in]	theFromShape	bottom bounding shape. Can be empty. In this case offset will be applied to the basis.
[in]	theFromSize	offset for "from" plane.

Member Function Documentation

◆ fromShapes()

const ListOfShape & GeomAlgoAPI_MakeSweep::fromShapes ( ) const

inherited

Returns: the list of from shapes.

◆ toShapes()

const ListOfShape & GeomAlgoAPI_MakeSweep::toShapes ( ) const

inherited

Returns: the list of to shapes.

◆ addFromShape()

void GeomAlgoAPI_MakeSweep::addFromShape ( const std::shared_ptr< GeomAPI_Shape > theShape )

inherited

Adds a shape to list of from shape.

Parameters

[in] theShape a shape to add.

◆ setFromShapes()

void GeomAlgoAPI_MakeSweep::setFromShapes ( const ListOfShape & theListOfShapes )

inherited

Sets from shapes.

Parameters

[in] theListOfShapes list of from shapes.

◆ addToShape()

void GeomAlgoAPI_MakeSweep::addToShape ( const std::shared_ptr< GeomAPI_Shape > theShape )

inherited

Adds a face to list of to shape.

Parameters

[in] theShape a face to add.

◆ setToShapes()

void GeomAlgoAPI_MakeSweep::setToShapes ( const ListOfShape & theListOfShapes )

inherited

Sets to shapes.

Parameters

[in] theListOfShapes list of to shapes.

◆ init()

void GeomAlgoAPI_MakeShapeList::init ( const ListOfMakeShape & theMakeShapeList )

inherited

Initializes a class with new list of algorithms.

Parameters

[in] theMakeShapeList list of algorithms.

◆ list()

const ListOfMakeShape & GeomAlgoAPI_MakeShapeList::list ( ) const

inherited

Returns: the list reference

◆ appendAlgo()

void GeomAlgoAPI_MakeShapeList::appendAlgo ( const GeomMakeShapePtr theMakeShape )

inherited

Adds algo to the end of list.

Parameters

[in] theMakeShape algo to be added.

◆ shape()

const GeomShapePtr GeomAlgoAPI_MakeShapeList::shape ( ) const

virtualinherited

Returns: a shape built by the shape construction algorithms

Reimplemented from GeomAlgoAPI_MakeShape.

◆ generated()

void GeomAlgoAPI_MakeShapeList::generated	(	const GeomShapePtr	theShape,
		ListOfShape &	theHistory
	)

virtualinherited

Returns: the list of shapes generated from the shape theShape

Reimplemented from GeomAlgoAPI_MakeShape.

Reimplemented in GeomAlgoAPI_Pipe, and GeomAlgoAPI_MakeShapeSet.

◆ modified()

void GeomAlgoAPI_MakeShapeList::modified	(	const GeomShapePtr	theShape,
		ListOfShape &	theHistory
	)

virtualinherited

Returns: the list of shapes modified from the shape theShape

Reimplemented from GeomAlgoAPI_MakeShape.

Reimplemented in GeomAlgoAPI_MakeShapeSet.

◆ isDeleted()

bool GeomAlgoAPI_MakeShapeList::isDeleted ( const GeomShapePtr theShape )

virtualinherited

Returns: whether the shape is deleted

Reimplemented from GeomAlgoAPI_MakeShape.

◆ initialize()

template<class T >

void GeomAlgoAPI_MakeShape::initialize	(	T *	theBuilder,
		const BuilderType	theBuilderType = `OCCT_BRepBuilderAPI_MakeShape`
	)

inlineinherited

Initializes internals.

Parameters

[in]	theBuilder	pointer to the builder.
[in]	theBuilderType	builder type.

◆ build()

virtual GEOMALGOAPI_EXPORT void GeomAlgoAPI_MakeShape::build ( )

inlinevirtualinherited

Execute the algorithm.

Reimplemented in GeomAlgoAPI_Tube, GeomAlgoAPI_Torus, GeomAlgoAPI_Sphere, GeomAlgoAPI_Ellipsoid, GeomAlgoAPI_Cylinder, GeomAlgoAPI_ConeSegment, GeomAlgoAPI_Cone, and GeomAlgoAPI_Box.

◆ isDone()

bool GeomAlgoAPI_MakeShape::isDone ( ) const

inherited

Returns: status of builder.

◆ isValid()

bool GeomAlgoAPI_MakeShape::isValid ( ) const

inherited

Returns: true if resulting shape is valid.

◆ mapOfSubShapes()

std::shared_ptr< GeomAPI_DataMapOfShapeShape > GeomAlgoAPI_MakeShape::mapOfSubShapes ( ) const

inherited

Returns: map of sub-shapes of the result. To be used for History keeping.

◆ modifiedCached()

void GeomAlgoAPI_MakeShape::modifiedCached	(	const GeomShapePtr	theOldShape,
		ListOfShape &	theNewShapes
	)

inherited

Get a list of new shapes, modified from the given old shape.

Works correctly only in case if the modifications are cached. Check this with isNewShapesCollected().

Returns: the list of shapes modified from the shape theOldShape.

Parameters

[in]	theOldShape	base shape.
[out]	theNewShapes	shapes modified from theOldShape. Does not cleared!

◆ check()

virtual GEOMALGOAPI_EXPORT bool GeomAlgoAPI_MakeShape::check ( )

inlinevirtualinherited

Returns: true if the data were correct.

Reimplemented in GeomAlgoAPI_Tube, GeomAlgoAPI_Torus, GeomAlgoAPI_Sphere, GeomAlgoAPI_Ellipsoid, GeomAlgoAPI_Cylinder, GeomAlgoAPI_ConeSegment, GeomAlgoAPI_Cone, and GeomAlgoAPI_Box.

◆ prepareNamingFaces()

void GeomAlgoAPI_MakeShape::prepareNamingFaces ( )

virtualinherited

Prepare the naming of faces.

Reimplemented in GeomAlgoAPI_Box.

◆ getCreatedFaces()

GEOMALGOAPI_EXPORT std::map< std::string, GeomShapePtr > GeomAlgoAPI_MakeShape::getCreatedFaces ( )

inlineinherited

Returns: the list of created faces.

◆ getError()

GEOMALGOAPI_EXPORT std::string GeomAlgoAPI_MakeShape::getError ( )

inlineinherited

Returns: the error.

◆ checkValid()

bool GeomAlgoAPI_MakeShape::checkValid ( std::string theMessage )

inherited

Check the validity of the produced shape.

◆ isNewShapesCollected()

bool GeomAlgoAPI_MakeShape::isNewShapesCollected	(	GeomShapePtr	theWholeOld,
		const int	theShapeType
	)

inherited

Optimization of access the new shapes by old shapes for the limited set of needed new shapes.

Parameters

theWholeOld	the whole old shape
theShapeType	type of the sub-shapes that is used for optimization

Returns: true if optimization containers are already filled

◆ collectNewShapes()

void GeomAlgoAPI_MakeShape::collectNewShapes	(	GeomShapePtr	theWholeOld,
		const int	theShapeType
	)

inherited

Optimization of access the new shapes by old shapes for the limited set of needed new shapes.

Parameters

theWholeOld	the whole old shape
theShapeType	type of the sub-shapes that is used for optimization

Returns: true if optimization containers are already filled

◆ cleanNewShapes()

void GeomAlgoAPI_MakeShape::cleanNewShapes	(	GeomShapePtr	theWholeOld,
		const int	theShapeType
	)

inherited

Clean cached data, created by collectNewShapes() method, called with the same arguments.

Parameters

theWholeOld	the whole old shape
theShapeType	type of the sub-shapes that is used for optimization

◆ oldShapesForNew()

GeomShapePtr GeomAlgoAPI_MakeShape::oldShapesForNew	(	GeomShapePtr	theWholeOld,
		GeomShapePtr	theNewShape,
		const int	theShapeType
	)

inherited

Optimization of access the new shapes by old shapes for the limited set of needed new shapes.

Parameters

theWholeOld	the whole old shape
theNewShape	the whole new shape
theShapeType	type of the old sub-shapes

Returns: compound of all old shapes that were used for creation of the given new

◆ fixOrientation()

void GeomAlgoAPI_MakeShape::fixOrientation ( GeomShapePtr & theShape )

inherited

Replaces theShape with shape from myMap.

◆ setBuilderType()

void GeomAlgoAPI_MakeShape::setBuilderType ( const BuilderType theBuilderType )

protectedinherited

Sets builder type.

Parameters

[in] theBuilderType new builder type.

◆ setDone()

void GeomAlgoAPI_MakeShape::setDone ( const bool theFlag )

protectedinherited

Sets status of builder.

Parameters

[in] theFlag new status.

◆ setShape()

void GeomAlgoAPI_MakeShape::setShape ( const GeomShapePtr theShape )

protectedinherited

Sets result shape.

Parameters

[in] theShape new shape.

◆ isValidForHistory()

bool GeomAlgoAPI_MakeShape::isValidForHistory ( const GeomShapePtr theShape )

protectedinherited

Returns: true if passed shape is valid for history.

◆ implPtr() [1/2]

template<class T >

T* GeomAPI_Interface::implPtr ( )

inlineinherited

Returns the pointer to the impl.

◆ implPtr() [2/2]

template<class T >

const T* GeomAPI_Interface::implPtr ( ) const

inlineinherited

Returns the pointer to the impl.

◆ impl()

template<class T >

const T& GeomAPI_Interface::impl ( ) const

inlineinherited

Returns the reference object of the impl.

◆ setImpl()

template<class T >

void GeomAPI_Interface::setImpl ( T * theImpl )

inlineinherited

Updates the impl (deletes the old one)

◆ empty()

bool GeomAPI_Interface::empty ( ) const

inherited

Returns true if the impl is empty.

Field Documentation

◆ myListOfMakeShape

ListOfMakeShape GeomAlgoAPI_MakeShapeList::myListOfMakeShape

protectedinherited

List of make shape algos.

◆ myMap

std::shared_ptr<GeomAPI_DataMapOfShapeShape> GeomAlgoAPI_MakeShape::myMap

protectedinherited

Data map to keep correct orientation of sub-shapes.

◆ myError

std::string GeomAlgoAPI_MakeShape::myError

protectedinherited

Error occurred during the execution of an algorithm.

◆ myCreatedFaces

std::map< std::string, GeomShapePtr > GeomAlgoAPI_MakeShape::myCreatedFaces

protectedinherited

Map of created faces with their name for naming.

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ BuilderType

Constructor & Destructor Documentation

◆ GeomAlgoAPI_Prism()

Member Function Documentation

◆ fromShapes()

◆ toShapes()

◆ addFromShape()

◆ setFromShapes()

◆ addToShape()

◆ setToShapes()

◆ init()

◆ list()

◆ appendAlgo()

◆ shape()

◆ generated()

◆ modified()

◆ isDeleted()

◆ initialize()

◆ build()

◆ isDone()

◆ isValid()

◆ mapOfSubShapes()

◆ modifiedCached()

◆ check()

◆ prepareNamingFaces()

◆ getCreatedFaces()

◆ getError()

◆ checkValid()

◆ isNewShapesCollected()

◆ collectNewShapes()

◆ cleanNewShapes()

◆ oldShapesForNew()

◆ fixOrientation()

◆ setBuilderType()

◆ setDone()

◆ setShape()

◆ isValidForHistory()

◆ implPtr() [1/2]

◆ implPtr() [2/2]

◆ impl()

◆ setImpl()

◆ empty()

Field Documentation

◆ myListOfMakeShape

◆ myMap

◆ myError

◆ myCreatedFaces
