Class for Output Calcium DataStream Ports. More...

#include <CalStreamPort.hxx>

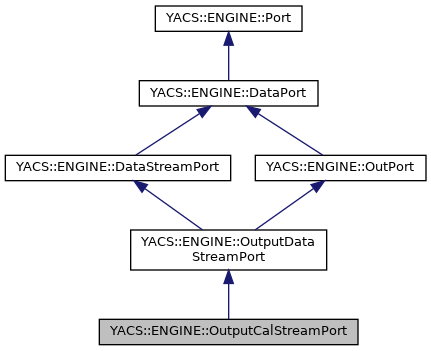

Inheritance diagram for YACS::ENGINE::OutputCalStreamPort:

[legend]

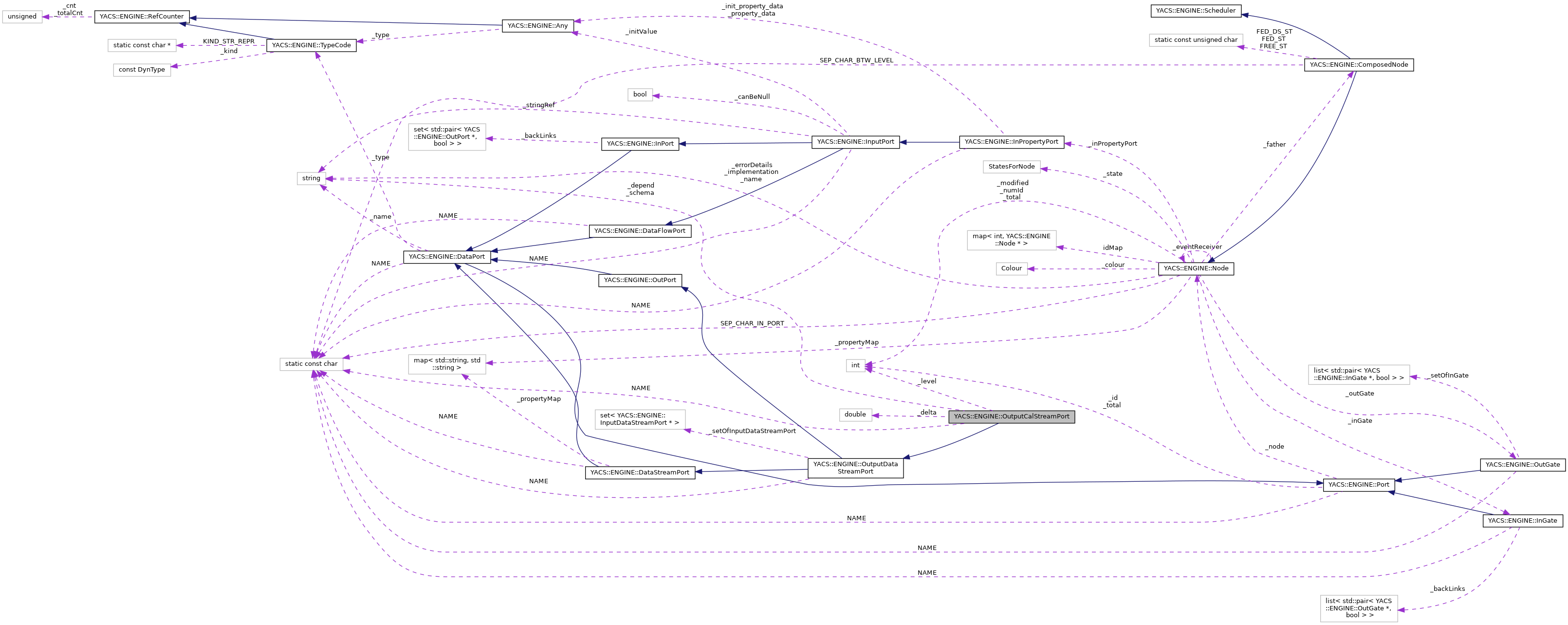

Collaboration diagram for YACS::ENGINE::OutputCalStreamPort:

[legend]

Public Member Functions
	OutputCalStreamPort (const std::string &name, Node node, TypeCode type)

	OutputCalStreamPort (const OutputCalStreamPort &other, Node *newHelder)

virtual	~OutputCalStreamPort ()

void	setDepend (const std::string &depend)

void	setLevel (const std::string &schema)

std::string	getDepend ()

int	getLevel ()

void	setSchema (const std::string &schema)

std::string	getSchema ()

void	setProperty (const std::string &name, const std::string &value)
	Set a new value for a property of the port. More...

virtual bool	addInPort (InPort *inPort)

std::string	getNameOfTypeOfCurrentInstance () const

OutputCalStreamPort *	clone (Node *newHelder) const

virtual int	removeInPort (InPort *inPort, bool forward)

Public Member Functions inherited from YACS::ENGINE::OutputDataStreamPort
	OutputDataStreamPort (const OutputDataStreamPort &other, Node *newHelder)

	OutputDataStreamPort (const std::string &name, Node node, TypeCode type)

virtual	~OutputDataStreamPort ()

virtual OutputDataStreamPort *	clone (Node *newHelder) const

std::set< InPort * >	edSetInPort () const

bool	isAlreadyLinkedWith (InPort *withp) const

virtual std::string	getNameOfTypeOfCurrentInstance () const

virtual bool	addInPort (InPort *inPort)

virtual bool	edAddInputDataStreamPort (InputDataStreamPort *port)

int	edRemoveInputDataStreamPort (InputDataStreamPort *inPort, bool forward)

void	edRemoveAllLinksLinkedWithMe ()

int	removeInPort (InPort *inPort, bool forward)

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::DataStreamPort
std::string	getNameOfTypeOfCurrentInstance () const

TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual void	setProperty (const std::string &name, const std::string &value)
	Set a new value for a property of the port. More...

virtual void	setProperties (std::map< std::string, std::string > properties)
	Set the values of all properties of the port. More...

virtual std::string	getProperty (const std::string &name)
	Get the value of a property of the port. More...

std::map< std::string, std::string >	getProperties () const

virtual void	initPortProperties ()
	Initialize port properties at the start of calculation phase. More...

virtual	~DataStreamPort ()

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

std::string	getNameOfTypeOfCurrentInstance () const

virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

bool	isDifferentTypeOf (const DataPort *other) const

virtual void	edRemoveAllLinksLinkedWithMe ()=0

virtual std::string	typeName ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

virtual std::string	getNameOfTypeOfCurrentInstance () const

int	getNumId () const

virtual std::string	typeName ()

void	modified ()

Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const

virtual int	edGetNumberOfOutLinks () const

virtual std::set< InPort * >	edSetInPort () const =0

virtual bool	isAlreadyLinkedWith (InPort *withp) const =0

virtual void	getAllRepresented (std::set< OutPort * > &represented) const

virtual bool	addInPort (InPort *inPort)=0

virtual int	removeInPort (InPort *inPort, bool forward)=0

virtual	~OutPort ()

std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)

virtual std::string	typeName ()

Static Public Attributes
static const char	NAME [] ="OutputCalStreamPort"

Static Public Attributes inherited from YACS::ENGINE::OutputDataStreamPort
static const char	NAME [] ="OutputDataStreamPort"

Static Public Attributes inherited from YACS::ENGINE::DataStreamPort
static const char	NAME [] ="DataStreamPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Attributes
std::string	_depend

std::string	_schema

int	_level

double	_delta

Protected Attributes inherited from YACS::ENGINE::OutputDataStreamPort
std::set< InputDataStreamPort * >	_setOfInputDataStreamPort

Protected Attributes inherited from YACS::ENGINE::DataStreamPort
std::map< std::string, std::string >	_propertyMap

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Protected Member Functions inherited from YACS::ENGINE::DataStreamPort
	DataStreamPort (const DataStreamPort &other, Node *newHelder)

	DataStreamPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)

	OutPort (const std::string &name, Node node, TypeCode type)

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Class for Output Calcium DataStream Ports.

Definition at line 82 of file CalStreamPort.hxx.

Constructor & Destructor Documentation

◆ OutputCalStreamPort() [1/2]

OutputCalStreamPort::OutputCalStreamPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 214 of file CalStreamPort.cxx.

                                                                                         :
  OutputDataStreamPort(name, node, type),
  DataPort(name, node, type),
  Port(node),_depend("TIME_DEPENDENCY"),_schema("TI_SCHEM"),_level(-1)
{
}

Referenced by clone().

◆ OutputCalStreamPort() [2/2]

OutputCalStreamPort::OutputCalStreamPort	(	const OutputCalStreamPort &	other,
		Node *	newHelder
	)

Definition at line 221 of file CalStreamPort.cxx.

                                                                                         :
  OutputDataStreamPort(other,newHelder),
  DataPort(other,newHelder),
  Port(other,newHelder),
  _depend(other._depend),_schema(other._schema),_level(other._level)
{
}

◆ ~OutputCalStreamPort()

OutputCalStreamPort::~OutputCalStreamPort ( )

virtual

Definition at line 229 of file CalStreamPort.cxx.

230{

231}

Member Function Documentation

◆ addInPort()

bool OutputCalStreamPort::addInPort ( InPort * inPort )

virtual

Reimplemented from YACS::ENGINE::OutputDataStreamPort.

Definition at line 281 of file CalStreamPort.cxx.

{
  DEBTRACE("OutputCalStreamPort::addInPort " << InputCalStreamPort::NAME );
  if(inPort->getNameOfTypeOfCurrentInstance()!=InputCalStreamPort::NAME)
    {
      string what="not compatible type of port requested during building of link FROM ";
      what+=NAME; what+=" TO "; what+=inPort->getNameOfTypeOfCurrentInstance();
      throw Exception(what);
    }

  InputCalStreamPort* port=static_cast<InputCalStreamPort*>(inPort);
  if(port->getDepend() != _depend)
    {
      std::string what= "incompatible DependencyType properties: "+_depend+" != "+ port->getDepend();
      throw Exception(what);
    }
  bool ret;
  ret= edAddInputDataStreamPort(port);
  return ret;
}

References _depend, DEBTRACE, YACS::ENGINE::OutputDataStreamPort::edAddInputDataStreamPort(), YACS::ENGINE::InputCalStreamPort::getDepend(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), YACS::ENGINE::InputCalStreamPort::NAME, and NAME.

◆ clone()

OutputCalStreamPort * OutputCalStreamPort::clone ( Node * newHelder ) const

virtual

Reimplemented from YACS::ENGINE::OutputDataStreamPort.

Definition at line 276 of file CalStreamPort.cxx.

{
  return new OutputCalStreamPort(*this,newHelder);
}

References OutputCalStreamPort().

◆ getDepend()

std::string YACS::ENGINE::OutputCalStreamPort::getDepend ( )

inline

Definition at line 91 of file CalStreamPort.hxx.

91{return _depend;};

References _depend.

◆ getLevel()

int YACS::ENGINE::OutputCalStreamPort::getLevel ( )

inline

Definition at line 92 of file CalStreamPort.hxx.

92{return _level;};

References _level.

◆ getNameOfTypeOfCurrentInstance()

std::string OutputCalStreamPort::getNameOfTypeOfCurrentInstance ( ) const

virtual

Reimplemented from YACS::ENGINE::OutputDataStreamPort.

Definition at line 271 of file CalStreamPort.cxx.

{
  return NAME;
}

References NAME.

◆ getSchema()

std::string YACS::ENGINE::OutputCalStreamPort::getSchema ( )

inline

Definition at line 94 of file CalStreamPort.hxx.

94{return _schema;};

References _schema.

◆ removeInPort()

int OutputCalStreamPort::removeInPort	(	InPort *	inPort,
		bool	forward
	)

virtual

Reimplemented from YACS::ENGINE::OutputDataStreamPort.

Definition at line 303 of file CalStreamPort.cxx.

{
  DEBTRACE("OutputCalStreamPort::removeInPort");
  if(inPort->getNameOfTypeOfCurrentInstance()!=InputCalStreamPort::NAME && !forward)
    {
      string what="not compatible type of port requested during destruction of for link FROM ";
      what+=NAME; what+=" TO "; what+=inPort->getNameOfTypeOfCurrentInstance();
      throw Exception(what);
    }
  return edRemoveInputDataStreamPort(static_cast<InputDataStreamPort *>(inPort),forward);
}

References DEBTRACE, YACS::ENGINE::OutputDataStreamPort::edRemoveInputDataStreamPort(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), YACS::ENGINE::InputCalStreamPort::NAME, and NAME.

◆ setDepend()

void OutputCalStreamPort::setDepend ( const std::string & depend )

Definition at line 233 of file CalStreamPort.cxx.

{
  DEBTRACE("OutputCalStreamPort::setDepend: " << edGetNumberOfOutLinks());
  if(edGetNumberOfOutLinks() > 0)
    {
      throw Exception("Can not modify DependencyType property on a connected port");
    }
  if(depend != "TIME_DEPENDENCY" && depend != "ITERATION_DEPENDENCY")
    {
      throw Exception("DependencyType property must be TIME_DEPENDENCY or ITERATION_DEPENDENCY");
    }
  _depend=depend;
}

References _depend, DEBTRACE, and YACS::ENGINE::OutPort::edGetNumberOfOutLinks().

Referenced by setProperty().

◆ setLevel()

void OutputCalStreamPort::setLevel ( const std::string & schema )

Definition at line 255 of file CalStreamPort.cxx.

{
  _level =atoi(level.c_str());
}

References _level.

Referenced by setProperty().

◆ setProperty()

void OutputCalStreamPort::setProperty	(	const std::string &	name,
		const std::string &	value
	)

virtual

Set a new value for a property of the port.

Parameters

name	: the name property
value	: the value property

Reimplemented from YACS::ENGINE::DataStreamPort.

Definition at line 260 of file CalStreamPort.cxx.

{
  if(name == "DependencyType")
    setDepend(value);
  else if(name == "DateCalSchem")
    setSchema(value);
  else if(name == "StorageLevel")
    setLevel(value);
  OutputDataStreamPort::setProperty(name,value);
}

References setDepend(), setLevel(), YACS::ENGINE::DataStreamPort::setProperty(), and setSchema().

◆ setSchema()

void OutputCalStreamPort::setSchema ( const std::string & schema )

Definition at line 247 of file CalStreamPort.cxx.

{
  if(schema != "TI_SCHEM" && schema != "TF_SCHEM" && schema != "ALPHA_SCHEM")
    {
      throw Exception("DateCalSchem property must be TI_SCHEM, TF_SCHEM or ALPHA_SCHEM");
    }
  _schema=schema;
}

References _schema.

Referenced by setProperty().

Member Data Documentation

◆ _delta

double YACS::ENGINE::OutputCalStreamPort::_delta

protected

Definition at line 104 of file CalStreamPort.hxx.

◆ _depend

std::string YACS::ENGINE::OutputCalStreamPort::_depend

protected

Definition at line 101 of file CalStreamPort.hxx.

Referenced by addInPort(), getDepend(), and setDepend().

◆ _level

int YACS::ENGINE::OutputCalStreamPort::_level

protected

Definition at line 103 of file CalStreamPort.hxx.

Referenced by getLevel(), and setLevel().

◆ _schema

std::string YACS::ENGINE::OutputCalStreamPort::_schema

protected

Definition at line 102 of file CalStreamPort.hxx.

Referenced by getSchema(), and setSchema().

◆ NAME

const char OutputCalStreamPort::NAME ="OutputCalStreamPort"

static

Definition at line 85 of file CalStreamPort.hxx.

Referenced by addInPort(), getNameOfTypeOfCurrentInstance(), and removeInPort().

The documentation for this class was generated from the following files:

src/runtime/CalStreamPort.hxx
src/runtime/CalStreamPort.cxx

Public Member Functions

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OutputCalStreamPort() [1/2]

◆ OutputCalStreamPort() [2/2]

◆ ~OutputCalStreamPort()

Member Function Documentation

◆ addInPort()

◆ clone()

◆ getDepend()

◆ getLevel()

◆ getNameOfTypeOfCurrentInstance()

◆ getSchema()

◆ removeInPort()

◆ setDepend()

◆ setLevel()

◆ setProperty()

◆ setSchema()

Member Data Documentation

◆ _delta

◆ _depend

◆ _level

◆ _schema

◆ NAME
