YACS::outnodetypeParser< T > Struct Template Reference

Class for OutNode parser. More...

#include <outputParsers.hxx>

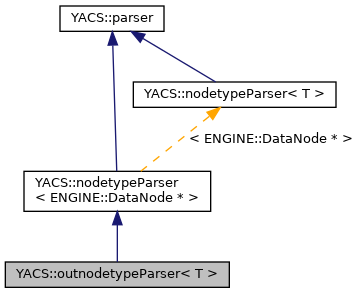

Inheritance diagram for YACS::outnodetypeParser< T >:

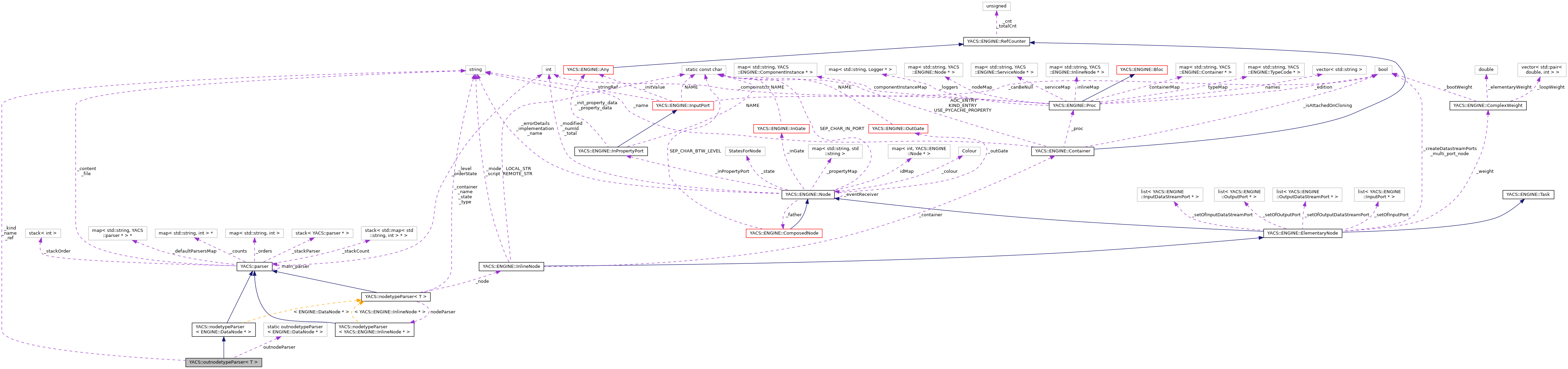

Collaboration diagram for YACS::outnodetypeParser< T >:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	buildAttr (const XML_Char **attr)
virtual void	pre ()
virtual void	name (const std::string &name)
virtual void	kind (const std::string &kind)
virtual void	ref (const std::string &ref)
virtual void	create ()
virtual void	parameter (myoutport &p)
virtual T	post ()
Public Member Functions inherited from YACS::nodetypeParser< ENGINE::DataNode * >
virtual void	state (const std::string &name)
virtual void	type (const std::string &name)
virtual void	property (const myprop &prop)
YACS::ENGINE::InlineNode *	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
std::string	_name
std::string	_kind
std::string	_ref
Public Attributes inherited from YACS::nodetypeParser< ENGINE::DataNode * >
std::string	_type
std::string	_name
std::string	_state
std::string	_container
ENGINE::DataNode *	_node
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static outnodetypeParser< T >	outnodeParser
Static Public Attributes inherited from YACS::nodetypeParser< ENGINE::DataNode * >
static nodetypeParser< ENGINE::DataNode * >	nodeParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

template<class T = ENGINE::DataNode*>
struct YACS::outnodetypeParser< T >

Class for OutNode parser.

Its XML schema is:

    <xsd:complexType name="OutNodeType">
      <xsd:attribute name="name" type="xsd:string" use="required"/>
      <xsd:attribute name="kind" type="xsd:string" />
      <xsd:attribute name="ref" type="xsd:string" />
      <xsd:element name="parameter" type="OutputDataType"/>
    </xsd:complexType>

Definition at line 114 of file outputParsers.hxx.

Member Function Documentation

buildAttr()

template<class T >

void YACS::outnodetypeParser< T >::buildAttr ( const XML_Char **  attr )

virtual

Reimplemented from YACS::nodetypeParser< ENGINE::DataNode * >.

Definition at line 159 of file outputParsers.hxx.

    {
      if (!attr)
        return;
      DEBTRACE("outnodetypeParser::buildAttr");
      this->required("name",attr);
      for (int i = 0; attr[i]; i += 2)
        {
          if(std::string(attr[i]) == "name")name(attr[i+1]);
          if(std::string(attr[i]) == "kind")kind(attr[i+1]);
          if(std::string(attr[i]) == "ref")ref(attr[i+1]);
        }
      create();
    }

References DEBTRACE, yacsorb.CORBAEngineTest::i, and gui.CONNECTOR::ref().

create()

template<class T >

void YACS::outnodetypeParser< T >::create

virtual

Definition at line 199 of file outputParsers.hxx.

{
  this->_node = theRuntime->createOutDataNode(_kind,_name);
}

References YACS::ENGINE::Runtime::createOutDataNode(), and theRuntime.

kind()

template<class T >

void YACS::outnodetypeParser< T >::kind ( const std::string &  kind )

virtual

Definition at line 188 of file outputParsers.hxx.

{
  _kind=kind;
}

name()

template<class T >

void YACS::outnodetypeParser< T >::name ( const std::string &  name )

virtual

Reimplemented from YACS::nodetypeParser< ENGINE::DataNode * >.

Definition at line 183 of file outputParsers.hxx.

{
  _name=name;
}

onEnd()

template<class T >

void YACS::outnodetypeParser< T >::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::nodetypeParser< ENGINE::DataNode * >.

Definition at line 150 of file outputParsers.hxx.

    {
      DEBTRACE("outnodetypeParser::onEnd");
      std::string element(el);
      if(element == "parameter")parameter(((outputdatatypeParser*)child)->post());
      if(element == "property")this->property(((propertytypeParser*)child)->post());
    }

References DEBTRACE.

onStart()

template<class T >

void YACS::outnodetypeParser< T >::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::nodetypeParser< ENGINE::DataNode * >.

Definition at line 136 of file outputParsers.hxx.

    {
      DEBTRACE("outnodetypeParser::onStart");
      std::string element(el);
      parser* pp=&parser::main_parser;
      if(element == "parameter")pp=&outputdatatypeParser::outputdataParser;
      if(element == "property")pp=&propertytypeParser::propertyParser;
      this->SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), DEBTRACE, YACS::parser::init(), YACS::parser::main_parser, YACS::outputdatatypeParser::outputdataParser, YACS::parser::pre(), and YACS::propertytypeParser::propertyParser.

parameter()

template<class T >

void YACS::outnodetypeParser< T >::parameter ( myoutport &  p )

virtual

Definition at line 205 of file outputParsers.hxx.

{
  DEBTRACE("outnodetypeParser::parameter");
  if(currentProc->typeMap.count(p._type)==0)
    {
      //Check if the typecode is defined in the runtime
      YACS::ENGINE::TypeCode* t=theRuntime->getTypeCode(p._type);
      if(t==0)
      {
        std::string msg="Unknown Type: ";
        msg=msg+p._type+" for node: "+this->_node->getName()+" port name: "+p._name;
        this->logError(msg);
        return;
      }
      else
      {
        currentProc->typeMap[p._type]=t;
        t->incrRef();
      }
    }
  ENGINE::InputPort *port = this->_node->edAddInputPort(p._name,currentProc->typeMap[p._type]);
  this->_node->setData(port,p._props["ref"]);
}

References currentProc, DEBTRACE, YACS::ENGINE::Runtime::getTypeCode(), p, gui.Appli::t, theRuntime, and YACS::ENGINE::Proc::typeMap.

post()

template<class T >

T YACS::outnodetypeParser< T >::post

virtual

Reimplemented from YACS::nodetypeParser< ENGINE::DataNode * >.

Definition at line 230 of file outputParsers.hxx.

{
  this->_node->setRef(_ref);
  return this->_node;
}

pre()

template<class T >

void YACS::outnodetypeParser< T >::pre

virtual

Reimplemented from YACS::nodetypeParser< ENGINE::DataNode * >.

Definition at line 175 of file outputParsers.hxx.

{
  this->_node=0;
  _kind="";
  _ref="";
}

ref()

template<class T >

void YACS::outnodetypeParser< T >::ref ( const std::string &  ref )

virtual

Definition at line 193 of file outputParsers.hxx.

{
  _ref=ref;
}

References gui.CONNECTOR::ref().

Member Data Documentation

_kind

template<class T = ENGINE::DataNode*>

std::string YACS::outnodetypeParser< T >::_kind

Definition at line 128 of file outputParsers.hxx.

_name

template<class T = ENGINE::DataNode*>

std::string YACS::outnodetypeParser< T >::_name

Definition at line 127 of file outputParsers.hxx.

_ref

template<class T = ENGINE::DataNode*>

std::string YACS::outnodetypeParser< T >::_ref

Definition at line 129 of file outputParsers.hxx.

outnodeParser

template<class T >

outnodetypeParser< T > YACS::outnodetypeParser< T >::outnodeParser

static

Definition at line 116 of file outputParsers.hxx.

---

The documentation for this struct was generated from the following file:

• src/yacsloader/outputParsers.hxx
