#include <EditionPyFunc.hxx>

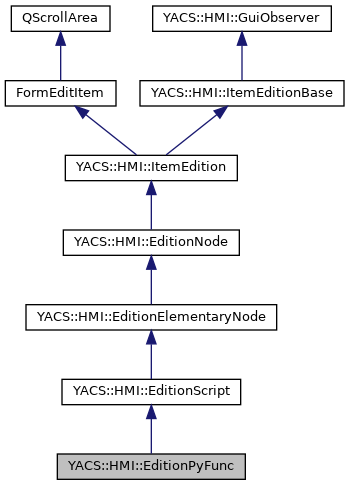

Inheritance diagram for YACS::HMI::EditionPyFunc:

[legend]

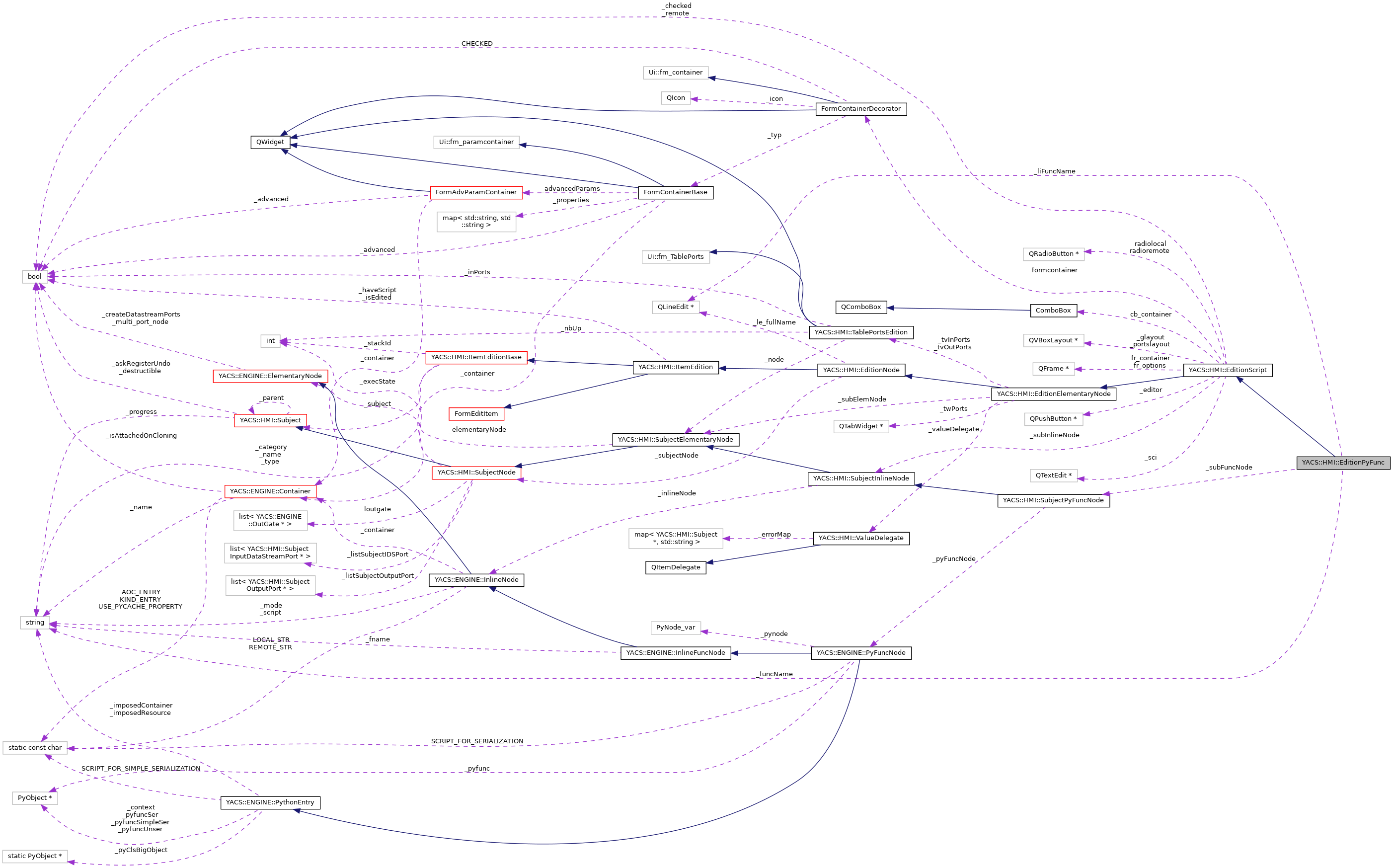

Collaboration diagram for YACS::HMI::EditionPyFunc:

[legend]

Public Slots
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onFuncNameModified (const QString &text)

virtual void	onTemplate ()

Public Slots inherited from YACS::HMI::EditionScript
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onScriptModified ()

virtual void	onEdit ()

virtual void	on_tb_options_toggled (bool checked)

virtual void	on_remote_toggled (bool checked)

virtual void	fillContainerPanel ()

virtual void	changeContainer (int)

virtual void	update (GuiEvent event, int type, Subject *son)

Public Slots inherited from YACS::HMI::EditionElementaryNode
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onPortIndexChanged (int index)

virtual void	onCommitData (QWidget *editor)

Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()

virtual void	onCancel ()

virtual void	onModifyName (const QString &text)

Public Member Functions
	EditionPyFunc (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionPyFunc ()

Public Member Functions inherited from YACS::HMI::EditionScript
	EditionScript (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionScript ()

virtual void	synchronize ()

Public Member Functions inherited from YACS::HMI::EditionElementaryNode
	EditionElementaryNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionElementaryNode ()

virtual void	synchronize ()

virtual void	setEditablePorts (bool isEditable)

Public Member Functions inherited from YACS::HMI::EditionNode
	EditionNode (Subject subject, QWidget parent=0, const char *name=0)

virtual	~EditionNode ()

virtual void	update (GuiEvent event, int type, Subject *son)

Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject subject, QWidget parent=0, const char *name=0)

virtual	~ItemEdition ()

virtual void	synchronize ()

virtual void	select (bool isSelected)

virtual void	setName (std::string name)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	setEdited (bool isEdited)

Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)

virtual	~FormEditItem ()

Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)

virtual	~ItemEditionBase ()

virtual void	select (bool isSelected)

virtual void	synchronize ()

virtual void	update (GuiEvent event, int type, Subject *son)

virtual Subject *	getSubject ()

Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()

virtual	~GuiObserver ()

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	incrementSubjects (Subject *subject)

virtual void	decrementSubjects (Subject *subject)

int	getNbSubjects ()

bool	isDestructible ()

Protected Attributes
SubjectPyFuncNode *	_subFuncNode

std::string	_funcName

QLineEdit *	_liFuncName

Protected Attributes inherited from YACS::HMI::EditionScript
SubjectInlineNode *	_subInlineNode

QTextEdit *	_sci

QVBoxLayout *	_glayout

QVBoxLayout *	_portslayout

QPushButton *	_editor

bool	_checked

bool	_remote

QFrame *	fr_options

QFrame *	fr_container

ComboBox *	cb_container

QRadioButton *	radiolocal

QRadioButton *	radioremote

FormContainerDecorator *	formcontainer

Protected Attributes inherited from YACS::HMI::EditionElementaryNode
SubjectElementaryNode *	_subElemNode

QTabWidget *	_twPorts

TablePortsEdition *	_tvInPorts

TablePortsEdition *	_tvOutPorts

ValueDelegate *	_valueDelegate

Protected Attributes inherited from YACS::HMI::EditionNode
QLineEdit *	_le_fullName

SubjectNode *	_subjectNode

Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited

bool	_haveScript

Protected Attributes inherited from FormEditItem
WidEditItem *	_wid

Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject

int	_stackId

std::string	_name

std::string	_type

std::string	_category

Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet

bool	_destructible

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)

Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)

static void	setEventMap ()

Protected Member Functions inherited from YACS::HMI::EditionElementaryNode
virtual bool	hasInputPorts ()

virtual bool	hasOutputPorts ()

virtual void	createTablePorts (QLayout *layout)

Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 31 of file EditionPyFunc.hxx.

Constructor & Destructor Documentation

◆ EditionPyFunc()

EditionPyFunc::EditionPyFunc	(	Subject *	subject,
		QWidget *	parent = `0`,
		const char *	name = `0`
	)

Definition at line 45 of file EditionPyFunc.cxx.

  : EditionScript(subject, parent, name)
{
  _subFuncNode = 0;
  _funcName ="";
  _liFuncName = 0;

  _subFuncNode = dynamic_cast<SubjectPyFuncNode*>(_subject);
  YASSERT(_subFuncNode);

  YACS::ENGINE::InlineFuncNode *pyFuncNode
    = dynamic_cast<YACS::ENGINE::InlineFuncNode*>(_subFuncNode->getNode());
  YASSERT(pyFuncNode);

  _glayout->removeWidget( _sci );

  QGridLayout *glt = new QGridLayout();
  _funcName = pyFuncNode->getFname();
  QLabel* laFuncName = new QLabel("laFuncName", this );
  glt->addWidget(laFuncName, 0, 0, 1, 1);
  laFuncName->setText("Function Name:");
  _liFuncName = new QLineEdit( "liFuncName", this );
  glt->addWidget(_liFuncName, 0, 1, 1, 1);
  _liFuncName->setText(_funcName.c_str());
  QPushButton* gener_template = new QPushButton("Template",this);
  connect(gener_template,SIGNAL(clicked()),this, SLOT(onTemplate()));
  glt->addWidget(gener_template, 0, 2, 1, 1);
  _glayout->addLayout( glt , 1);

  _glayout->addWidget( _sci );
  if (!QtGuiContext::getQtCurrent()->isEdition())
  {
    gener_template->setEnabled (false);
    _liFuncName->setEnabled (false);
  }


  connect(_liFuncName, SIGNAL(textChanged(const QString&)),
          this, SLOT(onFuncNameModified(const QString&)));
}

References _funcName, YACS::HMI::EditionScript::_glayout, _liFuncName, YACS::HMI::EditionScript::_sci, _subFuncNode, YACS::HMI::ItemEditionBase::_subject, YACS::ENGINE::InlineFuncNode::getFname(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::QtGuiContext::getQtCurrent(), onFuncNameModified(), onTemplate(), and YASSERT.

◆ ~EditionPyFunc()

EditionPyFunc::~EditionPyFunc ( )

virtual

Definition at line 88 of file EditionPyFunc.cxx.

89{

90}

Member Function Documentation

◆ onApply

void EditionPyFunc::onApply ( )

virtualslot

Definition at line 92 of file EditionPyFunc.cxx.

{
  bool funcNameEdited = false;
  string funcName = _liFuncName->text().toStdString();
  if (funcName.empty())
    {
      _liFuncName->setText(_funcName.c_str());
      funcName = _funcName;
    }
  if (funcName != _funcName)
    {
      funcNameEdited = true;
      bool ret = _subFuncNode->setFunctionName(funcName);
      if (ret)
        {
          funcNameEdited = false;
          _funcName = funcName;
        }
    }
  _isEdited = _isEdited || funcNameEdited;
  EditionScript::onApply();
}

References _funcName, YACS::HMI::ItemEdition::_isEdited, _liFuncName, _subFuncNode, YACS::HMI::EditionScript::onApply(), and YACS::HMI::SubjectPyFuncNode::setFunctionName().

Referenced by onTemplate().

◆ onCancel

void EditionPyFunc::onCancel ( )

virtualslot

Definition at line 115 of file EditionPyFunc.cxx.

{
  _liFuncName->setText(_funcName.c_str());
  EditionScript::onCancel();
}

References _funcName, _liFuncName, and YACS::HMI::EditionScript::onCancel().

◆ onFuncNameModified

void EditionPyFunc::onFuncNameModified ( const QString & text )

virtualslot

Definition at line 121 of file EditionPyFunc.cxx.

{
  if (_funcName != text.toStdString()) setEdited(true);
}

References _funcName, and YACS::HMI::ItemEdition::setEdited().

Referenced by EditionPyFunc().

◆ onTemplate

void EditionPyFunc::onTemplate ( )

virtualslot

Definition at line 126 of file EditionPyFunc.cxx.

{
  if(_funcName=="")return;

  ElementaryNode* node = dynamic_cast<ElementaryNode*>(_subFuncNode->getNode());

  std::string text;
  text = "def " + _funcName + "(";

  std::list<InputPort*> iplist = node->getSetOfInputPort();
  std::list<InputPort*>::iterator ipos = iplist.begin();
  for (; ipos != iplist.end(); ipos++)
    {
      text = text + (*ipos)->getName() + ",";
    }
  text = text + "):\n";
  text = text + "  return ";

  std::list<OutputPort*> oplist = node->getSetOfOutputPort();
  std::list<OutputPort*>::iterator opos = oplist.begin();
  for (; opos != oplist.end(); opos++)
    {
      text = text + (*opos)->getName() + ",";
    }
  text[text.length()-1]=' ';
  text = text + "\n";
  _sci->append(text.c_str());
  onApply();
}
