Revolution

Revolution feature revolves selected objects around selected axis.

To perform a Revolution in the active part:

1. select in the Main Menu Features - > Revolution item or

2. click Revolution button in the toolbar

The following property panel will be opened:

Start sketch

There are two variants of the property panel for Revolution depending on the chosen option:

By Angles revolves objects by specifying angles.

By Bounding Planes revolves objects by specifying bounding planes and angles.

---

By angles

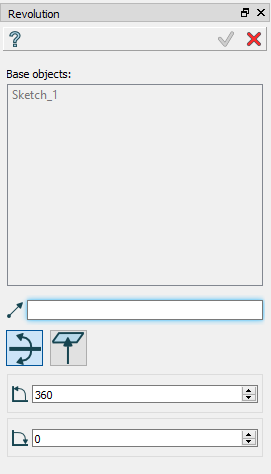

Revolution: definition by angles

• Base objects - contains a list of objects selected in the Object Browser or in the Viewer, which will be revolved.

• Axis - axis of revolution.

• To angle - end angle of revolution.

• From angle - start angle of revolution.

TUI Commands:

model.addRevolution(part, objects, axis, angle)

Parameters:

• part – The current part object.

• list – A list of objects for revolution.

• object – An axis.

• real – An angle.

Returns:

Created object.

model.addRevolution(part, objects, axis, toSize, fromSize)

Parameters:

• part – The current part object.

• list – A list of objects for revolution.

• object – An axis.

• real – To angle.

• real – From angle.

Returns:

Created object.

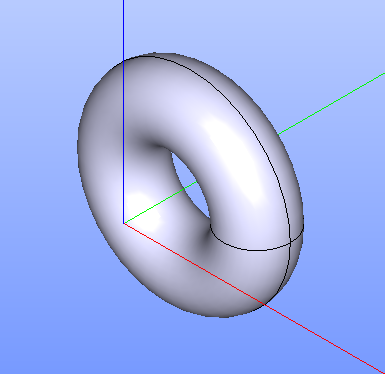

Result

The Result of the operation will be a revolved shape:

Revolution created

See Also a sample TUI Script of Create Revolution by angles operation.

By bounding planes

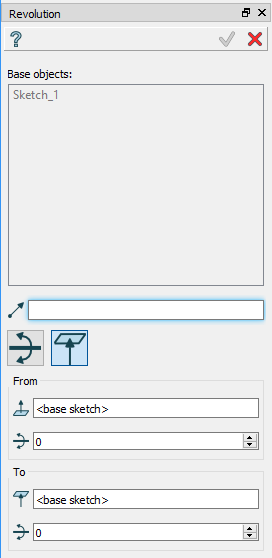

Revolution: definition by bounding planes

• Base objects - contains a list of objects selected in the Object Browser or in the Viewer, which will be revolved.

• Axis - axis of revolution.

• To plane - a planar face can be selected to bound revolution from one side.

• To offset - offset for revolution or for bounding plane, if selected.

• From plane - a planar face can be selected to bound revolution from other side.

• From offset - offset for revolution or for bounding plane, if selected.

TUI Command:

model.addRevolution(part, objects, axis, toObject, toOffset, fromObject, fromOffset)

Parameters:

• part – The current part object.

• list – A list of objects for revolution.

• object – An axis.

• object – To object.

• real – To offset.

• object – From object.

• real – From offset.

Returns:

Created object.

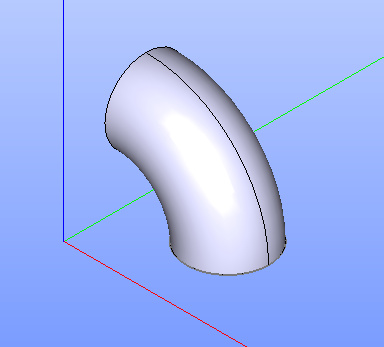

Result

The Result of the operation will be a revolved shape:

Revolution created

See Also a sample TUI Script of Create Revolution by bounding planes operation.
