Translation

Translation feature translates a selected shape.

To create a Translation in the active part:

select in the Main Menu Part - > Translation item or
click Translation button in the toolbar

The Vector of translation can be defined in three different ways:

by by axis and distance

by vector

by two points

Translation by axis and distance

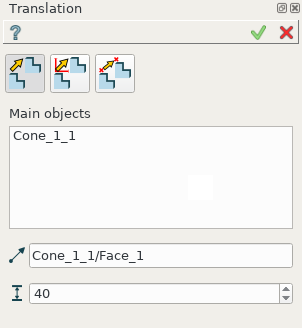

../_images/Translation2.png — Translation by axis and distance property panel

Input fields:

Main objects panel contains shapes to be translated. The shapes are selected in 3D OCC viewer or object browser; Transformation of COMPSOLID subshapes is prohibited.
Axis defines a vector along which the object will be translated. The vector is an edge or axis selected in 3D OCC viewer or object browser;
Distance defines the distance along the Vector of translation.

TUI Command:

model.addTranslation(Part_doc, [shape, ]axis, dist)

Parameters:

part – The current part object.
list – A list of shapes in format model.selection(TYPE, shape).
object – axis in format model.selection(TYPE, shape).
real – Distance value.

Returns:

Result object.

Result

The result of operation is a shifted initial shape.

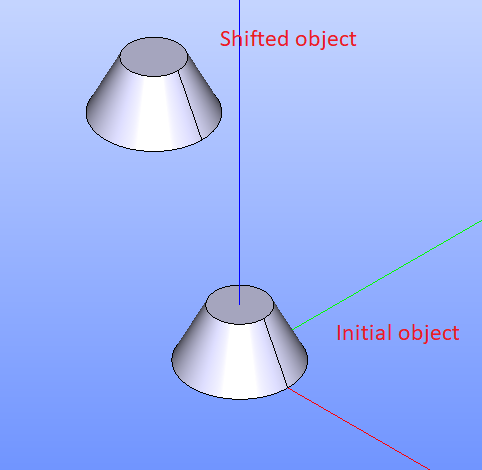

../_images/translation_XYZ.png — Translation by axis and distance

See Also a sample TUI Script of a Translation by axis and distance operation.

Translation by vector

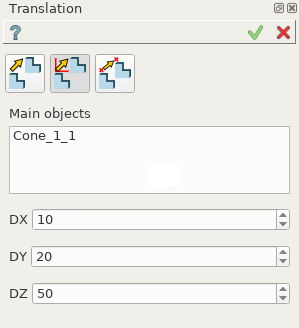

../_images/Translation1.png — Translation by vector property panel

Input fields:

Main objects panel contains shapes to be translated. The shapes are selected in 3D OCC viewer or object browser; Transformation of COMPSOLID subshapes is prohibited.
DX, DY, DZ define vector using coordinates along the axis.

TUI Command:

model.addTranslation(Part_1_doc, [shape, ]DX, DY, DZ)

Parameters:

part – The current part object.
list – A list of shapes in format model.selection(TYPE, shape).
real – dX value.
real – dY value.
real – dZ value.

Returns:

Result object.

Result

The result of operation is a shifted initial shape.

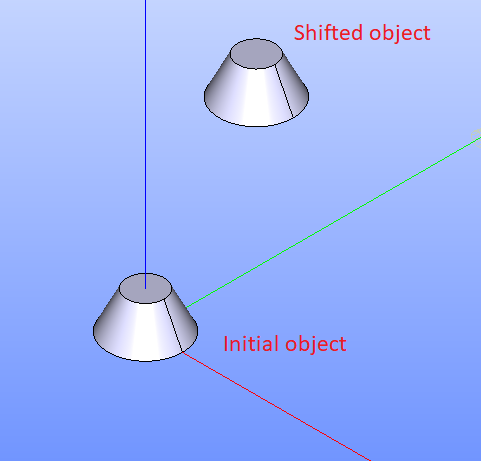

../_images/translation_vector.png — Translation by vector

See Also a sample TUI Script of Translation by vector operation.

Translation by two points

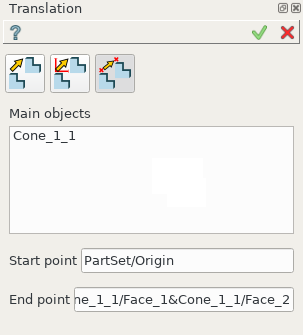

../_images/Translation3.png — Translation by two points property panel

Input fields:

Main objects panel contains shapes to be translated. Shapes are selected in 3D OCC viewer or object browser; Transformation of COMPSOLID subshapes is prohibited.
Start point defines start vector point as point or vertex selected in 3D OCC viewer or object browser;
End point defines end vector point as point or vertex selected in 3D OCC viewer or object browser;

TUI Command:

model.addTranslation(Part_doc, [shape, ]point1, point2)

Parameters:

part – The current part object.
list – A list of shapes in format model.selection(TYPE, shape).
object – A point in format model.selection(TYPE, shape).
object – A point in format model.selection(TYPE, shape).

Returns:

Result object.

Result

The result of operation is a shifted initial shape.

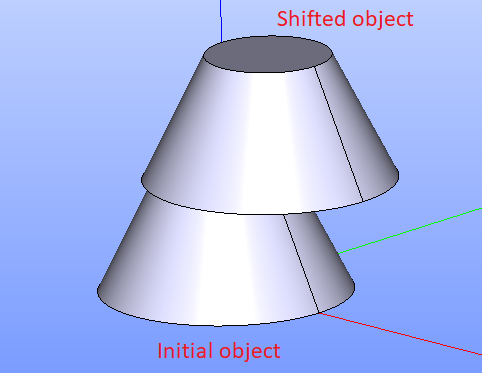

../_images/translation_2points.png — Translation by two points

See Also a sample TUI Script of Translation by 2 points operation.

Transformation of COMPSOLID subshapes is prohibited.

If you select one or more subshapes of COMPOUND as transformation (translation or other operation that changes the shape position or orientation) Main objects, all other subshapes will be also included in result at their original locations.

Transformation of COMPSOLID subshapes is prohibited, because we cannot guarantee the result still be a COMPSOLID after moving/duplicating some parts of it.
