Partition

Partition feature implements a boolean operation for partitioning of a set of selected objects.

To perform a Partition in the active part:

  1. select in the Main Menu Features - > Partition item or

  2. click partition_btn.icon Partition button in the toolbar

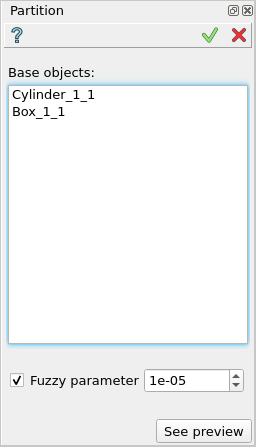

The following property panel will be opened:

../_images/Partition.png

Partition operation

Base Objects contains a list of objects selected in the Object Browser or in the Viewer, which will be partitioned. Construction planes are allowed too if at least one non-construction entity is selected.

Fuzzy Parameter defines the additional tolerance value used to eliminate tiny results.

TUI Command:

model.addPartition(Part_doc, objects, fuzzy)
Parameters

  • part – The current part object.

  • object – A list of objects.

  • real – Additional tolerance used to eliminate tiny results (optional).

Returns

Created object.

Result

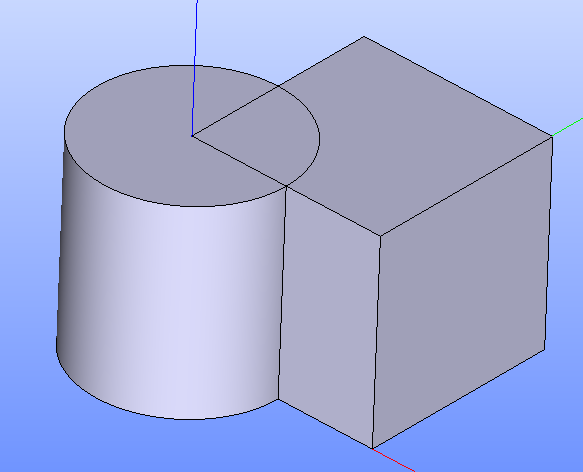

The Result of the operation will be a shape which is a partition of selected objects:

../_images/CreatedPartition.png

Partition created

See Also a sample TUI Script of Create Partition operation.
