YACS::ENGINE::VisitorSalomeSaveState Class Reference

#include <VisitorSalomeSaveState.hxx>

Inheritance diagram for YACS::ENGINE::VisitorSalomeSaveState:

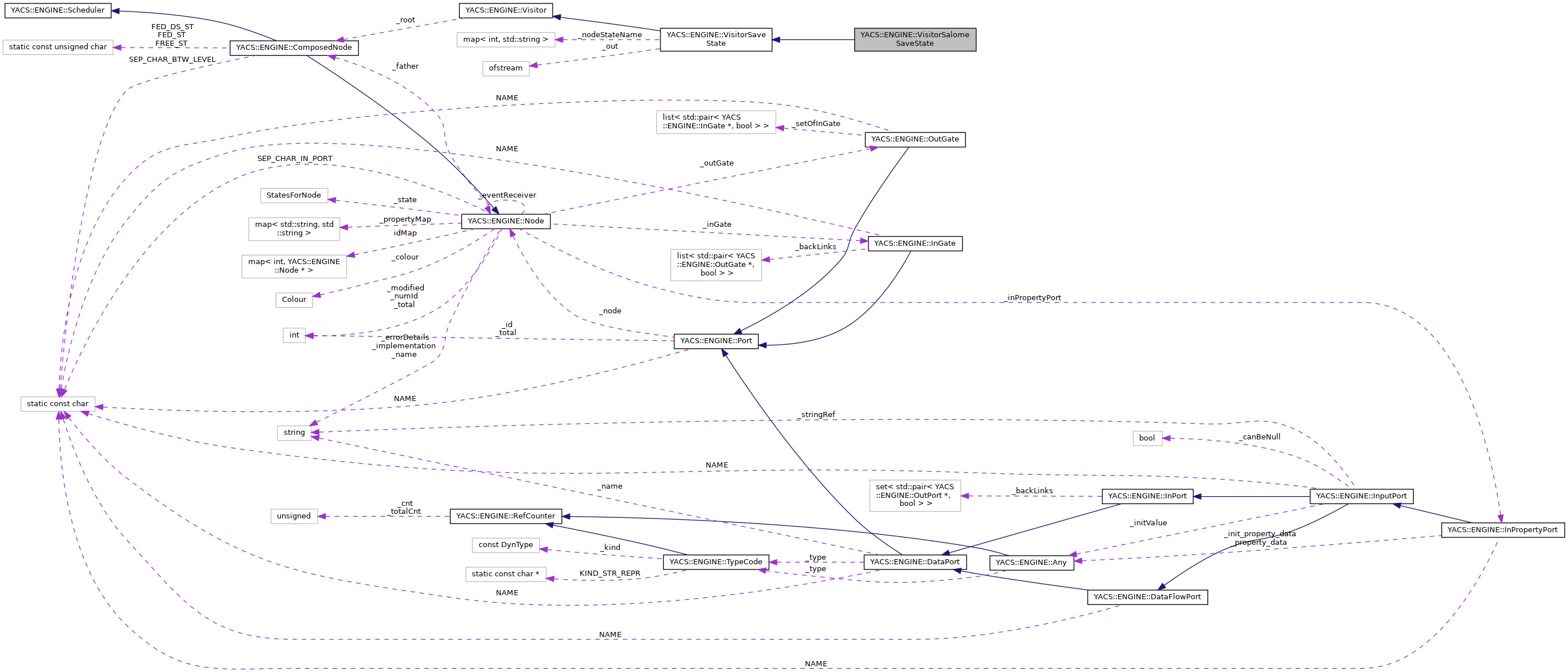

Collaboration diagram for YACS::ENGINE::VisitorSalomeSaveState:

Public Member Functions
	VisitorSalomeSaveState (ComposedNode *root)
virtual	~VisitorSalomeSaveState ()
virtual void	visitForEachLoop (ForEachLoop *node)
Public Member Functions inherited from YACS::ENGINE::VisitorSaveState
	VisitorSaveState (ComposedNode *root)
virtual	~VisitorSaveState ()
void	openFileDump (const std::string &xmlDump)
void	closeFileDump ()
virtual void	visitBloc (Bloc *node)
virtual void	visitElementaryNode (ElementaryNode *node)
void	visitForEachLoop (ForEachLoop *node) override
void	visitForEachLoopDyn (ForEachLoopDyn *node) override
virtual void	visitOptimizerLoop (OptimizerLoop *node)
virtual void	visitDynParaLoop (DynParaLoop *node)
virtual void	visitForLoop (ForLoop *node)
virtual void	visitInlineNode (InlineNode *node)
virtual void	visitInlineFuncNode (InlineFuncNode *node)
virtual void	visitLoop (Loop *node)
virtual void	visitProc (Proc *node)
virtual void	visitServiceNode (ServiceNode *node)
virtual void	visitServerNode (ServerNode *node)
virtual void	visitServiceInlineNode (ServiceInlineNode *node)
virtual void	visitSwitch (Switch *node)
virtual void	visitWhileLoop (WhileLoop *node)
virtual void	visitPresetNode (DataNode *node)
virtual void	visitOutNode (DataNode *node)
virtual void	visitStudyInNode (DataNode *node)
virtual void	visitStudyOutNode (DataNode *node)
Public Member Functions inherited from YACS::ENGINE::Visitor
	Visitor (ComposedNode *root)
virtual void	visitBloc (Bloc *node)=0
virtual void	visitElementaryNode (ElementaryNode *node)=0
virtual void	visitForEachLoop (ForEachLoop *node)=0
virtual void	visitForEachLoopDyn (ForEachLoopDyn *node)=0
virtual void	visitOptimizerLoop (OptimizerLoop *node)=0
virtual void	visitDynParaLoop (DynParaLoop *node)=0
virtual void	visitForLoop (ForLoop *node)=0
virtual void	visitInlineNode (InlineNode *node)=0
virtual void	visitInlineFuncNode (InlineFuncNode *node)=0
virtual void	visitLoop (Loop *node)=0
virtual void	visitProc (Proc *node)=0
virtual void	visitServiceNode (ServiceNode *node)=0
virtual void	visitServerNode (ServerNode *node)=0
virtual void	visitServiceInlineNode (ServiceInlineNode *node)=0
virtual void	visitSwitch (Switch *node)=0
virtual void	visitWhileLoop (WhileLoop *node)=0
virtual void	visitPresetNode (DataNode *node)=0
virtual void	visitOutNode (DataNode *node)=0
virtual void	visitStudyInNode (DataNode *node)=0
virtual void	visitStudyOutNode (DataNode *node)=0

Additional Inherited Members
Protected Member Functions inherited from YACS::ENGINE::Visitor
std::map< std::string, std::string >	getNodeProperties (Node *node)
std::map< std::string, TypeCode * >	getTypeCodeMap (Proc *proc)
std::map< std::string, Container * >	getContainerMap (Proc *proc)
std::list< TypeCodeObjref * >	getListOfBases (TypeCodeObjref *objref)
Protected Attributes inherited from YACS::ENGINE::VisitorSaveState
std::ofstream	_out
std::map< int, std::string >	_nodeStateName
Protected Attributes inherited from YACS::ENGINE::Visitor
ComposedNode *	_root

Detailed Description

Definition at line 31 of file VisitorSalomeSaveState.hxx.

Constructor & Destructor Documentation

VisitorSalomeSaveState()

VisitorSalomeSaveState::VisitorSalomeSaveState

(

ComposedNode *

root

)

Definition at line 31 of file VisitorSalomeSaveState.cxx.

:VisitorSaveState(root)
{
}

~VisitorSalomeSaveState()

VisitorSalomeSaveState::~VisitorSalomeSaveState ( )

virtual

Definition at line 36 of file VisitorSalomeSaveState.cxx.

{
}

Member Function Documentation

visitForEachLoop()

void VisitorSalomeSaveState::visitForEachLoop ( ForEachLoop *  node )

virtual

Reimplemented from YACS::ENGINE::VisitorSaveState.

Definition at line 40 of file VisitorSalomeSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  std::string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitForEachLoop ------ " << name);
  _out << "  <node type='forEachLoop'>" << std::endl;
  _out << "    <name>" << name << "</name>" << std::endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << std::endl;
//  VisitorSaveState::visitForEachLoop(node);
  std::list<InputPort *> setOfInputPort = node->getLocalInputPorts();
  std::list<InputPort *>::iterator iter;
  for(iter = setOfInputPort.begin(); iter != setOfInputPort.end(); iter++)
  {
    _out << "    <inputPort>" << std::endl;
    _out << "      <name>" << (*iter)->getName() << "</name>" << std::endl;
    try
      {
        _out << "      ";
        _out << (*iter)->dump();
      }
    catch (YACS::Exception &e)
      {
        DEBTRACE("caught YACS:Exception: " << e.what());
        _out << "<value><error><![CDATA[" << e.what() << "]]></error></value>" << std::endl;
      }
    _out << "    </inputPort>" << std::endl;
  }

  StatesForNode state = node->getState();
  if(YACS::LOADED == state ||
    YACS::ACTIVATED == state ||
    YACS::SUSPENDED == state ||
    YACS::EXECFAILED == state ||
    YACS::PAUSE == state ||
    YACS::TORECONNECT == state ||
    YACS::INTERNALERR == state ||
    YACS::FAILED == state ||
    YACS::ERROR == state)
  {
    ForEachLoopPassedData* processedData = node->getProcessedData();
    if(processedData)
    {
      const std::vector<unsigned int>& processedIndexes = processedData->getIds();
      std::vector<SequenceAny *>::const_iterator it_outputs;
      std::vector<std::string>::const_iterator it_names;

      for(it_outputs = processedData->getOutputs().begin(), it_names = processedData->getOutputNames().begin();
          it_names != processedData->getOutputNames().end();
          it_outputs++, it_names++)
      {
        _out << "    <loopOutputPort>" << std::endl;
        _out << "      <name>" << (*it_names) << "</name>" << std::endl;
        for(unsigned int i = 0; i < (*it_outputs)->size(); i++)
        {
          AnyPtr value = (*(*it_outputs))[i];
          _out << "      <sample><index>" << processedIndexes[i]<< "</index>";
          if(value)
            _out << convertNeutralXml(value->getType(), value);
          else
            _out << "<value>None</value>";
          _out << "      </sample>" << std::endl;
        }
        _out << "    </loopOutputPort>" << std::endl;
      }

      delete processedData;
      processedData = NULL;
    }
  }
  _out << "  </node>" << std::endl;
}

References YACS::ENGINE::VisitorSaveState::_nodeStateName, YACS::ENGINE::VisitorSaveState::_out, YACS::ENGINE::Visitor::_root, YACS::ACTIVATED, YACS::ENGINE::convertNeutralXml(), DEBTRACE, YACS::ERROR, YACS::EXECFAILED, YACS::FAILED, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ForEachLoopPassedData::getIds(), YACS::ENGINE::ForEachLoopGen::getLocalInputPorts(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::ForEachLoopPassedData::getOutputNames(), YACS::ENGINE::ForEachLoopPassedData::getOutputs(), YACS::ENGINE::ForEachLoopGen::getProcessedData(), YACS::ENGINE::Node::getState(), yacsorb.CORBAEngineTest::i, YACS::INTERNALERR, YACS::LOADED, YACS::PAUSE, yacsorb.CORBAEngineTest::state, YACS::SUSPENDED, YACS::TORECONNECT, and YACS::Exception::what().

---

The documentation for this class was generated from the following files:

• src/runtime/VisitorSalomeSaveState.hxx
• src/runtime/VisitorSalomeSaveState.cxx
