#include <VisitorSaveState.hxx>

Inheritance diagram for YACS::ENGINE::VisitorSaveState:

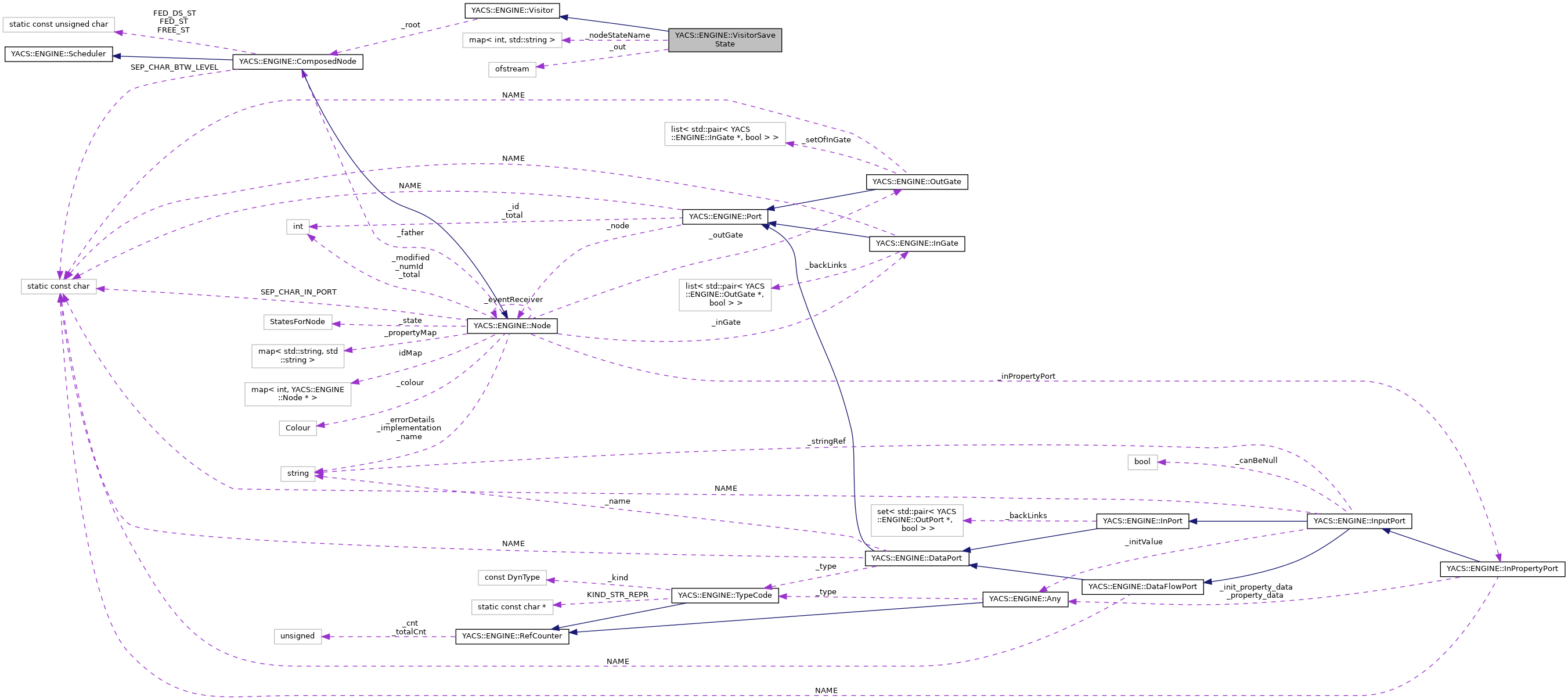

Collaboration diagram for YACS::ENGINE::VisitorSaveState:

[legend]

Public Member Functions
	VisitorSaveState (ComposedNode *root)

virtual	~VisitorSaveState ()

void	openFileDump (const std::string &xmlDump)

void	closeFileDump ()

virtual void	visitBloc (Bloc *node)

virtual void	visitElementaryNode (ElementaryNode *node)

void	visitForEachLoop (ForEachLoop *node) override

void	visitForEachLoopDyn (ForEachLoopDyn *node) override

virtual void	visitOptimizerLoop (OptimizerLoop *node)

virtual void	visitDynParaLoop (DynParaLoop *node)

virtual void	visitForLoop (ForLoop *node)

virtual void	visitInlineNode (InlineNode *node)

virtual void	visitInlineFuncNode (InlineFuncNode *node)

virtual void	visitLoop (Loop *node)

virtual void	visitProc (Proc *node)

virtual void	visitServiceNode (ServiceNode *node)

virtual void	visitServerNode (ServerNode *node)

virtual void	visitServiceInlineNode (ServiceInlineNode *node)

virtual void	visitSwitch (Switch *node)

virtual void	visitWhileLoop (WhileLoop *node)

virtual void	visitPresetNode (DataNode *node)

virtual void	visitOutNode (DataNode *node)

virtual void	visitStudyInNode (DataNode *node)

virtual void	visitStudyOutNode (DataNode *node)

Public Member Functions inherited from YACS::ENGINE::Visitor
	Visitor (ComposedNode *root)

virtual void	visitBloc (Bloc *node)=0

virtual void	visitElementaryNode (ElementaryNode *node)=0

virtual void	visitForEachLoop (ForEachLoop *node)=0

virtual void	visitForEachLoopDyn (ForEachLoopDyn *node)=0

virtual void	visitOptimizerLoop (OptimizerLoop *node)=0

virtual void	visitDynParaLoop (DynParaLoop *node)=0

virtual void	visitForLoop (ForLoop *node)=0

virtual void	visitInlineNode (InlineNode *node)=0

virtual void	visitInlineFuncNode (InlineFuncNode *node)=0

virtual void	visitLoop (Loop *node)=0

virtual void	visitProc (Proc *node)=0

virtual void	visitServiceNode (ServiceNode *node)=0

virtual void	visitServerNode (ServerNode *node)=0

virtual void	visitServiceInlineNode (ServiceInlineNode *node)=0

virtual void	visitSwitch (Switch *node)=0

virtual void	visitWhileLoop (WhileLoop *node)=0

virtual void	visitPresetNode (DataNode *node)=0

virtual void	visitOutNode (DataNode *node)=0

virtual void	visitStudyInNode (DataNode *node)=0

virtual void	visitStudyOutNode (DataNode *node)=0

Protected Attributes
std::ofstream	_out

std::map< int, std::string >	_nodeStateName

Protected Attributes inherited from YACS::ENGINE::Visitor
ComposedNode *	_root

Additional Inherited Members
Protected Member Functions inherited from YACS::ENGINE::Visitor
std::map< std::string, std::string >	getNodeProperties (Node *node)

std::map< std::string, TypeCode * >	getTypeCodeMap (Proc *proc)

std::map< std::string, Container * >	getContainerMap (Proc *proc)

std::list< TypeCodeObjref * >	getListOfBases (TypeCodeObjref *objref)

Detailed Description

Definition at line 35 of file VisitorSaveState.hxx.

Constructor & Destructor Documentation

◆ VisitorSaveState()

VisitorSaveState::VisitorSaveState ( ComposedNode * root )

Definition at line 47 of file VisitorSaveState.cxx.

                                                    : Visitor(root)
{
  _nodeStateName[YACS::READY] ="READY";
  _nodeStateName[YACS::TOLOAD] ="TOLOAD";
  _nodeStateName[YACS::LOADED] ="LOADED";
  _nodeStateName[YACS::TOACTIVATE] ="TOACTIVATE";
  _nodeStateName[YACS::ACTIVATED] ="ACTIVATED";
  _nodeStateName[YACS::DESACTIVATED] ="DESACTIVATED";
  _nodeStateName[YACS::DONE] ="DONE";
  _nodeStateName[YACS::SUSPENDED] ="SUSPENDED";
  _nodeStateName[YACS::LOADFAILED] ="LOADFAILED";
  _nodeStateName[YACS::EXECFAILED] ="EXECFAILED";
  _nodeStateName[YACS::PAUSE] ="PAUSE";
  _nodeStateName[YACS::INTERNALERR] ="INTERNALERR";
  _nodeStateName[YACS::DISABLED] ="DISABLED";
  _nodeStateName[YACS::FAILED] ="FAILED";
  _nodeStateName[YACS::ERROR] ="ERROR";
}

References _nodeStateName, YACS::ACTIVATED, YACS::DESACTIVATED, YACS::DISABLED, YACS::DONE, YACS::ERROR, YACS::EXECFAILED, YACS::FAILED, YACS::INTERNALERR, YACS::LOADED, YACS::LOADFAILED, YACS::PAUSE, YACS::READY, YACS::SUSPENDED, YACS::TOACTIVATE, and YACS::TOLOAD.

◆ ~VisitorSaveState()

VisitorSaveState::~VisitorSaveState ( )

virtual

Definition at line 66 of file VisitorSaveState.cxx.

{
  if (_out)
    {
      _out << "</graphState>" << endl;
      _out.close();
    }
}

References _out.

Member Function Documentation

◆ closeFileDump()

void VisitorSaveState::closeFileDump ( )

Definition at line 87 of file VisitorSaveState.cxx.

{
  if (!_out) throw Exception("No file open for dump state");
  _out << "</graphState>" << endl;
  _out.close();
}

References _out.

Referenced by dumpState(), Handler(), main(), YACS::ENGINE::Executor::saveState(), YACS::ENGINE::Proc::saveState(), and YACS::ENGINE::schemaSaveStateUnsafe().

◆ openFileDump()

void VisitorSaveState::openFileDump ( const std::string & xmlDump )

Definition at line 75 of file VisitorSaveState.cxx.

{
  _out.open(xmlDump.c_str(), ios::out);
  if (!_out)
    {
      string what = "Impossible to open file for writing: " + xmlDump;
      throw Exception(what);
    }
  _out << "<?xml version='1.0'?>" << endl;
  _out << "<graphState>" << endl;
}

References _out.

Referenced by dumpState(), Handler(), main(), YACS::ENGINE::Executor::saveState(), YACS::ENGINE::Proc::saveState(), and YACS::ENGINE::schemaSaveStateUnsafe().

◆ visitBloc()

void VisitorSaveState::visitBloc ( Bloc * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 145 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitBloc ------------- " << name);
  _out << "  <node type='bloc'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), and YACS::ENGINE::Node::getState().

◆ visitDynParaLoop()

void VisitorSaveState::visitDynParaLoop ( DynParaLoop * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 214 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
}

◆ visitElementaryNode()

void VisitorSaveState::visitElementaryNode ( ElementaryNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 94 of file VisitorSaveState.cxx.

{
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitElementaryNode --- " << name);
  _out << "  <node type='elementaryNode'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  int nodeState = node->getState();
  _out << "    <state>" << _nodeStateName[nodeState] << "</state>" << endl;

  list<InputPort *> setOfInputPort = node->getSetOfInputPort();
  list<InputPort *>::iterator iter;
  for(iter = setOfInputPort.begin(); iter != setOfInputPort.end(); iter++)
    {
      _out << "    <inputPort>" << endl;
      _out << "      <name>" << (*iter)->getName() << "</name>" << endl;
      try
        {
          _out << "      ";
          _out << (*iter)->dump();
        }
      catch (YACS::Exception &e)
        {
          DEBTRACE("caught YACS:Exception: " << e.what());
          _out << "<value><error><![CDATA[" << e.what() << "]]></error></value>" << endl;
        }
      _out << "    </inputPort>" << endl;
    }

  list<OutputPort *> setOfOutputPort = node->getSetOfOutputPort();
  list<OutputPort *>::iterator oiter;
  for(oiter = setOfOutputPort.begin(); oiter != setOfOutputPort.end(); oiter++)
    {
      _out << "    <outputPort>" << endl;
      _out << "      <name>" << (*oiter)->getName() << "</name>" << endl;
      try
        {
          _out << "      ";
          _out << (*oiter)->dump();
        }
      catch (YACS::Exception &e)
        {
          DEBTRACE("caught YACS:Exception: " << e.what());
          _out << "<value><error><![CDATA[" << e.what() << "]]></error></value>" << endl;
        }
      _out << "    </outputPort>" << endl;
    }

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ElementaryNode::getSetOfInputPort(), YACS::ENGINE::ElementaryNode::getSetOfOutputPort(), YACS::ENGINE::ElementaryNode::getState(), and YACS::Exception::what().

Referenced by visitInlineFuncNode(), visitInlineNode(), visitOutNode(), visitPresetNode(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), visitStudyInNode(), and visitStudyOutNode().

◆ visitForEachLoop()

void VisitorSaveState::visitForEachLoop ( ForEachLoop * node )

overridevirtual

Implements YACS::ENGINE::Visitor.

Reimplemented in YACS::ENGINE::VisitorSalomeSaveState.

Definition at line 173 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitForEachLoop ------ " << name);
  _out << "  <node type='forEachLoop'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), and YACS::ENGINE::Node::getState().

◆ visitForEachLoopDyn()

void VisitorSaveState::visitForEachLoopDyn ( ForEachLoopDyn * node )

overridevirtual

Implements YACS::ENGINE::Visitor.

Definition at line 187 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitForEachLoopDyn ------ " << name);
  _out << "  <node type='forEachLoopDyn'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;
  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), and YACS::ENGINE::Node::getState().

◆ visitForLoop()

void VisitorSaveState::visitForLoop ( ForLoop * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 234 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitForLoop ---------- " << name);
  _out << "  <node type='forLoop'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;
  _out << "    <nbdone>" << node->getNbOfTurns() << "</nbdone>" << endl;
  InputPort * ip = node->edGetNbOfTimesInputPort();
  if (ip->isEmpty())
    throw Exception("NbOfTimesInputPort in forLoop empty, case not handled yet...");
  Any *val = static_cast<Any*>(ip->get());
  int nsteps = val->getIntValue();
  _out << "    <nsteps>" << nsteps << "</nsteps>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ForLoop::edGetNbOfTimesInputPort(), YACS::ENGINE::InputPort::get(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::Any::getIntValue(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Loop::getNbOfTurns(), YACS::ENGINE::Node::getState(), and YACS::ENGINE::InputPort::isEmpty().

◆ visitInlineFuncNode()

void VisitorSaveState::visitInlineFuncNode ( InlineFuncNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 303 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitInlineNode()

void VisitorSaveState::visitInlineNode ( InlineNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 298 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitLoop()

void VisitorSaveState::visitLoop ( Loop * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 219 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitLoop ------------- " << name);
  _out << "  <node type ='loop'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;
  _out << "    <nbdone>" << node->getNbOfTurns() << "</nbdone>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Loop::getNbOfTurns(), and YACS::ENGINE::Node::getState().

◆ visitOptimizerLoop()

void VisitorSaveState::visitOptimizerLoop ( OptimizerLoop * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 200 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitOptimizerLoop ------ " << name);
  _out << "  <node type='optimizerLoop'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), and YACS::ENGINE::Node::getState().

◆ visitOutNode()

void VisitorSaveState::visitOutNode ( DataNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 328 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitPresetNode()

void VisitorSaveState::visitPresetNode ( DataNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 323 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitProc()

void VisitorSaveState::visitProc ( Proc * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 159 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitProc ------------- " << name);
  _out << "  <node type='proc'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), and YACS::ENGINE::Node::getState().

◆ visitServerNode()

void VisitorSaveState::visitServerNode ( ServerNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 313 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitServiceInlineNode()

void VisitorSaveState::visitServiceInlineNode ( ServiceInlineNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 318 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitServiceNode()

void VisitorSaveState::visitServiceNode ( ServiceNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 308 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitStudyInNode()

void VisitorSaveState::visitStudyInNode ( DataNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 333 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitStudyOutNode()

void VisitorSaveState::visitStudyOutNode ( DataNode * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 338 of file VisitorSaveState.cxx.

{
  visitElementaryNode(node);
}

References visitElementaryNode().

◆ visitSwitch()

void VisitorSaveState::visitSwitch ( Switch * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 278 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitSwitch ----------- " << name);
  _out << "  <node type='switch'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;
  InputPort * ip = node->edGetConditionPort();
  if (ip->isEmpty())
    throw Exception("condition in switch empty, case not handled yet...");
  Any *val = static_cast<Any*>(ip->get());
  int condition = val->getIntValue();
  _out << "    <condition>" << condition << "</condition>" << endl;

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::Switch::edGetConditionPort(), YACS::ENGINE::InputPort::get(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::Any::getIntValue(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Node::getState(), and YACS::ENGINE::InputPort::isEmpty().

◆ visitWhileLoop()

void VisitorSaveState::visitWhileLoop ( WhileLoop * node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 255 of file VisitorSaveState.cxx.

{
  node->ComposedNode::accept(this);
  if (!_out) throw Exception("No file open for dump state");
  string name = _root->getName();
  if (static_cast<ComposedNode*>(node) != _root) name = _root->getChildName(node);
  DEBTRACE("VisitorSaveState::visitWhileLoop -------- " << name);
  _out << "  <node type='whileLoop'>" << endl;
  _out << "    <name>" << name << "</name>" << endl;
  _out << "    <state>" << _nodeStateName[node->getState()] << "</state>" << endl;
  _out << "    <nbdone>" << node->getNbOfTurns() << "</nbdone>" << endl;
  InputPort * ip = node->edGetConditionPort();
  if (ip->isEmpty())
    throw Exception("condition in WhileLoop empty, case not handled yet...");
  if ( ConditionInputPort* cip = dynamic_cast<ConditionInputPort*>(ip) )
  {
    bool condition = cip->getValue();
    _out << "    <condition>" << condition << "</condition>" << endl;
  }

  _out << "  </node>" << endl;
}

References _nodeStateName, _out, YACS::ENGINE::Visitor::_root, DEBTRACE, YACS::ENGINE::WhileLoop::edGetConditionPort(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Loop::getNbOfTurns(), YACS::ENGINE::Node::getState(), and YACS::ENGINE::InputPort::isEmpty().

Member Data Documentation

◆ _nodeStateName

std::map<int, std::string> YACS::ENGINE::VisitorSaveState::_nodeStateName

protected

Definition at line 65 of file VisitorSaveState.hxx.

Referenced by visitBloc(), visitElementaryNode(), YACS::ENGINE::VisitorSalomeSaveState::visitForEachLoop(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitLoop(), visitOptimizerLoop(), VisitorSaveState(), visitProc(), visitSwitch(), and visitWhileLoop().

◆ _out

std::ofstream YACS::ENGINE::VisitorSaveState::_out

protected

Definition at line 64 of file VisitorSaveState.hxx.

Referenced by closeFileDump(), openFileDump(), visitBloc(), visitElementaryNode(), YACS::ENGINE::VisitorSalomeSaveState::visitForEachLoop(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitLoop(), visitOptimizerLoop(), visitProc(), visitSwitch(), visitWhileLoop(), and ~VisitorSaveState().

The documentation for this class was generated from the following files:

src/engine/VisitorSaveState.hxx
src/engine/VisitorSaveState.cxx

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ VisitorSaveState()

◆ ~VisitorSaveState()

Member Function Documentation

◆ closeFileDump()

◆ openFileDump()

◆ visitBloc()

◆ visitDynParaLoop()

◆ visitElementaryNode()

◆ visitForEachLoop()

◆ visitForEachLoopDyn()

◆ visitForLoop()

◆ visitInlineFuncNode()

◆ visitInlineNode()

◆ visitLoop()

◆ visitOptimizerLoop()

◆ visitOutNode()

◆ visitPresetNode()

◆ visitProc()

◆ visitServerNode()

◆ visitServiceInlineNode()

◆ visitServiceNode()

◆ visitStudyInNode()

◆ visitStudyOutNode()

◆ visitSwitch()

◆ visitWhileLoop()

Member Data Documentation

◆ _nodeStateName

◆ _out
