#include "GEOM_Gen.idl"
#include "SALOME_Exception.idl"
import "SMESH_Hypothesis.idl";
import "SMESH_Mesh.idl";

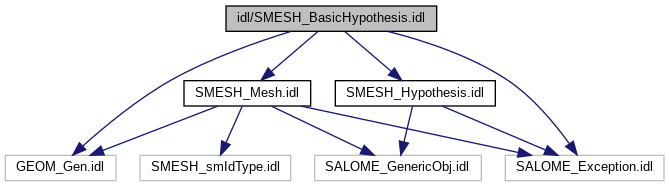

Include dependency graph for SMESH_BasicHypothesis.idl:

Data Structures
interface	StdMeshers::StdMeshers_LocalLength
	StdMeshers_LocalLength: interface of "Average length" hypothesis. More...

interface	StdMeshers::StdMeshers_MaxLength
	StdMeshers_MaxLength: interface of "Max length" hypothesis. More...

interface	StdMeshers::StdMeshers_AutomaticLength
	StdMeshers_AutomaticLength: interface of "Automatic length" hypothesis. More...

interface	StdMeshers::Reversible1D
	Common interface of 1D hypotheses that can be reversed. More...

interface	StdMeshers::StdMeshers_NumberOfSegments
	StdMeshers_NumberOfSegments: interface of "Nb. Segments" hypothesis. More...

interface	StdMeshers::StdMeshers_Arithmetic1D
	StdMeshers_Arithmetic1D: interface of "Arithmetic 1D" hypothesis. More...

interface	StdMeshers::StdMeshers_Geometric1D
	StdMeshers_Arithmetic1D: interface of "Geometric 1D" hypothesis. More...

interface	StdMeshers::StdMeshers_MaxElementArea
	StdMeshers_MaxElementArea: interface of "Max. Triangle Area" hypothesis. More...

interface	StdMeshers::StdMeshers_LengthFromEdges
	StdMeshers_LengthFromEdges: interface of "Length From Edges (2D Hyp. for Triangulator)" hypothesis. More...

interface	StdMeshers::StdMeshers_StartEndLength
	StdMeshers_StartEndLength: interface of "Start and End Length" hypothesis. More...

interface	StdMeshers::StdMeshers_Deflection1D
	StdMeshers_Deflection1D: interface of "Deflection 1D" hypothesis. More...

interface	StdMeshers::StdMeshers_FixedPoints1D
	StdMeshers_FixedPoints1D: interface of "Fixed points 1D" hypothesis. More...

interface	StdMeshers::StdMeshers_Adaptive1D
	StdMeshers_Adaptive1D: interface of "Adaptive" hypothesis. More...

interface	StdMeshers::StdMeshers_MaxElementVolume
	StdMeshers_MaxElementVolume: interface of "Max. Hexahedron or Tetrahedron Volume" hypothesis. More...

interface	StdMeshers::StdMeshers_NotConformAllowed
	StdMeshers_NotConformAllowed: interface of "Not Conform Mesh Allowed" hypothesis. More...

interface	StdMeshers::StdMeshers_Propagation
	StdMeshers_Propagation: interface of "Propagation of 1D Hyp. More...

interface	StdMeshers::StdMeshers_PropagOfDistribution
	StdMeshers_Propagation: interface of "Propagation of Node Distribution on Opposite Edges" hypothesis. More...

interface	StdMeshers::StdMeshers_QuadranglePreference
	StdMeshers_QuadranglePreference: interface of "QuadranglePreference" hypothesis. More...

interface	StdMeshers::StdMeshers_QuadraticMesh
	StdMeshers_QuadraticMesh: interface of "QuadraticMesh" hypothesis. More...

interface	StdMeshers::StdMeshers_NumberOfLayers
	StdMeshers_NumberOfLayers: interface of "Nb. Layers" hypothesis. More...

interface	StdMeshers::StdMeshers_LayerDistribution
	StdMeshers_LayerDistribution: interface of "Distribution of Layers" hypothesis. More...

interface	StdMeshers::StdMeshers_NumberOfLayers2D
	StdMeshers_NumberOfLayers2D: interface of "Nb. Layers" hypothesis. More...

interface	StdMeshers::StdMeshers_LayerDistribution2D
	StdMeshers_LayerDistribution2D: interface of "Distribution of Layers" hypothesis. More...

interface	StdMeshers::StdMeshers_ProjectionSource1D
	interface of "ProjectionSource1D" hypothesis. More...

interface	StdMeshers::StdMeshers_ProjectionSource2D
	interface of "ProjectionSource2D" hypothesis. More...

interface	StdMeshers::StdMeshers_ProjectionSource3D
	interface of "ProjectionSource3D" hypothesis. More...

interface	StdMeshers::StdMeshers_SegmentLengthAroundVertex
	interface of "SegmentLengthAroundVertex" hypothesis. More...

interface	StdMeshers::StdMeshers_QuadrangleParams

interface	StdMeshers::StdMeshers_ImportSource1D
	interface of "Source edges" hypothesis. More...

interface	StdMeshers::StdMeshers_ImportSource2D
	interface of "Source faces" hypothesis. More...

interface	StdMeshers::StdMeshers_ViscousLayers
	interface of "Viscous Layers" hypothesis. More...

interface	StdMeshers::StdMeshers_ViscousLayers2D
	interface of "Viscous Layers 2D" hypothesis. More...

interface	StdMeshers::StdMeshers_CartesianParameters3D
	interface of "Body fitting Parameters" hypothesis. More...

struct	StdMeshers::BlockCS
	interface of "Renumber" hypothesis used by Hexahedron(ijk) algorithm to renumber mesh of a block to be structured-like More...

interface	StdMeshers::StdMeshers_BlockRenumber

interface	StdMeshers::StdMeshers_SegmentAroundVertex_0D
	StdMeshers_SegmentAroundVertex_0D: interface of "SegmentAroundVertex" algorithm. More...

interface	StdMeshers::StdMeshers_Regular_1D
	StdMeshers_Regular_1D: interface of "Wire discretisation" algorithm. More...

interface	StdMeshers::StdMeshers_CompositeSegment_1D
	StdMeshers_CompositeSegment_1D: interface of "Composite side discretisation" algorithm. More...

interface	StdMeshers::StdMeshers_Quadrangle_2D
	StdMeshers_Quadrangle_2D: interface of "Quadrangle (Mapping)" algorithm. More...

interface	StdMeshers::StdMeshers_QuadFromMedialAxis_1D2D
	StdMeshers_QuadFromMedialAxis_1D2D: interface of "Quadrangle (Medial Axis Projection)" algorithm. More...

interface	StdMeshers::StdMeshers_PolygonPerFace_2D
	StdMeshers_PolygonPerFace_2D: interface of "Polygon Per Face" 2D algorithm. More...

interface	StdMeshers::StdMeshers_PolyhedronPerSolid_3D
	StdMeshers_PolyhedronPerSolid_3D: interface of "Polyhedron Per Solid" 3D algorithm. More...

interface	StdMeshers::StdMeshers_Hexa_3D
	StdMeshers_Hexa_3D: interface of "Hexahedron (i,j,k)" algorithm. More...

interface	StdMeshers::StdMeshers_Prism_3D
	StdMeshers_Prism_3D: interface of "3D extrusion" algorithm. More...

interface	StdMeshers::StdMeshers_RadialPrism_3D
	StdMeshers_RadialPrism_3D: interface of "Radial Prism" algorithm. More...

interface	StdMeshers::StdMeshers_Projection_3D
	StdMeshers_Projection_3D: interface of "Projection 3D" algorithm. More...

interface	StdMeshers::StdMeshers_Projection_2D
	StdMeshers_Projection_2D: interface of "Projection 2D" algorithm. More...

interface	StdMeshers::StdMeshers_Projection_1D2D
	StdMeshers_Projection_1D2D: interface of "Projection 1D-2D" algorithm. More...

interface	StdMeshers::StdMeshers_Projection_1D
	StdMeshers_Projection_1D: interface of "Projection 1D" algorithm. More...

interface	StdMeshers::StdMeshers_UseExisting_2D
	StdMeshers_UseExisting_2D: interface of "UseExisting 2D" algorithm doing nothing to allow mesh generation by mesh edition functions in TUI mode. More...

interface	StdMeshers::StdMeshers_UseExisting_1D
	StdMeshers_UseExisting_1D: interface of "UseExisting 1D" algorithm doing nothing to allow mesh generation by mesh edition functions in TUI mode. More...

interface	StdMeshers::StdMeshers_RadialQuadrangle_1D2D
	StdMeshers_RadialQuadrangle_1D2D: interface of "Radial quadrangle" algorithm. More...

interface	StdMeshers::StdMeshers_Import_1D2D
	StdMeshers_Import_1D2D: interface of "Use existing 2D elements" algorithm. More...

interface	StdMeshers::StdMeshers_Import_1D
	StdMeshers_Import_1D: interface of "Use existing 1D elements" algorithm. More...

interface	StdMeshers::StdMeshers_Cartesian_3D
	StdMeshers_Cartesian_3D: interface of "Body fitting" algorithm. More...

interface	StdMeshers::StdMeshers_ViscousLayerBuilder
	StdMeshers_Cartesian_3D: interface of "ViscousLayerBuilder" algorithm. More...

Modules
	StdMeshers
	StdMeshers: interfaces to standard hypotheses and algorithms.

Typedefs
typedef sequence< BlockCS >	StdMeshers::blockcs_array

Enumerations
enum	StdMeshers::QuadType { StdMeshers::QUAD_STANDARD , StdMeshers::QUAD_TRIANGLE_PREF , StdMeshers::QUAD_QUADRANGLE_PREF , StdMeshers::QUAD_QUADRANGLE_PREF_REVERSED , StdMeshers::QUAD_REDUCED , StdMeshers::QUAD_NB_TYPES }
	StdMeshers_QuadrangleParams: interface of "Quadrangle Params" hypothesis. More...

enum	StdMeshers::VLExtrusionMethod { StdMeshers::SURF_OFFSET_SMOOTH , StdMeshers::FACE_OFFSET , StdMeshers::NODE_OFFSET }
	Method of computing translation of a node at Viscous Layers construction. More...
