SMDS_CellOfNodes Class Reference

Base class for elements not contained in the mesh. More...

#include <SMDS_CellOfNodes.hxx>

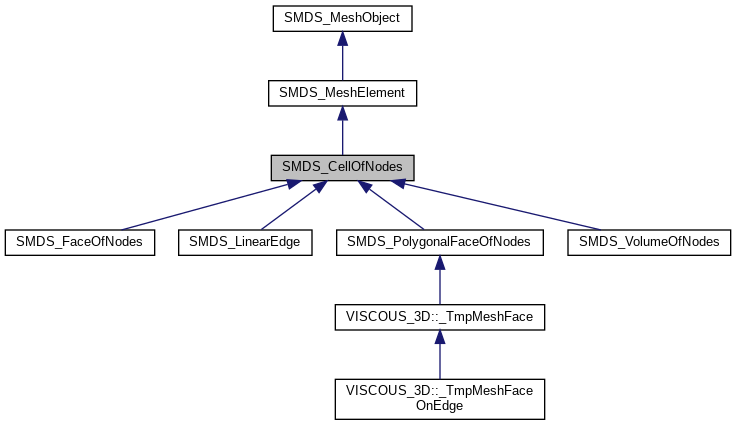

Inheritance diagram for SMDS_CellOfNodes:

Public Types
typedef SMDS_StdIterator< const SMDS_MeshNode *, SMDS_NodeIteratorPtr >	iterator

Public Member Functions
virtual smIdType	GetID () const
	Return ID of an element. More...
virtual int	GetShapeID () const
	Return ID of a shape this element was generated on. More...
virtual void	setIsMarked (bool is) const
	Mark this element. More...
virtual bool	isMarked () const
	Check if this element is marked. More...
virtual VTKCellType	GetVtkType () const
virtual SMDS_ElemIteratorPtr	nodesIterator () const =0
virtual SMDS_NodeIteratorPtr	nodeIterator () const =0
virtual SMDS_NodeIteratorPtr	interlacedNodesIterator () const
virtual SMDS_NodeIteratorPtr	nodesIteratorToUNV () const
iterator	begin_nodes () const
iterator	end_nodes () const
virtual int	NbNodes () const =0
virtual int	NbEdges () const =0
virtual int	NbFaces () const =0
virtual SMDSAbs_ElementType	GetType () const =0
virtual SMDSAbs_EntityType	GetEntityType () const =0
virtual SMDSAbs_GeometryType	GetGeomType () const =0
virtual bool	IsPoly () const =0
virtual bool	IsQuadratic () const =0
virtual bool	IsMediumNode (const SMDS_MeshNode *node) const
	Check if a node is a medium node of a quadratic cell. More...
virtual int	NbCornerNodes () const =0
virtual const SMDS_MeshNode *	GetNode (const int ind) const =0
	Return node by its index. More...
const SMDS_MeshNode *	GetNodeWrap (const int ind) const
	Return node by its index. More...
virtual bool	IsValidIndex (const int ind) const
	Return true if index of node is valid (0 <= ind < NbNodes()) More...
int	WrappedIndex (const int ind) const
	Return a valid corner node index, fixing the given one if necessary. More...
virtual int	GetNodeIndex (const SMDS_MeshNode *node) const
	Check if a node belongs to the element. More...
virtual vtkIdType	GetVtkID () const
	Return VTK ID of this element. More...
virtual int	getshapeId () const
bool	IsNull () const
SMDS_Mesh *	GetMesh () const
	Return the mesh this element belongs to. More...
virtual void	Print (std::ostream &OS) const
	Print self. More...

Protected Types
enum	Bits { BIT_IS_MARKED = 1 , BITS_SHIFT = 1 }

Protected Member Functions
	SMDS_CellOfNodes (smIdType id=-1, int shapeID=0)
virtual void	setID (const smIdType id)
virtual void	setShapeID (const int shapeID)
void	setVtkID (const vtkIdType vtkID)
	Store VTK ID. More...
virtual void	setShapeID (const int shapeID) const
	Set ID of a shape this element was generated on. More...
SMDS_UnstructuredGrid *	getGrid () const
	Return a SMDS_UnstructuredGrid. More...

Protected Attributes
smIdType	myID
int	myShapeID
SMDS_ElementChunk *	myHolder

Detailed Description

Base class for elements not contained in the mesh.

Member Typedef Documentation

iterator

typedef SMDS_StdIterator< const SMDS_MeshNode*, SMDS_NodeIteratorPtr > SMDS_MeshElement::iterator

inherited

Member Enumeration Documentation

Bits

enum SMDS_CellOfNodes::Bits

protected

Enumerator
BIT_IS_MARKED
BITS_SHIFT

Constructor & Destructor Documentation

SMDS_CellOfNodes()

SMDS_CellOfNodes::SMDS_CellOfNodes ( smIdType  id = -1, int  shapeID = 0  )

protected

References setShapeID().

Member Function Documentation

begin_nodes()

iterator SMDS_MeshElement::begin_nodes ( ) const

inherited

Referenced by SMDS_Mesh::ChangeElementNodes(), SMDS_Mesh::ChangePolyhedronNodes(), StdMeshers_Import_1D::Compute(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_Mesh_i::CreateDimGroup(), SMESH_MeshAlgos::Intersector::Algo::Cut(), SMESH_MeshAlgos::Intersector::CutByPlanes(), SMESH_MeshEditor::DoubleElements(), SMESH_MeshEditor::DoubleNodes(), VISCOUS_3D::_LayerEdge::FindIntersection(), SMESH_MeshAlgos::FindSharpEdges(), SMESH_MesherHelper::FixQuadraticElements(), getNodesFromTwoTria(), SMESH_ProxyMesh::HasPrismsOnTwoSides(), StdMeshers_Import_1D::importMesh(), SMESH_MeshEditor::InsertNodesIntoLink(), SMESH_MesherHelper::IsDistorted2D(), VISCOUS_3D::_ViscousBuilder::makeLayer(), SMESH_MeshAlgos::MakeOffset(), SMESH_MeshAlgos::MakeSlot(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), SMESH_MeshEditor::QuadTo4Tri(), SMESH_MeshEditor::QuadToTri(), SMESH_MeshEditor::removeQuadElem(), SMESH_ProxyMesh::removeTmpElement(), SMESH_MeshEditor::Reorient(), SMESH_MeshEditor::Reorient2DBy3D(), SMESH_MeshAlgos::SeparateFacesByEdges(), SMDS_VolumeTool::Set(), SMESH_NodeSearcherImpl::SMESH_NodeSearcherImpl(), VISCOUS_3D::_ViscousBuilder::smoothAndCheck(), SMESH_MeshEditor::SplitBiQuadraticIntoLinear(), SMESH_MeshEditor::SplitFace(), and SMESH_Algo::VertexNode().

end_nodes()

iterator SMDS_MeshElement::end_nodes ( ) const

inherited

Referenced by SMDS_Mesh::ChangeElementNodes(), SMDS_Mesh::ChangePolyhedronNodes(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_Mesh_i::CreateDimGroup(), SMESH_MeshAlgos::Intersector::Algo::Cut(), SMESH_MeshAlgos::Intersector::CutByPlanes(), SMESH_MeshEditor::DoubleElements(), SMESH_MeshEditor::DoubleNodes(), SMESH_MeshAlgos::FindSharpEdges(), SMESH_MesherHelper::FixQuadraticElements(), getNodesFromTwoTria(), SMESH_ProxyMesh::HasPrismsOnTwoSides(), SMESH_MeshEditor::InsertNodesIntoLink(), VISCOUS_3D::_ViscousBuilder::makeLayer(), SMESH_MeshAlgos::MakeOffset(), SMESH_MeshAlgos::MakeSlot(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), SMESH_MeshEditor::QuadTo4Tri(), SMESH_MeshEditor::QuadToTri(), SMESH_MeshEditor::removeQuadElem(), SMESH_ProxyMesh::removeTmpElement(), SMESH_MeshEditor::Reorient(), SMESH_MeshEditor::Reorient2DBy3D(), SMESH_MeshAlgos::SeparateFacesByEdges(), SMDS_VolumeTool::Set(), SMESH_NodeSearcherImpl::SMESH_NodeSearcherImpl(), SMESH_MeshEditor::SplitBiQuadraticIntoLinear(), SMESH_MeshEditor::SplitFace(), and SMESH_Algo::VertexNode().

GetEntityType()

virtual SMDSAbs_EntityType SMDS_MeshElement::GetEntityType ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, SMDS_VolumeOfNodes, and VISCOUS_3D::_TmpMeshFace.

Referenced by SMDS_MeshInfo::addWithPoly(), SMESH_MeshEditor::applyMerge(), SMESH_VisualObjDef::buildElemPrs(), StdMeshers_Import_1D2D::Compute(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_MeshEditor::DeleteDiag(), SMESH_MeshAlgos::DeMerge(), SMESH_MeshEditor::doubleNodes(), SMESH::SelectionProxy::elementEntityType(), StdMeshers_Import_1D2D::Evaluate(), SMESH_MeshEditor::ExtrusionSweep(), SMESH_MesherHelper::FixQuadraticElements(), SMESH::Controls::TSequenceOfXYZ::getElementEntity(), SMESH_Mesh_i::GetElementGeomType(), SMESHDS_GroupOnFilter::getElementIds(), VISCOUS_3D::_TmpMeshFace::GetEntityType(), SMESH::Filter_i::GetMeshInfo(), SMESH_MeshAlgos::Triangulate::GetNbTriangles(), SMESH_MeshEditor_i::GetPreviewData(), SMESH_MeshAlgos::Triangulate::GetTriangles(), SMESH::Controls::MaxElementLength3D::GetValue(), SMESH_MeshEditor::InverseDiag(), SMESH::Controls::Length2D::IsApplicable(), SMESH::Controls::ElemEntityType::IsSatisfy(), SMESH_MeshAlgos::MakeOffset(), SMESH_MeshEditor::makeWalls(), SMDS_MeshElement::EntityFilter::operator()(), DriverCGNS_Write::Perform(), DriverGMF_Write::Perform(), SMDS_MeshInfo::RemoveFace(), SMESH_MeshEditor::Reorient(), SMESH_MeshEditor::RotationSweep(), DriverMED_W_Field::Set(), SMESH_MeshEditor::SplitBiQuadraticIntoLinear(), SMESH_MeshEditor::SplitFace(), SMESH_MeshEditor::SplitVolumes(), SMESH_MeshEditor::sweepElement(), SMESH_MeshEditor::Transform(), and SMESHDS_GroupOnFilter::update().

GetGeomType()

virtual SMDSAbs_GeometryType SMDS_MeshElement::GetGeomType ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshEdge, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, SMDS_VolumeOfNodes, and VISCOUS_3D::_TmpMeshFace.

Referenced by SMDS_Mesh::FindBall(), SMESH_Mesh_i::GetElementShape(), VISCOUS_3D::_TmpMeshFace::GetGeomType(), SMESH_MeshEditor::GetHexaFacetsToSplit(), SMESHGUI_VolumeShapeFilter::IsObjValid(), SMESH_MesherHelper::IsSameElemGeometry(), SMESH::Controls::ElemGeomType::IsSatisfy(), SMESHGUI_VolumeShapeFilter::IsValid(), SMESH_MeshEditor::MergeNodes(), SMDS_MeshElement::GeomFilter::operator()(), SMESH_MeshEditor::QuadToTri(), SMESH_MeshEditor::RemoveNodeWithReconnection(), and SMESH_MeshEditor::Transform().

getGrid()

SMDS_UnstructuredGrid * SMDS_MeshElement::getGrid ( ) const

protectedinherited

Return a SMDS_UnstructuredGrid.

References SMDS_Mesh::GetGrid(), SMDS_MeshElement::GetMesh(), and SMDS_MeshElement::myHolder.

Referenced by SMDS_MeshNode::AddInverseElement(), SMDS_MeshCell::ChangeNodes(), SMDS_MeshVolume::ChangeNodes(), SMDS_MeshNode::ClearInverseElements(), SMDS_MeshNode::getCoord(), SMDS_BallElement::GetDiameter(), SMDS_MeshVolume::GetFaceNode(), SMDS_MeshNode::GetInverseElementIterator(), SMDS_MeshCell::GetNode(), SMDS_MeshVolume::GetNode(), SMDS_MeshCell::GetNodeIndex(), SMDS_MeshVolume::GetNodeIndex(), SMDS_MeshVolume::GetQuantities(), SMDS_MeshCell::GetVtkType(), SMDS_MeshNode::GetXYZ(), SMDS_BallElement::init(), SMDS_MeshVolume::init(), SMDS_MeshNode::init(), SMDS_MeshCell::init(), SMDS_MeshVolume::NbEdges(), SMDS_MeshVolume::NbFaceNodes(), SMDS_MeshVolume::NbFaces(), SMDS_MeshCell::NbNodes(), SMDS_MeshVolume::NbNodes(), SMDS_MeshNode::RemoveInverseElement(), SMDS_BallElement::SetDiameter(), and SMDS_MeshNode::setXYZ().

GetID()

smIdType SMDS_CellOfNodes::GetID ( ) const

virtual

Return ID of an element.

Reimplemented from SMDS_MeshElement.

References myID.

Referenced by SMDS_FaceOfNodes::Print(), SMDS_PolygonalFaceOfNodes::Print(), and SMDS_VolumeOfNodes::Print().

GetMesh()

SMDS_Mesh * SMDS_MeshElement::GetMesh ( ) const

inherited

Return the mesh this element belongs to.

References SMDS_MeshElement::GetMesh(), and SMDS_MeshElement::myHolder.

Referenced by SMESH::SelectionProxy::elementConnectivity(), SMESH::SelectionProxy::elementControl(), SMESH::SelectionProxy::elementEntityType(), SMESH::SelectionProxy::elementGravityCenter(), SMESH::SelectionProxy::elementNormal(), SMESH::SelectionProxy::elementType(), SMDS_MeshVolume::GetFaceNode(), SMDS_MeshElement::getGrid(), SMDS_MeshNode::GetInverseElementIterator(), SMDS_MeshElement::GetMesh(), SMDS_MeshCell::GetNode(), SMDS_MeshVolume::GetNode(), SMESH::SelectionProxy::hasElement(), SMESH::SelectionProxy::hasNode(), SMDS_MeshNode::NbInverseElements(), SMESH::SelectionProxy::nodeConnectivity(), SMESH::SelectionProxy::nodeCoordinates(), SMDS_MeshCell::nodeIterator(), SMDS_MeshVolume::nodeIterator(), SMDS_MeshCell::nodesIterator(), SMDS_MeshVolume::nodesIterator(), SMDS_MeshCell::nodesIteratorToUNV(), SMESH::SelectionProxy::perFaceConnectivity(), SMDS_BallElement::SetDiameter(), and SMDS_MeshNode::setXYZ().

GetNode()

virtual const SMDS_MeshNode * SMDS_MeshElement::GetNode ( const int  ind ) const

pure virtualinherited

Return node by its index.

Parameters

ind	- node index

Return values

const

SMDS_MeshNode* - the node

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_MeshVolume, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by SMESH_Delaunay::addCloseNodes(), StdMeshers_Quadrangle_2D::check(), StdMeshers_Prism_3D::compute(), StdMeshers_QuadToTriaAdaptor::Compute(), StdMeshers_Hexa_3D::Compute(), StdMeshers_Import_1D::Compute(), StdMeshers_Import_1D2D::Compute(), StdMeshers_Projection_3D::Compute(), StdMeshers_RadialPrism_3D::Compute(), StdMeshers_QuadToTriaAdaptor::Compute2ndPart(), SMESHDS_GroupOnGeom::Contains(), SMESH_MeshEditor::ConvertFromQuadratic(), SMESH_MeshAlgos::Intersector::Algo::Cut(), SMESH_MeshAlgos::Intersector::CutByPlanes(), StdMeshers_QuadToTriaAdaptor::DecreaseHeightDifference(), StdMeshers_Import_1D::Evaluate(), StdMeshers_Import_1D2D::Evaluate(), SMESH_MeshAlgos::FaceNormal(), SMESH_MeshAlgos::FindCoincidentFreeBorders(), findExistingTriangulation(), SMESH_MeshAlgos::FindFaceInSet(), SMESH_MeshAlgos::FindFreeBorders(), SMESH_MeshEditor::FindMatchingNodes(), StdMeshers_ProjectionUtils::FindMatchingNodesOnFaces(), VISCOUS_3D::_ViscousBuilder::findNeiborsOnEdge(), SMESH_ElementSearcherImpl::findOuterBoundary(), VISCOUS_3D::_ViscousBuilder::findShapesToSmooth(), SMESH_MeshAlgos::FindSharpEdges(), VISCOUS_3D::_ViscousBuilder::fixBadFaces(), SMESH_2D_Algo::FixInternalNodes(), SMESH_MesherHelper::FixQuadraticElements(), SMESH_MeshAlgos::Get1DBranches(), SMESH_MeshAlgos::GetCommonNodes(), VISCOUS_3D::getDistFromEdge(), StdMeshers_FaceSide::GetEdgeNodes(), SMESH_VisualObjDef::GetEdgeNodes(), SMESHGUI_PreVisualObj::GetEdgeNodes(), MeshEditor_I::getElementsAround(), SMESH_Mesh_i::GetElemNode(), getFaceID(), SMESH_ElementSearcherImpl::getIntersParamOnLine(), SMESH_Algo::GetMeshError(), _FaceSide::GetNbSegments(), VISCOUS_3D::_Simplex::GetSimplices(), SMESH_MeshAlgos::Triangulate::GetTriangles(), SMESH::Controls::Deflection2D::GetValue(), SMESH_MeshAlgos::IsOn2DBoundary(), SMESH_MesherHelper::IsQuadraticSubMesh(), SMESH_MesherHelper::IsReversedSubMesh(), SMESH::Controls::ElementsOnShape::IsSatisfy(), SMESH::Controls::CoincidentElements::IsSatisfy(), StdMeshers_QuadToTriaAdaptor::LimitHeight(), VISCOUS_3D::_ViscousBuilder::limitStepSize(), SMESH_Pattern::Load(), _QuadFaceGrid::LoadGrid(), SMESH_MeshEditor::MakeBoundaryMesh(), VISCOUS_3D::_ViscousBuilder::makeGroupOfLE(), VISCOUS_3D::_ViscousBuilder::makeLayer(), VISCOUS_3D::_ViscousBuilder::MakeN2NMap(), SMESH_MeshAlgos::MakeSlot(), StdMeshers_Penta_3D::MakeVolumeMesh(), StdMeshers_QuadToTriaAdaptor::MergeAdjacent(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), SMESH_MeshAlgos::NbCommonNodes(), DriverCGNS_Write::Perform(), DriverMED_W_SMESHDS_Mesh::PerformInternal(), SMESH_Gen_i::Precompute(), StdMeshers_QuadToTriaAdaptor::Preparation(), VISCOUS_3D::_ViscousBuilder::prepareEdgeToShrink(), StdMeshers_Sweeper::prepareTopBotDelaunay(), StdMeshers_Prism_3D::projectBottomToTop(), SMESH_MeshEditor::Reorient2D(), SMESH::Controls::CoplanarFaces::SetMesh(), StdMeshers_Adaptive1D::SetParametersByMesh(), StdMeshers_SegmentLengthAroundVertex::SetParametersByMesh(), VISCOUS_2D::_ViscousBuilder2D::shrink(), VISCOUS_3D::_ViscousBuilder::shrink(), StdMeshers_Quadrangle_2D::smooth(), SMESH_MeshEditor::Smooth(), and SMESH_MeshEditor::SplitFace().

GetNodeIndex()

int SMDS_MeshElement::GetNodeIndex ( const SMDS_MeshNode *  node ) const

virtualinherited

Check if a node belongs to the element.

Parameters

node	- the node to check

Return values

int	- node index within the element, -1 if not found

Reimplemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshVolume, and SMDS_VolumeOfNodes.

References SMDS_MeshElement::nodesIterator().

Referenced by VISCOUS_3D::_ViscousBuilder::addBoundaryElements(), StdMeshers_QuadToTriaAdaptor::Compute2ndPart(), SMESH_MeshAlgos::Intersector::Algo::Cut(), SMESH_MeshAlgos::Intersector::CutByPlanes(), SMDS_UnstructuredGrid::extrudeVolumeFromFace(), SMDS_Mesh::FindEdge(), SMDS_Mesh::FindElement(), findExistingTriangulation(), SMESH_MeshAlgos::FindFaceInSet(), VISCOUS_3D::_LayerEdge::FindIntersection(), SMESH_MeshEditor::FindMatchingNodes(), SMESH_ElementSearcherImpl::findOuterBoundary(), findSegment(), SMESH_MeshAlgos::GetCommonNodes(), VISCOUS_3D::getDistFromEdge(), SMDS_Mesh::GetElementsByNodes(), VISCOUS_3D::_Simplex::GetSimplices(), SMESH::Controls::FreeEdges::IsFreeEdge(), SMDS_VolumeTool::IsFreeFace(), SMDS_MeshElement::IsMediumNode(), SMESH_MeshAlgos::IsOn2DBoundary(), SMESH_MeshAlgos::IsRightOrder(), SMESH::Controls::BareBorderFace::IsSatisfy(), StdMeshers_QuadToTriaAdaptor::LimitHeight(), _QuadFaceGrid::LoadGrid(), SMESH_MeshEditor::MakeBoundaryMesh(), SMESH_MeshAlgos::Intersector::Algo::MakeNewFaces(), SMESH_MeshAlgos::MakeOffset(), SMESH_MeshEditor::makeWalls(), SMESH_MeshEditor::MergeNodes(), SMESH_MeshAlgos::NbCommonNodes(), StdMeshers_QuadToTriaAdaptor::Preparation(), SMESH_MeshEditor::Reorient2DBy3D(), SMESH::Controls::CoplanarFaces::SetMesh(), SMESH_MeshEditor::SewSideElements(), StdMeshers_Quadrangle_2D::smooth(), VISCOUS_3D::_ViscousBuilder::smoothAndCheck(), and VISCOUS_3D::_Shrinker1D::SwapSrcTgtNodes().

GetNodeWrap()

const SMDS_MeshNode * SMDS_MeshElement::GetNodeWrap ( const int  ind ) const

inherited

Return node by its index.

Parameters

ind	- node index

Return values

const

SMDS_MeshNode* - the node

Index is wrapped if it is out of a valid range of corner nodes

Referenced by SMESH_MeshAlgos::Intersector::Algo::Cut(), SMESH_MeshEditor::GetLinkedNodes(), and SMESH_MeshEditor::makeWalls().

GetShapeID()

int SMDS_CellOfNodes::GetShapeID ( ) const

virtual

Return ID of a shape this element was generated on.

Reimplemented from SMDS_MeshElement.

References BITS_SHIFT, and myShapeID.

getshapeId()

virtual int SMDS_MeshElement::getshapeId ( ) const

virtualinherited

Referenced by SMESH_Delaunay::addCloseNodes(), SMESHDS_SubMesh::AddNode(), areNodesBound(), StdMeshers_Quadrangle_2D::check(), SMESH_MesherHelper::CheckNodeU(), SMESH_MesherHelper::CheckNodeUV(), StdMeshers_Import_1D2D::Compute(), VISCOUS_3D::_ViscousBuilder::computeGeomSize(), SMESHDS_SubMesh::Contains(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_MeshEditor::copyPosition(), SMESH_Pattern::createElements(), SMESH_MeshEditor::CreateHoleSkin(), SMESH_MeshEditor::DeleteDiag(), SMESH_Mesh_i::exportMEDFields(), VISCOUS_3D::_ViscousBuilder::findEdgesToUpdateNormalNearConvexFace(), StdMeshers_ProjectionUtils::FindMatchingNodesOnFaces(), SMESH_MeshEditor::FindShape(), VISCOUS_3D::_ViscousBuilder::findShapesToSmooth(), SMESH_MesherHelper::FixQuadraticElements(), SMESH_MesherHelper::GetCentralNode(), VISCOUS_3D::_ViscousBuilder::getFaceNormal(), SMESH_MesherHelper::GetMediumNode(), SMESH_MesherHelper::getMediumNodeOnComposedWire(), SMESH_MesherHelper::GetMediumPos(), StdMeshers_PrismAsBlock::GetNodeColumn(), SMESH_MesherHelper::GetNodeU(), SMESH_MesherHelper::GetNodeUV(), VISCOUS_3D::_EdgesOnShape::GetNormal(), StdMeshers_FaceSide::GetOrderedNodes(), SMESH_ProxyMesh::GetProxyNode(), SMESH_Mesh_i::GetShapeID(), VISCOUS_3D::_Simplex::GetSimplices(), SMESH_MesherHelper::GetSubShapeByNode(), StdMeshers_FaceSide::GetUVPtStruct(), SMESH::Controls::Deflection2D::GetValue(), StdMeshers_PrismAsBlock::HasNodeColumn(), StdMeshers_PrismAsBlock::Init(), SMESH_MeshEditor::InsertNodesIntoLink(), SMESH_MeshEditor::InverseDiag(), SMESH_MesherHelper::IsCornerOfStructure(), SMESH::Controls::BelongToGeom::IsSatisfy(), SMESH::Controls::LyingOnGeom::IsSatisfy(), SMESH_Pattern::Load(), VISCOUS_3D::_ViscousBuilder::makeLayer(), SMESH_MeshEditor::MergeNodes(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), DriverGMF_Write::Perform(), SMESH_MeshEditor::QuadTo4Tri(), SMESH_MeshEditor::Remove(), SMESHDS_Mesh::RemoveElement(), SMESHDS_SubMesh::RemoveElement(), SMESHDS_Mesh::RemoveFreeElement(), SMESHDS_Mesh::RemoveFreeNode(), SMESHDS_Mesh::RemoveNode(), SMESHDS_SubMesh::RemoveNode(), SMESH_MeshEditor::removeQuadElem(), VISCOUS_3D::_ViscousBuilder::setEdgeData(), SMESH_MeshEditor::SewSideElements(), VISCOUS_2D::_ViscousBuilder2D::shrink(), StdMeshers_Quadrangle_2D::smooth(), VISCOUS_3D::_ViscousBuilder::smoothAndCheck(), SMESH_MeshEditor::SplitBiQuadraticIntoLinear(), StdMeshers_PrismAsBlock::TPCurveOnHorFaceAdaptor::TPCurveOnHorFaceAdaptor(), SMESH_MeshEditor::TriToQuad(), SMESHDS_Mesh::UnSetElementOnShape(), SMESHDS_Mesh::UnSetNodeOnShape(), SMESH_MeshEditor::UpdateVolumes(), StdMeshers_PrismAsBlock::TSideFace::Value(), and SMESH_Algo::VertexNode().

GetType()

virtual SMDSAbs_ElementType SMDS_MeshElement::GetType ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshEdge, SMDS_MeshFace, SMDS_MeshNode, SMDS_MeshVolume, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by SMDS_MeshInfo::add(), SMESHDS_SubMesh::add(), SMDS_MeshGroup::Add(), SMDS_Mesh::addChildrenWithNodes(), SMESHDS_SubMesh::AddElement(), SMESH_MeshEditor_i::AddNodeOnFace(), SMESH_MeshEditor_i::AffectedElemGroupsInRegion(), SMESH_Pattern_i::ApplyToHexahedrons(), SMESH_Pattern_i::ApplyToMeshFaces(), SMESH_Mesh_i::BaryCenter(), SMDS_ElementHolder::beforeCompacting(), SMESH_MeshEditor::BestSplit(), SMESH_MeshEditor_i::BestSplit(), DriverMED::buildMeshGrille(), StdMeshers_Prism_3D::compute(), StdMeshers_Projection_2D::Compute(), StdMeshers_Projection_3D::Compute(), StdMeshers_RadialPrism_3D::Compute(), SMDS_Mesh::Contains(), SMESH_ProxyMesh::SubMesh::Contains(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertFromQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), MeshEditor_I::TPreviewMesh::Copy(), SMESH_Gen_i::CopyMesh(), SMESH_MeshAlgos::DeMerge(), SMESH_MeshEditor::DoubleElements(), SMDS_Mesh::DownCast(), SMESH::SelectionProxy::elementControl(), SMESH::SelectionProxy::elementNormal(), SMESH::SelectionProxy::elementType(), SMESH_MeshEditor::ExtrusionSweep(), SMESH_MeshAlgos::FaceNormal(), SMESHDS_GroupBase::findInMesh(), SMESH_MeshEditor::FindShape(), findTriangles(), SMESH_MeshEditor::generateGroups(), SMESH_MeshAlgos::Get1DBranches(), SMESH_Gen_i::GetBadInputElements(), SMESH_MeshAlgos::GetDistance(), StdMeshers_FaceSide::GetEdgeNodes(), SMESHGUI_PreVisualObj::GetEdgeNodes(), SMESH_MeshObj::GetElemDimension(), SMESH_subMesh_i::GetElementsByType(), SMESH::Controls::Filter::GetElementsId(), SMDS_Mesh::GetElementType(), DriverMED_R_SMESHDS_Mesh::GetGroup(), SMESH_MeshEditor::GetLinkedNodes(), SMESH_MeshEditor_i::GetPreviewData(), SMESH_Mesh_i::GetSubMeshElementType(), SMESH_MeshAlgos::Triangulate::GetTriangles(), SMESH::Controls::MultiConnection2D::GetValue(), StdMeshers_Import_1D::importMesh(), SMESH_MeshEditor::ElemFeatures::Init(), SMESH_MeshEditor::InsertNodesIntoLink(), SMESH_MeshEditor::InverseDiag(), SMESH::Controls::NumericalFunctor::IsApplicable(), SMESHGUI_PredicateFilter::IsObjValid(), SMESHGUI_QuadrangleFilter::IsObjValid(), SMESHGUI_TriangleFilter::IsObjValid(), SMESHGUI_FacesFilter::IsObjValid(), SMESHGUI_VolumesFilter::IsObjValid(), SMESH_MeshAlgos::IsOut(), SMESH_MesherHelper::IsQuadraticSubMesh(), SMESH::Controls::FreeEdges::IsSatisfy(), SMESH::Controls::BelongToGeom::IsSatisfy(), SMESH::Controls::LyingOnGeom::IsSatisfy(), SMESH::Controls::FreeFaces::IsSatisfy(), SMESH::Controls::LinearOrQuadratic::IsSatisfy(), SMESH::Controls::ElemGeomType::IsSatisfy(), SMESH::Controls::ConnectedElements::IsSatisfy(), SMESH::Controls::RangeOfIds::IsSatisfy(), SMESHGUI_PredicateFilter::IsValid(), SMESHGUI_QuadrangleFilter::IsValid(), SMESHGUI_TriangleFilter::IsValid(), SMESHGUI_FacesFilter::IsValid(), SMESHGUI_VolumesFilter::IsValid(), StdMeshers_Penta_3D::LoadIJNodes(), StdMeshers_Penta_3D::MakeBlock(), SMESH_MeshEditor::MakeBoundaryMesh(), SMESH_Mesh_i::MakeGroupsOfBadInputElements(), StdMeshers_Penta_3D::MakeMeshOnFxy1(), SMESH_MeshAlgos::MakeOffset(), SMESH_MeshAlgos::MakeSlot(), SMESH_MeshEditor::makeWalls(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), SMDS_MeshNode::NbInverseElements(), SMESH::Predicate_i::NbSatisfying(), MyIterator< VALUE >::next(), SMESH::SelectionProxy::nodeConnectivity(), SMESHGUI_3TypesSelector::onTextChange(), SMESHGUI_MeshPatternDlg::onTextChanged(), SMDS_MeshElement::TypeFilter::operator()(), TIDTypeCompare::operator()(), DriverCGNS_Read::Perform(), DriverMED_R_SMESHDS_Mesh::Perform(), DriverUNV_R_SMDS_Mesh::Perform(), StdMeshers_Prism_3D::projectBottomToTop(), SMESH_MeshEditor::QuadToTri(), SMDS_MeshInfo::remove(), SMESHDS_Mesh::RemoveElement(), SMDS_Mesh::RemoveElement(), SMESHDS_SubMesh::RemoveElement(), SMESHDS_Mesh::RemoveFreeElement(), SMDS_Mesh::RemoveFreeElement(), SMESH_MeshEditor::Reorient(), SMESH_MeshEditor_i::Reorient2D(), SMESH_MeshEditor::Reorient2DBy3D(), SMESH_MeshEditor::RotationSweep(), SMDS_VolumeTool::Set(), SMESH::Controls::CoplanarFaces::SetMesh(), StdMeshers_MaxElementArea::SetParametersByMesh(), StdMeshers_MaxElementVolume::SetParametersByMesh(), SMESH_MeshEditor::SewFreeBorder(), SMESH_MeshEditor::SewSideElements(), SMESHGUI_SplitVolumesDlg::showFacetByElement(), SMESH_MeshEditor::Smooth(), DriverMED_Family::SplitByType(), SMESH_MeshEditor::SplitFace(), SMESH_MeshEditor::SplitVolumes(), SMESH_MeshEditor::sweepElement(), SMESH_MeshEditor::TriToQuad(), and SMESH_Algo::VertexNode().

GetVtkID()

vtkIdType SMDS_MeshElement::GetVtkID ( ) const

virtualinherited

Return VTK ID of this element.

References SMDS_ElementChunk::GetVtkID(), and SMDS_MeshElement::myHolder.

Referenced by SMDS_MeshNode::AddInverseElement(), SMDS_ElementHolder::beforeCompacting(), SMDS_MeshCell::ChangeNodes(), SMDS_MeshVolume::ChangeNodes(), SMDS_MeshNode::ClearInverseElements(), SMDS_ElementFactory::Compact(), SMESH_MeshEditor::CreateHoleSkin(), SMESH_MeshEditor::DoubleNodesOnGroupBoundaries(), SMDS_UnstructuredGrid::extrudeVolumeFromFace(), SMDS_ElementFactory::Free(), SMDS_MeshNode::getCoord(), SMDS_BallElement::GetDiameter(), SMESH_VisualObjDef::GetElemVTKId(), SMESHGUI_PreVisualObj::GetElemVTKId(), SMDS_MeshVolume::GetFaceNode(), SMDS_MeshNode::GetInverseElementIterator(), SMDS_MeshCell::GetNode(), SMDS_MeshVolume::GetNode(), SMDS_MeshCell::GetNodeIndex(), SMDS_MeshVolume::GetNodeIndex(), SMESH_VisualObjDef::GetNodeVTKId(), SMDS_MeshVolume::GetQuantities(), SMESH::Controls::AspectRatio3D::GetValue(), SMDS_MeshCell::GetVtkType(), SMDS_MeshNode::GetXYZ(), SMDS_BallElement::init(), SMDS_MeshNode::init(), SMDS_MeshCell::init(), SMDS_MeshVolume::NbEdges(), SMDS_MeshVolume::NbFaceNodes(), SMDS_MeshVolume::NbFaces(), SMDS_MeshNode::NbInverseElements(), SMDS_MeshCell::NbNodes(), SMDS_MeshVolume::NbNodes(), SMDS_MeshCell::nodeIterator(), SMDS_MeshVolume::nodeIterator(), SMDS_MeshCell::nodesIterator(), SMDS_MeshVolume::nodesIterator(), SMDS_MeshCell::nodesIteratorToUNV(), SMDS_Mesh::RemoveFreeElement(), SMDS_MeshNode::RemoveInverseElement(), SMDS_BallElement::SetDiameter(), and SMDS_MeshNode::setXYZ().

GetVtkType()

virtual VTKCellType SMDS_CellOfNodes::GetVtkType ( ) const

virtual

Implements SMDS_MeshElement.

interlacedNodesIterator()

virtual SMDS_NodeIteratorPtr SMDS_MeshElement::interlacedNodesIterator ( ) const

virtualinherited

Reimplemented in SMDS_MeshCell.

Referenced by StdMeshers_Projection_1D2D::Compute(), SMESH_MeshAlgos::FindCoincidentFreeBorders(), SMESH_MeshAlgos::FindFaceInSet(), SMESH_MeshEditor::FindFreeBorder(), SMESH_MeshAlgos::FindFreeBorders(), SMESH::Controls::NumericalFunctor::GetPoints(), SMESH_MeshEditor_i::GetPreviewData(), SMESH_MeshAlgos::Triangulate::GetTriangles(), SMESH_MeshEditor::InsertNodesIntoLink(), SMESH_MeshAlgos::IsOut(), SMESH::Controls::FreeEdges::IsSatisfy(), SMESH_MeshEditor::MakeBoundaryMesh(), DriverCGNS_Read::Perform(), SMESH_MeshEditor::SewFreeBorder(), and SMESH_MeshEditor::Smooth().

isMarked()

bool SMDS_CellOfNodes::isMarked ( ) const

virtual

Check if this element is marked.

Reimplemented from SMDS_MeshElement.

References BIT_IS_MARKED, and myShapeID.

IsMediumNode()

bool SMDS_MeshElement::IsMediumNode ( const SMDS_MeshNode *  node ) const

virtualinherited

Check if a node is a medium node of a quadratic cell.

Reimplemented in SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, and SMDS_MeshVolume.

References SMDS_MeshElement::GetNodeIndex(), and SMDS_MeshElement::NbCornerNodes().

Referenced by SMESH_MeshEditor::applyMerge(), SMESH_MeshEditor::CreateFlatElementsOnFacesGroups(), SMESH_MeshEditor::ExtrusionSweep(), SMESH_MeshEditor::InsertNodesIntoLink(), SMESH_MeshEditor::IsMedium(), SMDS_MeshVolume::IsMediumNode(), SMESH_Mesh_i::IsMediumNode(), SMESH_MeshAlgos::IsRightOrder(), SMESH_MeshEditor::makeWalls(), and SMESH_MeshEditor::RotationSweep().

IsNull()

bool SMDS_MeshElement::IsNull ( ) const

inherited

Referenced by SMDS_ElementHolder::beforeCompacting(), SMDS_Mesh::Contains(), SMESHDS_SubMesh::Contains(), SMDS_Mesh::DownCast(), SMDS_ElementFactory::FindElement(), SMESH_MeshEditor::FindEqualElements(), SMDS_MeshCell::GetNodeIndex(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), SMDS_ElementFactory::NewElement(), SMESH_MeshEditor_i::ProjectPoint(), SMESH_MeshEditor::QuadToTri(), and SMESHDS_SubMesh::RemoveElement().

IsPoly()

virtual bool SMDS_MeshElement::IsPoly ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by SMESH_VisualObjDef::buildElemPrs(), StdMeshers_Import_1D2D::Compute(), SMESH_Gen_i::GetBadInputElements(), SMDS_VolumeTool::GetFaceArea(), SMESH_MeshEditor_i::GetPreviewData(), SMDS_VolumeTool::GetSize(), SMESH::Controls::AspectRatio3D::GetValue(), SMESH_MeshEditor::ElemFeatures::Init(), SMESH_MeshEditor::InsertNodesIntoLink(), SMDS_VolumeTool::Inverse(), SMESH::Controls::AspectRatio::IsApplicable(), SMESH::Controls::AspectRatio3D::IsApplicable(), SMDS_VolumeTool::IsLinked(), SMESH_Mesh_i::IsPoly(), DriverDAT_W_SMDS_Mesh::Perform(), DriverMED_W_SMESHDS_Mesh::PerformInternal(), SMDS_MeshInfo::RemoveVolume(), SMDS_VolumeTool::Set(), and SMDS_VolumeTool::setFace().

IsQuadratic()

virtual bool SMDS_MeshElement::IsQuadratic ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by averageByElement(), SMESH_MeshEditor::BestSplit(), centroidalSmooth(), StdMeshers_Projection_3D::Compute(), StdMeshers_RadialPrism_3D::Compute(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertFromQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_MeshAlgos::DeMerge(), StdMeshers_Import_1D::Evaluate(), StdMeshers_Import_1D2D::Evaluate(), StdMeshers_Projection_3D::Evaluate(), SMESH_MeshEditor::ExtrusionSweep(), SMESH_MeshAlgos::FindFaceInSet(), SMESH_MeshEditor::FindMatchingNodes(), StdMeshers_ProjectionUtils::FindMatchingNodesOnFaces(), SMESH_MeshAlgos::FindSharpEdges(), SMESH_MesherHelper::FixQuadraticElements(), getAngle(), SMESH_ElementSearcherImpl::getIntersParamOnLine(), SMESH_MeshEditor::GetLinkedNodes(), SMESH_MesherHelper::GetMediumPos(), SMESH::Controls::AspectRatio3D::GetValue(), SMESH_MeshEditor::ElemFeatures::Init(), SMESH_MeshEditor::InsertNodesIntoLink(), SMDS_VolumeTool::IsFreeFace(), SMDS_VolumeTool::IsFreeFaceCheckAllNodes(), SMDS_VolumeTool::IsLinked(), SMESHGUI_QuadrangleFilter::IsObjValid(), SMESHGUI_TriangleFilter::IsObjValid(), SMESH_Mesh_i::IsQuadratic(), SMESH_MesherHelper::IsQuadraticSubMesh(), SMESH_MeshAlgos::IsRightOrder(), SMESH::Controls::LinearOrQuadratic::IsSatisfy(), SMESHGUI_QuadrangleFilter::IsValid(), SMESHGUI_TriangleFilter::IsValid(), StdMeshers_Penta_3D::MakeBlock(), SMESH_MeshEditor::MakeBoundaryMesh(), SMESH_MeshEditor::makeWalls(), SMDS_VolumeTool::MaxLinearSize2(), SMDS_VolumeTool::MinLinearSize2(), DriverCGNS_Read::Perform(), SMESH_MeshEditor::QuadToTri(), SMDS_MeshInfo::RemoveEdge(), SMESH_MeshEditor::RemoveNodeWithReconnection(), SMESH_MeshEditor::removeQuadElem(), SMESH_MeshEditor::RotationSweep(), SMESH_MeshEditor::Smooth(), SMESH_MeshEditor::SplitFace(), SMESH_MeshEditor::SplitVolumes(), and SMESH_MeshEditor::sweepElement().

IsValidIndex()

bool SMDS_MeshElement::IsValidIndex ( const int  ind ) const

virtualinherited

Return true if index of node is valid (0 <= ind < NbNodes())

Parameters

ind	- node index

Return values

bool	- index check result

References SMDS_MeshElement::NbNodes().

NbCornerNodes()

virtual int SMDS_MeshElement::NbCornerNodes ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_MeshVolume, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by StdMeshers_Quadrangle_2D::check(), StdMeshers_Prism_3D::compute(), StdMeshers_Import_1D2D::Compute(), StdMeshers_QuadToTriaAdaptor::Compute(), SMESH_MeshEditor::convertElemToQuadratic(), SMESH_MeshEditor::ConvertFromQuadratic(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_Mesh_i::CreateDimGroup(), SMESH_MeshAlgos::Intersector::CutByPlanes(), StdMeshers_Import_1D2D::Evaluate(), SMESH_MeshAlgos::FaceNormal(), SMDS_Mesh::FindElement(), findExistingTriangulation(), VISCOUS_3D::_LayerEdge::FindIntersection(), SMESH_ElementSearcherImpl::findOuterBoundary(), SMESH_MeshAlgos::FindSharpEdges(), findTriangles(), VISCOUS_3D::_ViscousBuilder::fixBadFaces(), SMESH_2D_Algo::FixInternalNodes(), SMESH_MesherHelper::FixQuadraticElements(), VISCOUS_3D::getDistFromEdge(), SMESH_VisualObjDef::GetEdgeNodes(), SMESHGUI_PreVisualObj::GetEdgeNodes(), MeshEditor_I::getElementsAround(), SMESH_Algo::GetMeshError(), VISCOUS_3D::_Simplex::GetSimplices(), StdMeshers_Prism_3D::getSweepTolerance(), SMESH_ProxyMesh::HasPrismsOnTwoSides(), SMESH_MesherHelper::IsDistorted2D(), SMDS_VolumeTool::IsLinked(), SMDS_MeshElement::IsMediumNode(), SMESH_MeshAlgos::IsOn2DBoundary(), SMESH_MesherHelper::IsQuadraticSubMesh(), SMESH_MesherHelper::IsReversedSubMesh(), StdMeshers_QuadToTriaAdaptor::LimitHeight(), VISCOUS_3D::_ViscousBuilder::limitStepSize(), SMESH_Pattern::Load(), SMESH_MeshEditor::MakeBoundaryMesh(), VISCOUS_3D::_ViscousBuilder::makeGroupOfLE(), VISCOUS_3D::_ViscousBuilder::makeLayer(), SMESH_MeshAlgos::MakeSlot(), StdMeshers_QuadToTriaAdaptor::MergeAdjacent(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), StdMeshers_QuadToTriaAdaptor::Preparation(), StdMeshers_Sweeper::prepareTopBotDelaunay(), StdMeshers_Prism_3D::projectBottomToTop(), SMESH_MeshEditor::QuadTo4Tri(), SMESH_MeshEditor::QuadToTri(), VISCOUS_3D::_ViscousBuilder::refine(), SMESH_MeshEditor::removeQuadElem(), SMESH_MeshEditor::Reorient2D(), SMESH_MeshEditor::Reorient2DBy3D(), SMESH_MeshAlgos::SeparateFacesByEdges(), SMDS_VolumeTool::Set(), SMESH::Controls::CoplanarFaces::SetMesh(), StdMeshers_Quadrangle_2D::smooth(), SMESH_MeshEditor::Smooth(), SMESH_MeshEditor::SplitFace(), SMESH_MeshEditor::sweepElement(), SMESH_MeshEditor::TriToQuad(), and SMDS_MeshElement::WrappedIndex().

NbEdges()

virtual int SMDS_MeshElement::NbEdges ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_MeshVolume, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by SMESH_Mesh_i::ElemNbEdges().

NbFaces()

virtual int SMDS_MeshElement::NbFaces ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_MeshVolume, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by SMESH_Mesh_i::ElemNbFaces(), DriverMED_W_SMESHDS_Mesh::PerformInternal(), and SMDS_VolumeTool::Set().

NbNodes()

virtual int SMDS_MeshElement::NbNodes ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_MeshVolume, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by SMDS_MeshInfo::add(), SMESH_Delaunay::addCloseNodes(), SMESH_MeshEditor_i::AddPolyhedralVolumeByFaces(), SMESH_MeshEditor::applyMerge(), SMESH_Pattern_i::ApplyToHexahedrons(), averageByElement(), SMESH_MeshEditor::BestSplit(), SMESH_MeshEditor_i::BestSplit(), SMESH_VisualObjDef::buildElemPrs(), centroidalSmooth(), ComparableElement::ComparableElement(), StdMeshers_Import_1D::Compute(), StdMeshers_Import_1D2D::Compute(), StdMeshers_Projection_3D::Compute(), StdMeshers_RadialPrism_3D::Compute(), SMESH_Gen_i::ConcatenateCommon(), SMESH_MeshEditor::ConvertFromQuadratic(), MeshEditor_I::TPreviewMesh::Copy(), SMESH_Gen_i::CopyMesh(), SMESH_Gen_i::CopyMeshWithGeom(), SMESH_Mesh_i::CreateDimGroup(), SMESHGUI_CuttingOfQuadsDlg::displayPreview(), SMESH_MeshEditor::doubleNodes(), SMESH::SelectionProxy::elementGravityCenter(), StdMeshers_Import_1D2D::Evaluate(), StdMeshers_Projection_3D::Evaluate(), SMESH_MeshEditor::ExtrusionSweep(), SMDS_Mesh::Find0DElement(), SMESH_ElementSearcherImpl::FindClosestTo(), SMESH_MeshAlgos::FindCoincidentFreeBorders(), SMDS_Mesh::FindEdge(), SMDS_Mesh::FindElement(), SMDS_Mesh::FindFace(), SMESH_MeshAlgos::FindFaceInSet(), SMESH_MeshAlgos::FindFreeBorders(), SMESH_MeshEditor::FindMatchingNodes(), StdMeshers_ProjectionUtils::FindMatchingNodesOnFaces(), SMESH_MesherHelper::FixQuadraticElements(), SMESH_Gen_i::GetBadInputElements(), getBadRate(), SMESH_MeshAlgos::GetCommonNodes(), SMESH_Mesh_i::GetElemNbNodes(), SMESH_Mesh_i::GetElemNode(), getFinitElements(), SMESH_ElementSearcherImpl::getIntersParamOnLine(), SMESH_MeshEditor::GetLinkedNodes(), SMESH_MeshAlgos::Triangulate::GetNbTriangles(), SMESH::Controls::NumericalFunctor::GetPoints(), SMESH_MeshEditor_i::GetPreviewData(), getQuadrangleNodes(), SMESH_MeshAlgos::Triangulate::GetTriangles(), SMESH::Controls::MultiConnection2D::GetValue(), StdMeshers_Import_1D::importMesh(), SMESH_MeshEditor::InsertNodesIntoLink(), SMESH::Controls::Warping::IsApplicable(), SMESH::Controls::Taper::IsApplicable(), SMESH::Controls::Skew::IsApplicable(), SMESHGUI_QuadrangleFilter::IsObjValid(), SMESHGUI_TriangleFilter::IsObjValid(), SMESH_MeshAlgos::IsOut(), SMESH_MeshAlgos::IsRightOrder(), SMESH::Controls::ElementsOnShape::IsSatisfy(), SMESH::Controls::CoincidentElements::IsSatisfy(), SMESH::Controls::FreeEdges::IsSatisfy(), SMESH::Controls::FreeFaces::IsSatisfy(), SMESHGUI_QuadrangleFilter::IsValid(), SMESHGUI_TriangleFilter::IsValid(), SMDS_MeshElement::IsValidIndex(), _QuadFaceGrid::LoadGrid(), StdMeshers_Penta_3D::LoadIJNodes(), StdMeshers_Penta_3D::MakeBlock(), SMESH_MeshEditor::MakeBoundaryMesh(), StdMeshers_Penta_3D::MakeMeshOnFxy1(), VISCOUS_3D::_ViscousBuilder::MakeN2NMap(), SMESH_Pattern::makePolyElements(), StdMeshers_Penta_3D::MakeVolumeMesh(), StdMeshers_QuadToTriaAdaptor::MergePiramids(), SMESH_MeshAlgos::NbCommonNodes(), SMDS_FaceOfNodes::NbCornerNodes(), SMDS_LinearEdge::NbCornerNodes(), SMDS_PolygonalFaceOfNodes::NbCornerNodes(), SMDS_VolumeOfNodes::NbCornerNodes(), DriverCGNS_Read::Perform(), DriverCGNS_Write::Perform(), DriverDAT_W_SMDS_Mesh::Perform(), DriverMED_W_SMESHDS_Mesh::PerformInternal(), SMESH_Gen_i::Precompute(), StdMeshers_QuadToTriaAdaptor::Preparation(), StdMeshers_Sweeper::prepareTopBotDelaunay(), SMESH_MeshEditor::QuadToTri(), SMDS_MeshInfo::remove(), SMESH_MeshEditor::RotationSweep(), SMDS_VolumeTool::Set(), SMESH_MeshEditor::SewFreeBorder(), SMESH_MeshEditor::SewSideElements(), SMESHGUI_SplitVolumesDlg::showFacetByElement(), VISCOUS_2D::_ViscousBuilder2D::shrink(), VISCOUS_3D::_ViscousBuilder::shrink(), SMESH_MeshEditor::Smooth(), SMESH_MeshEditor::SplitFace(), SMESH_MeshEditor::SplitVolumes(), VISCOUS_3D::_Shrinker1D::SwapSrcTgtNodes(), SMESH_MeshEditor::sweepElement(), SMESH_MeshEditor::Transform(), and SMESH_MeshEditor::TriToQuad().

nodeIterator()

virtual SMDS_NodeIteratorPtr SMDS_MeshElement::nodeIterator ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, SMDS_VolumeOfNodes, and SMDS_MeshVolume.

Referenced by SMESH_Gen_i::ConcatenateCommon(), SMESH_MeshEditor::ConvertToQuadratic(), SMESH_Gen_i::CopyMeshWithGeom(), SMESH_Mesh_i::CreateDimGroup(), SMESH::SelectionProxy::elementConnectivity(), SMESH_MeshEditor::ExtrusionSweep(), SMESH_2D_Algo::FixInternalNodes(), getFinitElements(), SMESH_ProxyMesh::GetInverseElementIterator(), SMESH_MeshEditor_i::GetPreviewData(), SMESH::Measurements_i::GravityCenter(), SMESH_Mesh_i::MakeGroupsOfBadInputElements(), SMESH_MeshAlgos::MakeSlot(), VISCOUS_3D::_ViscousBuilder::refine(), SMDS_Mesh::RemoveFreeElement(), SMESHGUI_SplitVolumesDlg::showFacetByElement(), VISCOUS_3D::_ViscousBuilder::shrink(), and SMESH_MeshEditor::TriToQuad().

nodesIterator()

virtual SMDS_ElemIteratorPtr SMDS_MeshElement::nodesIterator ( ) const

pure virtualinherited

Implemented in SMDS_FaceOfNodes, SMDS_LinearEdge, SMDS_MeshCell, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, SMDS_VolumeOfNodes, and SMDS_MeshVolume.

Referenced by SMDS_Mesh::addChildrenWithNodes(), SMESH_MeshEditor_i::AddPolyhedralVolumeByFaces(), SMESH_MeshEditor::AffectedElemGroupsInRegion(), SMESH_MeshEditor::applyMerge(), averageByElement(), SMESH_Mesh_i::BaryCenter(), SMESH_MeshEditor::BestSplit(), SMESH_VisualObjDef::buildElemPrs(), ComparableElement::ComparableElement(), StdMeshers_Projection_2D::Compute(), MeshEditor_I::TPreviewMesh::Copy(), SMESH_Gen_i::CopyMesh(), SMESH_MeshEditor::Create0DElementsOnAllNodes(), SMESH_Mesh_i::CreateDimGroup(), SMESH_Pattern::createElements(), SMESHGUI_CuttingOfQuadsDlg::displayPreview(), SMESHGUI_CreatePolyhedralVolumeDlg::displaySimulation(), SMESH_MeshEditor::doubleNodes(), SMESH_MeshEditor::DoubleNodesInRegion(), SMESH::SelectionProxy::elementGravityCenter(), StdMeshers_Import_1D2D::Evaluate(), SMESH_ElementSearcherImpl::FindClosestTo(), SMDS_Mesh::FindEdge(), VISCOUS_3D::_ViscousBuilder::findEdgesToUpdateNormalNearConvexFace(), SMDS_Mesh::FindFace(), SMESHGUI_MergeDlg::FindGravityCenter(), SMESH_MeshEditor::FindShape(), getAngle(), SMESH_subMesh_i::GetElementsByType(), SMESH_MeshEditor::GetLinkedNodes(), SMDS_MeshElement::GetNodeIndex(), getNodesFromElems(), getQuadrangleNodes(), SMESH_Mesh_i::GetSubMeshNodesId(), StdMeshers_Prism_3D::getSweepTolerance(), SMESH_ElementSearcherImpl::getTolerance(), SMESH::Controls::MultiConnection2D::GetValue(), SMESH_MeshEditor::InverseDiag(), SMESH_MesherHelper::IsReversedSubMesh(), SMESH::Controls::LyingOnGeom::IsSatisfy(), SMESH::Controls::FreeFaces::IsSatisfy(), SMESH::Controls::ConnectedElements::IsSatisfy(), SMESH_Pattern::Load(), StdMeshers_Penta_3D::LoadIJNodes(), StdMeshers_Penta_3D::MakeMeshOnFxy1(), SMESH_MeshEditor::ExtrusParam::makeNodesByNormal2D(), SMESH_MeshAlgos::MakeOffset(), SMESH_Pattern::makePolyElements(), SMESH_MeshAlgos::MarkElemNodes(), SMESH_MeshEditor::MergeNodes(), DriverDAT_W_SMDS_Mesh::Perform(), DriverMED_W_SMESHDS_Mesh::PerformInternal(), StdMeshers_QuadToTriaAdaptor::Preparation(), SMESH::Controls::ElementsOnSurface::process(), SMESH_MeshEditor::QuadToTri(), SMESH_MeshEditor::Reorient(), SMESH_MeshEditor::RotationSweep(), SMESH_MeshEditor::ExtrusParam::SetElementsToUse(), SMESH_MeshEditor::SewSideElements(), SMESH_MeshEditor::Smooth(), VISCOUS_3D::_ViscousBuilder::smoothAndCheck(), VISCOUS_3D::_Shrinker1D::SwapSrcTgtNodes(), and SMESH_MeshEditor::Transform().

nodesIteratorToUNV()

virtual SMDS_NodeIteratorPtr SMDS_MeshElement::nodesIteratorToUNV ( ) const

virtualinherited

Reimplemented in SMDS_MeshCell.

Print()

void SMDS_MeshElement::Print ( std::ostream &  OS ) const

virtualinherited

Print self.

Reimplemented in SMDS_FaceOfNodes, SMDS_MeshNode, SMDS_PolygonalFaceOfNodes, and SMDS_VolumeOfNodes.

Referenced by operator<<().

setID()

void SMDS_CellOfNodes::setID ( const smIdType  id )

protectedvirtual

References myID.

Referenced by VISCOUS_3D::_TmpMeshFace::_TmpMeshFace().

setIsMarked()

void SMDS_CellOfNodes::setIsMarked ( bool  is ) const

virtual

Mark this element.

Reimplemented from SMDS_MeshElement.

References BIT_IS_MARKED, and myShapeID.

setShapeID() [1/2]

void SMDS_CellOfNodes::setShapeID ( const int  shapeID )

protectedvirtual

References BIT_IS_MARKED, BITS_SHIFT, and myShapeID.

Referenced by VISCOUS_3D::_TmpMeshFace::_TmpMeshFace(), and SMDS_CellOfNodes().

setShapeID() [2/2]

void SMDS_MeshElement::setShapeID ( const int  shapeID ) const

protectedvirtualinherited

Set ID of a shape this element was generated on.

References SMDS_MeshElement::myHolder.

Referenced by SMESHDS_SubMesh::AddElement(), SMESHDS_SubMesh::AddNode(), SMESHDS_SubMesh::Clear(), SMESHDS_SubMesh::RemoveElement(), and SMESHDS_SubMesh::RemoveNode().

setVtkID()

void SMDS_MeshElement::setVtkID ( const vtkIdType  vtkID )

protectedinherited

Store VTK ID.

References SMDS_MeshElement::myHolder, and SMDS_ElementChunk::SetVTKID().

Referenced by SMDS_BallElement::init(), SMDS_MeshVolume::init(), and SMDS_MeshCell::init().

WrappedIndex()

int SMDS_MeshElement::WrappedIndex ( const int  ind ) const

inherited

Return a valid corner node index, fixing the given one if necessary.

Parameters

ind	- node index

Return values

int	- valid node index

References SMDS_MeshElement::NbCornerNodes().

Referenced by SMDS_PolygonalFaceOfNodes::GetNode().

Field Documentation

myHolder

SMDS_ElementChunk* SMDS_MeshElement::myHolder

protectedinherited

Referenced by SMDS_ElementFactory::Free(), SMDS_MeshElement::getGrid(), SMDS_MeshElement::GetID(), SMDS_MeshElement::GetMesh(), SMDS_MeshNode::GetPosition(), SMDS_MeshElement::GetShapeID(), SMDS_MeshElement::GetVtkID(), SMDS_MeshElement::isMarked(), SMDS_ElementFactory::NewElement(), SMDS_MeshElement::setIsMarked(), SMDS_MeshNode::SetPosition(), SMDS_MeshElement::setShapeID(), and SMDS_MeshElement::setVtkID().

myID

smIdType SMDS_CellOfNodes::myID

protected

Referenced by GetID(), and setID().

myShapeID

int SMDS_CellOfNodes::myShapeID

protected

Referenced by GetShapeID(), isMarked(), setIsMarked(), and setShapeID().
