YACS::ENGINE::VisitorSaveSchema Class Reference

Base class for all visitors that save a schema. More...

#include <VisitorSaveSchema.hxx>

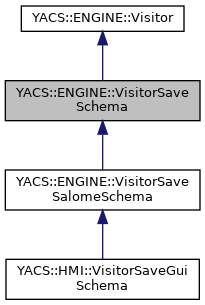

Inheritance diagram for YACS::ENGINE::VisitorSaveSchema:

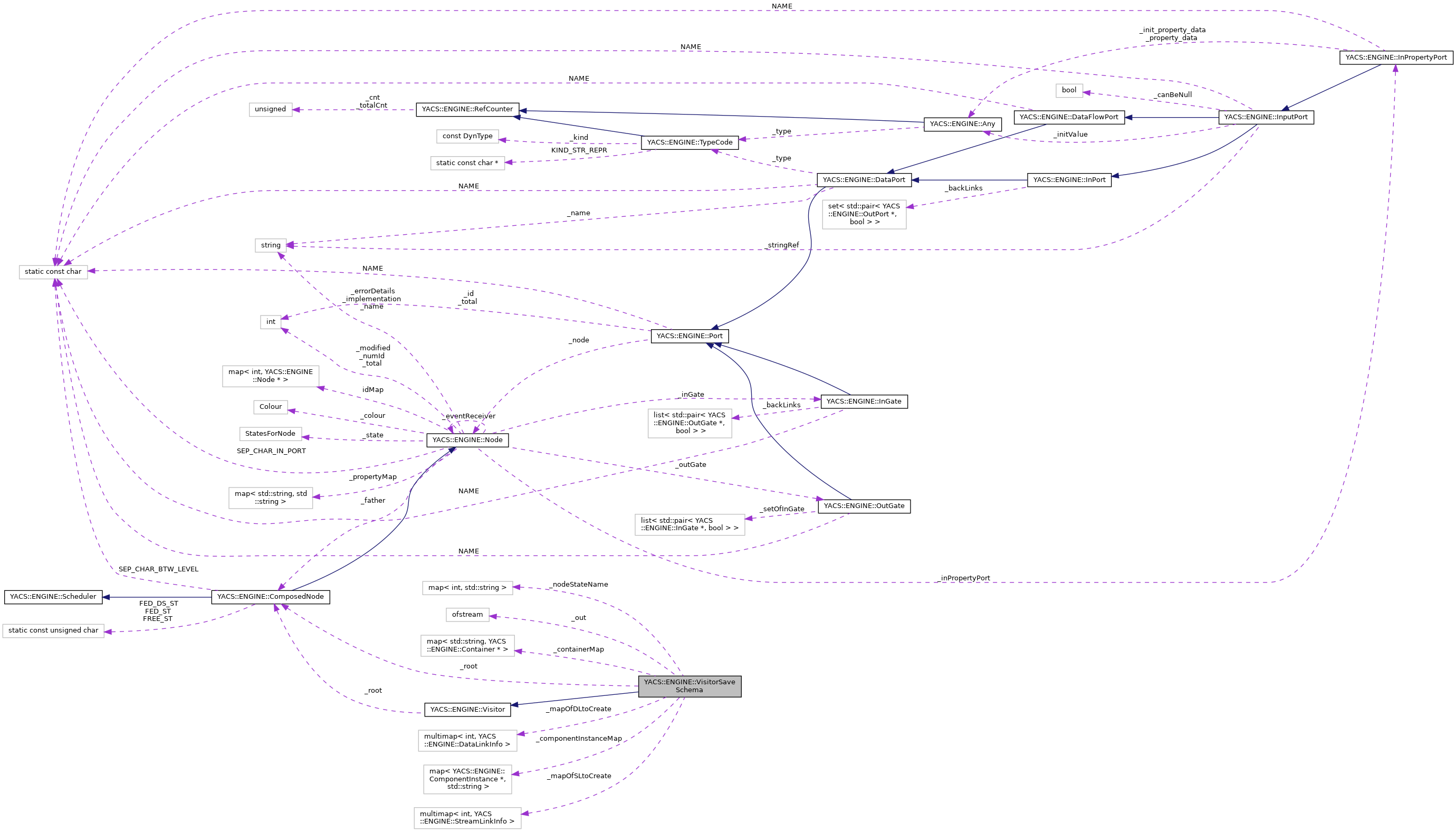

Collaboration diagram for YACS::ENGINE::VisitorSaveSchema:

Public Member Functions
	VisitorSaveSchema (ComposedNode *root)
virtual	~VisitorSaveSchema ()
void	openFileSchema (std::string xmlDump)
void	closeFileSchema ()
virtual void	visitBloc (Bloc *node)
virtual void	visitElementaryNode (ElementaryNode *node)
void	visitForEachLoop (ForEachLoop *node) override
void	visitForEachLoopDyn (ForEachLoopDyn *node) override
virtual void	visitOptimizerLoop (OptimizerLoop *node)
virtual void	visitDynParaLoop (DynParaLoop *node)
virtual void	visitForLoop (ForLoop *node)
virtual void	visitInlineNode (InlineNode *node)
virtual void	visitInlineFuncNode (InlineFuncNode *node)
virtual void	visitLoop (Loop *node)
virtual void	visitProc (Proc *node)
virtual void	visitServiceNode (ServiceNode *node)
virtual void	visitServerNode (ServerNode *node)
virtual void	visitServiceInlineNode (ServiceInlineNode *node)
virtual void	visitSwitch (Switch *node)
virtual void	visitWhileLoop (WhileLoop *node)
virtual void	visitPresetNode (DataNode *node)
virtual void	visitOutNode (DataNode *node)
virtual void	visitStudyInNode (DataNode *node)
virtual void	visitStudyOutNode (DataNode *node)
Public Member Functions inherited from YACS::ENGINE::Visitor
	Visitor (ComposedNode *root)
virtual void	visitBloc (Bloc *node)=0
virtual void	visitElementaryNode (ElementaryNode *node)=0
virtual void	visitForEachLoop (ForEachLoop *node)=0
virtual void	visitForEachLoopDyn (ForEachLoopDyn *node)=0
virtual void	visitOptimizerLoop (OptimizerLoop *node)=0
virtual void	visitDynParaLoop (DynParaLoop *node)=0
virtual void	visitForLoop (ForLoop *node)=0
virtual void	visitInlineNode (InlineNode *node)=0
virtual void	visitInlineFuncNode (InlineFuncNode *node)=0
virtual void	visitLoop (Loop *node)=0
virtual void	visitProc (Proc *node)=0
virtual void	visitServiceNode (ServiceNode *node)=0
virtual void	visitServerNode (ServerNode *node)=0
virtual void	visitServiceInlineNode (ServiceInlineNode *node)=0
virtual void	visitSwitch (Switch *node)=0
virtual void	visitWhileLoop (WhileLoop *node)=0
virtual void	visitPresetNode (DataNode *node)=0
virtual void	visitOutNode (DataNode *node)=0
virtual void	visitStudyInNode (DataNode *node)=0
virtual void	visitStudyOutNode (DataNode *node)=0

Protected Member Functions
virtual void	writeProperties (Node *node)
virtual void	dumpTypeCode (TypeCode *type, std::set< std::string > &typeNames, std::map< std::string, TypeCode * > &typeMap, int depth)
virtual void	writeTypeCodes (Proc *proc)
virtual void	writeContainers (Proc *proc)
virtual void	writeComponentInstances (Proc *proc)
virtual void	writeInputPorts (Node *node)
virtual void	writeInputDataStreamPorts (Node *node)
virtual void	writeOutputPorts (Node *node)
virtual void	writeOutputDataStreamPorts (Node *node)
virtual void	writeControls (ComposedNode *node)
virtual void	writeSimpleDataLinks (ComposedNode *node)
virtual void	writeSimpleStreamLinks (ComposedNode *node)
virtual void	writeParameters (Proc *proc)
virtual void	writeParametersNode (ComposedNode *proc, Node *node)
virtual void	beginCase (Node *node)
virtual void	endCase (Node *node)
std::set< Node * >	getAllNodes (ComposedNode *node)
int	depthNode (Node *node)
std::string	indent (int val)
Protected Member Functions inherited from YACS::ENGINE::Visitor
std::map< std::string, std::string >	getNodeProperties (Node *node)
std::map< std::string, TypeCode * >	getTypeCodeMap (Proc *proc)
std::map< std::string, Container * >	getContainerMap (Proc *proc)
std::list< TypeCodeObjref * >	getListOfBases (TypeCodeObjref *objref)

Protected Attributes
std::ofstream	_out
std::map< int, std::string >	_nodeStateName
std::map< std::string, Container * >	_containerMap
std::map< ComponentInstance *, std::string >	_componentInstanceMap
ComposedNode *	_root
std::multimap< int, DataLinkInfo >	_mapOfDLtoCreate
std::multimap< int, StreamLinkInfo >	_mapOfSLtoCreate
Protected Attributes inherited from YACS::ENGINE::Visitor
ComposedNode *	_root

Detailed Description

Base class for all visitors that save a schema.

Can be specialized in runtime.

Definition at line 59 of file VisitorSaveSchema.hxx.

Constructor & Destructor Documentation

VisitorSaveSchema()

VisitorSaveSchema::VisitorSaveSchema

(

ComposedNode *

root

)

Definition at line 61 of file VisitorSaveSchema.cxx.

                                                      : _root(root), Visitor(root)
{
}

~VisitorSaveSchema()

VisitorSaveSchema::~VisitorSaveSchema ( )

virtual

Definition at line 65 of file VisitorSaveSchema.cxx.

{
  if (_out)
    {
      _out << "</proc>" << endl;
      _out.close();
    }
}

References _out.

Member Function Documentation

beginCase()

void VisitorSaveSchema::beginCase ( Node *  node )

protectedvirtual

Definition at line 1137 of file VisitorSaveSchema.cxx.

{
  Switch *myFather =dynamic_cast<Switch*>(node->getFather());
  if (myFather)
    {
      int depth = depthNode(node) -1;
      int myCase = myFather->getRankOfNode(node);
      if (myCase == Switch::ID_FOR_DEFAULT_NODE)
        _out << indent(depth) << "<default>" << endl;
      else
        _out << indent(depth) << "<case id=\"" << myCase << "\">" << endl;
    }
}

References _out, depthNode(), YACS::ENGINE::Node::getFather(), YACS::ENGINE::Switch::getRankOfNode(), YACS::ENGINE::Switch::ID_FOR_DEFAULT_NODE, and indent().

Referenced by visitBloc(), visitElementaryNode(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitLoop(), visitOptimizerLoop(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitProc(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), and visitWhileLoop().

closeFileSchema()

void VisitorSaveSchema::closeFileSchema

(

)

Definition at line 85 of file VisitorSaveSchema.cxx.

{
  if (!_out) throw Exception("No file open for save schema");
  _out << "</proc>" << endl;
  _out.close();
}

References _out.

Referenced by main(), YACS::HMI::GenericGui::onExportSchema(), YACS::HMI::GenericGui::onExportSchemaAs(), YACS::HMI::GenericGui::onRunLoadedSchema(), YACS::ENGINE::SchemaSave::save(), YACS::ENGINE::Proc::saveSchema(), YACS::ENGINE::SalomeProc::saveSchema(), and YACS::ENGINE::VisitorSaveSalomeSchemaUnsafe().

depthNode()

int VisitorSaveSchema::depthNode ( Node *  node )

protected

Definition at line 1165 of file VisitorSaveSchema.cxx.

{
  int depth = 0;
  ComposedNode *father = node->getFather();
  while (father)
    {
      depth +=1;
      if (dynamic_cast<Switch*>(father)) depth +=1;
      if (father->getNumId() == _root->getNumId()) break;
      father = father->getFather();
    }
  return depth;
}

References _root, YACS::ENGINE::Node::getFather(), and YACS::ENGINE::Node::getNumId().

Referenced by beginCase(), endCase(), visitBloc(), visitDynParaLoop(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitLoop(), visitOptimizerLoop(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), visitWhileLoop(), writeComponentInstances(), writeContainers(), writeControls(), YACS::ENGINE::VisitorSaveSalomeSchema::writeDataNodeParameters(), writeInputDataStreamPorts(), writeInputPorts(), YACS::ENGINE::VisitorSaveSalomeSchema::writeOutNodeParameters(), writeOutputDataStreamPorts(), writeOutputPorts(), writeProperties(), writeSimpleDataLinks(), writeSimpleStreamLinks(), YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyInNodeParameters(), YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyOutNodeParameters(), and writeTypeCodes().

dumpTypeCode()

void VisitorSaveSchema::dumpTypeCode ( TypeCode *  type, std::set< std::string > &  typeNames, std::map< std::string, TypeCode * > &  typeMap, int  depth  )

protectedvirtual

Definition at line 563 of file VisitorSaveSchema.cxx.

{
  DynType kind = type->kind();
  string typeName = type->name();
  if (typeNames.find(typeName) != typeNames.end())
    return;
  switch(kind)
    {
    case YACS::ENGINE::Double:
      {
        typeNames.insert(typeName);
        _out << indent(depth) << "<type name=\"" << typeName << "\" kind=\"double\"/>" << endl;
        break;
      }
    case YACS::ENGINE::Int:
      {
        typeNames.insert(typeName);
        _out << indent(depth) << "<type name=\"" << typeName << "\" kind=\"int\"/>" << endl;
        break;
      }
    case YACS::ENGINE::String:
      {
        typeNames.insert(typeName);
        _out << indent(depth) << "<type name=\"" << typeName << "\" kind=\"string\"/>" << endl;
        break;
      }
    case YACS::ENGINE::Bool:
      {
        typeNames.insert(typeName);
        _out << indent(depth) << "<type name=\"" << typeName << "\" kind=\"bool\"/>" << endl;
        break;
      }
    case YACS::ENGINE::Objref:
      {
        TypeCodeObjref *objref = dynamic_cast<TypeCodeObjref*>(type);
        std::list<TypeCodeObjref*> listOfBases = getListOfBases(objref);
        //try to dump base classes
        for(std::list<TypeCodeObjref*>::iterator il=listOfBases.begin(); il != listOfBases.end(); ++il)
          {
            if (typeNames.find((*il)->name()) == typeNames.end())
              dumpTypeCode((*il),typeNames,typeMap,depth);
          }
        //effective dump
        typeNames.insert(typeName);
        _out << indent(depth) << "<objref name=\"" << typeName << "\" id=\""
             << objref->id() << "\"";
        if (listOfBases.empty())
          _out << "/>" << endl;
        else
          {
            _out << ">" << endl;
            for(std::list<TypeCodeObjref*>::iterator il=listOfBases.begin(); il != listOfBases.end(); ++il)
              {
                _out << indent(depth+1) << "<base>";
                _out << (*il)->name();
                _out << "</base>" << endl;
              }
            _out << indent(depth) << "</objref>" << endl;
          }
        break;
      }
    case YACS::ENGINE::Sequence:
      {
        TypeCode* content = (TypeCode*)type->contentType();
        if (typeNames.find(content->name()) == typeNames.end())
          {
            //content type not dumped
            dumpTypeCode(content,typeNames,typeMap,depth);
          }
        typeNames.insert(typeName);
        _out << indent(depth) << "<sequence name=\"" << typeName << "\" content=\""
             << content->name() <<  "\"/>" << endl;
        break;
      }
    case YACS::ENGINE::Array:
      {
        TypeCode* content = (TypeCode*)type->contentType();
        if (typeNames.find(content->name()) == typeNames.end())
          {
            //content type not dumped
            dumpTypeCode(content,typeNames,typeMap,depth);
          }
        typeNames.insert(typeName);
        _out << indent(depth) << "<array name=\"" << typeName << "\" content=\""
             << content->name() <<  "\"/>" << endl;
        break;
      }
    case YACS::ENGINE::Struct:
      {
        TypeCodeStruct* tcStruct = dynamic_cast<TypeCodeStruct*>(type);
        YASSERT(tcStruct);
        int mbCnt = tcStruct->memberCount();
        for (int i=0; i<mbCnt; i++)
          {
            TypeCode* member = tcStruct->memberType(i);
            if (typeNames.find(member->name()) == typeNames.end())
              {
                //content type not dumped
                dumpTypeCode(member,typeNames,typeMap,depth);
              }
          }
        typeNames.insert(typeName);
        _out << indent(depth) << "<struct name=\"" << typeName << "\">" << endl;
        for (int i=0; i<mbCnt; i++)
          {
            TypeCode* member = tcStruct->memberType(i);
            _out << indent(depth+1) << "<member name=\"" <<tcStruct->memberName(i) << "\" type=\"" << member->name() << "\"/>" << endl;
          }
        _out << indent(depth) << "</struct>" << endl;
        break;
      }
    default:
      {
        string what = "wrong TypeCode: ";
        throw Exception(what);
      }
    }
}

References _out, YACS::ENGINE::Array, YACS::ENGINE::Bool, YACS::ENGINE::TypeCode::contentType(), YACS::ENGINE::Double, dumpTypeCode(), YACS::ENGINE::Visitor::getListOfBases(), yacsorb.CORBAEngineTest::i, YACS::ENGINE::TypeCodeObjref::id(), indent(), YACS::ENGINE::Int, YACS::ENGINE::TypeCode::kind(), YACS::ENGINE::TypeCodeStruct::memberCount(), YACS::ENGINE::TypeCodeStruct::memberName(), YACS::ENGINE::TypeCodeStruct::memberType(), YACS::ENGINE::TypeCode::name(), YACS::ENGINE::Objref, YACS::ENGINE::Sequence, YACS::ENGINE::String, YACS::ENGINE::Struct, and YASSERT.

Referenced by dumpTypeCode(), and writeTypeCodes().

endCase()

void VisitorSaveSchema::endCase ( Node *  node )

protectedvirtual

Definition at line 1151 of file VisitorSaveSchema.cxx.

{
  Switch *myFather =dynamic_cast<Switch*>(node->getFather());
  if (myFather)
    {
      int depth = depthNode(node) -1;
      int myCase = myFather->getRankOfNode(node);
      if (myCase == Switch::ID_FOR_DEFAULT_NODE)
        _out << indent(depth) << "</default>" << endl;
      else
        _out << indent(depth) << "</case>" << endl;
    }
}

References _out, depthNode(), YACS::ENGINE::Node::getFather(), YACS::ENGINE::Switch::getRankOfNode(), YACS::ENGINE::Switch::ID_FOR_DEFAULT_NODE, and indent().

Referenced by visitBloc(), visitElementaryNode(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitLoop(), visitOptimizerLoop(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitProc(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), and visitWhileLoop().

getAllNodes()

std::set< Node * > VisitorSaveSchema::getAllNodes ( ComposedNode *  node )

protected

Definition at line 1077 of file VisitorSaveSchema.cxx.

{
  set<Node *> ret;
  list< Node *> setOfNode = node->edGetDirectDescendants();
  for(list<Node *>::iterator iter=setOfNode.begin();iter!=setOfNode.end();iter++)
    {
      if ( dynamic_cast<ComposedNode*> (*iter) )
        {
          set<Node *> myCurrentSet = getAllNodes(dynamic_cast<ComposedNode*> (*iter));
          ret.insert(myCurrentSet.begin(),myCurrentSet.end());
          ret.insert(*iter);
        }
      else
        {
          list<ElementaryNode *> myCurrentSet=(*iter)->getRecursiveConstituents();
          ret.insert(myCurrentSet.begin(),myCurrentSet.end());
          ret.insert(*iter);
        }
    }
  return ret;
}

References YACS::ENGINE::ComposedNode::edGetDirectDescendants(), and getAllNodes().

Referenced by getAllNodes(), writeParameters(), and YACS::HMI::VisitorSaveGuiSchema::writePresentation().

indent()

std::string YACS::ENGINE::VisitorSaveSchema::indent ( int  val )

inlineprotected

Definition at line 106 of file VisitorSaveSchema.hxx.

      {std::string white; white.append(3*val,' '); return white;};

Referenced by beginCase(), dumpTypeCode(), endCase(), visitBloc(), visitDynParaLoop(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitOptimizerLoop(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), visitWhileLoop(), writeComponentInstances(), writeContainers(), writeControls(), YACS::ENGINE::VisitorSaveSalomeSchema::writeDataNodeParameters(), writeInputDataStreamPorts(), writeInputPorts(), YACS::HMI::VisitorSaveGuiSchema::writeItem(), YACS::ENGINE::VisitorSaveSalomeSchema::writeOutNodeParameters(), writeOutputDataStreamPorts(), writeOutputPorts(), writeParametersNode(), writeProperties(), writeSimpleDataLinks(), writeSimpleStreamLinks(), YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyInNodeParameters(), and YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyOutNodeParameters().

openFileSchema()

void VisitorSaveSchema::openFileSchema

(

std::string

xmlDump

)

Definition at line 74 of file VisitorSaveSchema.cxx.

{
  _out.open(xmlSchema.c_str(), ios::out);
  if (!_out)
    {
      string what = "Impossible to open file for writing: " + xmlSchema;
      throw Exception(what);
    }
  _out << "<?xml version='1.0' encoding='iso-8859-1' ?>" << endl;
}

References _out.

Referenced by main(), YACS::HMI::GenericGui::onExportSchema(), YACS::HMI::GenericGui::onExportSchemaAs(), YACS::HMI::GenericGui::onRunLoadedSchema(), YACS::ENGINE::SchemaSave::save(), YACS::ENGINE::Proc::saveSchema(), YACS::ENGINE::SalomeProc::saveSchema(), and YACS::ENGINE::VisitorSaveSalomeSchemaUnsafe().

visitBloc()

void VisitorSaveSchema::visitBloc ( Bloc *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 92 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitBloc " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  _out << indent(depth) << "<bloc name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;
  writeProperties(node);
  node->ComposedNode::accept(this);
  writeControls(node);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</bloc>" << endl;
  endCase(node);
  DEBTRACE("END visitBloc " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Node::getState(), indent(), writeControls(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitDynParaLoop()

void VisitorSaveSchema::visitDynParaLoop ( DynParaLoop *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 200 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitDynParaLoop " << _root->getChildName(node));
  int depth = depthNode(node);
  if (node->getInitNode() != NULL)
    {
      _out << indent(depth+1) << "<initnode>" << endl;
      node->getInitNode()->accept(this);
      _out << indent(depth+1) << "</initnode>" << endl;
    }
  if (node->getExecNode() != NULL)
    {
      node->getExecNode()->accept(this);
    }
  if (node->getFinalizeNode() != NULL)
    {
      _out << indent(depth+1) << "<finalizenode>" << endl;
      node->getFinalizeNode()->accept(this);
      _out << indent(depth+1) << "</finalizenode>" << endl;
    }
  DEBTRACE("END visitDynParaLoop " << _root->getChildName(node));
}

References _out, _root, YACS::ENGINE::Node::accept(), DEBTRACE, depthNode(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::DynParaLoop::getExecNode(), YACS::ENGINE::DynParaLoop::getFinalizeNode(), YACS::ENGINE::DynParaLoop::getInitNode(), and indent().

visitElementaryNode()

void VisitorSaveSchema::visitElementaryNode ( ElementaryNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 112 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitElementaryNode " << _root->getChildName(node));
  beginCase(node);
  writeProperties(node);
  writeInputPorts(node);
  writeInputDataStreamPorts(node);
  writeOutputPorts(node);
  writeOutputDataStreamPorts(node);
  endCase(node);
  DEBTRACE("END visitElementaryNode " << _root->getChildName(node));
}

References _root, beginCase(), DEBTRACE, endCase(), YACS::ENGINE::ComposedNode::getChildName(), writeInputDataStreamPorts(), writeInputPorts(), writeOutputDataStreamPorts(), writeOutputPorts(), and writeProperties().

visitForEachLoop()

void VisitorSaveSchema::visitForEachLoop ( ForEachLoop *  node )

overridevirtual

Implements YACS::ENGINE::Visitor.

Definition at line 125 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitForEachLoop " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);

  _out << indent(depth) << "<foreach name=\"" << node->getName() << "\"";
  AnyInputPort *nbranch = static_cast<AnyInputPort*>(node->edGetNbOfBranchesPort());
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\"";
  if (!nbranch->isEmpty())
    _out << " nbranch=\"" << nbranch->getIntValue() << "\"";
  _out << " loopWeight=\"" << node->getWeight()->getSimpleLoopWeight() << "\"";
  if (node->edGetSamplePort())
    _out << " type=\"" << node->edGetSamplePort()->edGetType()->name() << "\"";
  _out << ">" << endl;

  writeProperties(node);
  node->DynParaLoop::accept(this);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</foreach>" << endl;
  endCase(node);
  DEBTRACE("END visitForEachLoop " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, YACS::ENGINE::DynParaLoop::edGetNbOfBranchesPort(), YACS::ENGINE::DynParaLoop::edGetSamplePort(), YACS::ENGINE::DataPort::edGetType(), endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::AnyInputPort::getIntValue(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::ComplexWeight::getSimpleLoopWeight(), YACS::ENGINE::Node::getState(), YACS::ENGINE::DynParaLoop::getWeight(), indent(), YACS::ENGINE::AnyInputPort::isEmpty(), YACS::ENGINE::TypeCode::name(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitForEachLoopDyn()

void VisitorSaveSchema::visitForEachLoopDyn ( ForEachLoopDyn *  node )

overridevirtual

Implements YACS::ENGINE::Visitor.

Definition at line 151 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitForEachLoopDyn " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);

  _out << indent(depth) << "<foreachdyn name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\"";
  _out << " loopWeight=\"" << node->getWeight()->getSimpleLoopWeight() << "\"";
  if (node->edGetSamplePort())
    _out << " type=\"" << node->edGetSamplePort()->edGetType()->name() << "\"";
  _out << ">" << endl;

  writeProperties(node);
  node->DynParaLoop::accept(this);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</foreachdyn>" << endl;
  endCase(node);
  DEBTRACE("END visitForEachLoopDyn " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, YACS::ENGINE::DynParaLoop::edGetSamplePort(), YACS::ENGINE::DataPort::edGetType(), endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::ComplexWeight::getSimpleLoopWeight(), YACS::ENGINE::Node::getState(), YACS::ENGINE::DynParaLoop::getWeight(), indent(), YACS::ENGINE::TypeCode::name(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitForLoop()

void VisitorSaveSchema::visitForLoop ( ForLoop *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 223 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitForLoop " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  AnyInputPort *nsteps = static_cast<AnyInputPort*>(node->edGetNbOfTimesInputPort());
  _out << indent(depth) << "<forloop name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\"";
  if (nsteps->isEmpty())
    _out << ">" << endl;
  else
    _out << " nsteps=\"" << nsteps->getIntValue() << "\">" << endl;
  writeProperties(node);
  node->ComposedNode::accept(this);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</forloop>" << endl;
  endCase(node);
  DEBTRACE("END visitForLoop " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, YACS::ENGINE::ForLoop::edGetNbOfTimesInputPort(), endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::AnyInputPort::getIntValue(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Node::getState(), indent(), YACS::ENGINE::AnyInputPort::isEmpty(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitInlineFuncNode()

void VisitorSaveSchema::visitInlineFuncNode ( InlineFuncNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 285 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitInlineFuncNode " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  if(node->getExecutionMode()==InlineNode::LOCAL_STR)
    _out << indent(depth) << "<inline name=\"" << node->getName() << "\"";
  else
    {
      _out << indent(depth) << "<remote name=\"" << node->getName() << "\"";
      _out << " elementaryWeight=\"" << node->getWeight()->getElementaryWeight() << "\"";
    }
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;
  _out << indent(depth+1) << "<function name=\"" << node->getFname() << "\">" << endl;
  _out << indent(depth+2) << "<code><![CDATA[";
  _out << node->getScript();
  _out << "]]></code>" << endl;
  _out << indent(depth+1) << "</function>" << endl;

  //add load container if node is remote
  Container *cont = node->getContainer();
  if (cont)
    _out << indent(depth+1) << "<load container=\"" << cont->getName() << "\"/>" << endl;

  writeProperties(node);
  writeInputPorts(node);
  writeInputDataStreamPorts(node);
  writeOutputPorts(node);
  writeOutputDataStreamPorts(node);

  if(node->getExecutionMode()==InlineNode::LOCAL_STR)
    _out << indent(depth) << "</inline>" << endl;
  else
    _out << indent(depth) << "</remote>" << endl;

  endCase(node);
  DEBTRACE("END visitInlineFuncNode " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::InlineNode::getContainer(), YACS::ENGINE::ComplexWeight::getElementaryWeight(), YACS::ENGINE::InlineNode::getExecutionMode(), YACS::ENGINE::InlineFuncNode::getFname(), YACS::ENGINE::Container::getName(), YACS::ENGINE::Node::getName(), YACS::ENGINE::InlineNode::getScript(), YACS::ENGINE::ElementaryNode::getState(), YACS::ENGINE::ElementaryNode::getWeight(), indent(), YACS::ENGINE::InlineNode::LOCAL_STR, writeInputDataStreamPorts(), writeInputPorts(), writeOutputDataStreamPorts(), writeOutputPorts(), and writeProperties().

visitInlineNode()

void VisitorSaveSchema::visitInlineNode ( InlineNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 245 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitInlineNode " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  if(node->getExecutionMode()==InlineNode::LOCAL_STR)
    _out << indent(depth) << "<inline name=\"" << node->getName() << "\"";
  else
    {
      _out << indent(depth) << "<remote name=\"" << node->getName() << "\"";
      _out << " elementaryWeight=\"" << node->getWeight()->getElementaryWeight() << "\"";
    }
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;
  _out << indent(depth+1) << "<script><code><![CDATA[";
  _out << node->getScript();
  _out << "]]></code></script>" << endl;

  //add load container if node is remote
  Container *cont = node->getContainer();
  if (cont)
    _out << indent(depth+1) << "<load container=\"" << cont->getName() << "\"/>" << endl;

  writeProperties(node);
  writeInputPorts(node);
  writeInputDataStreamPorts(node);
  writeOutputPorts(node);
  writeOutputDataStreamPorts(node);

  if(node->getExecutionMode()==InlineNode::LOCAL_STR)
    _out << indent(depth) << "</inline>" << endl;
  else
    _out << indent(depth) << "</remote>" << endl;

  endCase(node);
  DEBTRACE("END visitInlineNode " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::InlineNode::getContainer(), YACS::ENGINE::ComplexWeight::getElementaryWeight(), YACS::ENGINE::InlineNode::getExecutionMode(), YACS::ENGINE::Container::getName(), YACS::ENGINE::Node::getName(), YACS::ENGINE::InlineNode::getScript(), YACS::ENGINE::ElementaryNode::getState(), YACS::ENGINE::ElementaryNode::getWeight(), indent(), YACS::ENGINE::InlineNode::LOCAL_STR, writeInputDataStreamPorts(), writeInputPorts(), writeOutputDataStreamPorts(), writeOutputPorts(), and writeProperties().

visitLoop()

void VisitorSaveSchema::visitLoop ( Loop *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 327 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitLoop " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  writeProperties(node);
  node->ComposedNode::accept(this);
  writeControls(node);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  endCase(node);
  DEBTRACE("END visitLoop " << _root->getChildName(node));
}

References _root, beginCase(), DEBTRACE, depthNode(), endCase(), YACS::ENGINE::ComposedNode::getChildName(), writeControls(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitOptimizerLoop()

void VisitorSaveSchema::visitOptimizerLoop ( OptimizerLoop *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 174 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitOptimizerLoop " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);

  _out << indent(depth) << "<optimizer name=\"" << node->getName() << "\"";
  AnyInputPort *nbranch = static_cast<AnyInputPort*>(node->edGetNbOfBranchesPort());
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\"";
  if (!nbranch->isEmpty())
    _out << " nbranch=\"" << nbranch->getIntValue() << "\"";
  _out << " loopWeight=\"" << node->getWeight()->getSimpleLoopWeight() << "\"";
  _out << " lib=\"" << node->getAlgLib() << "\"";
  _out << " entry=\"" << node->getSymbol() << "\"";
  _out << ">" << endl;

  writeProperties(node);
  node->DynParaLoop::accept(this);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</optimizer>" << endl;
  endCase(node);
  DEBTRACE("END visitOptimizerLoop " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, YACS::ENGINE::DynParaLoop::edGetNbOfBranchesPort(), endCase(), YACS::ENGINE::OptimizerLoop::getAlgLib(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::AnyInputPort::getIntValue(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::ComplexWeight::getSimpleLoopWeight(), YACS::ENGINE::Node::getState(), YACS::ENGINE::OptimizerLoop::getSymbol(), YACS::ENGINE::DynParaLoop::getWeight(), indent(), YACS::ENGINE::AnyInputPort::isEmpty(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitOutNode()

void VisitorSaveSchema::visitOutNode ( DataNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Reimplemented in YACS::ENGINE::VisitorSaveSalomeSchema.

Definition at line 489 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitOutNode " << _root->getChildName(node));
  DEBTRACE("END visitOutNode " << _root->getChildName(node));
}

References _root, DEBTRACE, and YACS::ENGINE::ComposedNode::getChildName().

visitPresetNode()

void VisitorSaveSchema::visitPresetNode ( DataNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Reimplemented in YACS::ENGINE::VisitorSaveSalomeSchema.

Definition at line 483 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitPresetNode " << _root->getChildName(node));
  DEBTRACE("END visitPresetNode " << _root->getChildName(node));
}

References _root, DEBTRACE, and YACS::ENGINE::ComposedNode::getChildName().

visitProc()

void VisitorSaveSchema::visitProc ( Proc *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 341 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitProc " << node->getName());
  _out << "<proc name=\""<< node->getName() << "\">" << endl;
  beginCase(node);
  writeProperties(node);
  writeTypeCodes(node);
  writeContainers(node);
  writeComponentInstances(node);
  node->ComposedNode::accept(this);
  writeControls(node);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  writeParameters(node);
  endCase(node);
  DEBTRACE("END visitProc " << node->getName());
}

References _out, beginCase(), DEBTRACE, endCase(), YACS::ENGINE::ComposedNode::getName(), writeComponentInstances(), writeContainers(), writeControls(), writeParameters(), writeProperties(), writeSimpleDataLinks(), writeSimpleStreamLinks(), and writeTypeCodes().

visitServerNode()

void VisitorSaveSchema::visitServerNode ( ServerNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 418 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitServerNode " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  _out << indent(depth) << "<server name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;
  Container *cont = node->getContainer();
  map<string, Container*>::const_iterator it;
  for (it = _containerMap.begin(); it != _containerMap.end(); ++it)
    {
      if (it->second == cont) break;
    }
  if (it != _containerMap.end())
    _out << indent(depth+1) << "<loadcontainer>" << it->first << "</loadcontainer>" << endl;
  /*else
    {
      _out << indent(depth+1) << "<node>" << _contnentInstanceMap[cont] << "</node>" << endl;
      }*/
  _out << indent(depth+1) << "<method>" << node->getFname() << "</method>" << endl;
  _out << indent(depth+2) << "<script><code><![CDATA[";
  _out << node->getScript();
  _out << "]]></code></script>" << endl;
  //_out << indent(depth+1) << "</function>" << endl;
  writeProperties(node);
  writeInputPorts(node);
  writeInputDataStreamPorts(node);
  writeOutputPorts(node);
  writeOutputDataStreamPorts(node);
  _out << indent(depth) << "</server>" << endl;
  endCase(node);
  DEBTRACE("END visitServerNode " << _root->getChildName(node));
}

References _containerMap, _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::InlineNode::getContainer(), YACS::ENGINE::InlineFuncNode::getFname(), YACS::ENGINE::Node::getName(), YACS::ENGINE::InlineNode::getScript(), YACS::ENGINE::ElementaryNode::getState(), indent(), writeInputDataStreamPorts(), writeInputPorts(), writeOutputDataStreamPorts(), writeOutputPorts(), and writeProperties().

visitServiceInlineNode()

void VisitorSaveSchema::visitServiceInlineNode ( ServiceInlineNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 455 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitServiceInlineNode " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  _out << indent(depth) << "<serviceInline name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;

  ComponentInstance *compo = node->getComponent();
  if (compo)
    _out << indent(depth+1) << compo->getFileRepr() << endl;

  _out << indent(depth+1) << "<function name=\"" << node->getMethod() << "\">" << endl;
  _out << indent(depth+2) << "<code><![CDATA[";
  _out << node->getScript();
  _out << "]]></code>" << endl;
  _out << indent(depth+1) << "</function>" << endl;
  writeProperties(node);
  writeInputPorts(node);
  writeOutputPorts(node);
  _out << indent(depth) << "</serviceInline>" << endl;
  endCase(node);
  DEBTRACE("END visitServiceInlineNode " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ServiceNode::getComponent(), YACS::ENGINE::ComponentInstance::getFileRepr(), YACS::ENGINE::ServiceNode::getMethod(), YACS::ENGINE::Node::getName(), YACS::ENGINE::ServiceInlineNode::getScript(), YACS::ENGINE::ElementaryNode::getState(), indent(), writeInputPorts(), writeOutputPorts(), and writeProperties().

visitServiceNode()

void VisitorSaveSchema::visitServiceNode ( ServiceNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 359 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitServiceNode " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  _out << indent(depth) << "<service name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;
  if (node->getKind() == "xmlsh")
    {
      _out << indent(depth+1) << "<kind>xmlsh</kind>" << endl;
      _out << indent(depth+1) << "<ref>" << node->getRef() << "</ref>" << endl;
    }
  else
    {
      ComponentInstance *compo = node->getComponent();
      if (compo && !compo->isAnonymous())
        {
          _out << indent(depth+1) << "<componentinstance>" << compo->getInstanceName() << "</componentinstance>" << endl;
        }
      else if (compo && (_componentInstanceMap.find(compo) == _componentInstanceMap.end()))
        {
          _out << indent(depth+1) << compo->getFileRepr() << endl;
          _componentInstanceMap[compo] = _root->getChildName(node);
          Container *cont = compo->getContainer();
          if (cont)
            {
              map<string, Container*>::const_iterator it;
              for (it = _containerMap.begin(); it != _containerMap.end(); ++it)
                {
                  if (it->second == cont) break;
                }
              if (it != _containerMap.end())
                _out << indent(depth+1) << "<load container=\"" << it->first << "\"/>" << endl;
            }
        }
      else if(compo)
        {
          _out << indent(depth+1) << "<node>" << _componentInstanceMap[compo] << "</node>" << endl;
        }
      else
        {
          _out << indent(depth+1) << "<component>" << "UNKNOWN" << "</component>" << endl;
        }
    }
  _out << indent(depth+1) << "<method>" << node->getMethod() << "</method>" << endl;

  writeProperties(node);
  writeInputPorts(node);
  writeInputDataStreamPorts(node);
  writeOutputPorts(node);
  writeOutputDataStreamPorts(node);
  _out << indent(depth) << "</service>" << endl;
  endCase(node);
  DEBTRACE("END visitServiceNode " << _root->getChildName(node));
}

References _componentInstanceMap, _containerMap, _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ServiceNode::getComponent(), YACS::ENGINE::ComponentInstance::getContainer(), YACS::ENGINE::ComponentInstance::getFileRepr(), YACS::ENGINE::ComponentInstance::getInstanceName(), YACS::ENGINE::ServiceNode::getKind(), YACS::ENGINE::ServiceNode::getMethod(), YACS::ENGINE::Node::getName(), YACS::ENGINE::ServiceNode::getRef(), YACS::ENGINE::ElementaryNode::getState(), indent(), YACS::ENGINE::ComponentInstance::isAnonymous(), writeInputDataStreamPorts(), writeInputPorts(), writeOutputDataStreamPorts(), writeOutputPorts(), and writeProperties().

visitStudyInNode()

void VisitorSaveSchema::visitStudyInNode ( DataNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Reimplemented in YACS::ENGINE::VisitorSaveSalomeSchema.

Definition at line 495 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitStudyInNode " << _root->getChildName(node));
  DEBTRACE("END visitStudyInNode " << _root->getChildName(node));
}

References _root, DEBTRACE, and YACS::ENGINE::ComposedNode::getChildName().

visitStudyOutNode()

void VisitorSaveSchema::visitStudyOutNode ( DataNode *  node )

virtual

Implements YACS::ENGINE::Visitor.

Reimplemented in YACS::ENGINE::VisitorSaveSalomeSchema.

Definition at line 501 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitStudyOutNode " << _root->getChildName(node));
  DEBTRACE("END visitStudyOutNode " << _root->getChildName(node));
}

References _root, DEBTRACE, and YACS::ENGINE::ComposedNode::getChildName().

visitSwitch()

void VisitorSaveSchema::visitSwitch ( Switch *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 508 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitSwitch " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  AnyInputPort *condition = static_cast<AnyInputPort*>(node->edGetConditionPort());
  _out << indent(depth) << "<switch name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\"";
  if (condition->isEmpty())
    _out << ">" << endl;
  else
    _out << " select=\"" << condition->getIntValue() << "\">" << endl;
  writeProperties(node);
  node->ComposedNode::accept(this);
  writeControls(node);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</switch>" << endl;
  endCase(node);
  DEBTRACE("END visitSwitch " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, YACS::ENGINE::Switch::edGetConditionPort(), endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::AnyInputPort::getIntValue(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Node::getState(), indent(), YACS::ENGINE::AnyInputPort::isEmpty(), writeControls(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

visitWhileLoop()

void VisitorSaveSchema::visitWhileLoop ( WhileLoop *  node )

virtual

Implements YACS::ENGINE::Visitor.

Definition at line 531 of file VisitorSaveSchema.cxx.

{
  DEBTRACE("START visitWhileLoop " << _root->getChildName(node));
  beginCase(node);
  int depth = depthNode(node);
  _out << indent(depth) << "<while name=\"" << node->getName() << "\"";
  if (node->getState() == YACS::DISABLED)
    _out << " state=\"disabled\">" << endl;
  else
    _out << ">" << endl;
  writeProperties(node);
  node->ComposedNode::accept(this);
  writeSimpleDataLinks(node);
  writeSimpleStreamLinks(node);
  _out << indent(depth) << "</while>" << endl;
  endCase(node);
  DEBTRACE("END visitWhileLoop " << _root->getChildName(node));
}

References _out, _root, beginCase(), DEBTRACE, depthNode(), YACS::DISABLED, endCase(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Node::getState(), indent(), writeProperties(), writeSimpleDataLinks(), and writeSimpleStreamLinks().

writeComponentInstances()

void VisitorSaveSchema::writeComponentInstances ( Proc *  proc )

protectedvirtual

Definition at line 697 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(proc)+1;
  std::map<std::string, ComponentInstance*>::const_iterator it;
  for (it = proc->componentInstanceMap.begin(); it != proc->componentInstanceMap.end(); it++)
    {
      string name = it->first;
      ComponentInstance* inst=it->second;
      if(!inst->isAnonymous())
        {
          _out << indent(depth) << "<componentinstance name=\"" << inst->getInstanceName() << "\">" << endl;
          _out << indent(depth+1) << "<component>" << inst->getCompoName() << "</component>" << endl;

          Container *cont = inst->getContainer();
          if (cont)
            _out << indent(depth+1) << "<load container=\"" << cont->getName() << "\"/>" << endl;

          std::map<std::string, std::string> properties = inst->getProperties();
          std::map<std::string, std::string>::const_iterator itm;
          for(itm = properties.begin(); itm != properties.end(); ++itm)
            _out << indent(depth+1) << "<property name=\"" << (*itm).first
                 << "\" value=\"" << (*itm).second << "\"/>" << endl;

          _out << indent(depth) << "</componentinstance>" << endl;
        }
    }
}

References _out, YACS::ENGINE::Proc::componentInstanceMap, depthNode(), YACS::ENGINE::ComponentInstance::getCompoName(), YACS::ENGINE::ComponentInstance::getContainer(), YACS::ENGINE::ComponentInstance::getInstanceName(), YACS::ENGINE::Container::getName(), YACS::ENGINE::PropertyInterface::getProperties(), indent(), and YACS::ENGINE::ComponentInstance::isAnonymous().

Referenced by visitProc().

writeContainers()

void VisitorSaveSchema::writeContainers ( Proc *  proc )

protectedvirtual

Definition at line 725 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(proc)+1;
  _containerMap = getContainerMap(proc);
  map<string, Container*>::const_iterator it;
  for (it = _containerMap.begin(); it != _containerMap.end(); it++)
    {
      string name = it->first;
      _out << indent(depth) << "<container name=\"" << name << "\">" << endl;
      _out << indent(depth+1) << "<property name=\"" << Container::KIND_ENTRY << "\" value=\"" << it->second->getKind() << "\"/>" << endl;
      _out << indent(depth+1) << "<property name=\"" << Container::AOC_ENTRY << "\" value=\"" << (int)it->second->isAttachedOnCloning() << "\"/>" << endl;
      map<string, string> properties = (it->second)->getProperties();
      map<string, string>::iterator itm;
      for(itm = properties.begin(); itm != properties.end(); ++itm)
        {
          if((*itm).first==Container::KIND_ENTRY)
            continue;
          if((*itm).first==Container::AOC_ENTRY)
            continue;
          if((*itm).first!=HomogeneousPoolContainer::INITIALIZE_SCRIPT_KEY)
            {
              _out << indent(depth+1) << "<property name=\"" << (*itm).first << "\" value=\"" << (*itm).second << "\"/>" << endl;
            }
          else
            {
              _out << indent(depth+1) << "<initializescriptkey><code><![CDATA[" << (*itm).second << "]]></code></initializescriptkey>" << endl;
            }
        }
      _out << indent(depth) << "</container>"  << endl;
    }
}

References _containerMap, _out, YACS::ENGINE::Container::AOC_ENTRY, depthNode(), YACS::ENGINE::Visitor::getContainerMap(), indent(), YACS::ENGINE::HomogeneousPoolContainer::INITIALIZE_SCRIPT_KEY, and YACS::ENGINE::Container::KIND_ENTRY.

Referenced by visitProc().

writeControls()

void VisitorSaveSchema::writeControls ( ComposedNode *  node )

protectedvirtual

Definition at line 824 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<Node*> setOfChildren =  node->edGetDirectDescendants();
  for (list<Node*>::iterator ic = setOfChildren.begin(); ic != setOfChildren.end(); ++ic)
    {
      // --- Control links from direct descendant to nodes inside the bloc
      list<InGate*> setOfInGates = (*ic)->getOutGate()->edSetInGate();
      for (list<InGate*>::iterator ig = setOfInGates.begin(); ig != setOfInGates.end(); ++ig)
        {
          Node *to = (*ig)->getNode();
          if (node->isInMyDescendance(to))
            {
              Node *from = (*ic);
              _out << indent(depth) << "<control> <fromnode>" << node->getChildName(from) << "</fromnode> ";
              _out << "<tonode>" << node->getChildName(to) << "</tonode> </control>" << endl;
            }
        }
      // --- Control links from nodes inside the bloc to direct descendant
      //     avoid links between direct descendants (already done above)
      list<OutGate*> listOfOutGates = (*ic)->getInGate()->getBackLinks();
      for (list<OutGate*>::iterator ig = listOfOutGates.begin(); ig != listOfOutGates.end(); ++ig)
        {
          Node *from = (*ig)->getNode();
          if ((node->isInMyDescendance(from)) && (from->getFather()->getNumId() != node->getNumId()))
            {
              Node *to = *ic;
              _out << indent(depth) << "<control> <fromnode>" << node->getChildName(from) << "</fromnode> ";
              _out << "<tonode>" << node->getChildName(to) << "</tonode> </control>" << endl;
            }
        }
    }
}

References _out, depthNode(), YACS::ENGINE::ComposedNode::edGetDirectDescendants(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::Node::getFather(), YACS::ENGINE::Node::getNumId(), indent(), and YACS::ENGINE::ComposedNode::isInMyDescendance().

Referenced by visitBloc(), visitLoop(), visitProc(), and visitSwitch().

writeInputDataStreamPorts()

void VisitorSaveSchema::writeInputDataStreamPorts ( Node *  node )

protectedvirtual

Definition at line 769 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<InputDataStreamPort*> listOfInputPorts = node->getSetOfInputDataStreamPort();
  for (list<InputDataStreamPort*>::iterator it = listOfInputPorts.begin(); it != listOfInputPorts.end(); ++it)
    {
      std::map<std::string,std::string> aPropMap = (*it)->getProperties();
      if ( aPropMap.empty() )
        _out << indent(depth) << "<instream name=\"" << (*it)->getName() << "\" type=\""
             << (*it)->edGetType()->name() << "\"/>" << endl;
      else
        {
          _out << indent(depth) << "<instream name=\"" << (*it)->getName() << "\" type=\""
               << (*it)->edGetType()->name() << "\">" << endl;
          for (std::map<std::string,std::string>::iterator itP = aPropMap.begin(); itP != aPropMap.end(); itP++)
            _out << indent(depth+1) << "<property name=\"" << (*itP).first << "\" value=\""
                 << (*itP).second << "\"/>" << endl;
          _out << indent(depth) << "</instream>" << endl;
        }
    }
}

References _out, depthNode(), YACS::ENGINE::Node::getSetOfInputDataStreamPort(), and indent().

Referenced by visitElementaryNode(), visitInlineFuncNode(), visitInlineNode(), visitServerNode(), and visitServiceNode().

writeInputPorts()

void VisitorSaveSchema::writeInputPorts ( Node *  node )

protectedvirtual

Definition at line 758 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<InputPort*> listOfInputPorts = node->getSetOfInputPort();
  for (list<InputPort*>::iterator it = listOfInputPorts.begin(); it != listOfInputPorts.end(); ++it)
    {
      _out << indent(depth) << "<inport name=\"" << (*it)->getName() << "\" type=\""
           << (*it)->edGetType()->name() << "\"/>" << endl;
    }
}

References _out, depthNode(), YACS::ENGINE::Node::getSetOfInputPort(), and indent().

Referenced by visitElementaryNode(), visitInlineFuncNode(), visitInlineNode(), visitServerNode(), visitServiceInlineNode(), and visitServiceNode().

writeOutputDataStreamPorts()

void VisitorSaveSchema::writeOutputDataStreamPorts ( Node *  node )

protectedvirtual

Definition at line 802 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<OutputDataStreamPort*> listOfOutputPorts = node->getSetOfOutputDataStreamPort();
  for (list<OutputDataStreamPort*>::iterator it = listOfOutputPorts.begin(); it != listOfOutputPorts.end(); ++it)
    {
      std::map<std::string,std::string> aPropMap = (*it)->getProperties();
      if ( aPropMap.empty() )
        _out << indent(depth) << "<outstream name=\"" << (*it)->getName() << "\" type=\""
             << (*it)->edGetType()->name() << "\"/>" << endl;
      else
        {
          _out << indent(depth) << "<outstream name=\"" << (*it)->getName() << "\" type=\""
               << (*it)->edGetType()->name() << "\">" << endl;
          for (std::map<std::string,std::string>::iterator itP = aPropMap.begin(); itP != aPropMap.end(); itP++)
            _out << indent(depth+1) << "<property name=\"" << (*itP).first << "\" value=\""
                 << (*itP).second << "\"/>" << endl;
          _out << indent(depth) << "</outstream>" << endl;
        }
    }
}

References _out, depthNode(), YACS::ENGINE::Node::getSetOfOutputDataStreamPort(), and indent().

Referenced by visitElementaryNode(), visitInlineFuncNode(), visitInlineNode(), visitServerNode(), and visitServiceNode().

writeOutputPorts()

void VisitorSaveSchema::writeOutputPorts ( Node *  node )

protectedvirtual

Definition at line 791 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<OutputPort*> listOfOutputPorts = node->getSetOfOutputPort();
  for (list<OutputPort*>::iterator it = listOfOutputPorts.begin(); it != listOfOutputPorts.end(); ++it)
    {
      _out << indent(depth) << "<outport name=\"" << (*it)->getName() << "\" type=\""
           << (*it)->edGetType()->name() << "\"/>" << endl;
    }
}

References _out, depthNode(), YACS::ENGINE::Node::getSetOfOutputPort(), and indent().

Referenced by visitElementaryNode(), visitInlineFuncNode(), visitInlineNode(), visitServerNode(), visitServiceInlineNode(), and visitServiceNode().

writeParameters()

void VisitorSaveSchema::writeParameters ( Proc *  proc )

protectedvirtual

Definition at line 1099 of file VisitorSaveSchema.cxx.

{
  //  set<Node*> nodeSet = proc->getAllRecursiveConstituents();
  set<Node*> nodeSet = getAllNodes(proc);
  for (set<Node*>::iterator iter = nodeSet.begin(); iter != nodeSet.end(); ++iter)
    {
      //       ElementaryNode *node = dynamic_cast<ElementaryNode*>(*iter);
      //       if (node)
      //         writeParametersNode(proc,node);
      writeParametersNode(proc,(*iter));
    }
}

References getAllNodes(), and writeParametersNode().

Referenced by visitProc().

writeParametersNode()

void VisitorSaveSchema::writeParametersNode ( ComposedNode *  proc, Node *  node  )

protectedvirtual

Definition at line 1112 of file VisitorSaveSchema.cxx.

{
  int depth = 1;
  list<InputPort *> setOfInputPort = node->getLocalInputPorts();
  list<InputPort *>::iterator iter;
  for(iter = setOfInputPort.begin(); iter != setOfInputPort.end(); ++iter)
    {
      if (!(*iter)->isEmpty())
        {
          _out << indent(depth) << "<parameter>" << endl;
          _out << indent(depth+1) << "<tonode>" << proc->getChildName(node) << "</tonode>";
          _out << "<toport>" << (*iter)->getName() << "</toport>" <<endl;
          try
            {
              _out << indent(depth+1) << (*iter)->dump();
            }
          catch (YACS::Exception &e)
            {
              _out << "<value><error><![CDATA[" << e.what() << "]]></error></value>" << endl;
            }
          _out << indent(depth) << "</parameter>" << endl;
        }
    }
}

References _out, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::Node::getLocalInputPorts(), indent(), and YACS::Exception::what().

Referenced by writeParameters().

writeProperties()

void VisitorSaveSchema::writeProperties ( Node *  node )

protectedvirtual

Definition at line 551 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  map<string,string> properties = getNodeProperties(node);
  map<string,string>::const_iterator it;
  for(it = properties.begin(); it != properties.end(); ++it)
    {
      _out << indent(depth) << "<property name=\"" << it->first
           << "\" value=\"" << it->second << "\"/>" << endl;
    }
}

References _out, depthNode(), YACS::ENGINE::Visitor::getNodeProperties(), and indent().

Referenced by visitBloc(), visitElementaryNode(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitLoop(), visitOptimizerLoop(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitProc(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), and visitWhileLoop().

writeSimpleDataLinks()

void VisitorSaveSchema::writeSimpleDataLinks ( ComposedNode *  node )

protectedvirtual

Write simple data links from and to direct children of node (grand children already done). First, for all output ports of direct children, write links where the input port is inside the node scope. Keep in memory the links where the input port is outside the node scope. Second, retreive links where the output port is inside the scope, using the links kept in memory and not yet written.

Definition at line 865 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<Node*> setOfChildren =  node->edGetDirectDescendants();

  list<Node*> setOfChildrenPlusSplitters = setOfChildren;

  for (list<Node*>::iterator ic = setOfChildren.begin(); ic != setOfChildren.end(); ++ic)
    // add "splitter" node of ForEachLoop nodes to the set of children
    if ( dynamic_cast<ForEachLoopGen*>( *ic ) )
      {
        Node *nodeToInsert=(*ic)->getChildByName(ForEachLoop::NAME_OF_SPLITTERNODE);
        if(find(setOfChildrenPlusSplitters.begin(),setOfChildrenPlusSplitters.end(),nodeToInsert)==setOfChildrenPlusSplitters.end())
          setOfChildrenPlusSplitters.push_back(nodeToInsert);
      }

  // --- first pass,  write links where the input port is inside the node scope. Keep in memory others.

  for (list<Node*>::iterator ic = setOfChildrenPlusSplitters.begin(); ic != setOfChildrenPlusSplitters.end(); ++ic)
    {
      Node* from = *ic;
      list<OutputPort*> listOP = from->getLocalOutputPorts();
      for (list<OutputPort*>::iterator io = listOP.begin(); io != listOP.end(); ++io)
        {
          OutputPort* anOP = *io;
          set<InPort*> setIP = anOP->edSetInPort();
          for (set<InPort*>::iterator iip = setIP.begin(); iip != setIP.end(); ++iip)
            {
              InPort *anIP = *iip;
              Node* to = anIP->getNode();
              DEBTRACE("from " << from->getName() << " outputPort " << anOP->getName()
                       << " to " << to->getName() << " inputPort " << anIP->getName() );
              Node* child = node->isInMyDescendance(to);
              if (child && (child->getNumId() != node->getNumId())
                  && (from->getNumId() != to->getNumId()))
                {
                  DEBTRACE( "BINGO!" );

                  string fromName;
                  if ( dynamic_cast<SplitterNode*>(from) && dynamic_cast<ForEachLoopGen*>(from->getFather()) )
                    fromName = from->getFather()->getName();
                  else
                    fromName = node->getChildName(from);

                  string childName;
                  if ( dynamic_cast<SplitterNode*>(to) && dynamic_cast<ForEachLoopGen*>(to->getFather()) )
                    childName = node->getChildName(to->getFather());
                  else
                    childName = node->getChildName(to);
                  _out << indent(depth) << "<datalink control=\"false\">" << endl;
                  _out << indent(depth+1) << "<fromnode>" << fromName << "</fromnode> ";
                  _out << "<fromport>" << anOP->getName() << "</fromport>" << endl;
                  _out << indent(depth+1) << "<tonode>" << childName << "</tonode> ";
                  _out << "<toport>" << anIP->getName() << "</toport>" << endl;
                  _out << indent(depth) << "</datalink>" << endl;
                }
              else
                { // --- store info to create the link later, given the input port
                  DEBTRACE( "For later" );
                  struct DataLinkInfo aLink = { from, to, anOP, anIP, false };
                  _mapOfDLtoCreate.insert(make_pair(anIP->getNumId(), aLink));
                }
            }
        }
    }

  // --- second pass, retreive links where the output port is inside the scope.

  if (!dynamic_cast<Switch*>(node)) // xml parser does not take into account datalinks in a switch context
    {
      std::multimap<int, DataLinkInfo>::iterator pos;
      for (pos = _mapOfDLtoCreate.begin(); pos != _mapOfDLtoCreate.end(); ++pos)
        {
          Node* to = (pos->second).to;
          Node* child = node->isInMyDescendance(to);
          if (child && (child->getNumId() != node->getNumId()))
            {
              InPort* anIP = (pos->second).inp;
              int portId = anIP->getNumId();
              Node* from = (pos->second).from;
              child = node->isInMyDescendance(from);
              if (child && (child->getNumId() != node->getNumId()))
                if((from->getNumId() != to->getNumId()) || dynamic_cast<Loop*>(node))
                  {
                    string childName = node->getChildName(from);
                    OutPort *anOP = (pos->second).outp;
                    (pos->second).toDelete = true;
                    _out << indent(depth) << "<datalink control=\"false\">" << endl;
                    _out << indent(depth+1) << "<fromnode>" << childName << "</fromnode> ";
                    _out << "<fromport>" << anOP->getName() << "</fromport>" << endl;
                    _out << indent(depth+1) << "<tonode>" << node->getChildName(to) << "</tonode> ";
                    _out << "<toport>" << anIP->getName() << "</toport>" << endl;
                    _out << indent(depth) << "</datalink>" << endl;
                  }
            }
        }

      // --- remove the link written from the multimap

      for (pos = _mapOfDLtoCreate.begin(); pos != _mapOfDLtoCreate.end();)
        {
          if ((pos->second).toDelete)
            _mapOfDLtoCreate.erase(pos++); // be careful not to saw off the branch on which you are sitting!
          else
            ++pos;
        }
    }
}

References _mapOfDLtoCreate, _out, DEBTRACE, depthNode(), YACS::ENGINE::ComposedNode::edGetDirectDescendants(), YACS::ENGINE::OutputPort::edSetInPort(), YACS::ENGINE::Node::getChildByName(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::Node::getFather(), YACS::ENGINE::Node::getLocalOutputPorts(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::DataPort::getName(), YACS::ENGINE::Node::getName(), YACS::ENGINE::Port::getNode(), YACS::ENGINE::Node::getNumId(), YACS::ENGINE::Port::getNumId(), indent(), YACS::ENGINE::ComposedNode::isInMyDescendance(), and YACS::ENGINE::ForEachLoopGen::NAME_OF_SPLITTERNODE.

Referenced by visitBloc(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitLoop(), visitOptimizerLoop(), visitProc(), visitSwitch(), and visitWhileLoop().

writeSimpleStreamLinks()

void VisitorSaveSchema::writeSimpleStreamLinks ( ComposedNode *  node )

protectedvirtual

Definition at line 974 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(node)+1;
  list<Node*> setOfChildren =  node->edGetDirectDescendants();

  // --- first pass,  write links where the input port is inside the node scope. Keep in memory others.

  for (list<Node*>::iterator ic = setOfChildren.begin(); ic != setOfChildren.end(); ++ic)
    {
      Node* from = *ic;
      if ( dynamic_cast<ComposedNode*>(from) ) continue;
      list<OutputDataStreamPort*> listOP = from->getSetOfOutputDataStreamPort();
      for (list<OutputDataStreamPort*>::iterator io = listOP.begin(); io != listOP.end(); ++io)
        {
          OutputDataStreamPort* anOP = *io;
          set<InPort*> setIP = anOP->edSetInPort();
          for (set<InPort*>::iterator iip = setIP.begin(); iip != setIP.end(); ++iip)
            {
              InPort *anIP = *iip;
              Node* to = anIP->getNode();
              DEBTRACE("from " << from->getName() << " outputPort " << anOP->getName()
                       << " to " << to->getName() << " inputPort " << anIP->getName() );
              Node* child = node->isInMyDescendance(to);
              if (child && (child->getNumId() != node->getNumId())
                  && (from->getNumId() != to->getNumId()))
                {
                  DEBTRACE( "BINGO!" );
                  string childName = node->getChildName(to);
                  _out << indent(depth) << "<stream>" << endl;
                  _out << indent(depth+1) << "<fromnode>" << node->getChildName(from) << "</fromnode> ";
                  _out << "<fromport>" << anOP->getName() << "</fromport>" << endl;
                  _out << indent(depth+1) << "<tonode>" << childName << "</tonode> ";
                  _out << "<toport>" << anIP->getName() << "</toport>" << endl;

                  std::map<std::string,std::string> aPropMap = dynamic_cast<InputDataStreamPort*>(anIP)->getProperties();
                  for (std::map<std::string,std::string>::iterator itP = aPropMap.begin(); itP != aPropMap.end(); itP++)
                    {
                      string notAlinkProperty = "DependencyType";
                      if (notAlinkProperty != (*itP).first)
                        _out << indent(depth+1) << "<property name=\"" << (*itP).first << "\" value=\""
                             << (*itP).second << "\"/>" << endl;
                    }
                  _out << indent(depth) << "</stream>" << endl;
                }
              else
                { // --- store info to create the link later, given the input port
                  DEBTRACE("For later" );
                  struct StreamLinkInfo aLink = { from, to, anOP, anIP, false };
                  _mapOfSLtoCreate.insert(make_pair(anIP->getNumId(), aLink));
                }
            }
        }
    }

  // --- second pass, retreive links where the output port is inside the scope.

  if (!dynamic_cast<Switch*>(node)) // xml parser does not take into account datalinks in a switch context
    {
      std::multimap<int, StreamLinkInfo>::iterator pos;
      for (pos = _mapOfSLtoCreate.begin(); pos != _mapOfSLtoCreate.end(); ++pos)
        {
          Node* to = (pos->second).to;
          Node* child = node->isInMyDescendance(to);
          if (child && (child->getNumId() != node->getNumId()))
            {
              InPort* anIP = (pos->second).inp;
              int portId = anIP->getNumId();
              Node* from = (pos->second).from;
              child = node->isInMyDescendance(from);
              if (child && (child->getNumId() != node->getNumId()))
                if((from->getNumId() != to->getNumId()) || dynamic_cast<Loop*>(node))
                  {
                    string childName = node->getChildName(from);
                    OutputDataStreamPort *anOP = (pos->second).outp;
                    (pos->second).toDelete = true;
                    _out << indent(depth) << "<stream>" << endl;
                    _out << indent(depth+1) << "<fromnode>" << childName << "</fromnode> ";
                    _out << "<fromport>" << anOP->getName() << "</fromport>" << endl;
                    _out << indent(depth+1) << "<tonode>" << node->getChildName(to) << "</tonode> ";
                    _out << "<toport>" << anIP->getName() << "</toport>" << endl;

                    std::map<std::string,std::string> aPropMap = dynamic_cast<InputDataStreamPort*>(anIP)->getProperties();
                    for (std::map<std::string,std::string>::iterator itP = aPropMap.begin(); itP != aPropMap.end(); itP++)
                      _out << indent(depth+1) << "<property name=\"" << (*itP).first << "\" value=\""
                           << (*itP).second << "\"/>" << endl;

                    _out << indent(depth) << "</stream>" << endl;
                  }
            }
        }

      // --- remove the link written from the multimap

      for (pos = _mapOfSLtoCreate.begin(); pos != _mapOfSLtoCreate.end();)
        {
          if ((pos->second).toDelete)
            _mapOfSLtoCreate.erase(pos++); // be careful not to saw off the branch on which you are sitting!
          else
            ++pos;
        }
    }
}

References _mapOfSLtoCreate, _out, DEBTRACE, depthNode(), YACS::ENGINE::ComposedNode::edGetDirectDescendants(), YACS::ENGINE::OutputDataStreamPort::edSetInPort(), YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::DataPort::getName(), YACS::ENGINE::Node::getName(), YACS::ENGINE::Port::getNode(), YACS::ENGINE::Node::getNumId(), YACS::ENGINE::Port::getNumId(), YACS::ENGINE::Node::getSetOfOutputDataStreamPort(), indent(), and YACS::ENGINE::ComposedNode::isInMyDescendance().

Referenced by visitBloc(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitLoop(), visitOptimizerLoop(), visitProc(), visitSwitch(), and visitWhileLoop().

writeTypeCodes()

void VisitorSaveSchema::writeTypeCodes ( Proc *  proc )

protectedvirtual

Definition at line 682 of file VisitorSaveSchema.cxx.

{
  int depth = depthNode(proc)+1;
  map<string, TypeCode*> typeMap = getTypeCodeMap(proc);
  map<string, TypeCode*>::const_iterator it;
  set<string> typeNames;

  // --- force definition of simple types first

  for (it = typeMap.begin(); it != typeMap.end(); it++)
    {
      dumpTypeCode(it->second,typeNames,typeMap,depth);
    }
}

References depthNode(), dumpTypeCode(), and YACS::ENGINE::Visitor::getTypeCodeMap().

Referenced by visitProc().

Member Data Documentation

_componentInstanceMap

std::map<ComponentInstance*, std::string> YACS::ENGINE::VisitorSaveSchema::_componentInstanceMap

protected

Definition at line 112 of file VisitorSaveSchema.hxx.

Referenced by visitServiceNode().

_containerMap

std::map<std::string, Container*> YACS::ENGINE::VisitorSaveSchema::_containerMap

protected

Definition at line 111 of file VisitorSaveSchema.hxx.

Referenced by visitServerNode(), visitServiceNode(), and writeContainers().

_mapOfDLtoCreate

std::multimap<int, DataLinkInfo> YACS::ENGINE::VisitorSaveSchema::_mapOfDLtoCreate

protected

Definition at line 114 of file VisitorSaveSchema.hxx.

Referenced by writeSimpleDataLinks().

_mapOfSLtoCreate

std::multimap<int, StreamLinkInfo> YACS::ENGINE::VisitorSaveSchema::_mapOfSLtoCreate

protected

Definition at line 115 of file VisitorSaveSchema.hxx.

Referenced by writeSimpleStreamLinks().

_nodeStateName

std::map<int, std::string> YACS::ENGINE::VisitorSaveSchema::_nodeStateName

protected

Definition at line 110 of file VisitorSaveSchema.hxx.

_out

std::ofstream YACS::ENGINE::VisitorSaveSchema::_out

protected

Definition at line 109 of file VisitorSaveSchema.hxx.

Referenced by beginCase(), closeFileSchema(), dumpTypeCode(), endCase(), openFileSchema(), visitBloc(), visitDynParaLoop(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitOptimizerLoop(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitProc(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), visitWhileLoop(), writeComponentInstances(), writeContainers(), writeControls(), YACS::ENGINE::VisitorSaveSalomeSchema::writeDataNodeParameters(), writeInputDataStreamPorts(), writeInputPorts(), YACS::HMI::VisitorSaveGuiSchema::writeItem(), YACS::ENGINE::VisitorSaveSalomeSchema::writeOutNodeParameters(), writeOutputDataStreamPorts(), writeOutputPorts(), writeParametersNode(), writeProperties(), writeSimpleDataLinks(), writeSimpleStreamLinks(), YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyInNodeParameters(), YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyOutNodeParameters(), and ~VisitorSaveSchema().

_root

ComposedNode* YACS::ENGINE::VisitorSaveSchema::_root

protected

Definition at line 113 of file VisitorSaveSchema.hxx.

Referenced by depthNode(), visitBloc(), visitDynParaLoop(), visitElementaryNode(), visitForEachLoop(), visitForEachLoopDyn(), visitForLoop(), visitInlineFuncNode(), visitInlineNode(), visitLoop(), visitOptimizerLoop(), visitOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitOutNode(), visitPresetNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitPresetNode(), visitServerNode(), visitServiceInlineNode(), visitServiceNode(), visitStudyInNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyInNode(), visitStudyOutNode(), YACS::ENGINE::VisitorSaveSalomeSchema::visitStudyOutNode(), visitSwitch(), and visitWhileLoop().

---

The documentation for this class was generated from the following files:

• src/engine/VisitorSaveSchema.hxx
• src/engine/VisitorSaveSchema.cxx
