Feature for creation of extrusion from the planar face. More...

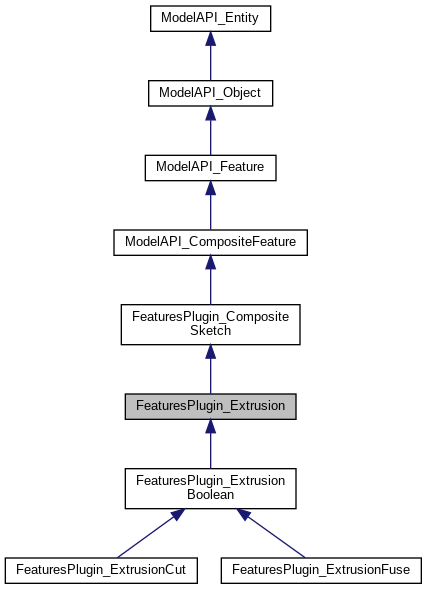

Inheritance diagram for FeaturesPlugin_Extrusion:

Public Member Functions
	FeaturesPlugin_Extrusion ()
	Use plugin manager for features creation. More...

virtual const std::string &	getKind ()

virtual void	initAttributes ()
	Request for initialization of data model of the feature: adding all attributes. More...

virtual void	execute ()
	Performs the algorithm and stores results it in the data structure. More...

virtual std::shared_ptr< ModelAPI_Feature >	addFeature (std::string theID)
	Appends a feature to the sketch sub-elements container. More...

virtual int	numberOfSubs (bool forTree=false) const

virtual std::shared_ptr< ModelAPI_Feature >	subFeature (const int theIndex, bool forTree=false)

virtual int	subFeatureId (const int theIndex) const

virtual bool	isSub (ObjectPtr theObject) const

virtual void	removeFeature (std::shared_ptr< ModelAPI_Feature > theFeature)
	This method to inform that sub-feature is removed and must be removed from the internal data structures of the owner (the remove from the document will be done outside just after). More...

virtual void	erase ()
	in addition removes all subs More...

virtual std::shared_ptr< ModelAPI_Document >	document () const
	Returns document this feature belongs to. More...

std::shared_ptr< ModelAPI_AttributeDocRef >	document (const std::string &theID)
	Returns the document reference attribute. More...

virtual std::string	groupName ()
	Returns the group identifier of this result. More...

virtual bool	compute (const std::string &)
	Computes the attribute value on the base of other attributes if the value can be computed. More...

virtual MODELAPI_EXPORT void	setError (const std::string &theError, bool isSend=true, bool isTranslate=true)
	Registers error during the execution, causes the ExecutionFailed state. More...

virtual std::string	error () const
	Returns error, arose during the execution. More...

MODELAPI_EXPORT const std::list< std::shared_ptr< ModelAPI_Result > > &	results ()
	returns the current results of the feature More...

MODELAPI_EXPORT std::shared_ptr< ModelAPI_Result >	firstResult () const
	returns the first result in the list or NULL reference More...

MODELAPI_EXPORT std::shared_ptr< ModelAPI_Result >	lastResult ()
	returns the last result in the list or NULL reference More...

MODELAPI_EXPORT void	setResult (const std::shared_ptr< ModelAPI_Result > &theResult)
	sets the alone result More...

MODELAPI_EXPORT void	setResult (const std::shared_ptr< ModelAPI_Result > &theResult, const int theIndex)
	sets the result by index (zero based), results before this must be set before More...

MODELAPI_EXPORT void	removeResults (const int theSinceIndex, const bool theForever=true, const bool theFlush=true)
	removes all results starting from the given index (zero-based) More...

MODELAPI_EXPORT void	eraseResults (const bool theForever=true)
	removes all results from the feature More...

MODELAPI_EXPORT void	eraseResultFromList (const std::shared_ptr< ModelAPI_Result > &theResult)
	removes the result from the list of feature (not doing in disabled): normally this method is not used from features. More...

virtual bool	isPersistentResult ()
	Returns true if result is persistent (stored in document) and on undo-redo, save-open it is not needed to recompute it. More...

virtual bool	isAction ()
	Returns true if this feature must not be created: this is just an action that is not stored in the features history and data model (like "delete part"). More...

virtual MODELAPI_EXPORT bool	isMacro () const
	Returns true if this feature is used as macro: creates other features and then removed. More...

virtual MODELAPI_EXPORT bool	isPreviewNeeded () const
	Returns true if preview update during the edition needed. More...

virtual MODELAPI_EXPORT const std::string &	documentToAdd ()
	Must return document where the new feature must be added to By default it is empty: it is added to the document this method is called to. More...

virtual MODELAPI_EXPORT bool	setDisabled (const bool theFlag)
	Enables/disables the feature. More...

virtual MODELAPI_EXPORT bool	isDisabled ()
	Returns the feature is disabled or not. More...

virtual MODELAPI_EXPORT bool	setStable (const bool theFlag)
	Set the stable feature flag. More...

virtual MODELAPI_EXPORT bool	isStable ()
	Returns the feature is stable or not. More...

virtual MODELAPI_EXPORT bool	isEditable ()
	Returns the feature is editable or not. Most of features are editable. More...

virtual MODELAPI_EXPORT bool	customAction (const std::string &theActionId)
	Performs some custom feature specific functionality (normally called by some GUI button) More...

virtual MODELAPI_EXPORT ListOfShape	vertices (const bool theOnlyUnique=false)
	Returns all the vertices produced by this feature. More...

virtual MODELAPI_EXPORT ListOfShape	edges (const bool theOnlyUnique=false)
	Returns all the edges produced by this feature. More...

virtual MODELAPI_EXPORT ListOfShape	wires (const bool theOnlyUnique=false)
	Returns all the wires produced by this feature. More...

virtual MODELAPI_EXPORT ListOfShape	faces (const bool theOnlyUnique=false)
	Returns all the faces produced by this feature. More...

virtual MODELAPI_EXPORT ListOfShape	shells (const bool theOnlyUnique=false)
	Returns all the shells produced by this feature. More...

virtual MODELAPI_EXPORT ListOfShape	solids (const bool theOnlyUnique=false)
	Returns all the solids produced by this feature. More...

std::wstring	name ()
	Returns the name stored in the attribute. More...

std::shared_ptr< ModelAPI_AttributeBoolean >	boolean (const std::string &theID)
	Returns the Boolean attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeDouble >	real (const std::string &theID)
	Returns the real attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeInteger >	integer (const std::string &theID)
	Returns the integer attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeIntArray >	intArray (const std::string &theID)
	Returns the integer array attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeRefAttr >	refattr (const std::string &theID)
	Returns the reference attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeRefAttrList >	refattrlist (const std::string &theID)
	Returns the refattrlist attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeReference >	reference (const std::string &theID)
	Returns the reference attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeRefList >	reflist (const std::string &theID)
	Returns the list of references attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeSelection >	selection (const std::string &theID)
	Returns the shape selection attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeSelectionList >	selectionList (const std::string &theID)
	Returns the list of shape selections attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeString >	string (const std::string &theID)
	Returns the string attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeStringArray >	stringArray (const std::string &theID)
	Returns the string array attribute by the identifier. More...

std::shared_ptr< ModelAPI_AttributeTables >	tables (const std::string &theID)
	Returns the tables attribute by the identifier. More...

std::shared_ptr< ModelAPI_Attribute >	attribute (const std::string &theID)
	Returns the attribute by the identifier. More...

virtual bool	isInHistory ()
	By default object is displayed in the object browser. More...

virtual void	setInHistory (const std::shared_ptr< ModelAPI_Object > theObject, const bool theFlag)
	Makes object presented or not in the history of the created objects. More...

virtual std::shared_ptr< ModelAPI_Data >	data () const
	Returns the data manager of this object: attributes. More...

virtual bool	isSame (const std::shared_ptr< ModelAPI_Object > &theObject)
	Returns true if object refers to the same data model instance. More...

virtual void	colorConfigInfo (std::string &, std::string &, std::string &)
	Returns the parameters of color definition in the resources config manager. More...

virtual void	attributeChanged (const std::string &theID)
	Called on change of any argument-attribute of this object. More...

virtual bool	isDisplayed ()
	Returns true if object must be displayed in the viewer: flag is stored in the data model, so on undo/redo, open/save or recreation of object by history-playing it keeps the original state in the current transaction. More...

virtual void	setDisplayed (const bool theDisplay)
	Sets the displayed/hidden state of the object. More...

virtual bool	hasTexture ()

virtual void	emptyFunction () const
	Empty function which is added for virtualiation of the interface. More...

Static Public Member Functions
static const std::string &	ID ()
	Feature kind. More...

static const std::string &	CREATION_METHOD ()
	Attribute name for creation method. More...

static const std::string &	CREATION_METHOD_BY_SIZES ()
	Attribute name for creation method. More...

static const std::string &	CREATION_METHOD_BY_PLANES ()
	Attribute name for creation method. More...

static const std::string &	CREATION_METHOD_THROUGH_ALL ()
	Attribute name for creation method. More...

static const std::string &	DIRECTION_OBJECT_ID ()
	Attribute name of an object to which the extrusion grows. More...

static const std::string &	TO_SIZE_ID ()
	Attribute name of extrusion to size. More...

static const std::string &	FROM_SIZE_ID ()
	Attribute name of extrusion from size. More...

static const std::string &	TO_OBJECT_ID ()
	Attribute name of an object to which the extrusion grows. More...

static const std::string &	TO_OFFSET_ID ()
	Attribute name of extrusion offset. More...

static const std::string &	FROM_OBJECT_ID ()
	Attribute name of an object from which the extrusion grows. More...

static const std::string &	FROM_OFFSET_ID ()
	Attribute name of extrusion offset. More...

static const std::string &	SKETCH_ID ()
	Attribute name of sketch feature. More...

static const std::string &	BASE_OBJECTS_ID ()
	Attribute name of base objects. More...

static std::string	group ()
	Returns the group identifier of all features. More...

static MODELAPI_EXPORT std::shared_ptr< ModelAPI_Feature >	feature (ObjectPtr theObject)
	Returns the feature by the object (result). More...

Protected Types
enum	InitFlags { InitSketchLauncher = 1 << 0 , InitBaseObjectsList = 1 << 1 }

Protected Member Functions
bool	makeExtrusions (ListOfShape &theBaseShapes, ListOfShape &theBoundaryShapes, ListOfMakeShape &theMakeShapes)
	Generates extrusions. More...

void	storeResultWithBoundaries (const GeomShapePtr theBaseShape, const ListOfShape &theBoundaryShapes, const std::shared_ptr< GeomAlgoAPI_MakeShape > theMakeShape, const int theIndex=0)
	Stores result of generation. More...

void	getDirection (std::shared_ptr< GeomAPI_Dir > &theDir)
	Retrieve direction argument. More...

virtual void	getSizes (double &theToSize, double &theFromSize)
	Retrieve or calculate prism sizes. More...

void	initCompositeSketchAttribtues (const int theInitFlags)
	Initializes composite sketch attributes. More...

void	getBaseShapes (ListOfShape &theBaseShapesList, const bool theIsMakeShells=true)
	Returns list of base shapes. More...

void	storeResult (const GeomShapePtr theBaseShape, const std::shared_ptr< GeomAlgoAPI_MakeShape > theMakeShape, const int theIndex=0)
	Stores result of generation. More...

void	storeGenerationHistory (ResultBodyPtr theResultBody, const GeomShapePtr theBaseShape, const std::shared_ptr< GeomAlgoAPI_MakeShape > theMakeShape)
	Stores generation history. More...

void	storeShapes (const std::shared_ptr< GeomAlgoAPI_MakeShape > theMakeShape, ResultBodyPtr theResultBody, const GeomAPI_Shape::ShapeType theBaseShapeType, const ListOfShape &theShapes, const std::string theName)
	Used to store from and to shapes: generated, or in common modified tag. More...

virtual MODELAPI_EXPORT void	init ()
	This method is called just after creation of the object: it must initialize all fields, normally initialized in the constructor. More...

virtual void	setData (std::shared_ptr< ModelAPI_Data > theData)
	Sets the data manager of an object (document does) More...

virtual void	setDoc (std::shared_ptr< ModelAPI_Document > theDoc)
	Sets the data manager of an object (document does) More...

Detailed Description

Feature for creation of extrusion from the planar face.

Extrusion creates the lateral faces based on edges of the base face and the top and bottom faces equal to the base face or this faces can be projection on the bounding planes if they were set. Direction of extrusion is taken from the face plane or if the bounding faces were set then it will be from the bottom to the top plane.

Constructor & Destructor Documentation

◆ FeaturesPlugin_Extrusion()

FeaturesPlugin_Extrusion::FeaturesPlugin_Extrusion ( )

Use plugin manager for features creation.

Member Function Documentation

◆ ID()

static const std::string& FeaturesPlugin_Extrusion::ID ( )

inlinestatic

Feature kind.

◆ CREATION_METHOD()

static const std::string& FeaturesPlugin_Extrusion::CREATION_METHOD ( )

inlinestatic

Attribute name for creation method.

◆ CREATION_METHOD_BY_SIZES()

static const std::string& FeaturesPlugin_Extrusion::CREATION_METHOD_BY_SIZES ( )

inlinestatic

Attribute name for creation method.

◆ CREATION_METHOD_BY_PLANES()

static const std::string& FeaturesPlugin_Extrusion::CREATION_METHOD_BY_PLANES ( )

inlinestatic

Attribute name for creation method.

◆ CREATION_METHOD_THROUGH_ALL()

static const std::string& FeaturesPlugin_Extrusion::CREATION_METHOD_THROUGH_ALL ( )

inlinestatic

Attribute name for creation method.

◆ DIRECTION_OBJECT_ID()

static const std::string& FeaturesPlugin_Extrusion::DIRECTION_OBJECT_ID ( )

inlinestatic

Attribute name of an object to which the extrusion grows.

◆ TO_SIZE_ID()

static const std::string& FeaturesPlugin_Extrusion::TO_SIZE_ID ( )

inlinestatic

Attribute name of extrusion to size.

◆ FROM_SIZE_ID()

static const std::string& FeaturesPlugin_Extrusion::FROM_SIZE_ID ( )

inlinestatic

Attribute name of extrusion from size.

◆ TO_OBJECT_ID()

static const std::string& FeaturesPlugin_Extrusion::TO_OBJECT_ID ( )

inlinestatic

Attribute name of an object to which the extrusion grows.

◆ TO_OFFSET_ID()

static const std::string& FeaturesPlugin_Extrusion::TO_OFFSET_ID ( )

inlinestatic

Attribute name of extrusion offset.

◆ FROM_OBJECT_ID()

static const std::string& FeaturesPlugin_Extrusion::FROM_OBJECT_ID ( )

inlinestatic

Attribute name of an object from which the extrusion grows.

◆ FROM_OFFSET_ID()

static const std::string& FeaturesPlugin_Extrusion::FROM_OFFSET_ID ( )

inlinestatic

Attribute name of extrusion offset.

◆ getKind()

virtual const std::string& FeaturesPlugin_Extrusion::getKind ( )

inlinevirtual

Returns: the kind of a feature.

Implements ModelAPI_Feature.

Reimplemented in FeaturesPlugin_ExtrusionFuse, and FeaturesPlugin_ExtrusionCut.

◆ initAttributes()

void FeaturesPlugin_Extrusion::initAttributes ( )

virtual

Request for initialization of data model of the feature: adding all attributes.

Implements ModelAPI_Object.

Reimplemented in FeaturesPlugin_ExtrusionBoolean.

◆ execute()

void FeaturesPlugin_Extrusion::execute ( )

virtual

Performs the algorithm and stores results it in the data structure.

Implements ModelAPI_Feature.

Reimplemented in FeaturesPlugin_ExtrusionFuse, and FeaturesPlugin_ExtrusionCut.

◆ makeExtrusions()

bool FeaturesPlugin_Extrusion::makeExtrusions	(	ListOfShape &	theBaseShapes,
		ListOfShape &	theBoundaryShapes,
		ListOfMakeShape &	theMakeShapes
	)

protected

Generates extrusions.

Parameters

[out]	theBaseShapes	list of base shapes.
[out]	theBoundaryShapes	list of faces limiting the extrusion
[out]	theMakeShapes	list of according algos.

Returns: false in case one of algo failed.

◆ storeResultWithBoundaries()

void FeaturesPlugin_Extrusion::storeResultWithBoundaries	(	const GeomShapePtr	theBaseShape,
		const ListOfShape &	theBoundaryShapes,
		const std::shared_ptr< GeomAlgoAPI_MakeShape >	theMakeShape,
		const int	theIndex = `0`
	)

protected

Stores result of generation.

◆ getDirection()

void FeaturesPlugin_Extrusion::getDirection ( std::shared_ptr< GeomAPI_Dir > & theDir )

protected

Retrieve direction argument.

◆ getSizes()

void FeaturesPlugin_Extrusion::getSizes	(	double &	theToSize,
		double &	theFromSize
	)

protectedvirtual

Retrieve or calculate prism sizes.

Reimplemented in FeaturesPlugin_ExtrusionBoolean.

◆ SKETCH_ID()

static const std::string& FeaturesPlugin_CompositeSketch::SKETCH_ID ( )

inlinestaticinherited

Attribute name of sketch feature.

◆ BASE_OBJECTS_ID()

static const std::string& FeaturesPlugin_CompositeSketch::BASE_OBJECTS_ID ( )

inlinestaticinherited

Attribute name of base objects.

◆ addFeature()

std::shared_ptr< ModelAPI_Feature > FeaturesPlugin_CompositeSketch::addFeature ( std::string theID )

virtualinherited

Appends a feature to the sketch sub-elements container.

Implements ModelAPI_CompositeFeature.

◆ numberOfSubs()

int FeaturesPlugin_CompositeSketch::numberOfSubs ( bool forTree = false ) const

virtualinherited

Returns: the number of sub-elements.

Implements ModelAPI_CompositeFeature.

◆ subFeature()

std::shared_ptr< ModelAPI_Feature > FeaturesPlugin_CompositeSketch::subFeature	(	const int	theIndex,
		bool	forTree = `false`
	)

virtualinherited

Returns: the sub-feature by zero-base index.

Implements ModelAPI_CompositeFeature.

◆ subFeatureId()

int FeaturesPlugin_CompositeSketch::subFeatureId ( const int theIndex ) const

virtualinherited

Returns: the sub-feature unique identifier in this composite feature by zero-base index.

Implements ModelAPI_CompositeFeature.

◆ isSub()

bool FeaturesPlugin_CompositeSketch::isSub ( ObjectPtr theObject ) const

virtualinherited

Returns: true if feature or result belong to this composite feature as subs.

Implements ModelAPI_CompositeFeature.

◆ removeFeature()

void FeaturesPlugin_CompositeSketch::removeFeature ( std::shared_ptr< ModelAPI_Feature > theFeature )

virtualinherited

This method to inform that sub-feature is removed and must be removed from the internal data structures of the owner (the remove from the document will be done outside just after).

Implements ModelAPI_CompositeFeature.

◆ initCompositeSketchAttribtues()

void FeaturesPlugin_CompositeSketch::initCompositeSketchAttribtues ( const int theInitFlags )

protectedinherited

Initializes composite sketch attributes.

◆ getBaseShapes()

void FeaturesPlugin_CompositeSketch::getBaseShapes	(	ListOfShape &	theBaseShapesList,
		const bool	theIsMakeShells = `true`
	)

protectedinherited

Returns list of base shapes.

Parameters

[out]	theBaseShapesList	list of base shapes (warning: list not cleared).
[in]	theIsMakeShells	if true make shells from faces with shared edges.

◆ storeResult()

void FeaturesPlugin_CompositeSketch::storeResult	(	const GeomShapePtr	theBaseShape,
		const std::shared_ptr< GeomAlgoAPI_MakeShape >	theMakeShape,
		const int	theIndex = `0`
	)

protectedinherited

Stores result of generation.

◆ storeGenerationHistory()

void FeaturesPlugin_CompositeSketch::storeGenerationHistory	(	ResultBodyPtr	theResultBody,
		const GeomShapePtr	theBaseShape,
		const std::shared_ptr< GeomAlgoAPI_MakeShape >	theMakeShape
	)

protectedinherited

Stores generation history.

◆ storeShapes()

void FeaturesPlugin_CompositeSketch::storeShapes	(	const std::shared_ptr< GeomAlgoAPI_MakeShape >	theMakeShape,
		ResultBodyPtr	theResultBody,
		const GeomAPI_Shape::ShapeType	theBaseShapeType,
		const ListOfShape &	theShapes,
		const std::string	theName
	)

protectedinherited

Used to store from and to shapes: generated, or in common modified tag.

◆ erase()

void ModelAPI_CompositeFeature::erase ( )

virtualinherited

in addition removes all subs

Reimplemented from ModelAPI_Feature.

Reimplemented in PartSetPlugin_Part.

◆ group()

static std::string ModelAPI_Feature::group ( )

inlinestaticinherited

Returns the group identifier of all features.

◆ document() [1/2]

virtual std::shared_ptr<ModelAPI_Document> ModelAPI_Feature::document ( ) const

inlinevirtualinherited

Returns document this feature belongs to.

Reimplemented from ModelAPI_Object.

◆ document() [2/2]

std::shared_ptr<ModelAPI_AttributeDocRef> ModelAPI_Feature::document ( const std::string & theID )

inlineinherited

Returns the document reference attribute.

◆ groupName()

virtual std::string ModelAPI_Feature::groupName ( )

inlinevirtualinherited

Returns the group identifier of this result.

Implements ModelAPI_Object.

◆ compute()

virtual bool ModelAPI_Feature::compute ( const std::string & )

inlinevirtualinherited

Computes the attribute value on the base of other attributes if the value can be computed.

Parameters

theAttributeId an attribute index to be computed

Returns: a boolean value about it is computed

Reimplemented in SketchPlugin_ConstraintRadius, SketchPlugin_ConstraintLength, and SketchPlugin_ConstraintAngle.

◆ setError()

void ModelAPI_Feature::setError	(	const std::string &	theError,
		bool	isSend = `true`,
		bool	isTranslate = `true`
	)

virtualinherited

Registers error during the execution, causes the ExecutionFailed state.

◆ error()

virtual std::string ModelAPI_Feature::error ( ) const

inlinevirtualinherited

Returns error, arose during the execution.

◆ results()

const std::list< std::shared_ptr< ModelAPI_Result > > & ModelAPI_Feature::results ( )

inherited

returns the current results of the feature

◆ firstResult()

std::shared_ptr< ModelAPI_Result > ModelAPI_Feature::firstResult ( ) const

inherited

returns the first result in the list or NULL reference

◆ lastResult()

std::shared_ptr< ModelAPI_Result > ModelAPI_Feature::lastResult ( )

inherited

returns the last result in the list or NULL reference

◆ setResult() [1/2]

void ModelAPI_Feature::setResult ( const std::shared_ptr< ModelAPI_Result > & theResult )

inherited

sets the alone result

◆ setResult() [2/2]

void ModelAPI_Feature::setResult	(	const std::shared_ptr< ModelAPI_Result > &	theResult,
		const int	theIndex
	)

inherited

sets the result by index (zero based), results before this must be set before

◆ removeResults()

void ModelAPI_Feature::removeResults	(	const int	theSinceIndex,
		const bool	theForever = `true`,
		const bool	theFlush = `true`
	)

inherited

removes all results starting from the given index (zero-based)

Parameters

theSinceIndex	- index of the deleted result and all after also will be deleted
theForever	- removes results for long period (not just because of feature disabling)
theFlush	- if it is false, REDISPLAY message is not flushed

◆ eraseResults()

void ModelAPI_Feature::eraseResults ( const bool theForever = true )

inherited

removes all results from the feature

◆ eraseResultFromList()

void ModelAPI_Feature::eraseResultFromList ( const std::shared_ptr< ModelAPI_Result > & theResult )

inherited

removes the result from the list of feature (not doing in disabled): normally this method is not used from features.

only internally

◆ isPersistentResult()

virtual bool ModelAPI_Feature::isPersistentResult ( )

inlinevirtualinherited

Returns true if result is persistent (stored in document) and on undo-redo, save-open it is not needed to recompute it.

Reimplemented in ParametersPlugin_ParametersMgr, CollectionPlugin_GroupOperation, CollectionPlugin_Group, and CollectionPlugin_Field.

◆ isAction()

virtual bool ModelAPI_Feature::isAction ( )

inlinevirtualinherited

Returns true if this feature must not be created: this is just an action that is not stored in the features history and data model (like "delete part").

Reimplemented in PartSetPlugin_Remove, and PartSetPlugin_Duplicate.

◆ isMacro()

bool ModelAPI_Feature::isMacro ( ) const

virtualinherited

Returns true if this feature is used as macro: creates other features and then removed.

Returns: false by default

Reimplemented in SketchPlugin_Trim, SketchPlugin_Split, SketchPlugin_SketchDrawer, SketchPlugin_SketchCopy, SketchPlugin_Projection, SketchPlugin_MacroEllipticArc, SketchPlugin_MacroEllipse, SketchPlugin_MacroCircle, SketchPlugin_MacroBSpline, SketchPlugin_MacroArc, SketchPlugin_Fillet, SketchPlugin_CurveFitting, ParametersPlugin_ParametersMgr, FeaturesPlugin_SharedFaces, FeaturesPlugin_PointCoordinates, FeaturesPlugin_Measurement, FeaturesPlugin_InspectNormalToFace, FeaturesPlugin_InspectBoundingBox, FeaturesPlugin_GeometryCalculation, ExchangePlugin_ImportPart, ExchangePlugin_ImportBase, ExchangePlugin_ExportPart, ExchangePlugin_ExportFeature, and ExchangePlugin_Dump.

◆ isPreviewNeeded()

bool ModelAPI_Feature::isPreviewNeeded ( ) const

virtualinherited

Returns true if preview update during the edition needed.

Otherwise the update-mechanism calls the execute function only on "apply" of the operation

Returns: true by default

Reimplemented in SketchPlugin_Trim, SketchPlugin_Split, SketchPlugin_SketchDrawer, SketchPlugin_SketchCopy, SketchPlugin_Offset, SketchPlugin_MacroEllipticArc, SketchPlugin_MacroEllipse, SketchPlugin_MacroCircle, SketchPlugin_MacroBSpline, SketchPlugin_MacroArc, SketchPlugin_Fillet, SketchPlugin_CurveFitting, ParametersPlugin_ParametersMgr, ParametersPlugin_Parameter, ExchangePlugin_ImportPart, ExchangePlugin_ImportFeatureBase, ExchangePlugin_ImportBase, ExchangePlugin_ExportPart, ExchangePlugin_ExportFeature, and ExchangePlugin_Dump.

◆ documentToAdd()

const std::string & ModelAPI_Feature::documentToAdd ( )

virtualinherited

Must return document where the new feature must be added to By default it is empty: it is added to the document this method is called to.

Reimplemented in PartSetPlugin_Part.

◆ setDisabled()

bool ModelAPI_Feature::setDisabled ( const bool theFlag )

virtualinherited

Enables/disables the feature.

The disabled feature has no results and does not participate in any calculation.

Returns: true if state is really changed

◆ isDisabled()

bool ModelAPI_Feature::isDisabled ( )

virtualinherited

Returns the feature is disabled or not.

Implements ModelAPI_Object.

◆ feature()

FeaturePtr ModelAPI_Feature::feature ( ObjectPtr theObject )

staticinherited

Returns the feature by the object (result).

◆ setStable()

bool ModelAPI_Feature::setStable ( const bool theFlag )

virtualinherited

Set the stable feature flag.

If feature is currently editing then it is not stable.

Returns: true if state is really changed

◆ isStable()

bool ModelAPI_Feature::isStable ( )

virtualinherited

Returns the feature is stable or not.

◆ isEditable()

bool ModelAPI_Feature::isEditable ( )

virtualinherited

Returns the feature is editable or not. Most of features are editable.

Reimplemented in ExchangePlugin_ImportFeature.

◆ customAction()

bool ModelAPI_Feature::customAction ( const std::string & theActionId )

virtualinherited

Performs some custom feature specific functionality (normally called by some GUI button)

Parameters

theActionId an action key

Returns: a boolean value about it is performed

Reimplemented in SketchPlugin_Sketch, SketchPlugin_Offset, SketchPlugin_CurveFitting, SketchPlugin_BSplineBase, CollectionPlugin_Group, and BuildPlugin_Wire.

◆ vertices()

ListOfShape ModelAPI_Feature::vertices ( const bool theOnlyUnique = false )

virtualinherited

Returns all the vertices produced by this feature.

◆ edges()

ListOfShape ModelAPI_Feature::edges ( const bool theOnlyUnique = false )

virtualinherited

Returns all the edges produced by this feature.

◆ wires()

ListOfShape ModelAPI_Feature::wires ( const bool theOnlyUnique = false )

virtualinherited

Returns all the wires produced by this feature.

◆ faces()

ListOfShape ModelAPI_Feature::faces ( const bool theOnlyUnique = false )

virtualinherited

Returns all the faces produced by this feature.

◆ shells()

ListOfShape ModelAPI_Feature::shells ( const bool theOnlyUnique = false )

virtualinherited

Returns all the shells produced by this feature.

◆ solids()

ListOfShape ModelAPI_Feature::solids ( const bool theOnlyUnique = false )

virtualinherited

Returns all the solids produced by this feature.

◆ name()

std::wstring ModelAPI_Feature::name ( )

inlineinherited

Returns the name stored in the attribute.

◆ boolean()

std::shared_ptr<ModelAPI_AttributeBoolean> ModelAPI_Feature::boolean ( const std::string & theID )

inlineinherited

Returns the Boolean attribute by the identifier.

◆ real()

std::shared_ptr<ModelAPI_AttributeDouble> ModelAPI_Feature::real ( const std::string & theID )

inlineinherited

Returns the real attribute by the identifier.

◆ integer()

std::shared_ptr<ModelAPI_AttributeInteger> ModelAPI_Feature::integer ( const std::string & theID )

inlineinherited

Returns the integer attribute by the identifier.

◆ intArray()

std::shared_ptr<ModelAPI_AttributeIntArray> ModelAPI_Feature::intArray ( const std::string & theID )

inlineinherited

Returns the integer array attribute by the identifier.

◆ refattr()

std::shared_ptr<ModelAPI_AttributeRefAttr> ModelAPI_Feature::refattr ( const std::string & theID )

inlineinherited

Returns the reference attribute by the identifier.

◆ refattrlist()

std::shared_ptr<ModelAPI_AttributeRefAttrList> ModelAPI_Feature::refattrlist ( const std::string & theID )

inlineinherited

Returns the refattrlist attribute by the identifier.

◆ reference()

std::shared_ptr<ModelAPI_AttributeReference> ModelAPI_Feature::reference ( const std::string & theID )

inlineinherited

Returns the reference attribute by the identifier.

◆ reflist()

std::shared_ptr<ModelAPI_AttributeRefList> ModelAPI_Feature::reflist ( const std::string & theID )

inlineinherited

Returns the list of references attribute by the identifier.

◆ selection()

std::shared_ptr<ModelAPI_AttributeSelection> ModelAPI_Feature::selection ( const std::string & theID )

inlineinherited

Returns the shape selection attribute by the identifier.

◆ selectionList()

std::shared_ptr<ModelAPI_AttributeSelectionList> ModelAPI_Feature::selectionList ( const std::string & theID )

inlineinherited

Returns the list of shape selections attribute by the identifier.

◆ string()

std::shared_ptr<ModelAPI_AttributeString> ModelAPI_Feature::string ( const std::string & theID )

inlineinherited

Returns the string attribute by the identifier.

◆ stringArray()

std::shared_ptr<ModelAPI_AttributeStringArray> ModelAPI_Feature::stringArray ( const std::string & theID )

inlineinherited

Returns the string array attribute by the identifier.

◆ tables()

std::shared_ptr<ModelAPI_AttributeTables> ModelAPI_Feature::tables ( const std::string & theID )

inlineinherited

Returns the tables attribute by the identifier.

◆ attribute()

std::shared_ptr<ModelAPI_Attribute> ModelAPI_Feature::attribute ( const std::string & theID )

inlineinherited

Returns the attribute by the identifier.

◆ init()

void ModelAPI_Feature::init ( )

protectedvirtualinherited

This method is called just after creation of the object: it must initialize all fields, normally initialized in the constructor.

Implements ModelAPI_Object.

◆ isInHistory()

bool ModelAPI_Object::isInHistory ( )

virtualinherited

By default object is displayed in the object browser.

Reimplemented in SketchPlugin_Sketch, SketchPlugin_Feature, ParametersPlugin_ParametersMgr, ParametersPlugin_Parameter, Model_ResultConstruction, FiltersPlugin_Selection, FeaturesPlugin_RemoveResults, ExchangePlugin_ExportPart, and ExchangePlugin_ExportFeature.

◆ setInHistory()

void ModelAPI_Object::setInHistory	(	const std::shared_ptr< ModelAPI_Object >	theObject,
		const bool	theFlag
	)

virtualinherited

Makes object presented or not in the history of the created objects.

Parameters

theObject	is shared pointer to "this"
theFlag	is boolean value: to add or remove from the history

◆ data()

std::shared_ptr< ModelAPI_Data > ModelAPI_Object::data ( ) const

virtualinherited

Returns the data manager of this object: attributes.

◆ isSame()

bool ModelAPI_Object::isSame ( const std::shared_ptr< ModelAPI_Object > & theObject )

virtualinherited

Returns true if object refers to the same data model instance.

◆ colorConfigInfo()

virtual void ModelAPI_Object::colorConfigInfo	(	std::string &	,
		std::string &	,
		std::string &
	)

inlinevirtualinherited

Returns the parameters of color definition in the resources config manager.

Reimplemented in SketchPlugin_ConstraintRadius, SketchPlugin_ConstraintLength, SketchPlugin_ConstraintDistance, SketchPlugin_ConstraintAngle, Model_ResultPart, Model_ResultGroup, Model_ResultField, Model_ResultConstruction, and Model_ResultBody.

◆ attributeChanged()

void ModelAPI_Object::attributeChanged ( const std::string & theID )

virtualinherited

Called on change of any argument-attribute of this object.

Parameters

theID identifier of changed attribute

Reimplemented in ExchangePlugin_ImportBase, ExchangePlugin_Import_Image, ExchangePlugin_Import, SketchPlugin_Sketch, SketchPlugin_Projection, SketchPlugin_Point, SketchPlugin_Offset, SketchPlugin_MultiTranslation, SketchPlugin_MultiRotation, SketchPlugin_MacroEllipticArc, SketchPlugin_MacroEllipse, SketchPlugin_MacroCircle, SketchPlugin_MacroArc, SketchPlugin_Line, SketchPlugin_IntersectionPoint, SketchPlugin_EllipticArc, SketchPlugin_Ellipse, SketchPlugin_ConstraintRadius, SketchPlugin_ConstraintMirror, SketchPlugin_ConstraintMiddle, SketchPlugin_ConstraintLength, SketchPlugin_ConstraintDistanceAlongDir, SketchPlugin_ConstraintDistance, SketchPlugin_ConstraintAngle, SketchPlugin_Circle, SketchPlugin_BSplineBase, SketchPlugin_BSpline, SketchPlugin_Arc, ParametersPlugin_Parameter, ModelAPI_Result, FeaturesPlugin_Thickness, FeaturesPlugin_SharedFaces, FeaturesPlugin_RemoveSubShapes, FeaturesPlugin_Recover, FeaturesPlugin_PointCoordinates, FeaturesPlugin_PointCloudOnFace, FeaturesPlugin_NormalToFace, FeaturesPlugin_Measurement, FeaturesPlugin_InspectNormalToFace, FeaturesPlugin_InspectBoundingBox, FeaturesPlugin_GroupSharedFaces, FeaturesPlugin_GeometryCalculation, FeaturesPlugin_Fillet1D, FeaturesPlugin_BoundingBox, ExchangePlugin_ImportPart, ExchangePlugin_ExportFeature, BuildPlugin_SubShapes, BuildPlugin_Interpolation, and BuildPlugin_Filling.

◆ isDisplayed()

bool ModelAPI_Object::isDisplayed ( )

virtualinherited

Returns true if object must be displayed in the viewer: flag is stored in the data model, so on undo/redo, open/save or recreation of object by history-playing it keeps the original state in the current transaction.

Reimplemented in ModelAPI_ResultField::ModelAPI_FieldStep.

◆ setDisplayed()

void ModelAPI_Object::setDisplayed ( const bool theDisplay )

virtualinherited

Sets the displayed/hidden state of the object.

If it is changed, sends the "redisplay" signal.

Reimplemented in ModelAPI_ResultField, ModelAPI_ResultField::ModelAPI_FieldStep, and ModelAPI_ResultBody.

◆ setData()

void ModelAPI_Object::setData ( std::shared_ptr< ModelAPI_Data > theData )

protectedvirtualinherited

Sets the data manager of an object (document does)

◆ setDoc()

void ModelAPI_Object::setDoc ( std::shared_ptr< ModelAPI_Document > theDoc )

protectedvirtualinherited

Sets the data manager of an object (document does)

◆ emptyFunction()

virtual void ModelAPI_Entity::emptyFunction ( ) const

inlinevirtualinherited

Empty function which is added for virtualiation of the interface.

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ FeaturesPlugin_Extrusion()

Member Function Documentation

◆ ID()

◆ CREATION_METHOD()

◆ CREATION_METHOD_BY_SIZES()

◆ CREATION_METHOD_BY_PLANES()

◆ CREATION_METHOD_THROUGH_ALL()

◆ DIRECTION_OBJECT_ID()

◆ TO_SIZE_ID()

◆ FROM_SIZE_ID()

◆ TO_OBJECT_ID()

◆ TO_OFFSET_ID()

◆ FROM_OBJECT_ID()

◆ FROM_OFFSET_ID()

◆ getKind()

◆ initAttributes()

◆ execute()

◆ makeExtrusions()

◆ storeResultWithBoundaries()

◆ getDirection()

◆ getSizes()

◆ SKETCH_ID()

◆ BASE_OBJECTS_ID()

◆ addFeature()

◆ numberOfSubs()

◆ subFeature()

◆ subFeatureId()

◆ isSub()

◆ removeFeature()

◆ initCompositeSketchAttribtues()

◆ getBaseShapes()

◆ storeResult()

◆ storeGenerationHistory()

◆ storeShapes()

◆ erase()

◆ group()

◆ document() [1/2]

◆ document() [2/2]

◆ groupName()

◆ compute()

◆ setError()

◆ error()

◆ results()

◆ firstResult()

◆ lastResult()

◆ setResult() [1/2]

◆ setResult() [2/2]

◆ removeResults()

◆ eraseResults()

◆ eraseResultFromList()

◆ isPersistentResult()

◆ isAction()

◆ isMacro()

◆ isPreviewNeeded()

◆ documentToAdd()

◆ setDisabled()

◆ isDisabled()

◆ feature()

◆ setStable()

◆ isStable()

◆ isEditable()

◆ customAction()

◆ vertices()

◆ edges()

◆ wires()

◆ faces()

◆ shells()

◆ solids()

◆ name()

◆ boolean()

◆ real()

◆ integer()

◆ intArray()

◆ refattr()
